New GMC Angle Iron Benders, Ring Roller with 3 Square Dies PRB-75H

Manufacturer

GMC

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

7284

Model

PRB-75H

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
ROLLS, ANGLE BENDING
Manufacturer:
GMC
Model:
PRB-75H
Stock #:
7284
Status:
For Sale

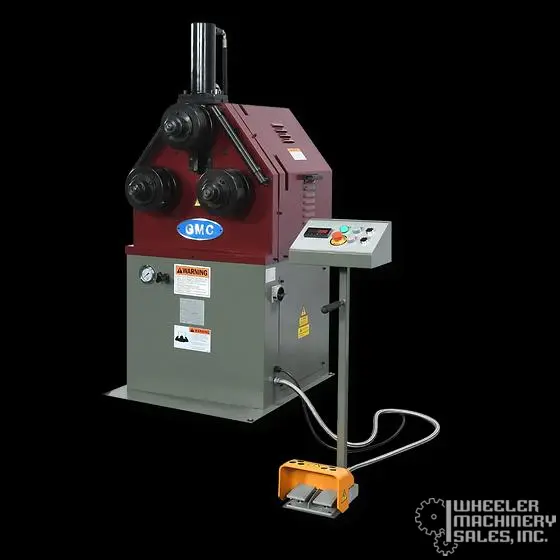

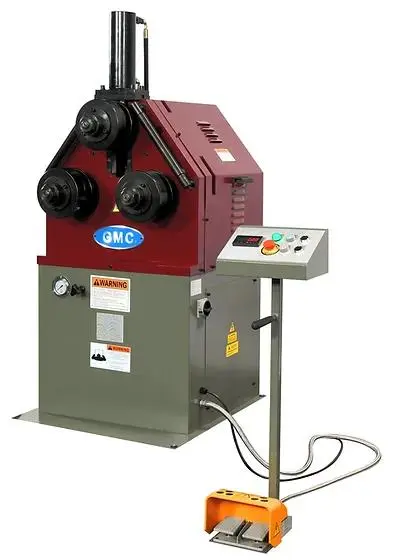

New GMC Angle Iron Benders, Ring Roller with 3 Square Dies PRB-75H

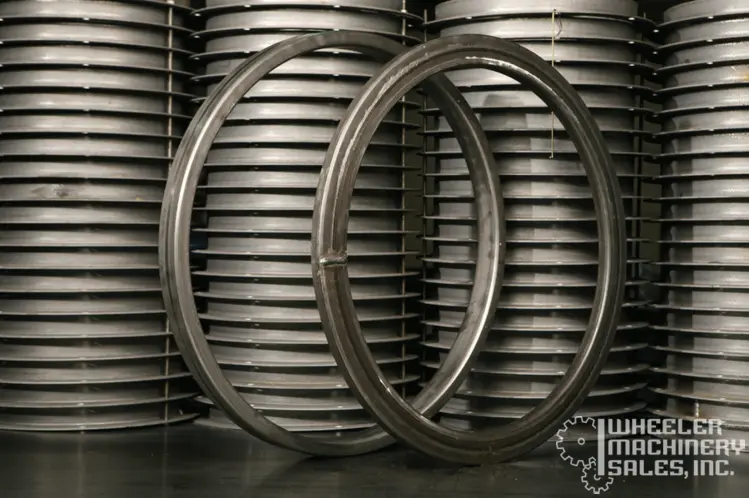

​Our PRB-75H Angle Iron Benders aka profile bending machines are fully equipped with a 3" die set to roll metal square tube into rings. These roll benders are the perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops.

ISO 9001 certified

Hydraulic top roller positioning with digital readout

Max capacity: 4” tube and 3-1/2” pipe

Heavy Duty 5-1/2HP AC main motor

Heavy welded all steel construction

Quiet compact hydraulic system

Custom-made rollers are available per request, such as steel, nylon, etc.

One year industrial warranty for parts

One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)

Foot pedal

Optional roller sets for pipe & round tubing, any size, one set (3-rolls) - call for pricing

Optional anti-twisting attachment - call for pricing

Dia. of Roller 8 1/2"

Dia. of Roller Shaft 3"

Roller Speed 16 RPM

Motor 5-1/2" HP, 220V/440V, 3 Phase

Dimiensions 51" x 45" x 72"

Weight (with top roller hydraulic positioning)

2,450 lbs.

Oil Capacity 28L =8 Gal

Optional Roll Sets:

34T-PRB-75H ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H

1T-PRB-75H ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H

114T-PRB-75H ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H

112T-PRB-75H ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H

2T-PRB-75H ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H

212T-PRB-75H

3T-PRB-75H

ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H

ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H

34P-PRB-75H ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H

1P-PRB-75H ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H

114P-PRB-75H ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H

112P-PRB-75H ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H

2P-PRB-75H ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H

212P-PRB-75H

3P-PRB-75H

ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H

ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H
