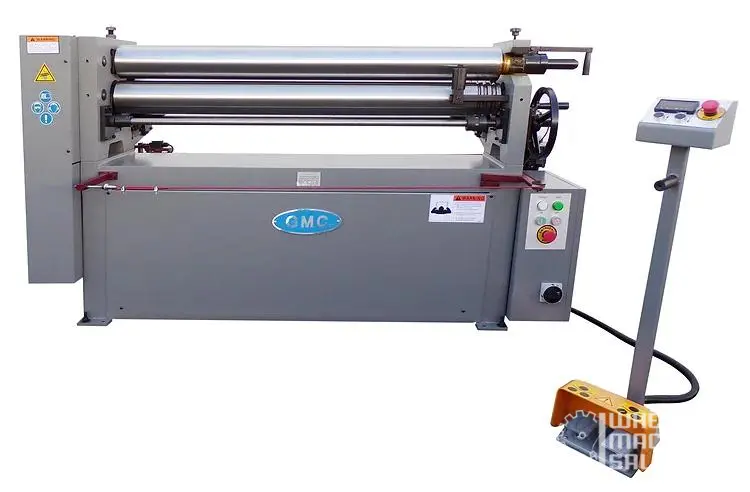

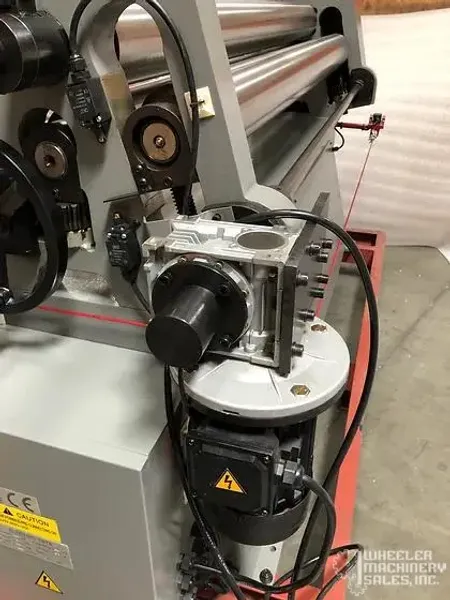

New GMC Power Bending Rolls 5' x 3/16" PBR-05316E

Manufacturer

GMC

Category

Fabricating Machines

Type

PLASMA CUTTERS

Stock

7303

Model

PBR-05316E

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
PLASMA/OXYGEN CUTTING SYSTEM
Manufacturer:
GMC
Model:
PBR-05316E
Stock #:
7303
Status:
For Sale

Description

Discover the new GMC PBR-05316E Power Bending Rolls, perfect for precise bending with hardened 50-52 HRC rolls. Features include forward/reverse foot pedal, adjustable cone attachment, heavy-duty steel construction, and 220V or optional 440V power.

SO 9001 certified

Taiwan machines

All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy

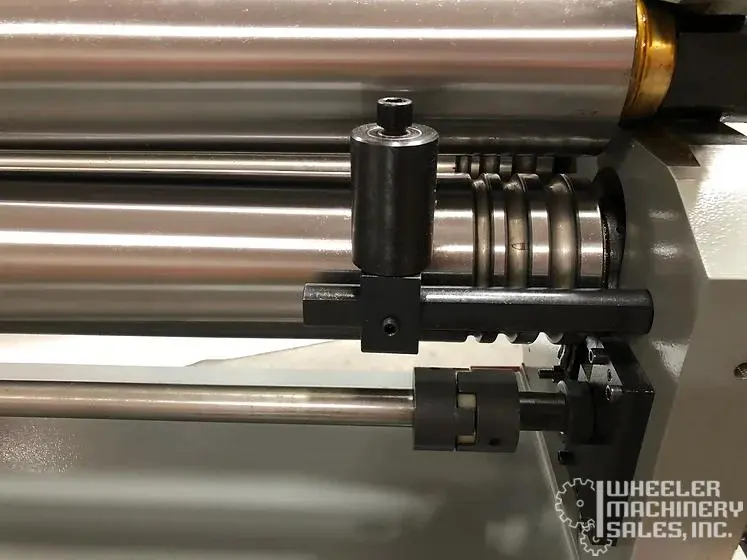

Adjustable cone attachment included

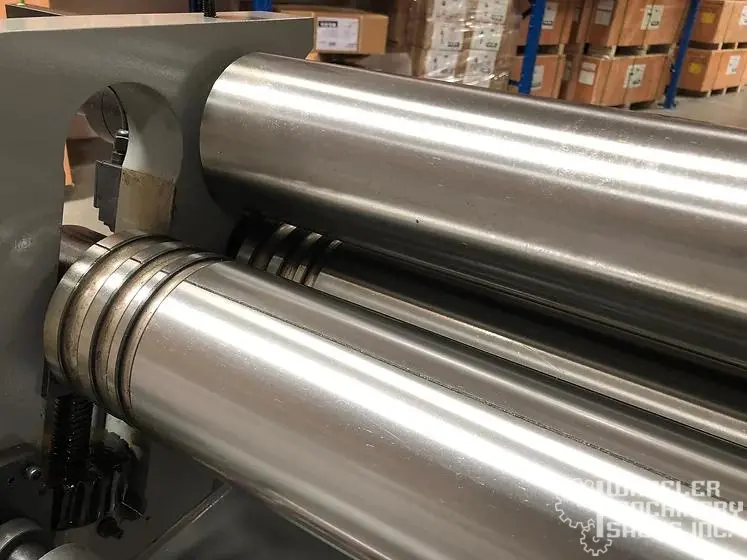

3/8”, ½” and 5/8” grooves on rollers

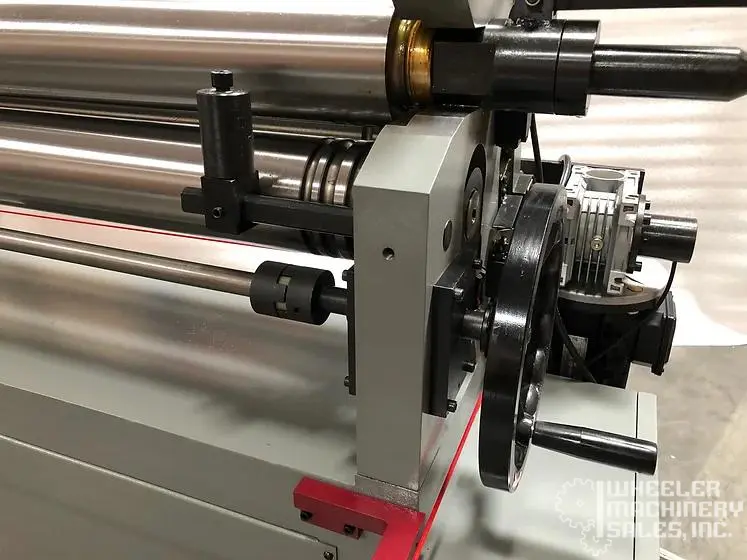

One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Capacity:
Mild Steel
Stainless Steel
soft aluminum
min. thickness
5'1" x 3/16"
5'1" x 10Ga
5'1" x 5/16"
26GA
Roll Dia. 5 7/8"Min. Bending Dia. Inch7 1/2"Pre-bend inch0.12"Rolls Speed ft/min20Rolls Opening 1/2"Main Motor4HP 3PH 220V or 440V Weight3,550 lbs. Overal Dimensions 96" x 32" x 52"

Length of Rolls: 5'
Max Thickness (gauge): 0 gauge
# Rolls: 3
Roll Diameter: 5.875"
