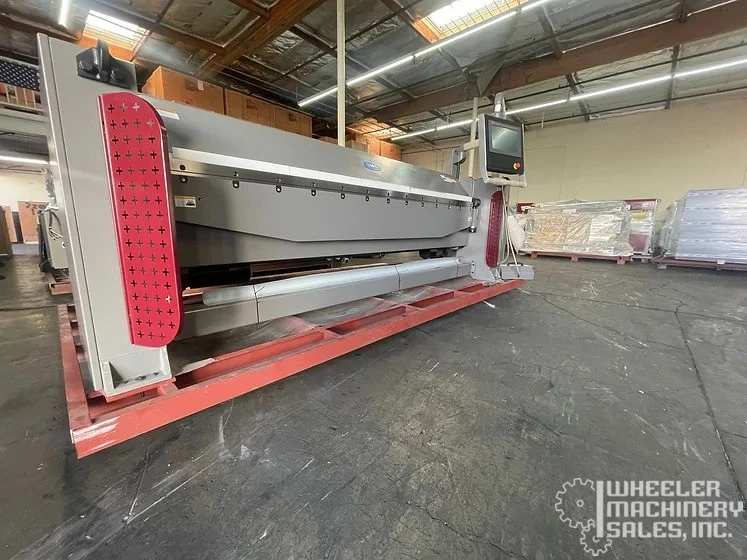

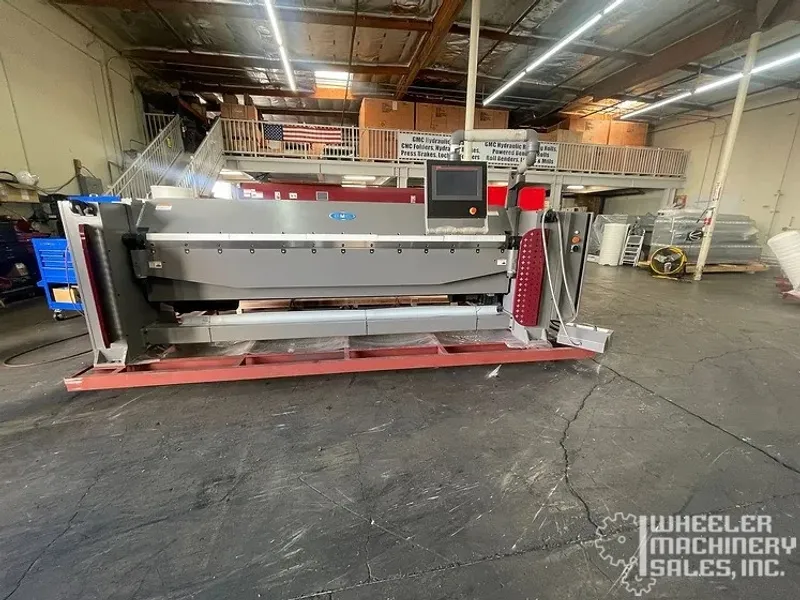

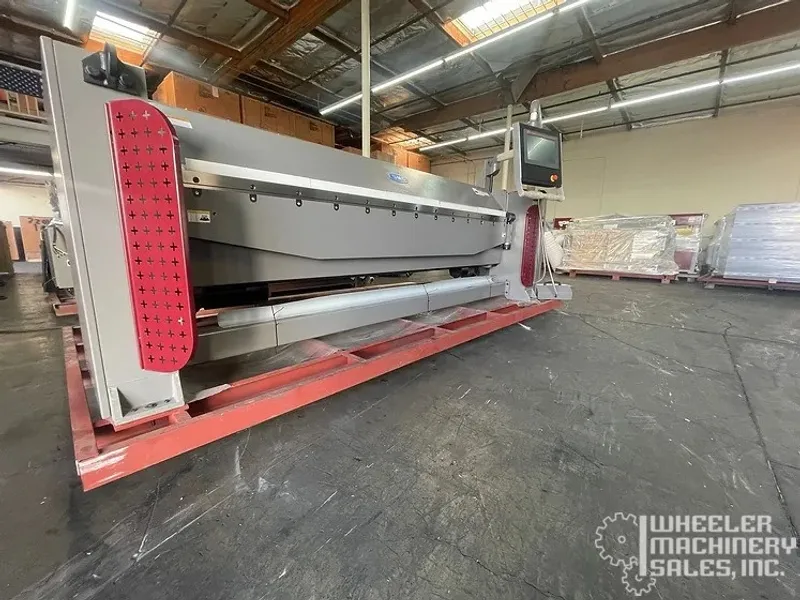

New GMC 10' x 14 Ga. - Sheet Metal Folder

Manufacturer

GMC

Stock

7257

Model

EFM-1014CNC

Dealer Location

California

Spec Sheet

Overview

Type:
FOLDING MACHINES
Manufacturer:
GMC
Model:
EFM-1014CNC
Stock #:
7257
Status:
For Sale

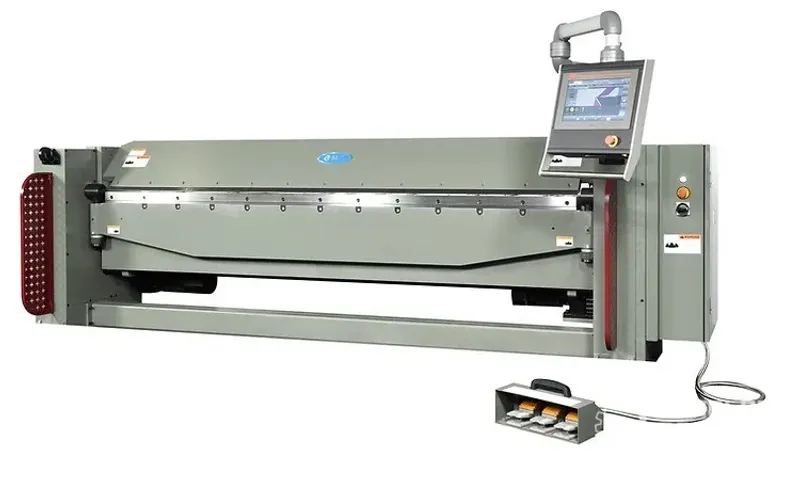

CNC folding machine with an Italian ESA CNC control. 11" touch screen straight brake. 2000 jobs memory capacity.

- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA CNC control, made in Italy

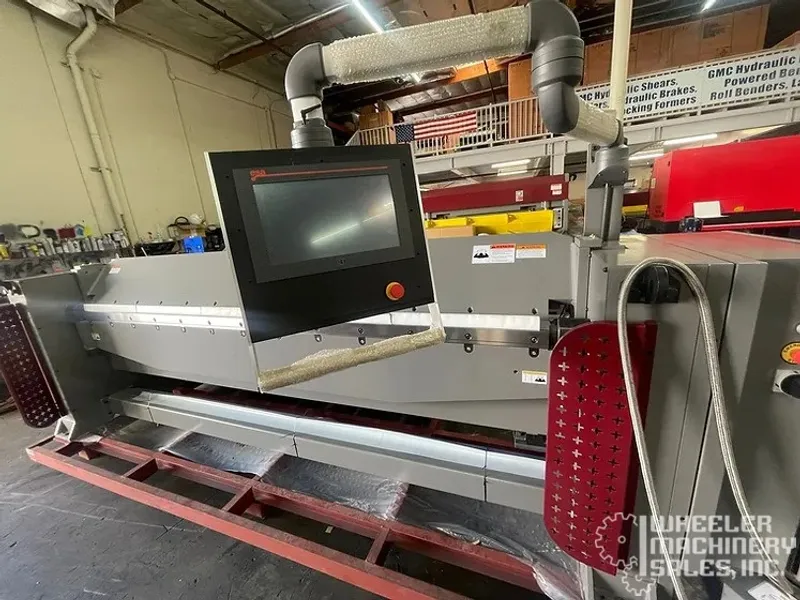

- 16” large Digital glass touch screen
- Max. 99 bends per program
- Upto 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct

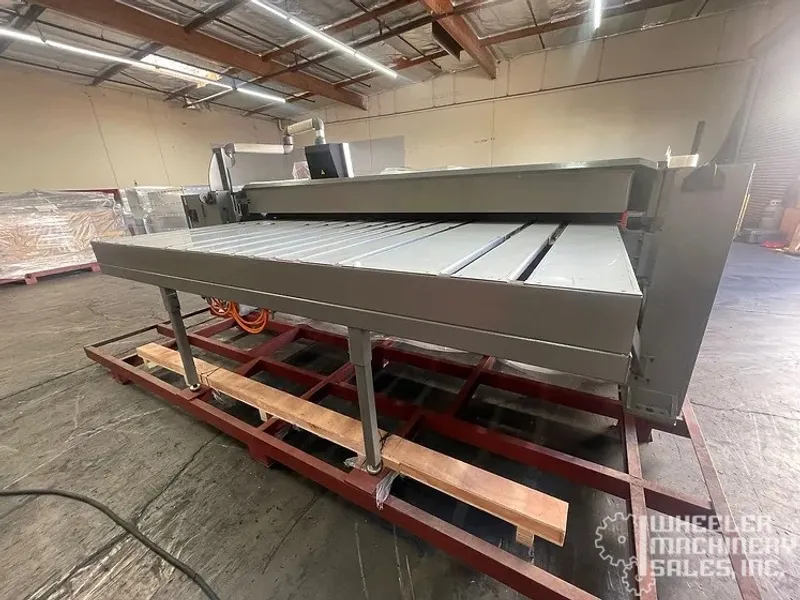

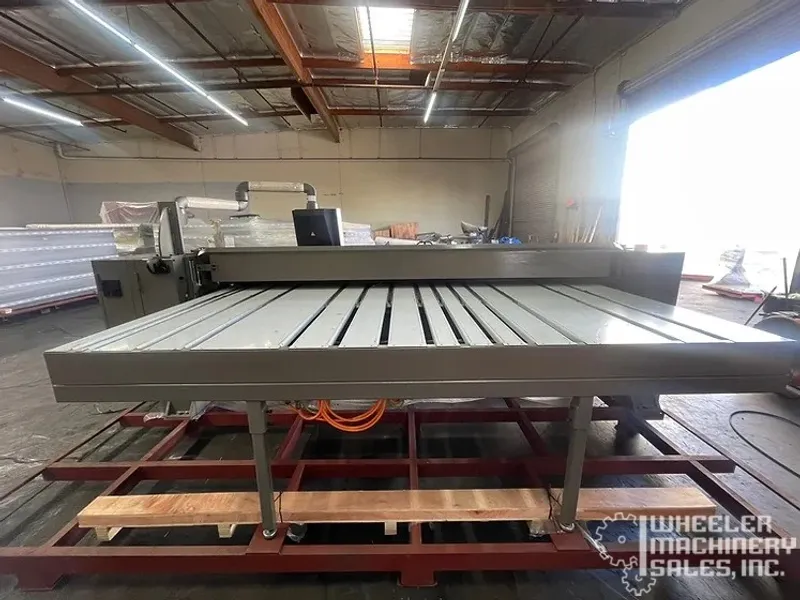

- 48” CNC back gauge with table and fingers
- Hardened nose bar and table, up to 48HRC
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
- One year industrial warranty for parts

This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Capacity

Mild Steel/hot roll, tensile 60,000PSI: 14 ga.

Stainless Steel/cold roll, tensile 85,000PSI: 18 ga.

Soft Aluminum, tensile 28,000PSI: 10 ga. / 1/8" thick

Close hemming: 26 ga.

Open hemming: 24 ga.

Bending Length Capacity 10'1"
Bend Angle Degree, programmable 0-135 degree
Hemming capacity, mild steel 24 Ga.
Hemming capacity, stainless steel 28 Ga.
Large Beam Opening/clamping opening 4-7/8"
Min. Reverse Bend 1/2"
Max, Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/2"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Motor for Bending Leaf
4 HP 3 Phase 35A

Prewired: 220VAC

Servo motor for back gauge
2 HP 3-Phase

220VAC

Clamping Motor
1-1/2 HP 3-Phase

Prewired: 220VAC

Machine Weight:

Shipping Weight:

9,850 LBS

10,150 LBS

Machine Size (LxWxH)

Shipping Dimensions:

168" x 79" x 67"

174" x 80" x 71"

No Video Available
