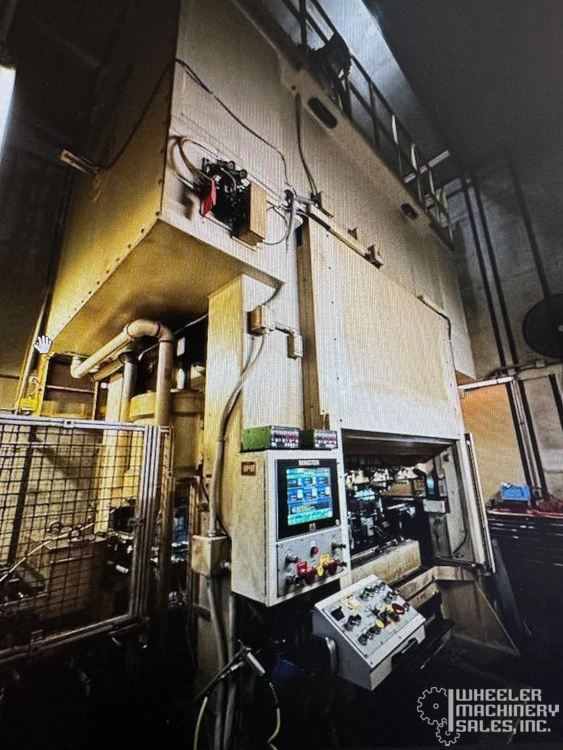

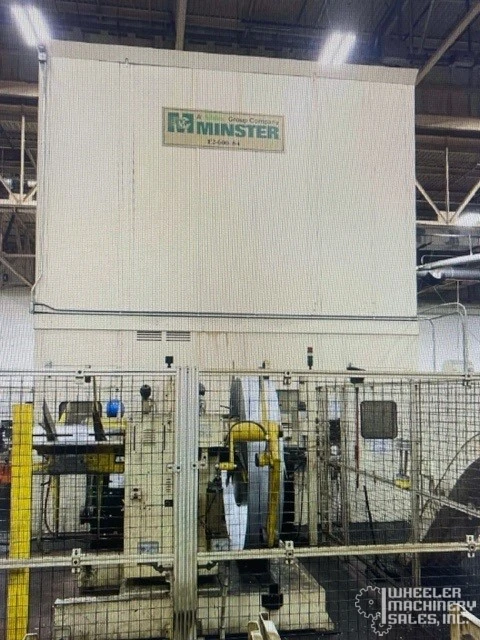

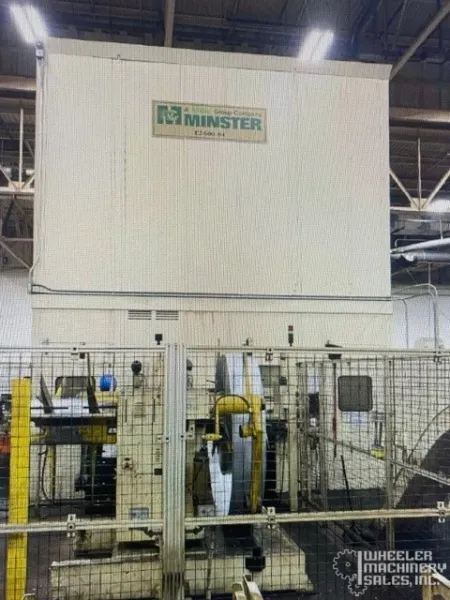

2013 Minster E2-600-84-54 Eccentric Geared Straight Side Press #7046

Stock

7046

Model

E2-600-84-54

Dealer Location

California

Spec Sheet

Overview

Type:
PRESSES, STRAIGHT SIDE, DOUBLE CRANK
Manufacturer:
MINSTER
Model:
E2-600-84-54
Year:
2013
Stock #:
7046
Status:
For Sale

Description

2013 Minster E2-600-84-54 Eccentric Geared Straight Side Press offers a 600-ton capacity with 30-70 SPM speed. Features include air clutch, hydraulic overload protection, automatic slide adjustment, tamer sound enclosure, and safety light curtains.

2013 Minster E2-600-84-54 Eccentric Geared Straight Side Press #7046

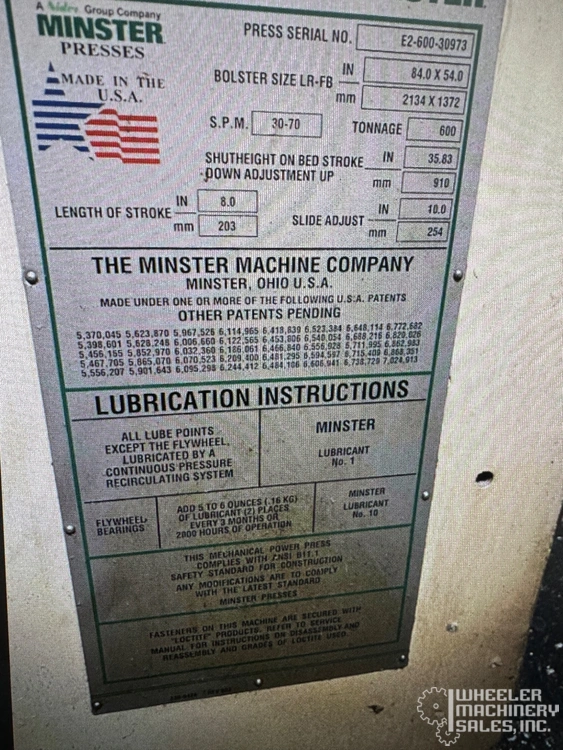

SPECIFICATIONS:
Capacity: 600-Ton
Stroke: 8” (203mm)
Shut Height (SDAU): 35.83” (910mm)
Slide Adjustment: 10" (254mm)
Speed: 30 – 70 SPM
Bolster Area: 84" x 54" (2134mm x 1372mm)
Window Openings: 53" (1346mm)
with Coil Feed Line
5.4" (140mm) Bolster Plate

EQUIPPED WITH:
Air Clutch & Brake
Hydraulic Overload Protection
Air Counterbalances w/ Auto Adjustment
Automatic Slide Adjustement
Micro Inch
Sugiyama Bottom Displacement Sensing Device
Tamer Sound Enclosure
(4) Vibro-Dynamics Isolator Mounts
Safety Light Curtains
Minster Monitor Flow Automatic Lubrication System
Dual Palm Button Operation
