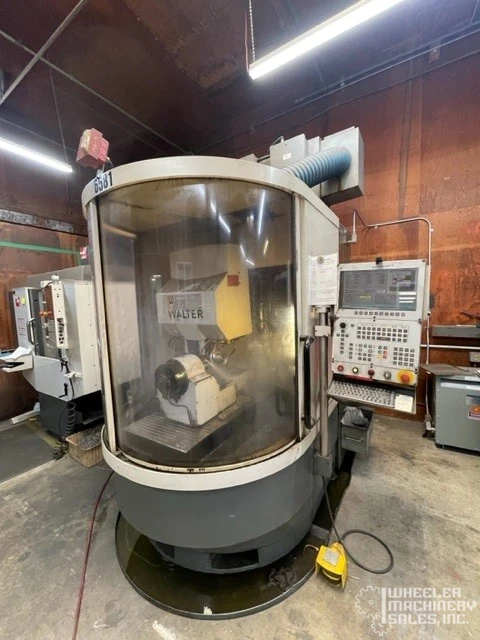

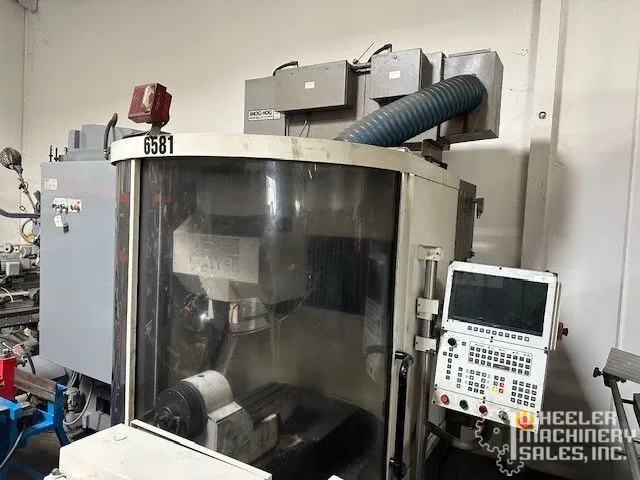

1997 Walters Helitronic Power HMC-400 CNC Tool & Cutter Grinder #6977 #1

Manufacturer

WALTERS

Category

Grinding Machines

Type

GRINDERS, TOOL & CUTTER, CNC

Stock

6977

Model

HELITRONIC POWER HMC-400

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
GRINDERS, TOOL & CUTTER, CNC
Manufacturer:
WALTERS
Model:
HELITRONIC POWER HMC-400
Year:
1997
Stock #:
6977
Status:
For Sale

Description

1997 Walters Helitronic Power HMC-400 CNC Tool & Cutter Grinder, equipped with Windows-based CNC control, precision spindle, CBN diamond wheel, probing system, coolant & filtration, and full enclosure. Capacity: 0.04"-3.9", 10 HP motor.

1997 Walters Helitronic Power HMC-400 CNC Tool & Cutter Grinder #6977 #1

SPECIFICATIONS:
Capacity of Workpiece Dia.: 0.04″ – 3.9″
Max. Peripheral Grinding: 10″
Max. End Face Grinding: 7.3″
Max. X Axis Travel: 13.8″
Max. Y Axis Travel: 7.9″
Max. Z Axis Travel: 18.5″
A Axis: Infinite
C Axis Rotary: +/- 200° ( 0.001° )
Grinding Spindle Motor: 16 HP
Grinding Wheel Type: Diamond or CBN Grinding
Wheel Dia. Max.: 5.9″
Grinding Wheel Speed: 500 to 10,500 RPM
Air Required: 6 bar
Total Power Requirement Max: 18kw
Power: 460v / 60hz
Overall Dimensions: 85.8″ x 63″ x 108" High Weight: 7055 lbs.

EQUIPPED WITH:
10,500 RPM Precision Spindle
Windows based Walter CNC Control
CBN Diamond Wheel installed
Probing System
Coolant and Filtration System
Full Enclosure
Manuals
Work Light
