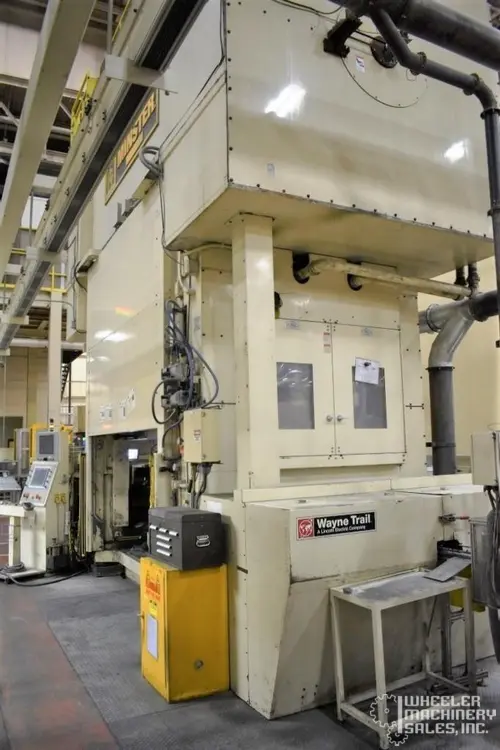

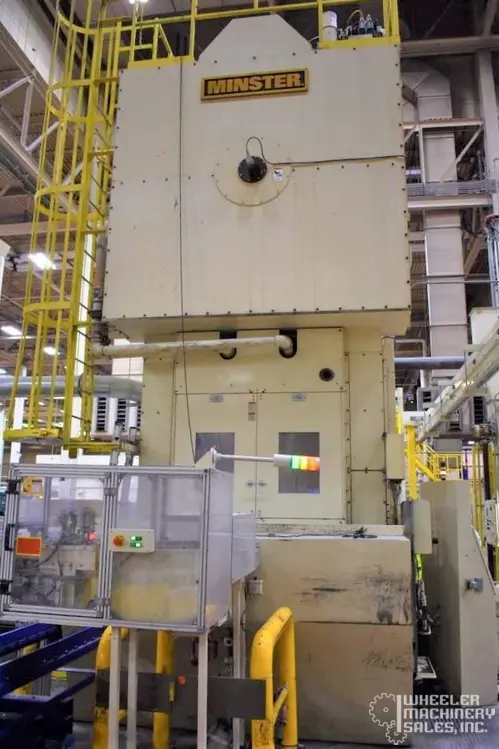

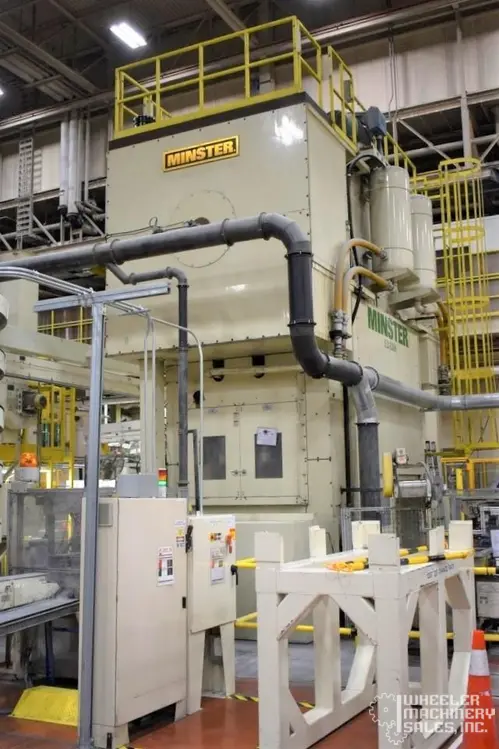

2011 Minster E2-1200-120-60 Eccentric Geared Straight-Side Transfer Press #6822

Manufacturer

MINSTER

Category

Presses

Stock

6822

Model

E2-1200-120-60

Dealer Location

California

Spec Sheet

Overview

Type:
PRESSES, TRANSFER
Manufacturer:
MINSTER
Model:
E2-1200-120-60
Year:
2011
Stock #:
6822
Status:
For Sale

Description

2011 Minster E2-1200-120-60 Eccentric Geared Straight-Side Transfer Press features a 12" stroke, speed of 25-45 SPM, and a 120"x60" bolster area. Includes a Wayne Trail WTTS-II Transfer System and Allen-Bradley 1500P Touchscreen PLC.

2011 Minster E2-1200-120-60 Eccentric Geared Straight-Side Transfer Press #6822

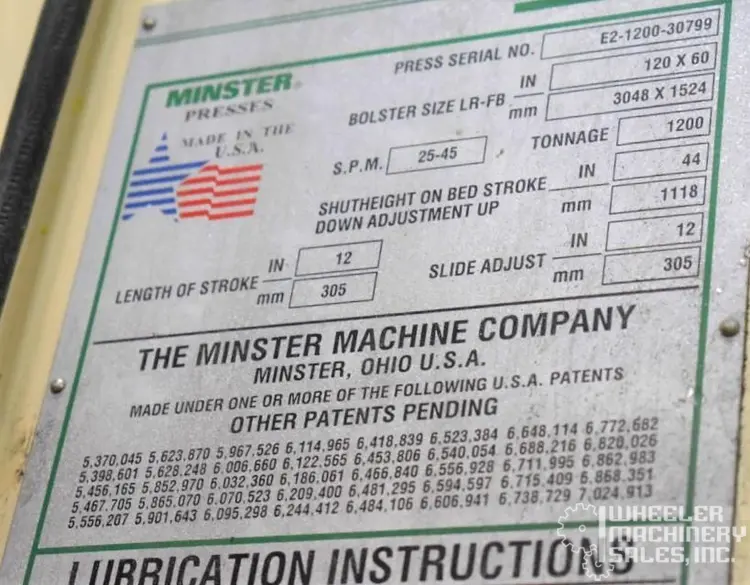

SPECIFICATIONS:
Stroke: 12” (305mm)
Shut Height (SDAU): 44” (1118mm)
Slide Adjustment: 12" (305mm)
Speed: 25 – 45 SPM
Bolster Area: 120" x 60"
Slide Face Area: 70.8" x 27.6"

EQUIPPED WITH:

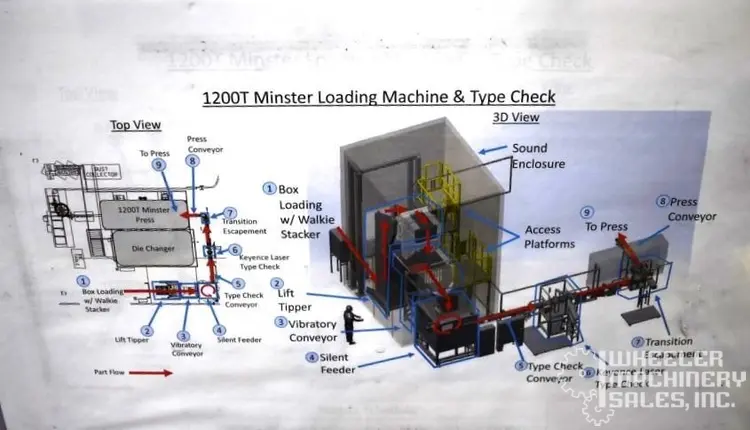

Wayne Trail WTTS-II Through Window Transfer System

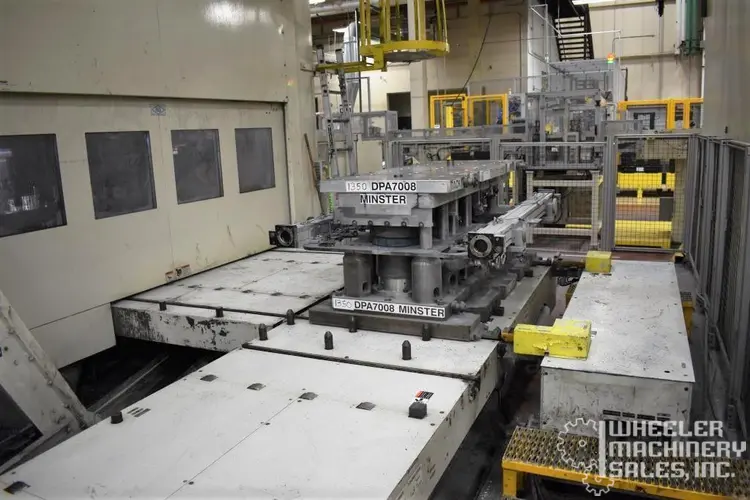

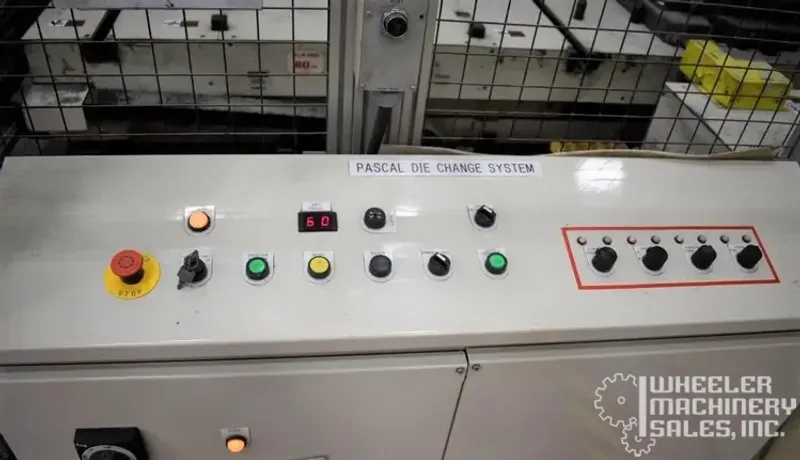

Die Change System
10.8" Bolster Plate (275mm)
Air Clutch & Brake
Hydraulic Overload Protection
Automatic Counterbalance Adjustment
Mechanical Bed Knockout System
Slide Knockout Cylinders
Bed Draw Cushion
Adjustable Die Safety Blocks
(4) Vibro-Dynamics Isolator Mounts

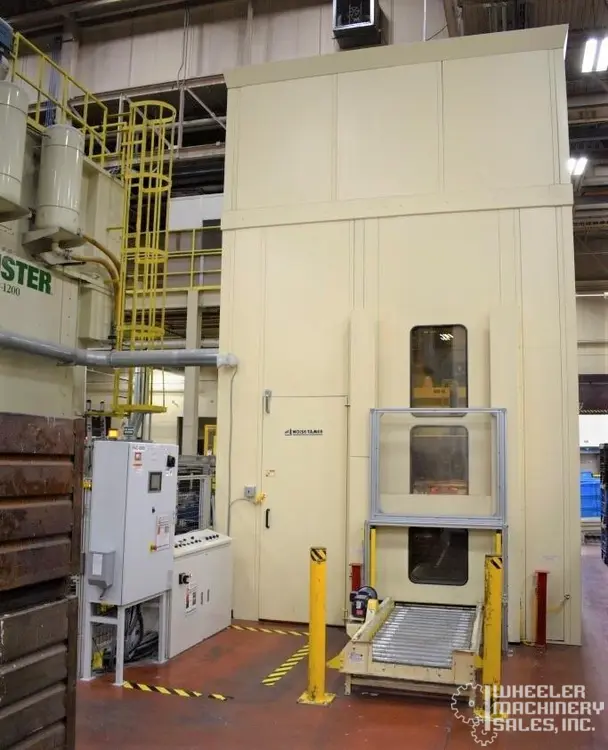

Complete Sound Enclosure
Allen-Bradley 1500P Touchscreen PLC
B&R Touch Screen Automation Panel

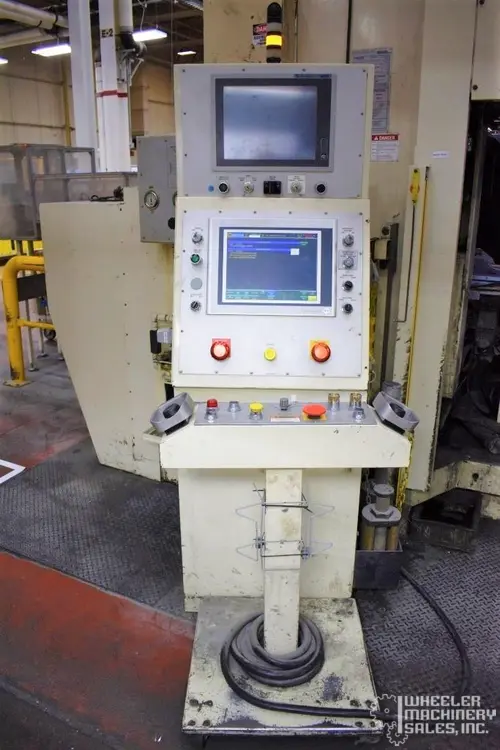

Pedestal Mounted Dual Palm Button Operation
125-kW Main Motor
Press is Pit Mounted
