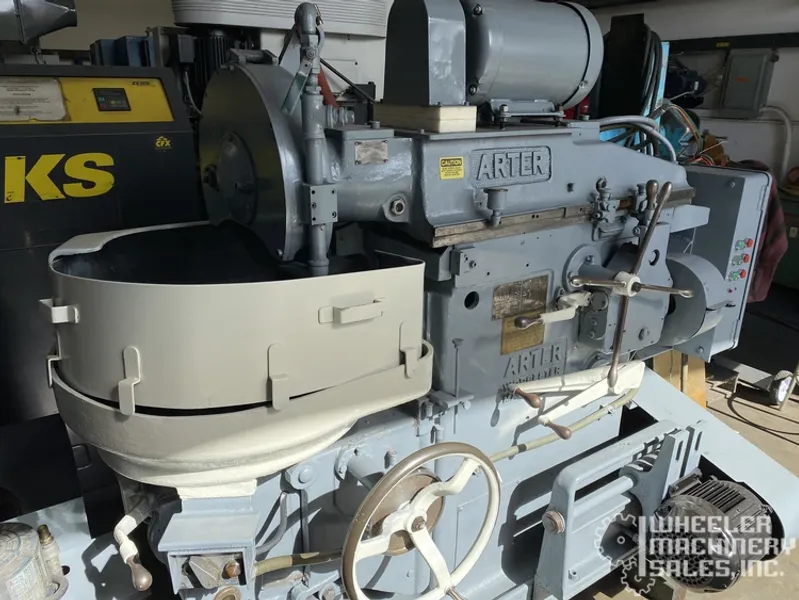

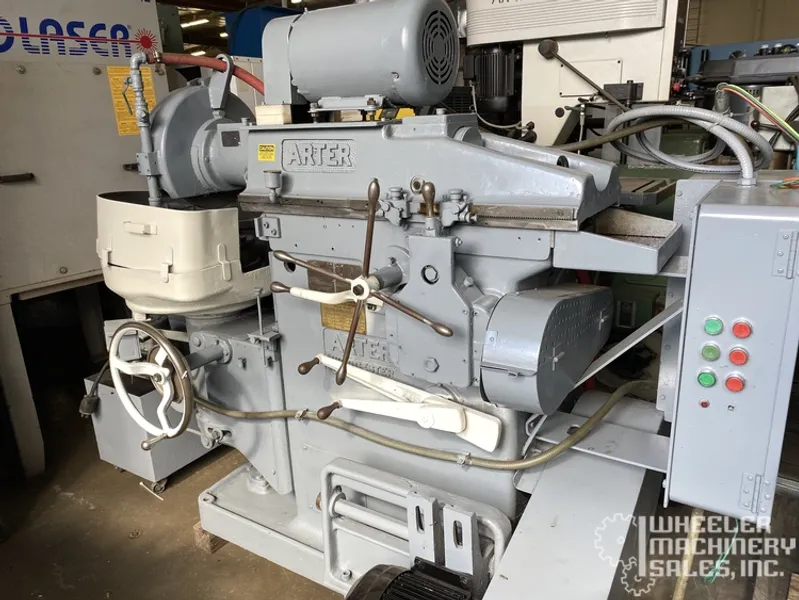

ARTER A3-12 HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER 12" #6103 #1

Manufacturer

ARTER

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

6103

Model

A3-12

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
GRINDERS, SURFACE, ROTARY TYPE
Manufacturer:
ARTER
Model:
A3-12
Stock #:
6103
Status:
For Sale

Description

Arter A3-12 horizontal-spindle rotary surface grinder available; features a 12" magnetic chuck, 20" swing with coolant guards, and a 10 HP spindle motor. Ideal for precise grinding with speeds up to 1,500 RPM. Compact design, weight approx. 4,500 lbs.

ARTER A3-12 HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER 12" #6103 #1

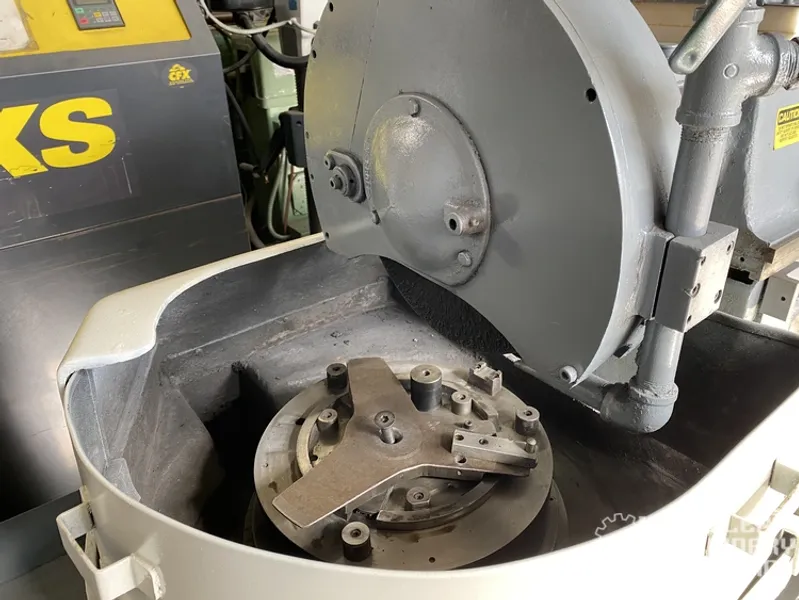

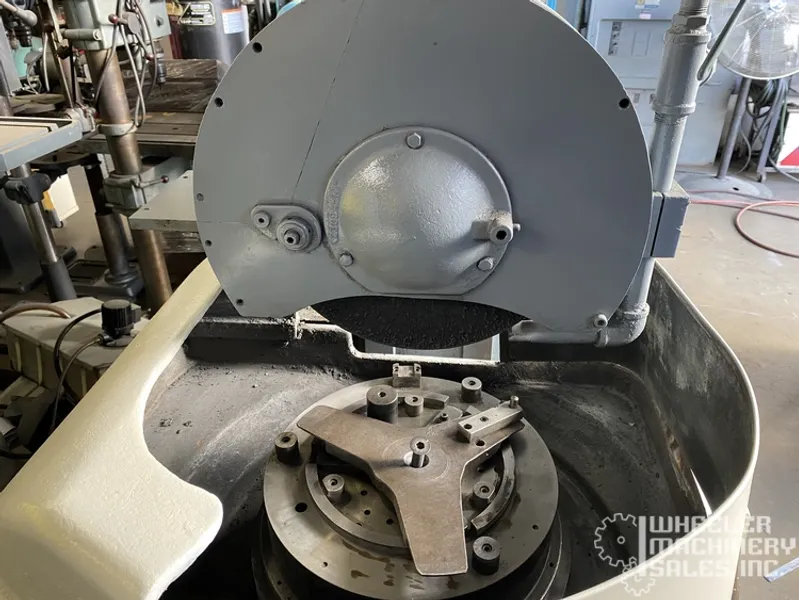

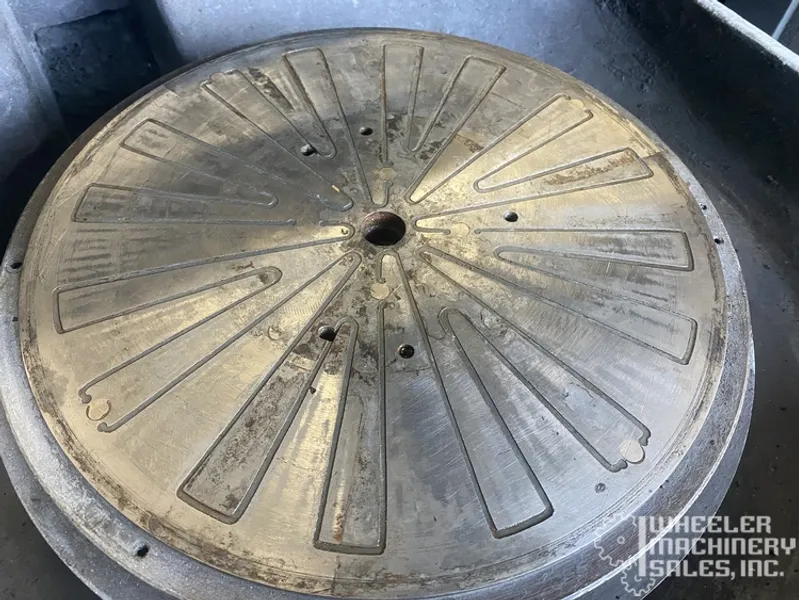

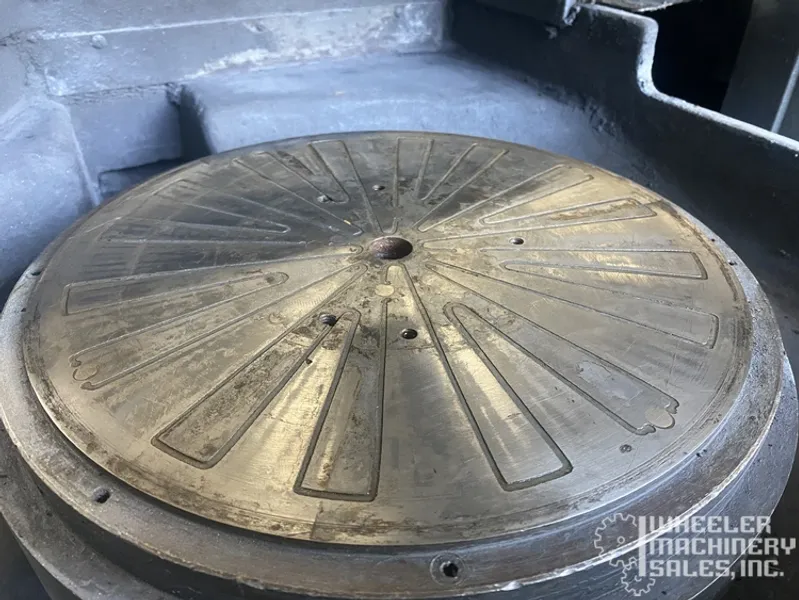

Magnetic Chuck, Diameter: 13"
Swing With-in Coolant Guards: 20"
Grinding Height Capacity w/14" Wheel: 9.5"
Grinding Wheel Diameter, Maximum: 14"
Convex Table Angle Degrees, Maximum: 10-DEGREES
Concave Table Angle Degrees, Maximum: 10-DEGREES
Grinding Wheel Speed: 1,500 RPM
Chuck Speeds, Range: 30- 150 RPM

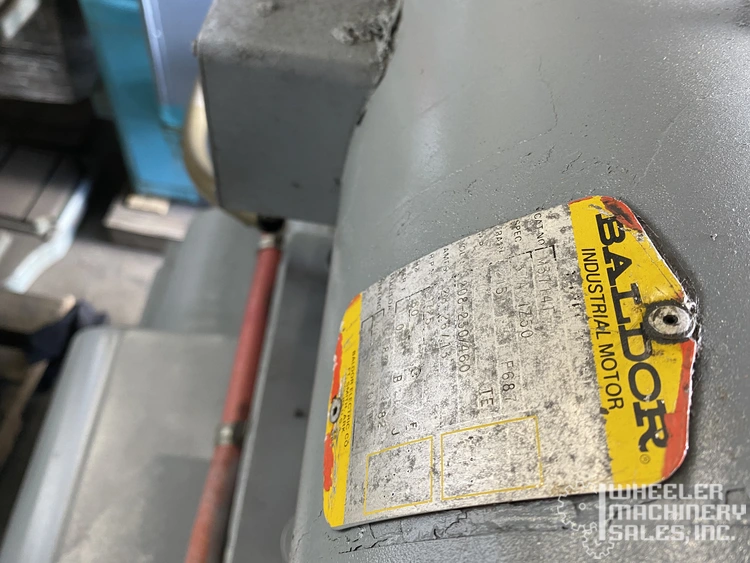

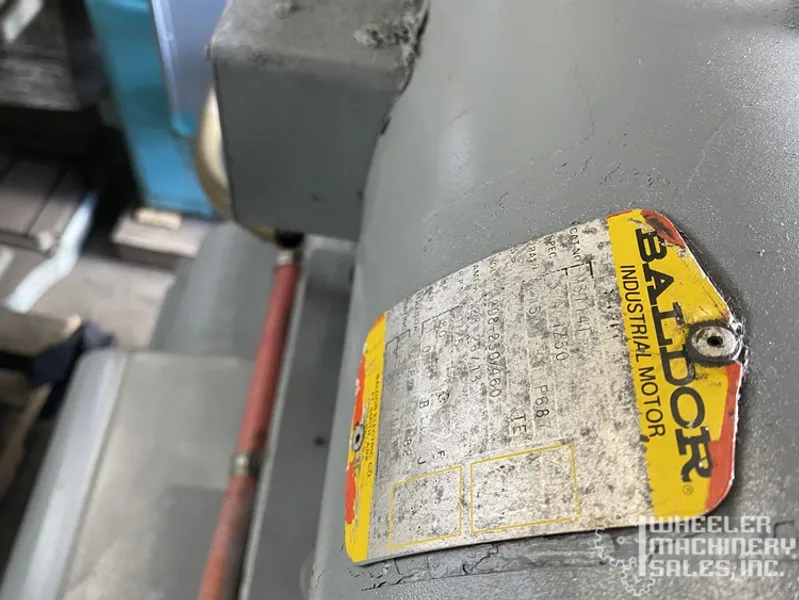

Spindle Motor, Horsepower: 10 HP
Electrical System: 220-440/3/60
Floor Space Required, W x D: 5'10" x 6'8"
Weight, Approximately: 4,500 LBS

Equipped With:
Horizontal Spindle Machine Design
12" Diameter Magnetic Chuck w/Rectifier

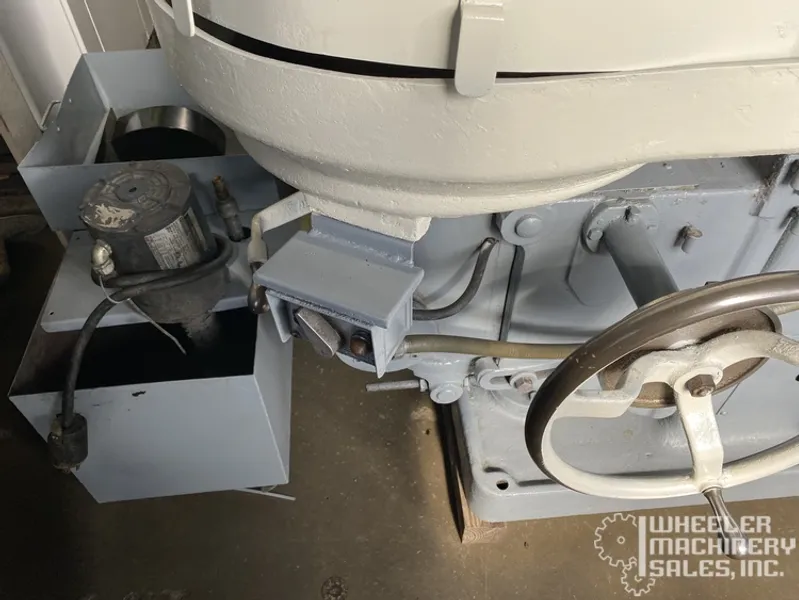

Coolant Tank & Pump
