NEW GMC FP-2560T

Manufacturer

GMC

Category

Grinding Machines

Type

GRINDERS, BELT

Stock

7738

Model

FP-2560T

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
GRINDERS, BELT
Manufacturer:
GMC
Model:
FP-2560T
Condition:
New - In-Stock
Stock #:
7738
Status:
For Sale
Country:
United States

Description

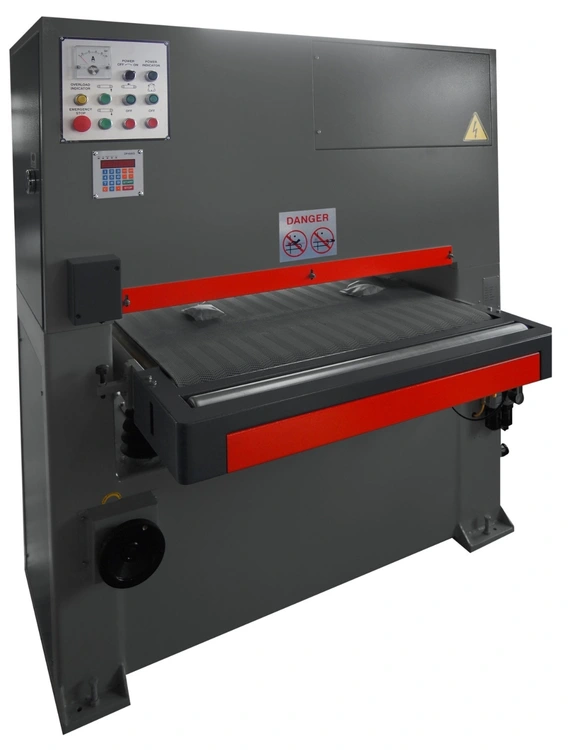

Introducing the new GMC FP-2560T Belt Grinder. Featuring a 10 HP main motor, 24" max part width, and computerized material thickness control. Equipped with safety features like emergency stops and belt safety switches. Product made in Taiwan.

Width of Belt25"635 mm
Power10 hp7.5 kW
Dimensions51 x 46 x 7051 x 46 x 70
Weight20502050

Specifications: Model FP-2560T #7738
Max. Part Width 24”
Abrasive Belt Size 25” x 60”
Contact Roller Size 5” Dia.
Passline Height 31” – 37”
Thickness Capacity
Min. workpiece length
Max. workpiece weight
20Ga to max. 5-1/8” Min 12”, need a fixture for smaller parts 275LBS
Conveyor Drive Speeds 16-66 FPM
Infeed Conveyor Length 20”
Dust Collector Capacity
Outlet of dust hood 1,100 CFM 6”
Main Motor 10 HP, 230V , 3-Ph
Conveyor Motor 1 HP, 230V , 3-Ph
Table Lifting Motor 1/4 HP, 230V, 3-Ph
Amperage draw
Net Weight, approx.
Shipping weight, 45A on 220V, 25A on 440V 2,050 LBS 2,150 LBS
Machine Dimensions, LxWxH
Machine shipping dimensions, LWH 51” x 46” x 70” 53” x 48” x 73”

Standard Features:
· Made in Taiwan
· Computerized programmable material thickness control
· Motorized Table Lift, with digital readout
· Variable Speed Conveyor
· Conveyor Forward & Reverse
· Belt Safety Overtravel Switches
· Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
· 4-Jackscrew Table Support
· Double Infeed & Outfeed Pinch Rolls with protective guards
· Conveyor Belt Tracking System
· Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
· Table Height Digital Readout
· Load Meter indicates percentage of full motor loads
· Belt change door electrically interlocked for safety purpose
· Air tensioning of belt for accurate tensioning & compensation of belt stretch
· Quick release sanding head support for fast belt change
· Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
· Emergency stops from almost any point
· Noise level bellows 80 dba
· Operation manual, control tags, danger signs, and warning labels in English on machine
· 208/230, 3-Phase, 440V/480V ,3phase is optional
· One year Industrial Warranty for parts
· We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.
