TENNSMITH U4812 Box & Pan Brake, 12 gauge #8105 #2

Stock

8105

Model

U4812

Dealer Location

California

Spec Sheet

Overview

Type:
BRAKES- PRESS, FINGER
Manufacturer:
TENNSMITH
Model:
U4812
Stock #:
8105
Status:
For Sale

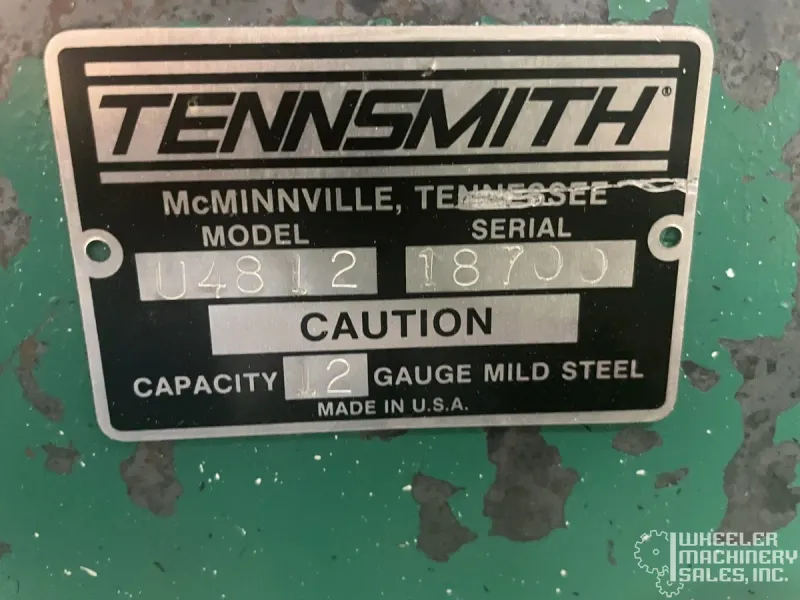

Serial #:
18700
Country:
United States

Description

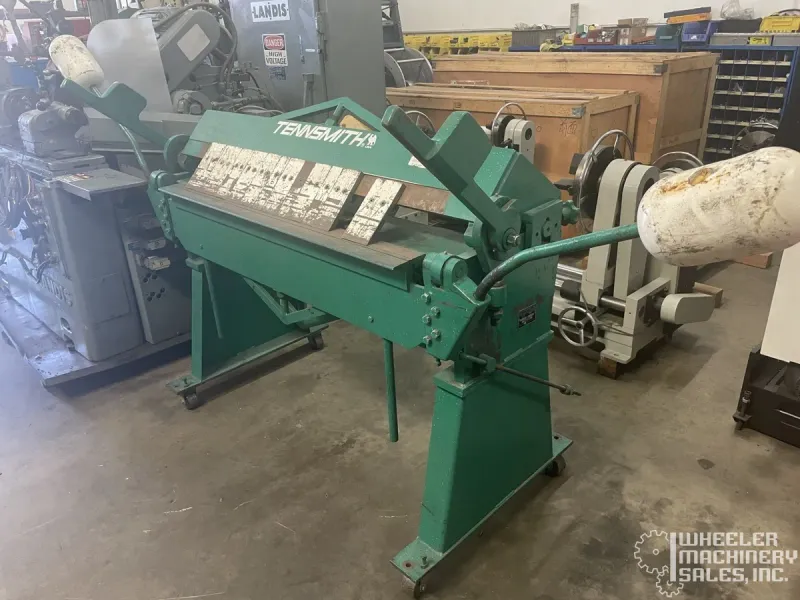

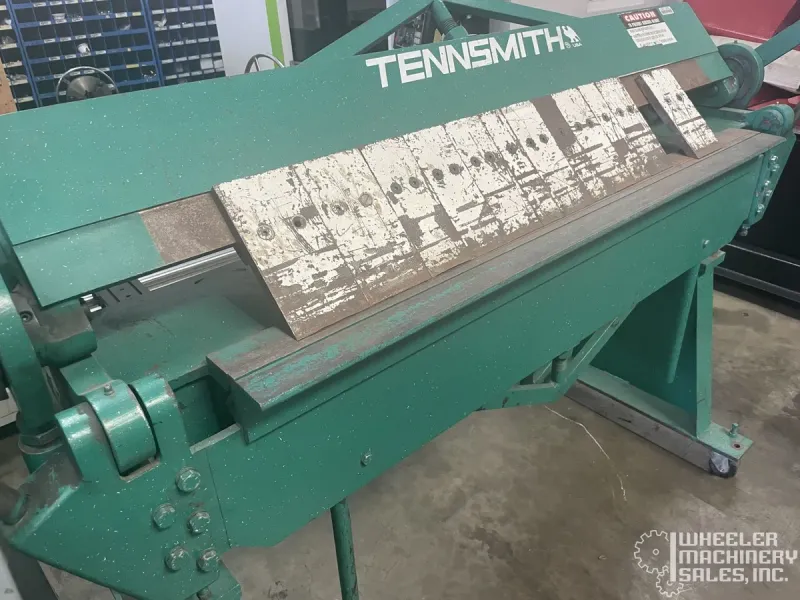

Used Tennsmith 4 foot Box & Pan Brake, Model U4812, 12 gauge mild steel capacity, 16 gauge stainless. Features 48" working length, 1330 lbs, 72x36x53 dimensions, manual operation, 1.5" beam lift. Ideal for precision metal bending tasks.

TENNSMITH U4812 Box & Pan Brake, 12 gauge #8105 #2

SPECIFICATIONS:
Type: Manual
Mild Steel Capacity: 12 gauge (2.6mm)
Stainless Capacity: 16 gauge (1.6mm)
Working Length (inches): 48
Max Depth Of Box (inches): 4
Max Lift Of Beam (inches): 1.5
Front To Rear Adj (inches): 1
Min Reverse Bend (inches): .25
Minimum Flange Capacity (inches): 1
Number/Width Of Fingers: 2, 3, 4 inch
Weight (pounds): 1330
Dimensions (LxWxH): 72 x 36 x 53
