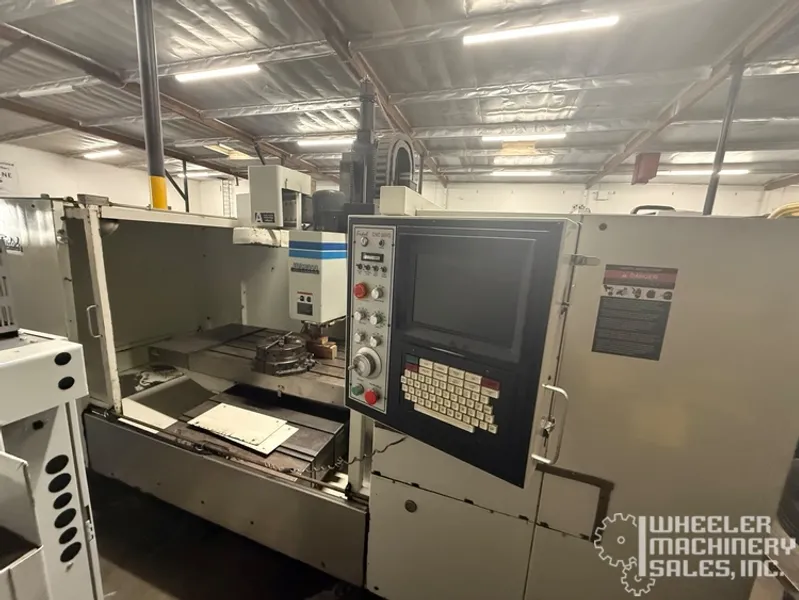

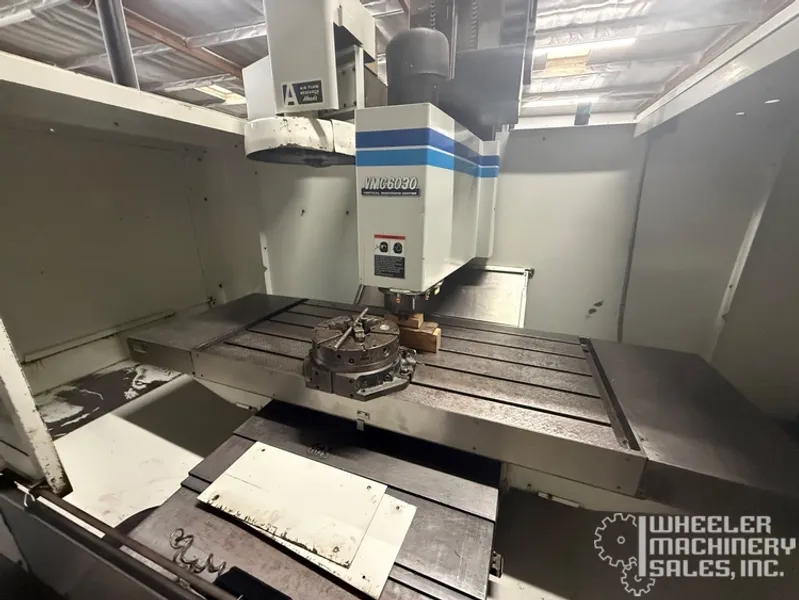

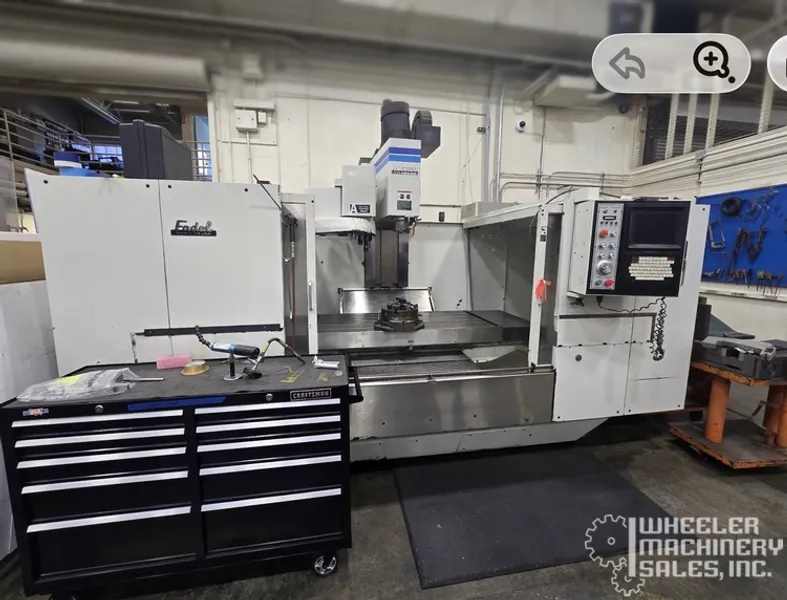

1994 Fadal VMC6030 Vertical Machining Center 60" x 30" x 30" #8104 #2

Manufacturer

FADAL

Category

Coil Processing Equipment

Type

COIL FEEDERS, SLIDE TYPE

Stock

8104

Model

VMC-6030HT

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
MACHINING CENTERS, VERT., N/C & CNC
Manufacturer:
FADAL
Model:
VMC-6030HT
Year:
1994
Stock #:
8104
Status:
For Sale

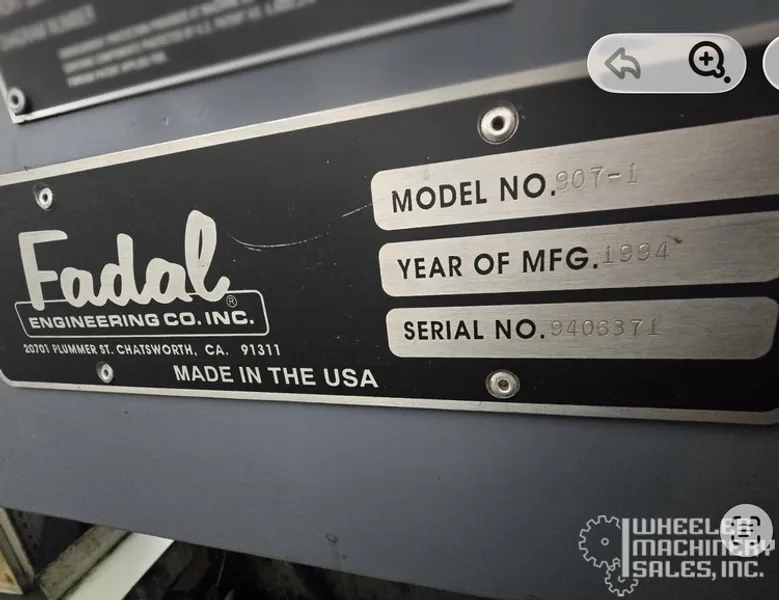

Serial #:
9406371
Country:
United States

Description

1994 Fadal VMC-6030HT Vertical Machining Center with table size 62.5" x 30", load capacity of 1,500 lbs, and X/Y/Z-axis travels of 60"/30"/30". Features CAT #40 spindle taper, 10,000 RPM spindle speed, 22.5 HP motor, Fadal 88 CNC control, and 21-position ATC.

Fadal VMC-6030HT Vertical Machining Center 60" x 30" x 30" #8104 #2

SPECIFICATIONS:
Table Size: 62.5" X 30"
Table Load Capacity: 1,500 Lbs.
X-Axis Travel: 60"
Y-Axis Travel: 30"
Z-Axis Travel: 30"
Spindle Taper: CAT #40
Spindle Speed: 10,000 RPM
Table Top to Spindle Nose 5.5″ – 35.5″
Spindle Motor: 22.5 HP
Rapid Traverse Rates: 400 IPM
Cutting Feed Rates: 400 IPM
Tool Magazine Capacity: 21 Pos. ATC
Machine Dimensions: 160" x 118" x 128" H
Machine Weight: 17,500 lbs.

EQUIPPED WITH:
Fadal 88 CNC Control
Coolant System
