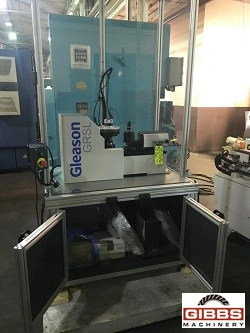

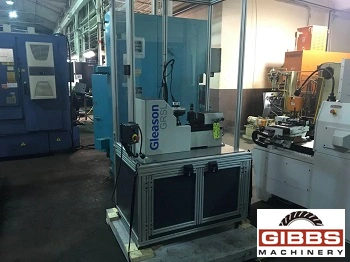

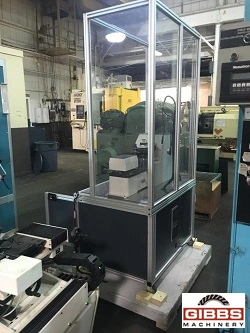

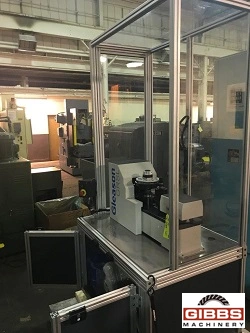

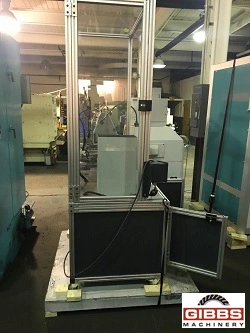

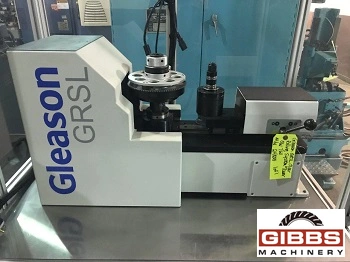

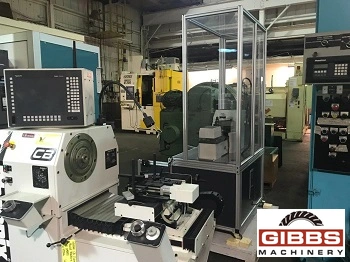

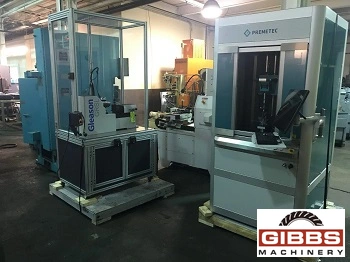

GLEASON GRSL - Gear Tester

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR TESTERS

Stock

24825

Model

GRSL

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Work Station Bench W/Single 22" Monitor As Standard - Dual Monitor and Touch
  • Screen Available
  • Workholding Arbor
  • QDAS Output Support Available
,

Machine Specifications :

  • Year 2019
  • Manufacturer GLEASON
  • Maximum Workpiece Length 10.0"
  • Maximum Workpiece Diameter 10.0"
  • Type Gear Tester
,

2019 GLEASON (GRSL) GEAR ROLLING SYSTEM W/LASER

    For the first time combines composite testing with advanced non-contact laser

  • technology in a single system. Cycle time for non-contact index and profile
  • inspection are more than 10 times faster than conventional systems for the
  • analysis of cylidrical gears from .4 to 7.2 module, up to 250mm (10") in
  • diameter.
  • Inspection Speed
  • Inspection of all 31 teeth on a typical helical gear in under 10 seconds, as
  • compared to the 160 seconds needed for index and 4-teeth profile on a
  • conventional analytical machine.
  • Performs composite testing and index and profile inspection in the same test
  • cycle.
  • Overall cycle time savings are even higher since both types of testing are
  • done in same test cycle.
  • Inspection Flexibility
  • View profile characteristics for every tooth for spur and helical gears: fko,
  • fHa, Fa, ffa, faHm, Vaf, others.
  • View index: Fp, fp, Fr, Fu.
  • View composite: Nick, TCV, T2T, average DOP, average circular tooth thickness,
  • Fi.
  • Uses familiar Gleason GAMA / WIN-ROLL software interfaces.
  • ISO, DIN and AGMA analysis charting.
  • EQUIPPED WITH:
  • Work Station Bench W/Single 22" Monitor As Standard - Dual Monitor and Touch
  • Screen Available
  • Workholding Arbor
  • QDAS Output Support Available
  • SPECIFICATIONS:
  • Spur and Helical Gears: From .4 - 7.2 Module
  • Spur and Helical Gears: Up To 250 mm (10") In Diameter
  • I5 Quad Core 2.8 Ghz processor W/8GB Ram, Dual 500GB SS Drives Full 64 Bit
  • Application and System
