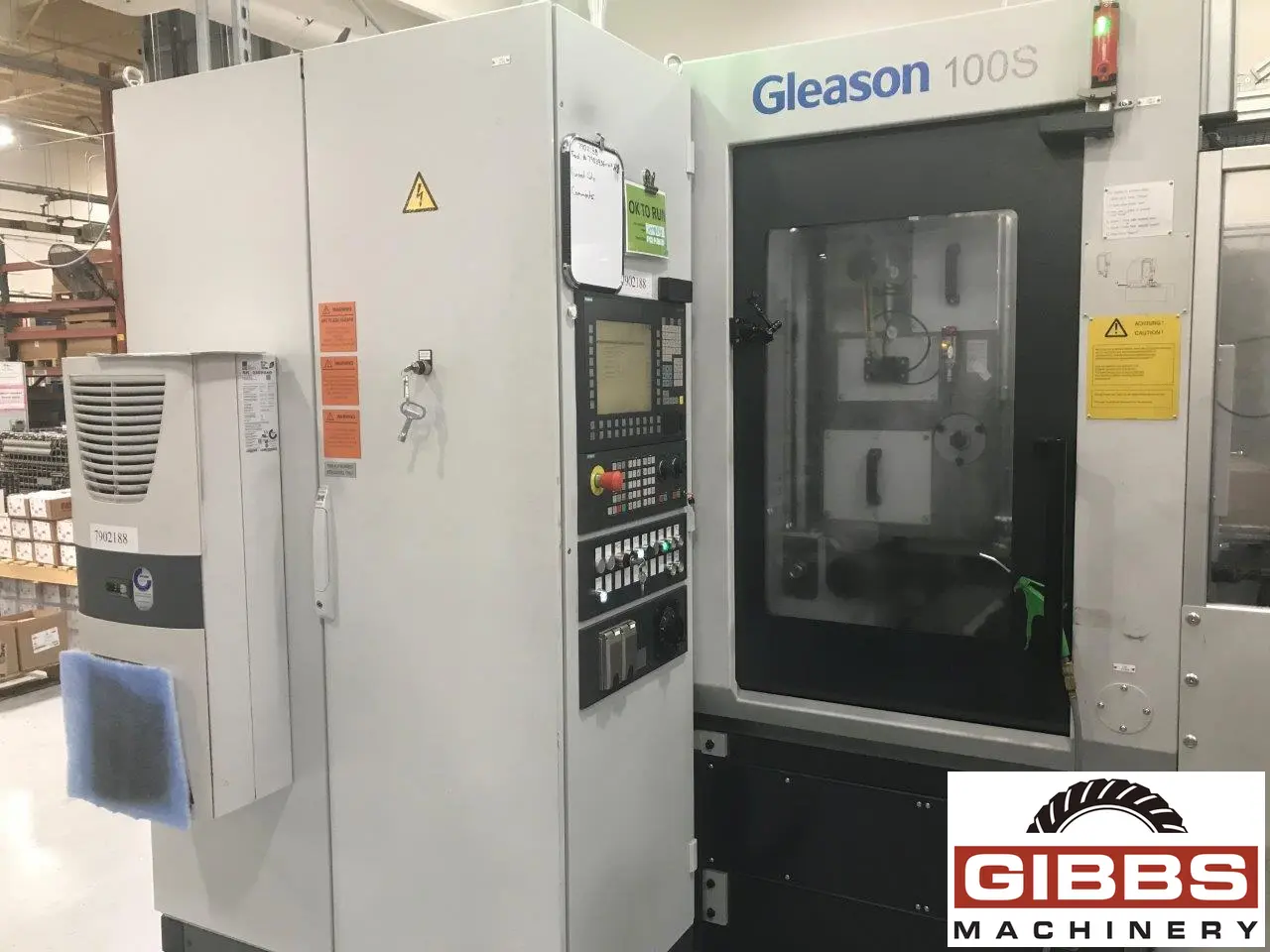

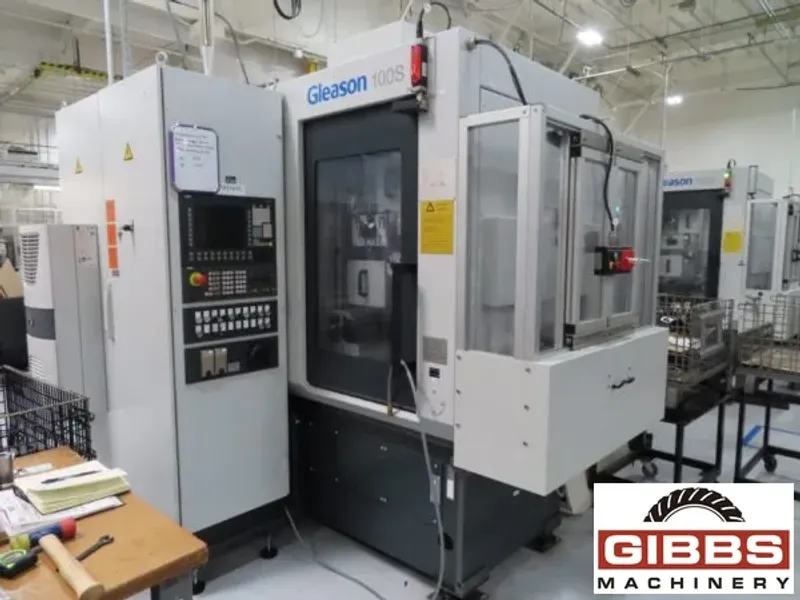

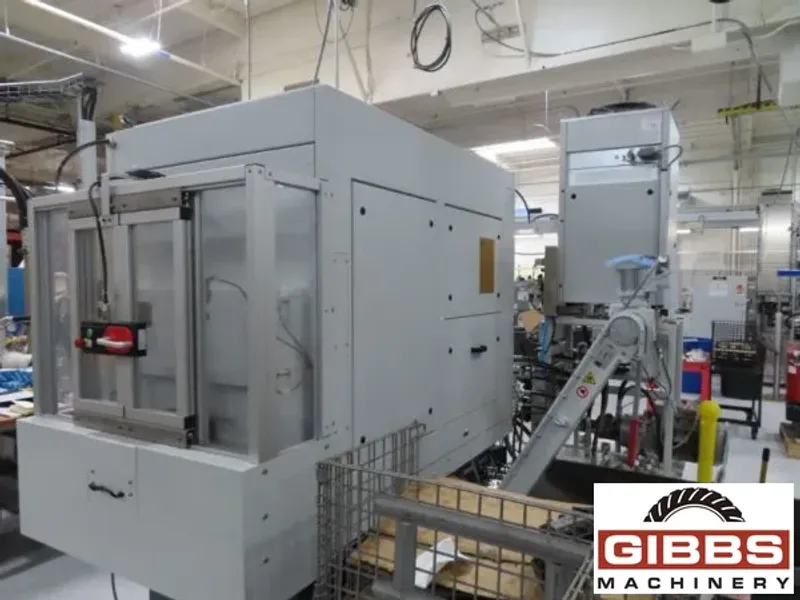

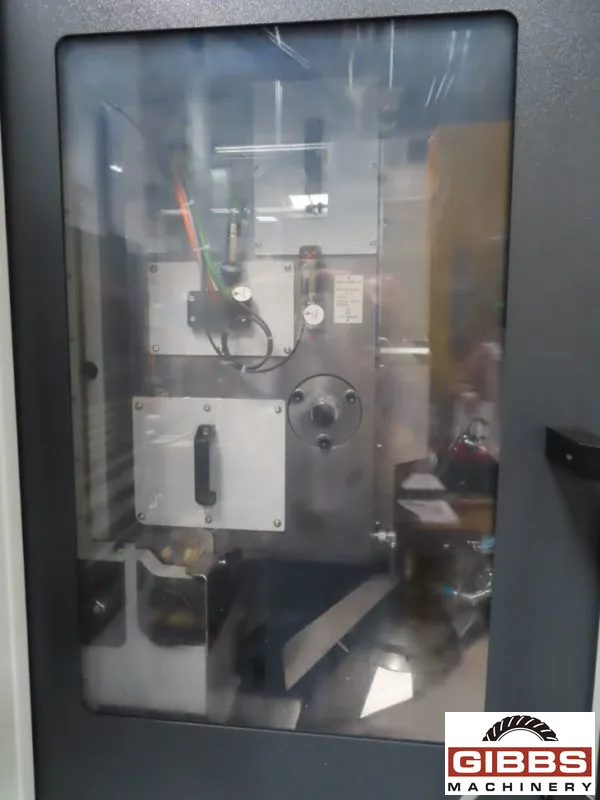

GLEASON 100S - Gear Shaper

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR SHAPERS

Stock

24963

Model

100S

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

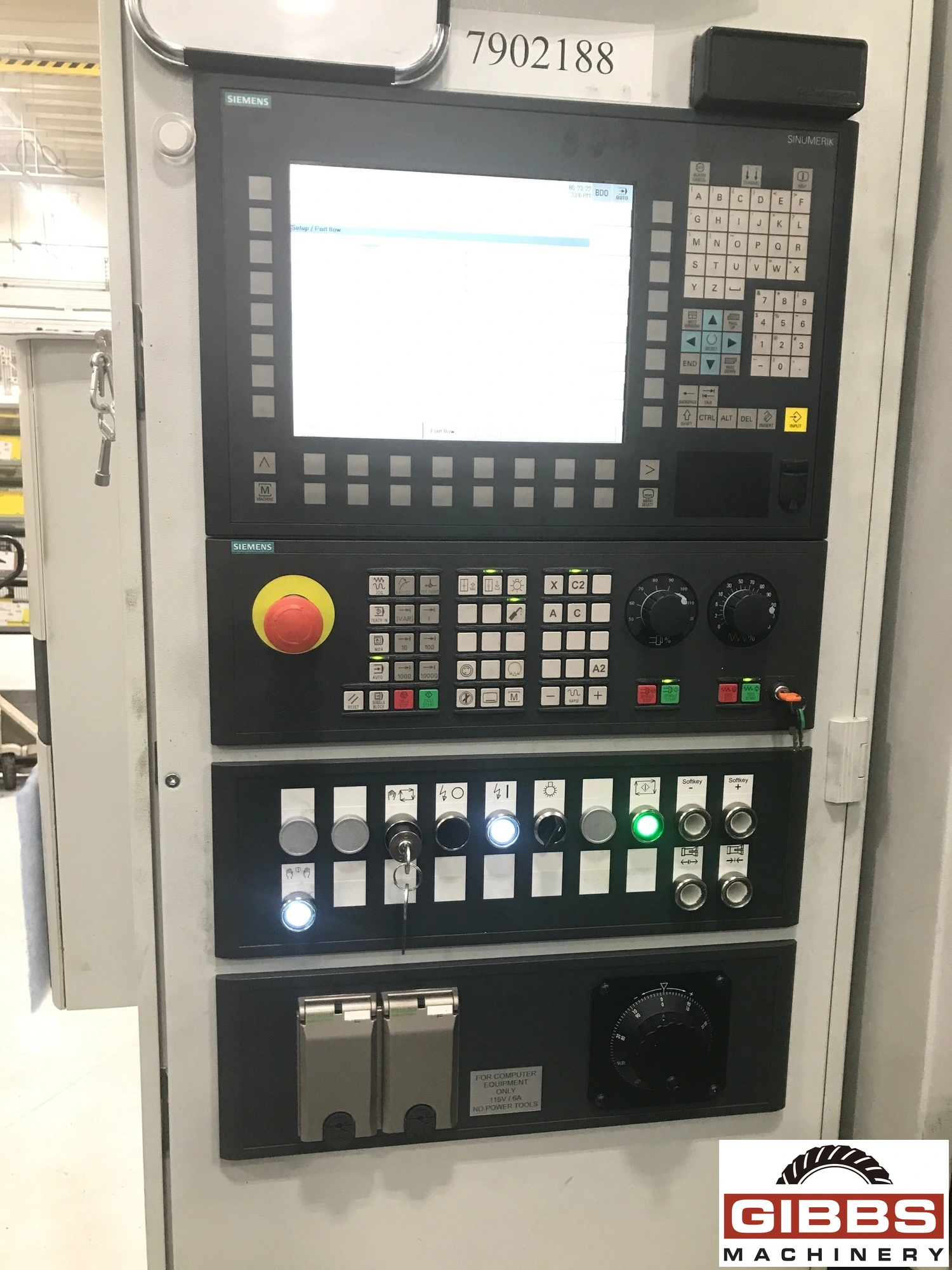

  • Siemens Sinumerik 840D SL Control

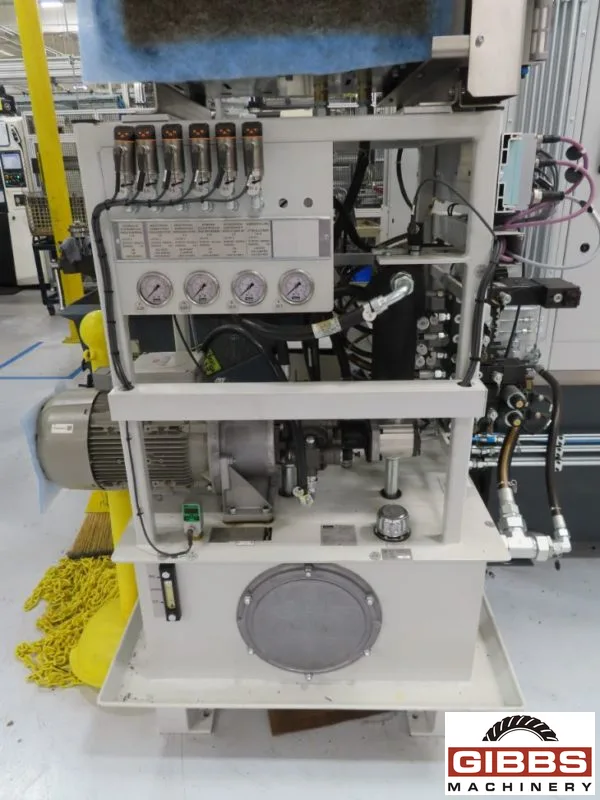

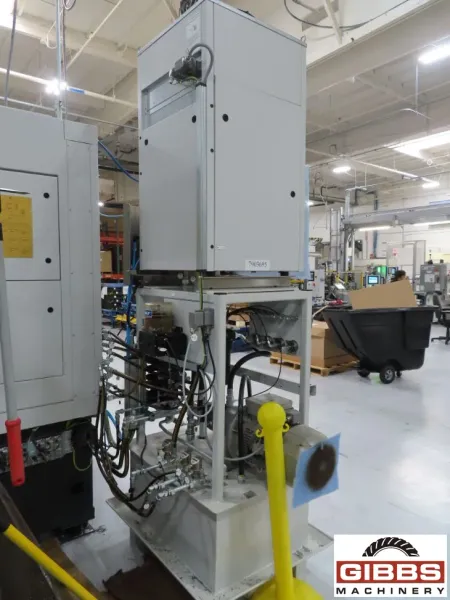

  • Hydraulic System
  • 180 Degree Load System
  • HSK-63 Spindle
  • Auto Stroke Adjustment
  • Chip Conveyor
  • Chip Basket

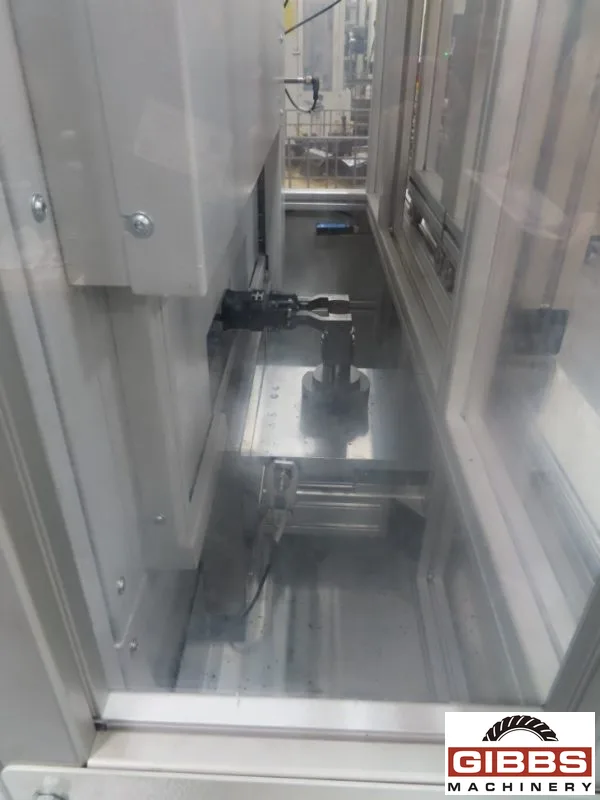

  • Flexlink Automation
  • Festo Pneumatics
  • Rittal Panel Conditioners

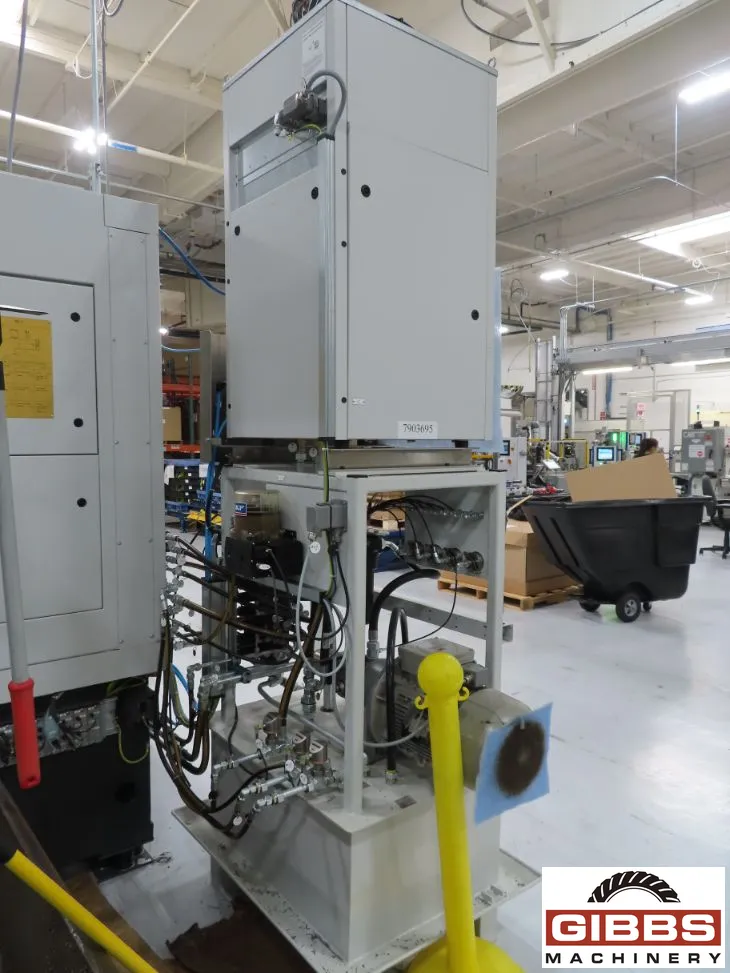

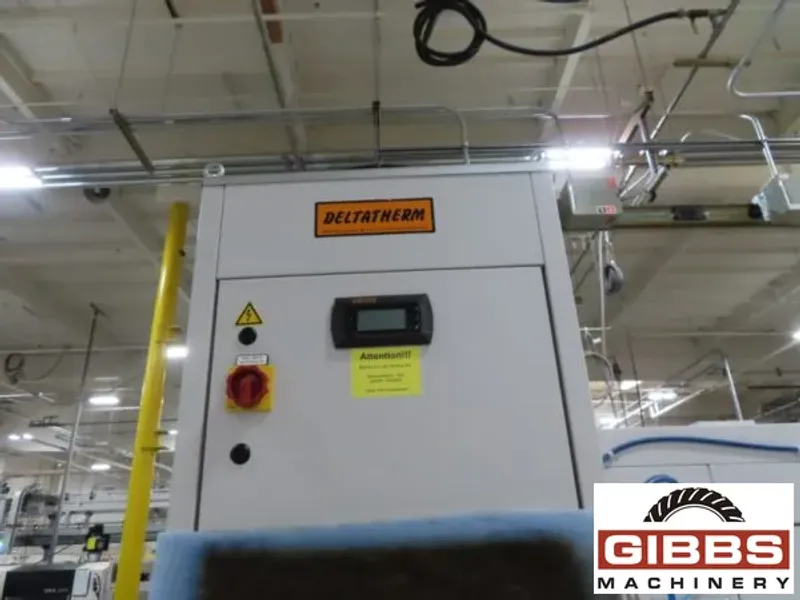

  • Chiller

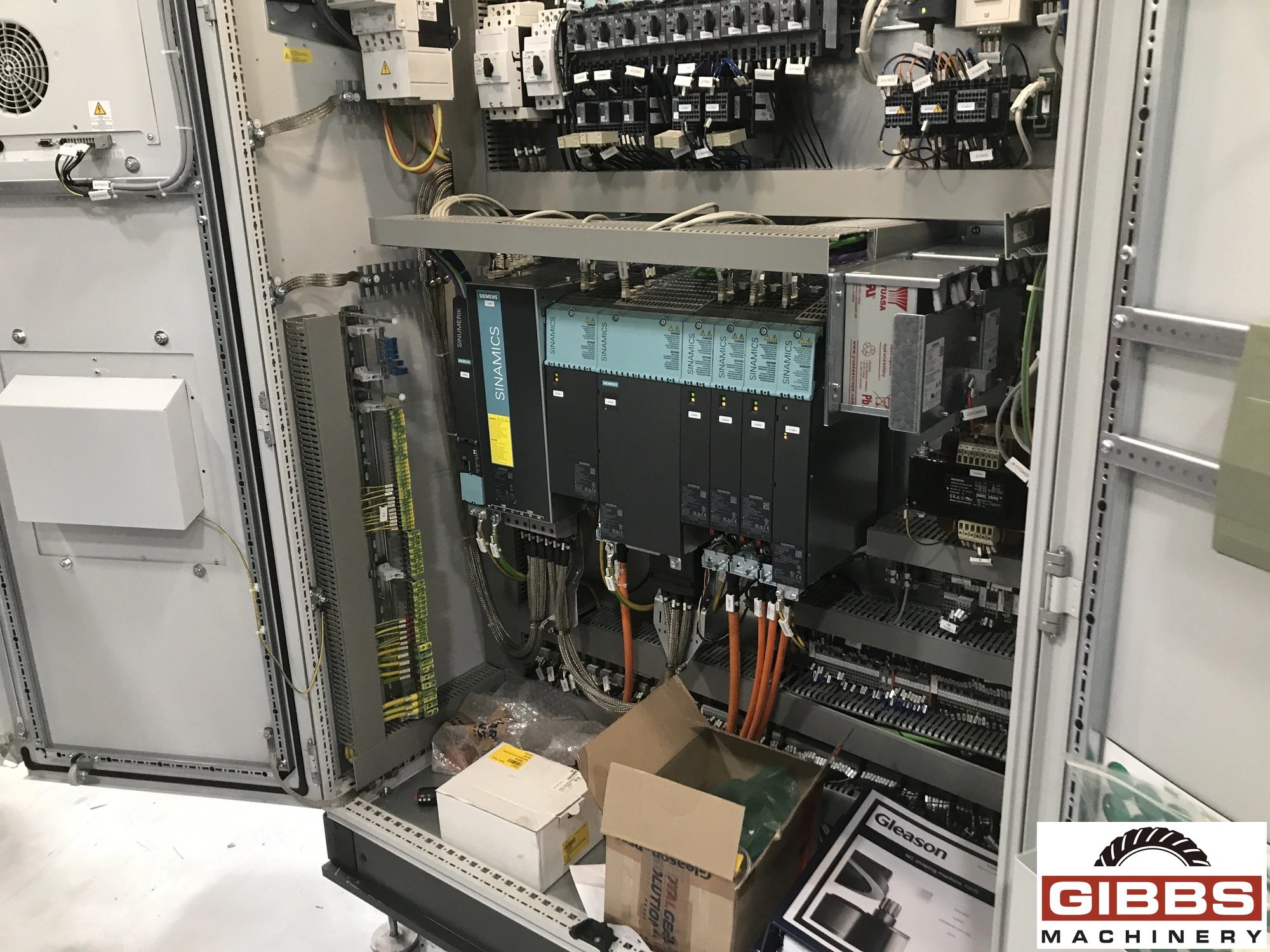

  • 480/3/60, 35 KvA Motor & Controls
,

Machine Specifications :

  • Year 2018
  • Manufacturer GLEASON
  • Maximum External Gear Diameter 3.9"
  • Maximum Internal Gear Diameter 3.9"
  • Diametral Pitch 8.0
  • Stroke 1.2"
  • Cutter Spindle Diameter 3.3"
  • Control Manufacturer Siemens
  • Guide Spur
,

The Sprinter for Gears with Short Face Widths up to 100 mm The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class.

    Specifications:

  • Workpiece With External Gear:
  • -Largest Module (Steel W/Approximate 600 N/mm2): 3 mm
  • -Maximum Width: 26 mm
  • -Maximum Diameter: 100 mm
  • Workpiece With Internal Gear:
  • -Largest Module (Steel With Approximate 600 N/mm2): 3 mm
  • -Maximum Width: 26 mm
  • -Maximum Swing Diameter: 150 mm
  • -Maximum Internal Diameter: 100 mm
  • Tool:
  • -Locating Cone In The Cutter Spindle: HSK-D63
  • -Diameter Shaping Spindle: 85 mm
  • -Maximum Stroke Length: 30 mm
  • Machine Travel Distances:
  • -Radial (X-Axis): 180 mm
  • -Column Tilting (B-Axis): -1 - +11 Degrees
  • Machine Workpiece Table:
  • -External Diameter: 220 mm
  • -Clamping Diameter: 160 mm
  • -Bore: 63 mm
  • Speeds:
  • -Feed Rate X-Axis: 12,000 mm/min
  • -Workpiece Table (C-Axis): 0-400 min-1
  • -Cutter (C2-Axis): 0-300 min-1
  • -Spindle Stroke (A-Axis): 500-3,000 min-1
  • Electrical Equipment:
  • -Operating Voltage: 480V
  • -Supply Voltage: 115V
  • -Control Voltage: 24V
  • -Frequency: 60 Hz
  • -Connected Load of Machine: 35 kVA
  • -Cable Cross-Sectional Area: 35 mm2
  • -Protection: 80 A
  • Machine Overall Dimensions (L x W x H): 3,380 x 3,950 x 3,015 mm
  • Weight of Machine: 7,800 kg
