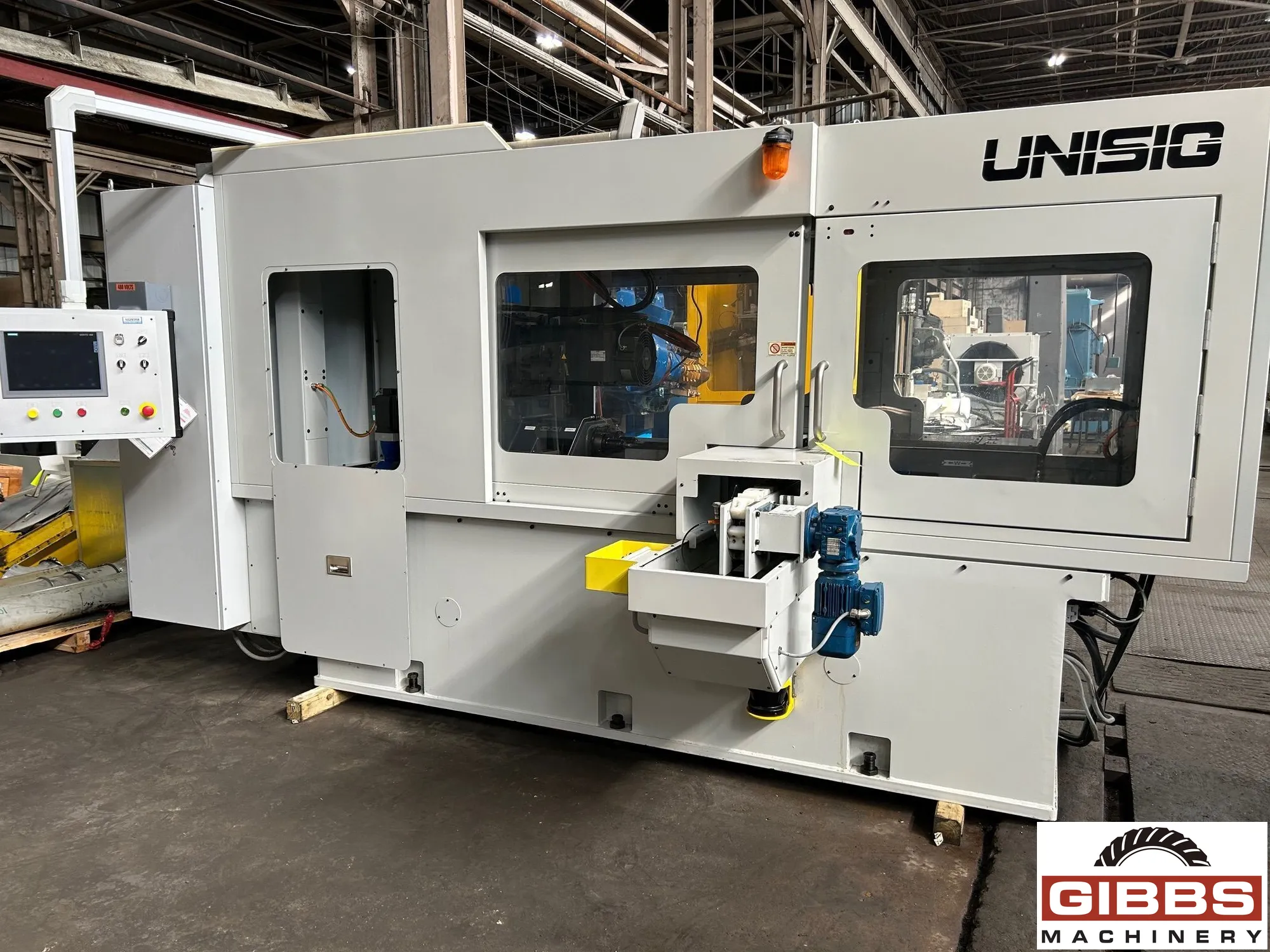

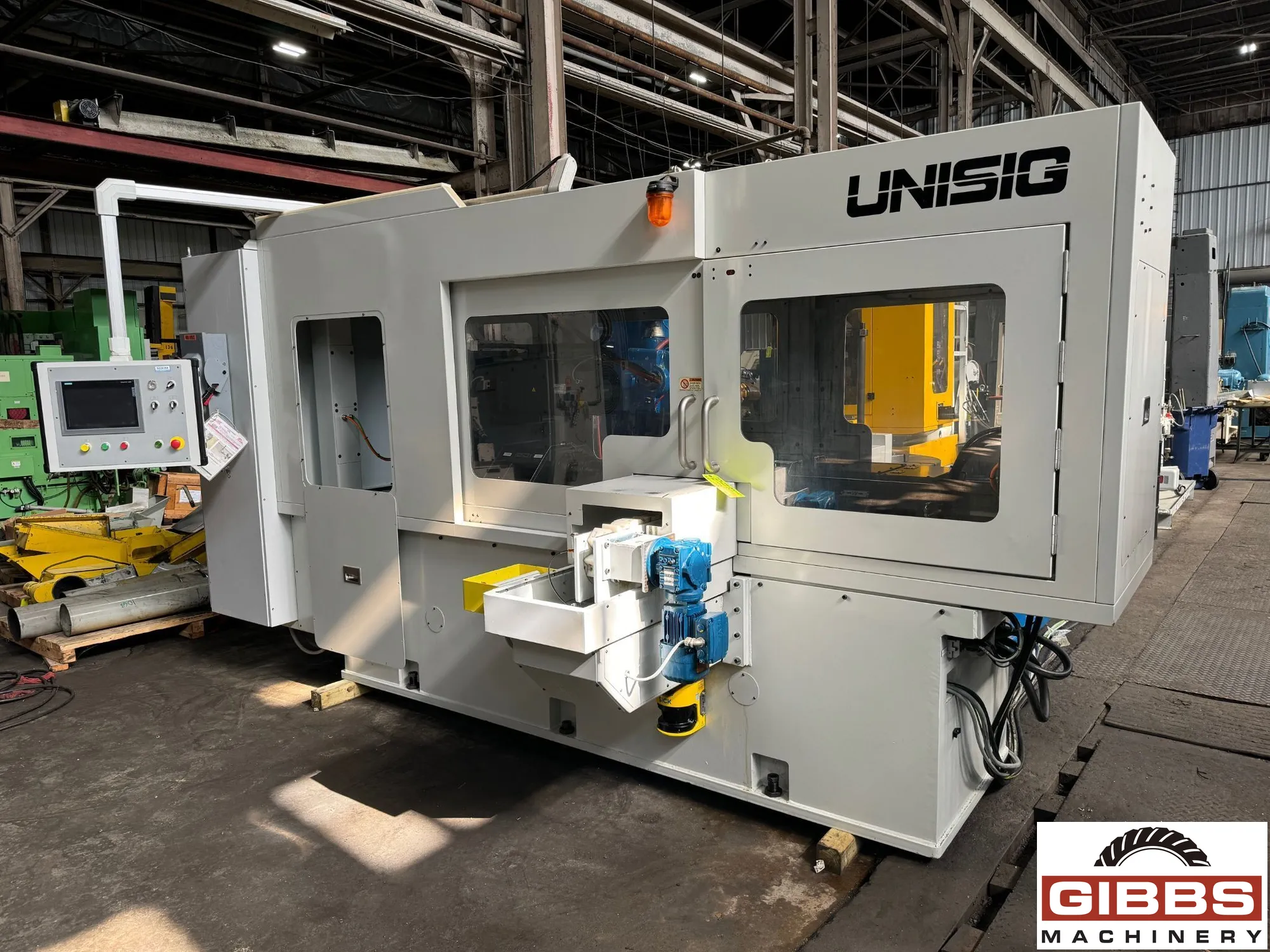

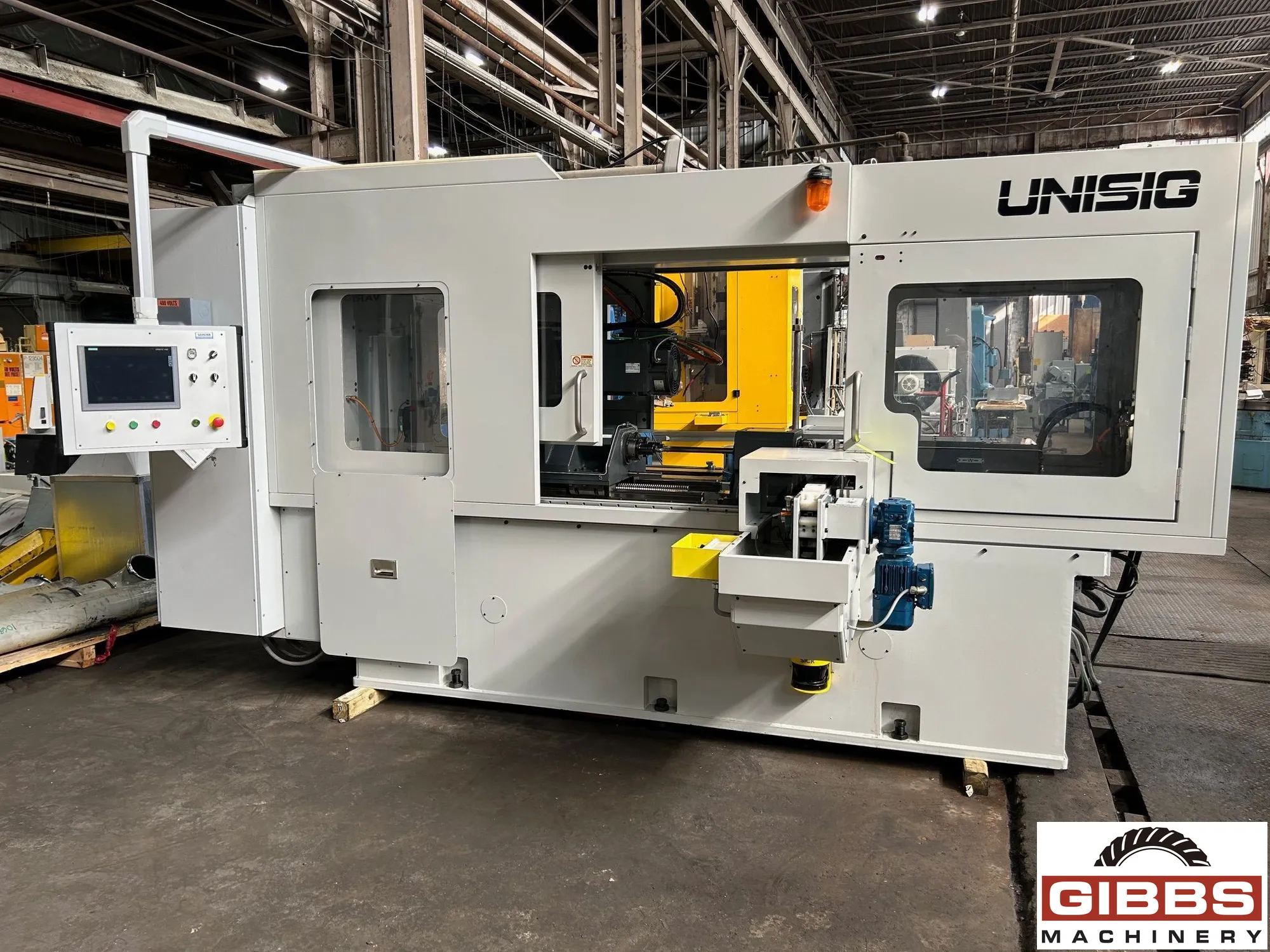

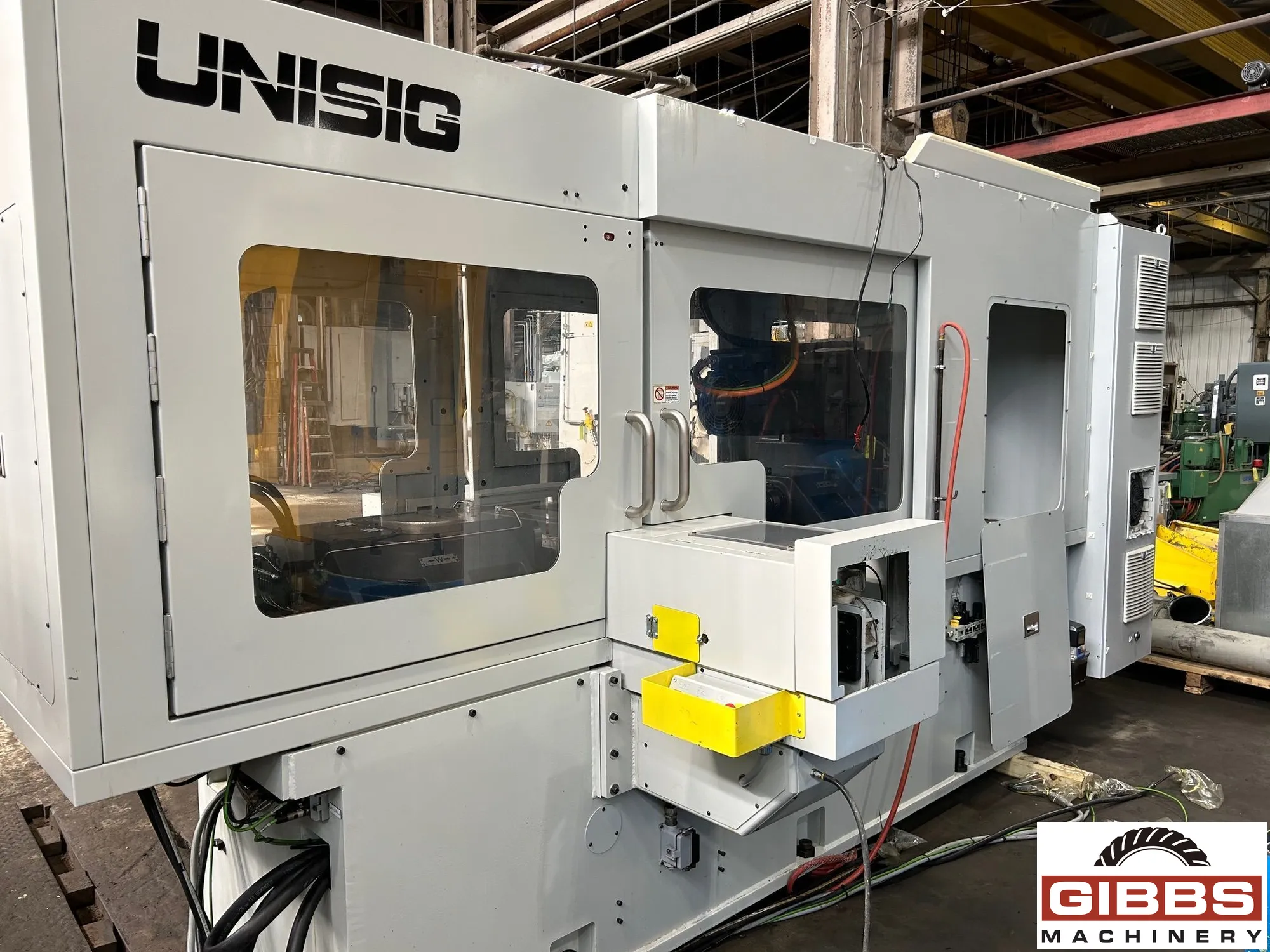

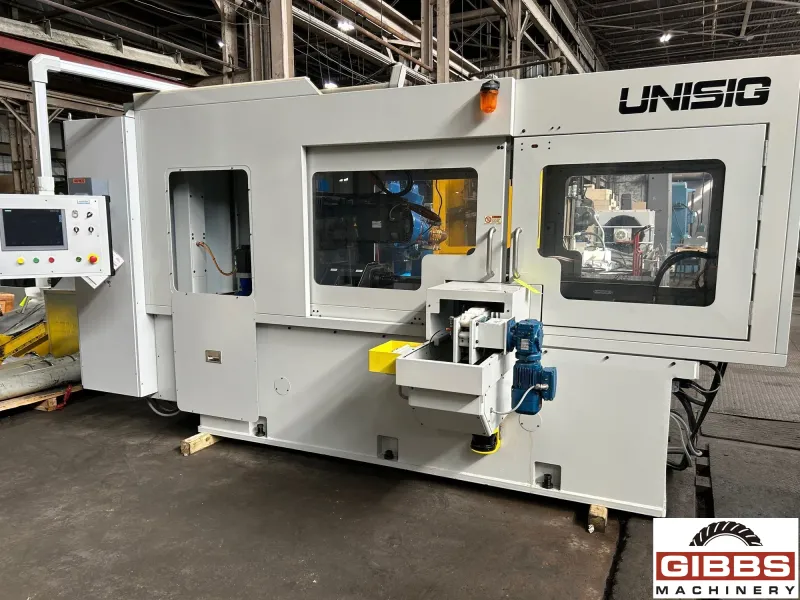

UNISIG UNI-25HD-2-250 - Gun Drill

Manufacturer

UNISIG

Stock

25558

Model

UNI-25HD-2-250

Dealer Location

Michigan

Spec Sheet

Highlights:
  • Siemens Controller

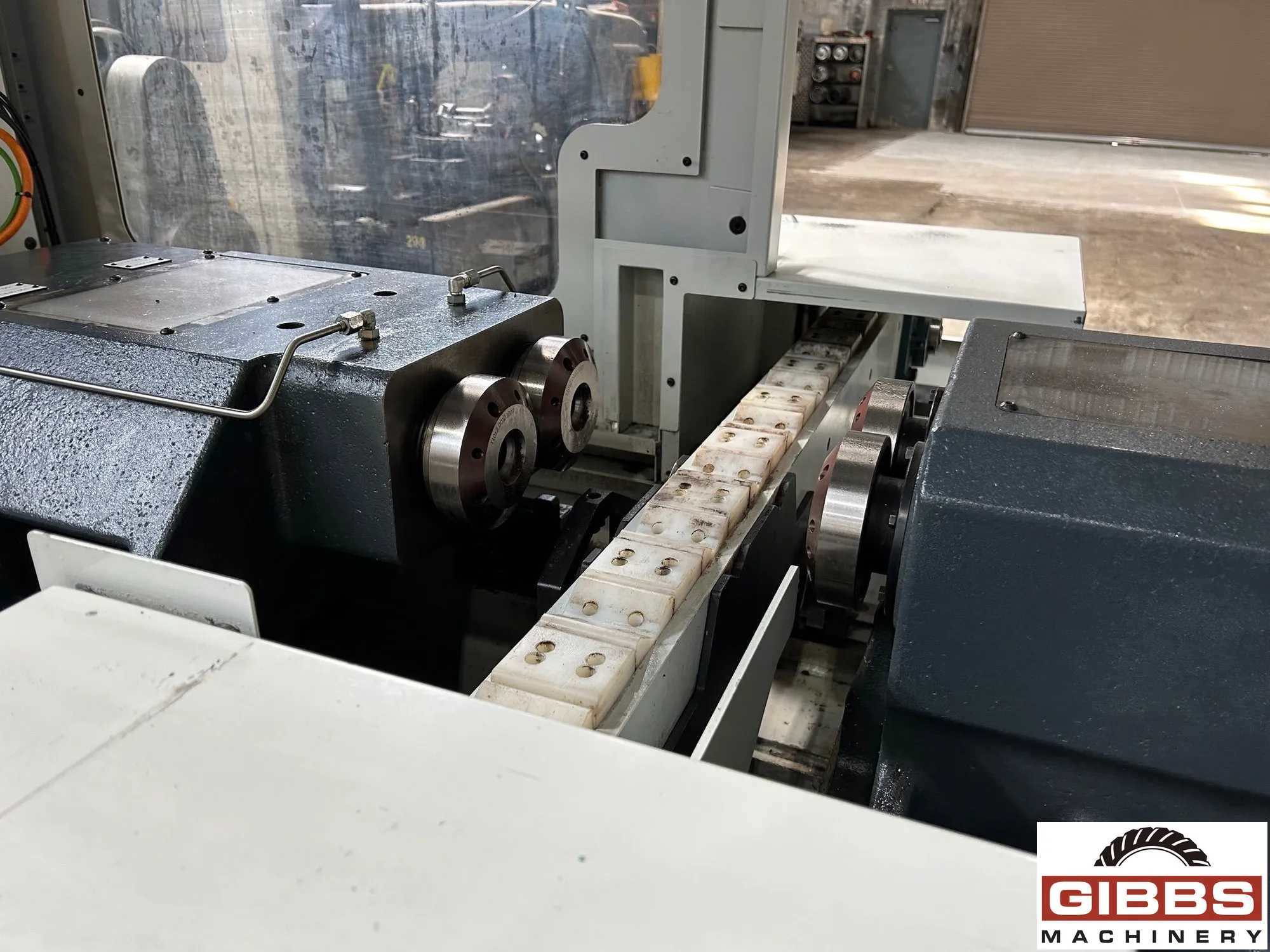

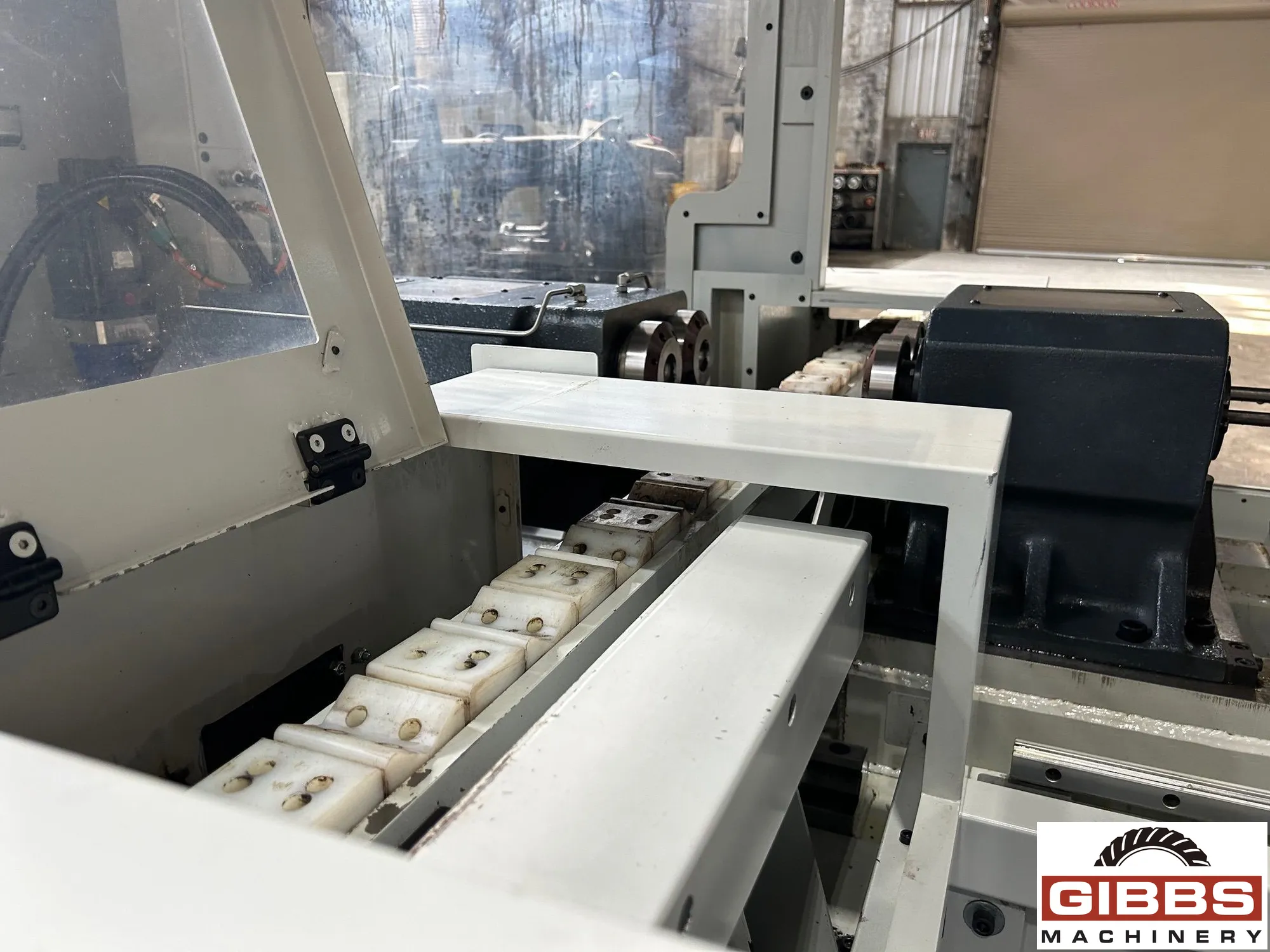

  • Magazine Loader
  • High Pressure Coolant System
  • Indexable Gun Drilling
,
  • Year 2017
  • Manufacturer UNISIG
  • Max Dia. Hole Drilled 1"
  • Max Drilling Depth 9.8"
  • # Spindles 2.0
,

Production deep hole drilling applications are handled with confidence on UNI series machines, built for high accuracy at high volumes, and configurable to build the ideal solution for these demanding applications. UNI machines make the most impact with the least cost by intelligently combining proven components with valuable technologies, developed through our own expertise, and tailored to your drilling needs.

    Specifications:

  • Number of Spindles: 2, 4
  • Process Type: Gundrill
  • Hole Location: On-Center
  • Workpiece Shape: Cylindrical
  • Minimum Hole Diameter: 8 mm
  • Maximum Drill Diameter: 25 mm
  • Maximum Hole Diameter: 25 mm
  • Maximum Hole Depth: 250 mm
  • Workpiece Dimensions: 750, 1000, 1500 mm
  • Maximum Workpiece Weight: 25 kg (55 Lbs)
  • Spindle Motor: 15 Kw
  • Spindle Speed: 3,000 RPM
  • Drilling Depth: 249 mm
  • Feed Rate: 5004 mm/min
