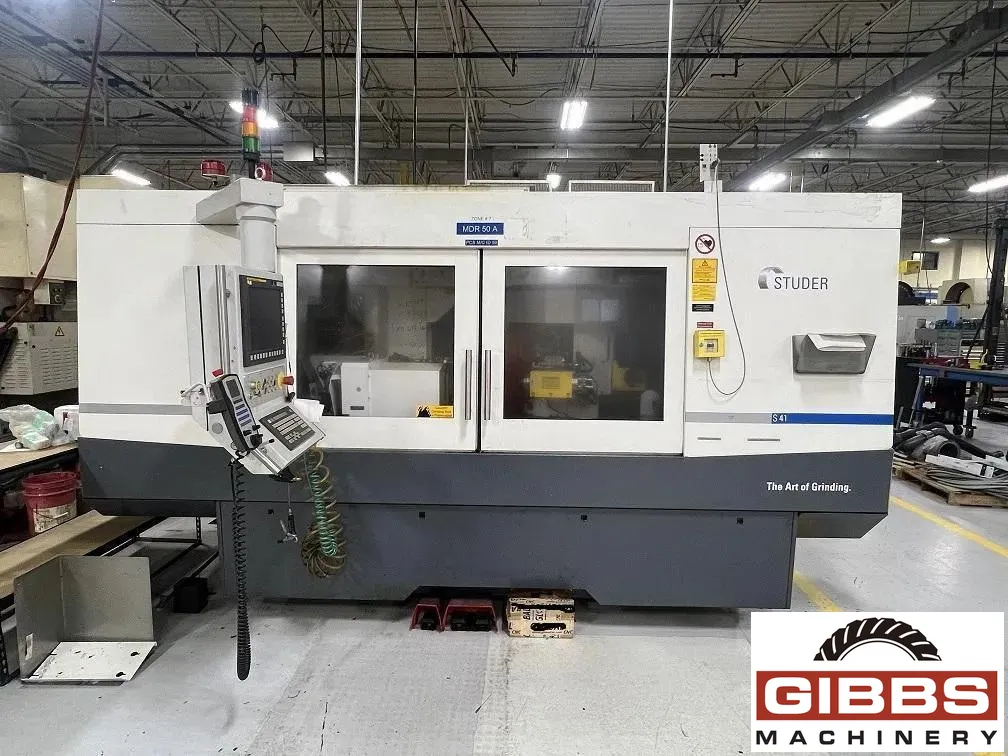

STUDER S41 - Cylindrical Grinder

Manufacturer

STUDER

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL, CNC

Stock

25858

Model

S41

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

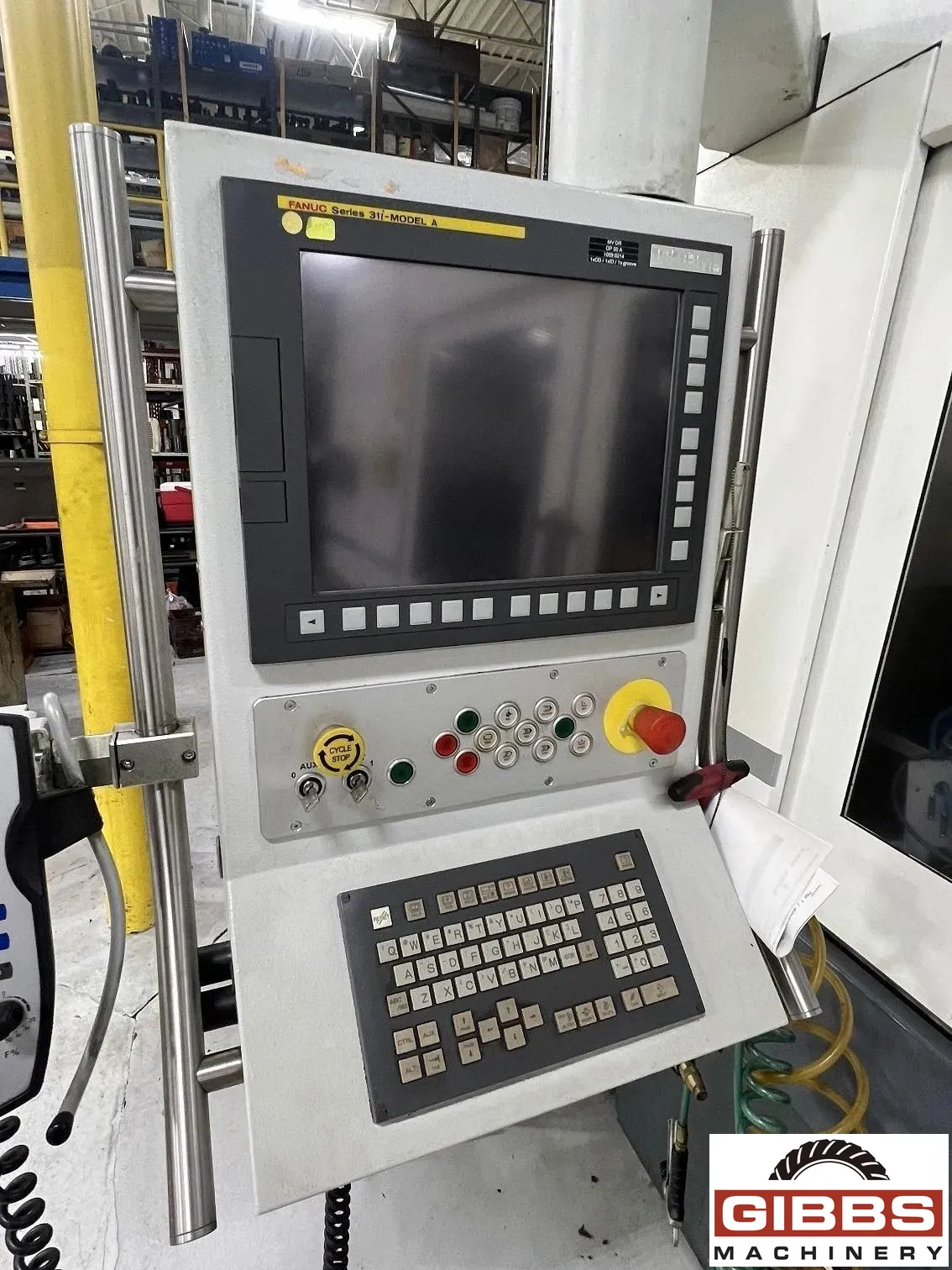

  • Fanuc 31i-Model A Control

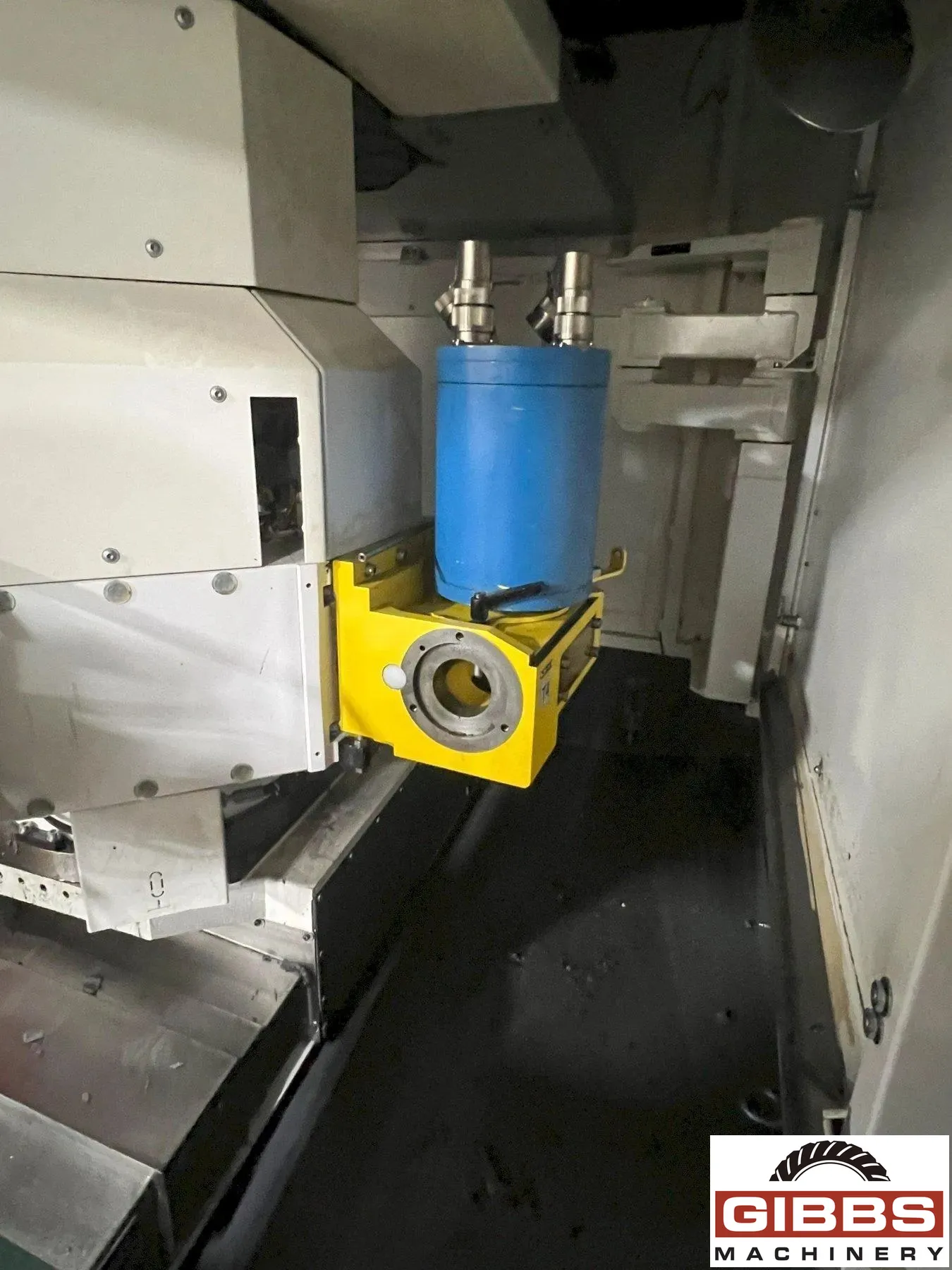

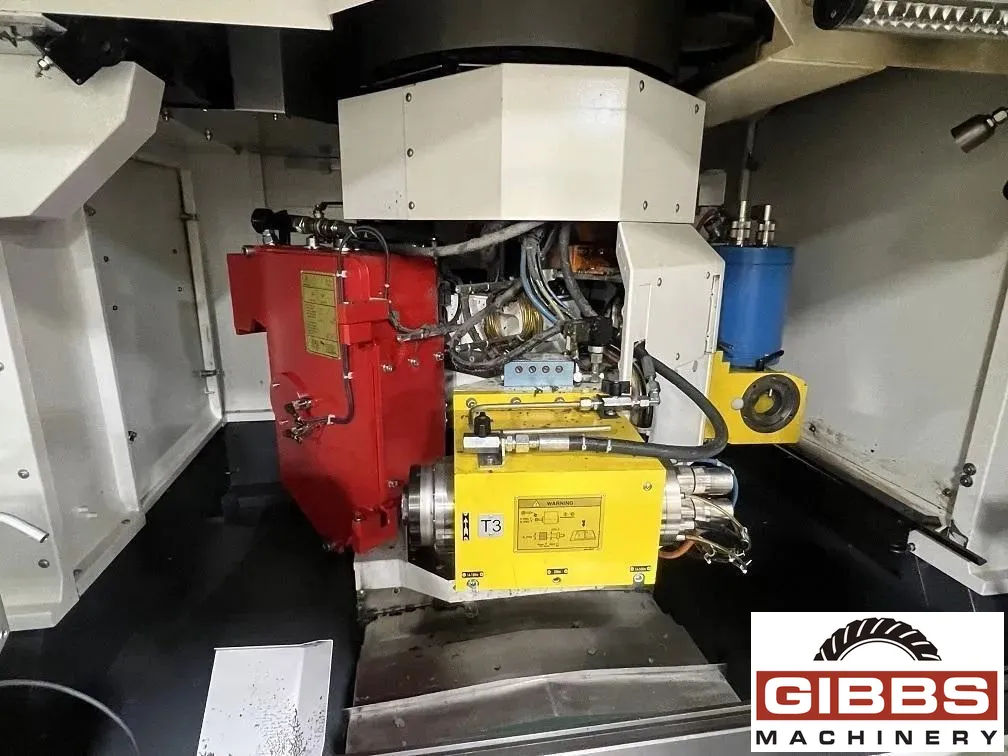

  • (1) Fischer ID Spindle - 42,000 rpm T3

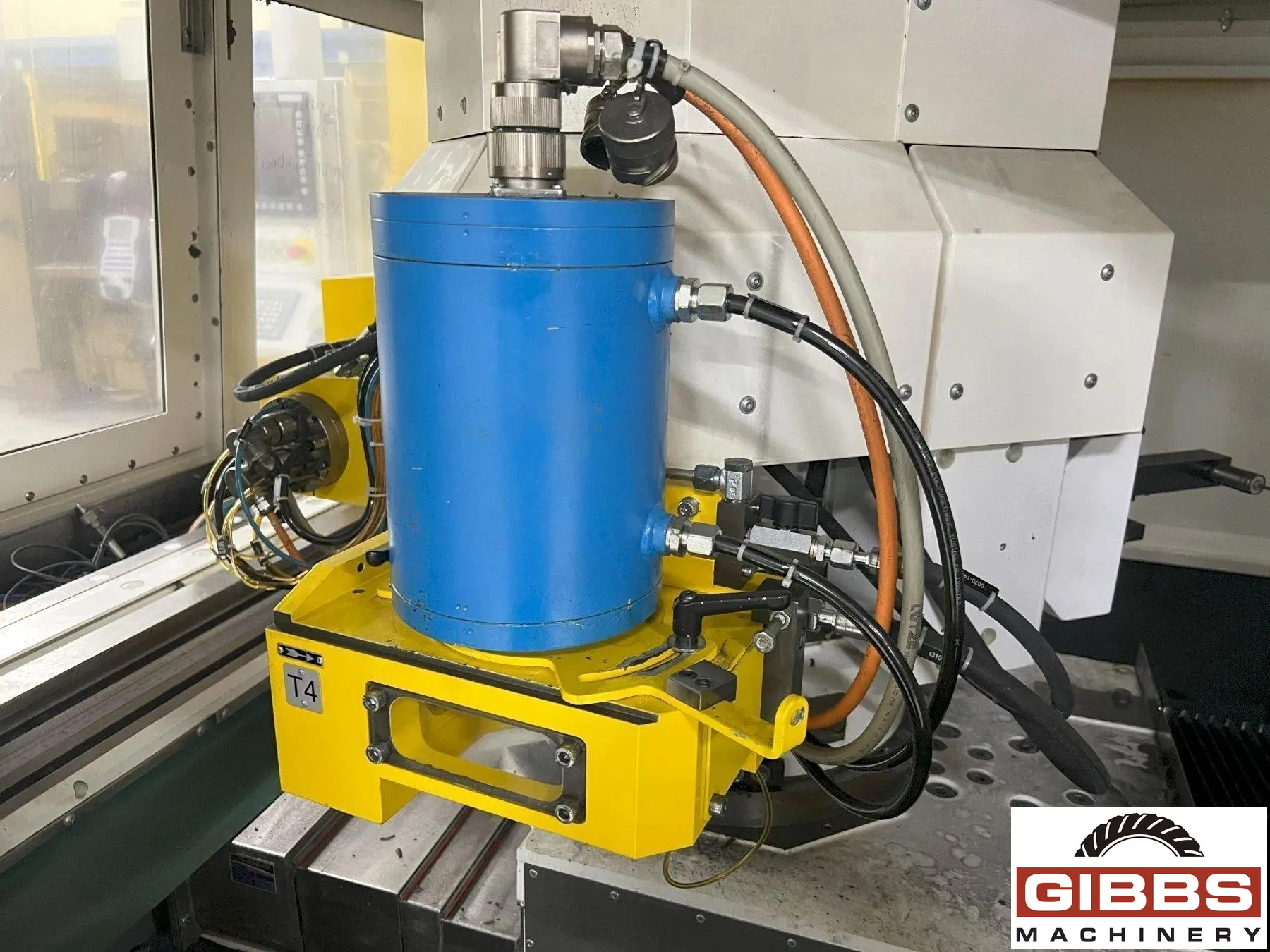

  • (1) Grooving Spindle T4

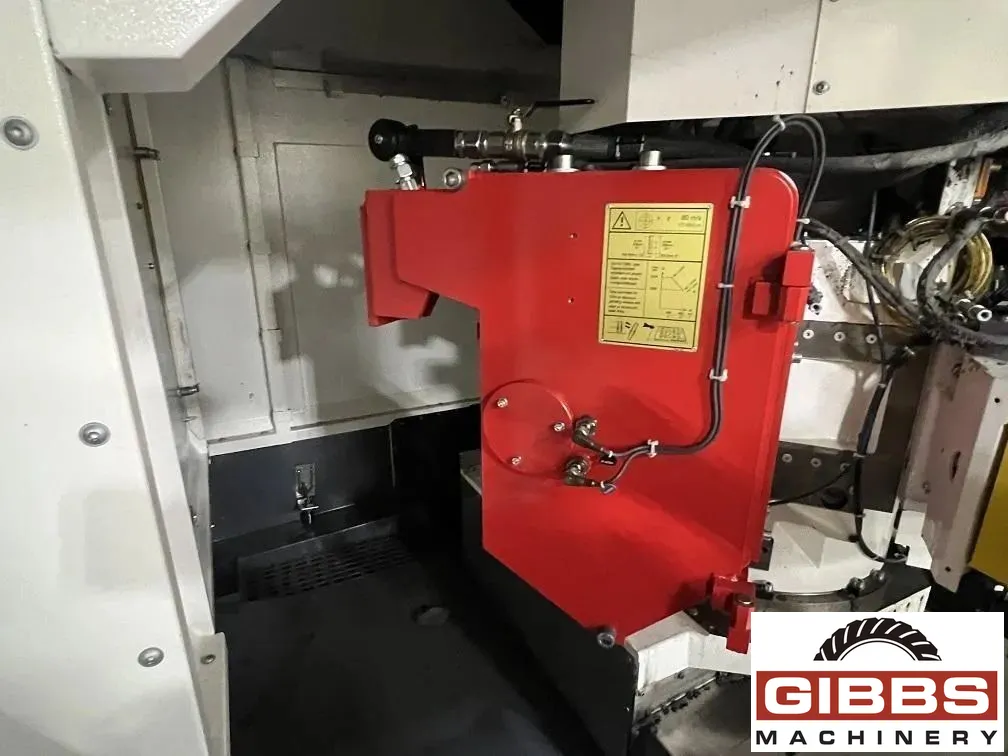

  • (1) OD Grinding Wheel 15748 sfpm T2

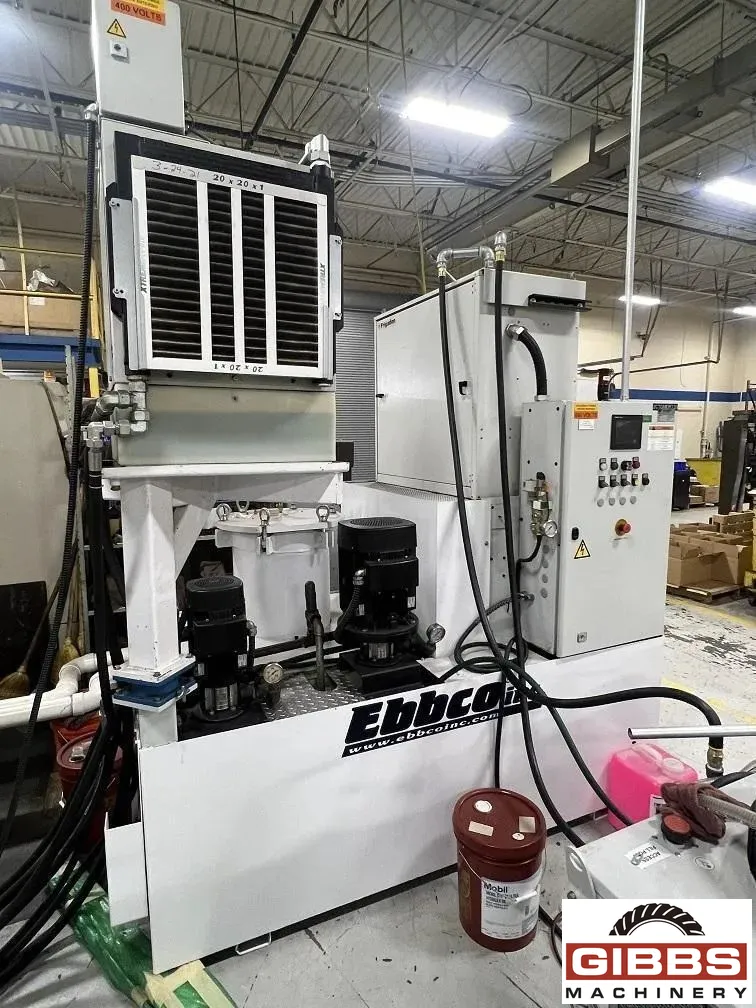

  • Transor Filtration System
  • Marposs Gauging
  • Dittell Balancing M6000
  • Workhead w/C Axis
  • B Axis Wheelhead
  • Probing H1 Touch Probe
  • Rotary Dresser
,

Machine Specifications :

  • Year 2015
  • Manufacturer STUDER
,

The STUDER S41 is a high-precision CNC universal cylindrical grinding machine designed for complex, demanding internal (ID) and external (OD) grinding operations. Built for medium-to-large workpieces, it combines exceptional thermal stability, heavy vibration damping, and automation to deliver sub-micron tolerances in a single setup.

    Specifications:

  • Type of CNC Control: Fanuc 31i-Model A
  • Center Height: 8.9 in (226.06 mm)
  • Center Distance: 39.4 in (1,000.76 mm)
  • Max Weight Between Centers: 550 lbs. (249.48 kg)
  • X Axis Travel: 13.8 in (350.52 mm)
  • Z Axis Travel: 45.3 in (1,150.62 mm)
  • Workhead Speed: 1,500 rpm
  • Workhead Power:13.6 hp (10.14 kw)
  • C Axis Index: 0.0001°
  • B-axis Indexing: -45° to +225°
  • Grinding Wheel Dimensions: 20" x 3.54" x 8"
  • Wheel Speed (RPM): 4,500 rpm
  • Wheel Head Motor: 20 hp
  • ID Spindle Speed: (2x) 42,000 rpm
  • Dimensions: 154" x _ x 99"
  • Weight: 20,000 lbs. (9,071.84 kg)
