CREST OJ4-1218 - Miscellaneous Equipment

Manufacturer

CREST

Category

Miscellaneous Machines

Type

WASHING EQUIPMENT

Stock

25292

Model

OJ4-1218

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • MODEL 4HT-1218-9 - HEATED ULTRASONIC WASH TANK
  • -Tank Dimensions: 12" Left to Right by 18" Front to Back by 12" Deep, 10" Liquid Depth
  • -2000 Watts of strip Heat
  • -Ultrasonic Frequency: 40 kHz
  • -Ultrasonic Power: 750 Watts of Power Provided by Nine (9), Ceramically Enhanced Piezoelectric Transducer
  • Modules
  • -1" Wide Flange Around Top Edge of Protective Skirt
  • -Tank Bottom Sloped to Drain
  • -3/4" Fill and Drain Ports
  • -Two (2) 6' Long of Coaxial Cables to Connect to the Ultrasonic Generator
  • -A 6' Long Power Cable
  • -240 Volts/60Hz/1 Phase, 8.33 Amps
  • MODEL 4HT-1218-9-OFE HEATED OVERFLOW ULTRASONIC RINSE TANK
  • -Tank Dimensions: 12" Left to Right by 18" Front to Back by 12" Deep, 10" Liquid Depth
  • -Ultrasonic Frequency: 40 kHz
  • -Ultrasonic Power: 750 Watts of Power Provided by Nine (9), Ceramically Enhanced Piezoelectric Transducer
  • Modules
  • -Power Requirements: 240 Volts/60 Hz/ 1 Phase/8.33 Amps

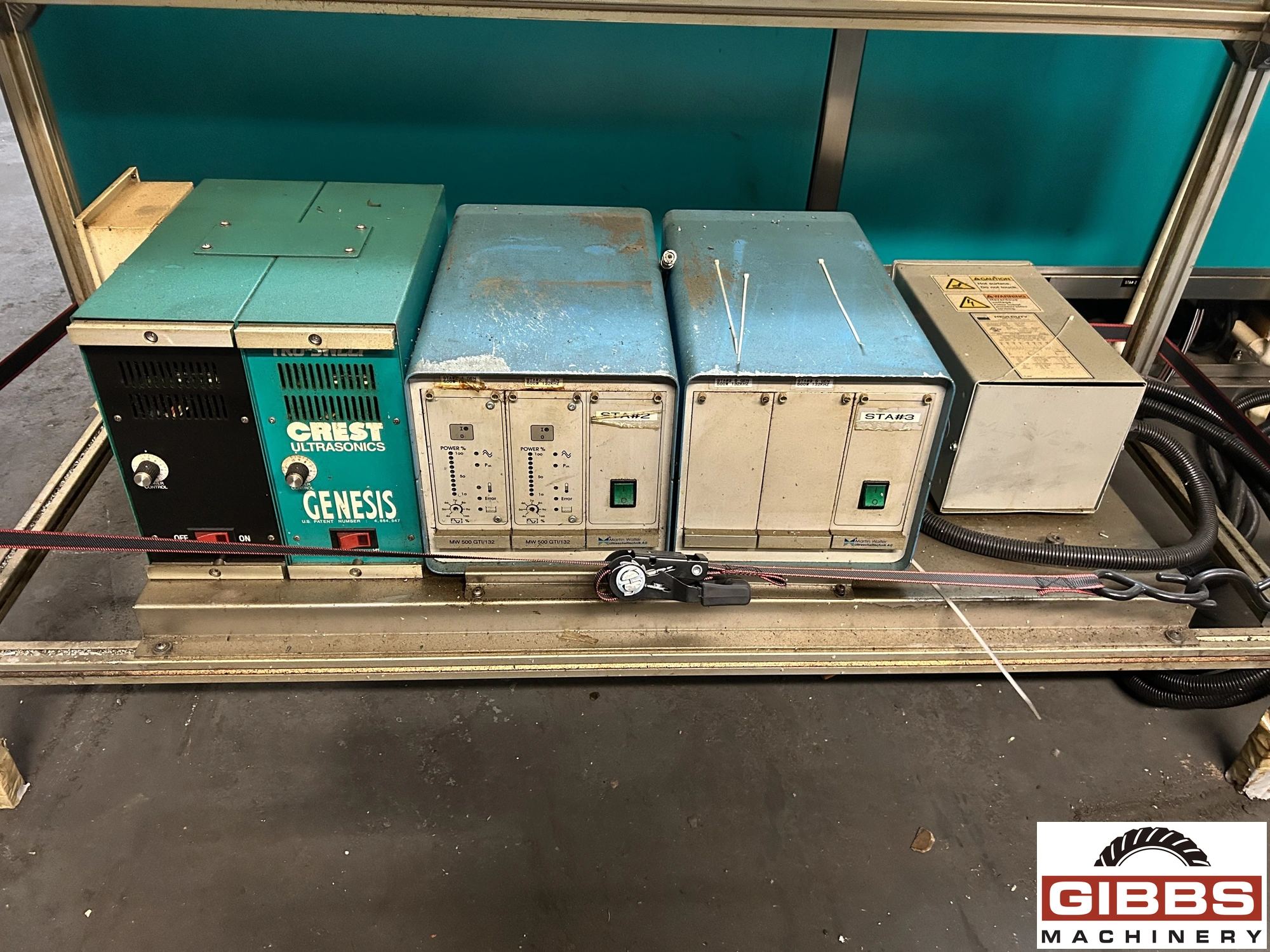

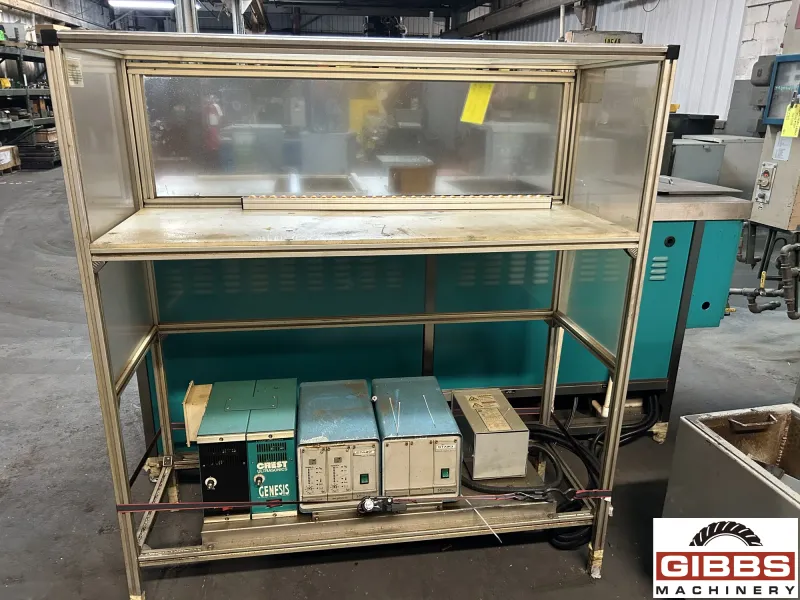

  • MODEL 4G-750-9 ULTRASONIC GENERATOR
  • -Generated Power: 750 Watts (1) 500-watt module and (1) 250-watt module
  • -RFI Filter
  • -Patented constant Power Circuit Design Monitors Power Output Continuously Adjusting Input Power for
  • Controlled Consistency
  • -Rear Panel Mounted Full and Half Wave Selector Switch
  • -Factory-Set Tru-Sweep Frequency At +/- 1 kHz Around the Base Frequency
  • MODEL HT-1218-OFE HEATED OVERFLOW RINSE TANK
  • -Tank Dimensions: 12" Left to Right by 18" Front to Back by 12" Deep, 10" Liquid Depth

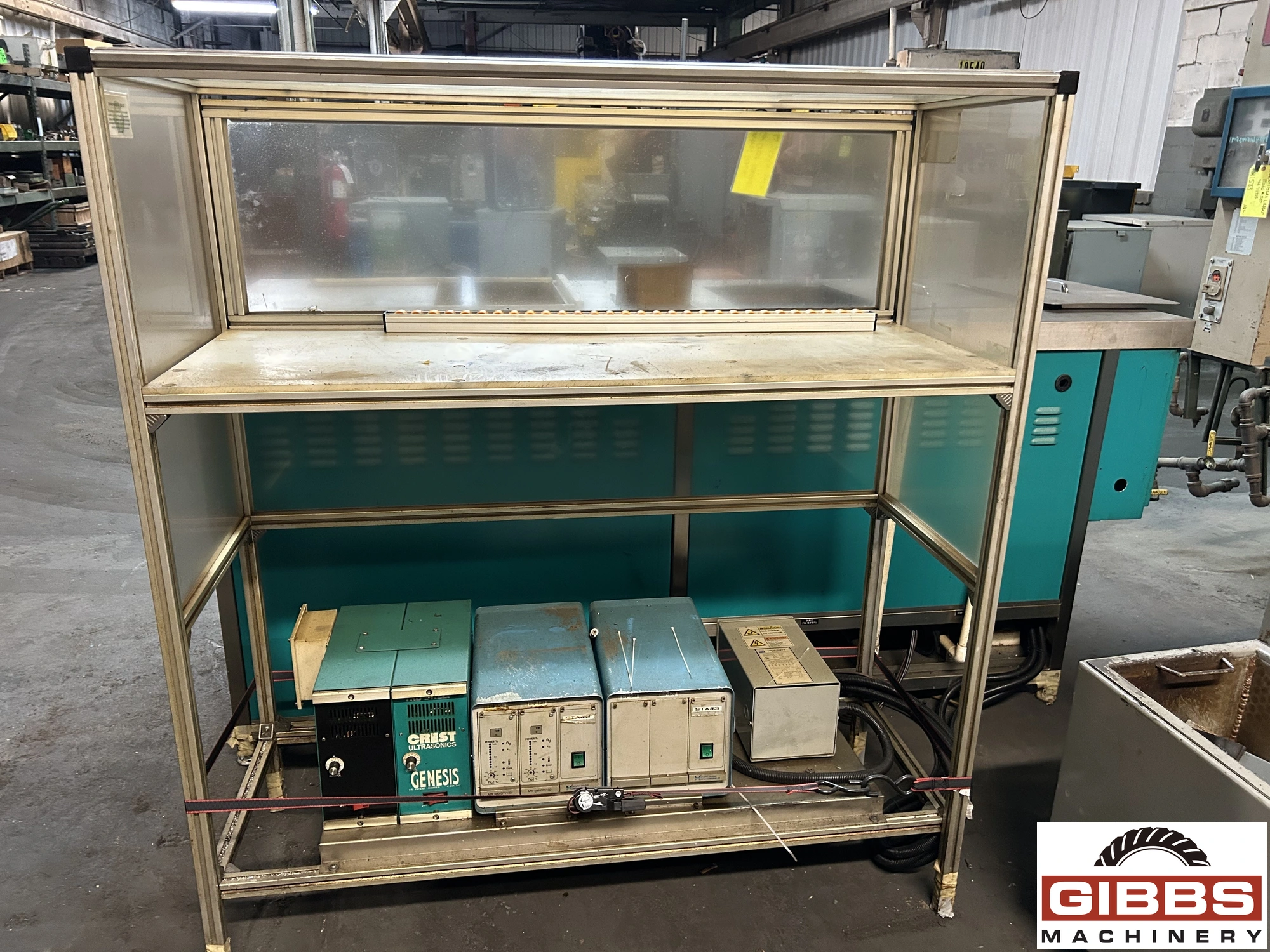

  • 3-Station 1218 Tank Stand
  • Tank Cover
  • Basket Positioner
  • Tank Drain-Back
  • Model PF-5 Pump / Filtration System
,

Machine Specifications :

  • Year 2012
  • Manufacturer CREST
  • Tank-W 12.0"
  • Tank-L 18.0"
  • Tank-H 10.0"
,

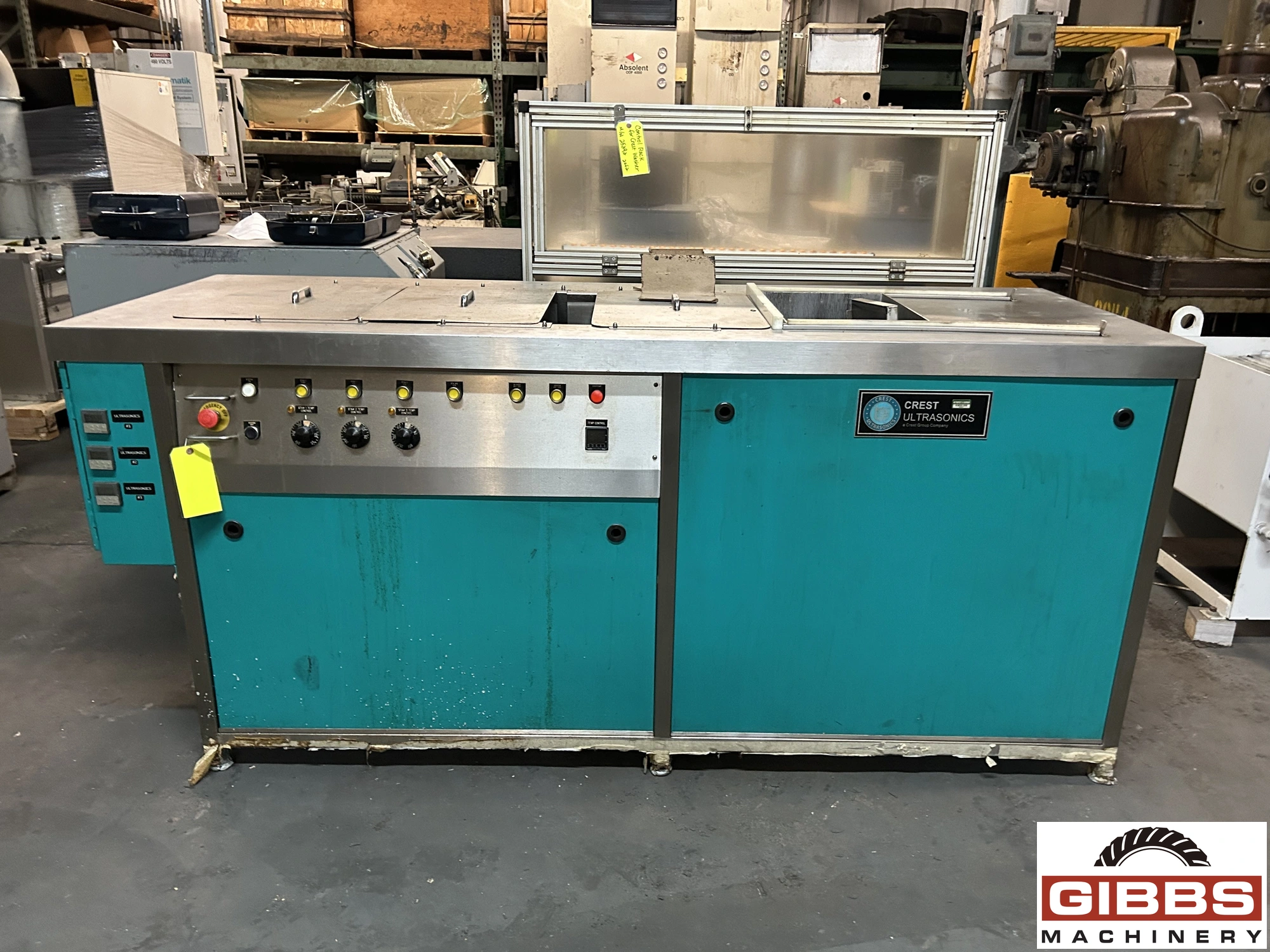

2012 Crest OJ4-1218 Ultrasonic Washer It has a heated ultrasonic wash tank with tank dimensions of 12" W x 18" L x 10" H, 2000 watts of strip heat, 40 kHz ultrasonic frequency, and provides 750 watts of power with 9 ceramic enhanced piezoelectric transducer modules. It also features a heated overflow ultrasonic rinse tank with the same power specifications. The ultrasonic generator delivers a solid 750-watts of power with a RFI Filter, a full and half wave selector switch and a patented power circuit design. The machine also includes a heated overflow rinse tank, a 3-Station 1218 Tank Stand, tank cover, basket positioner, tank drain-back, and a model PF-5 Pump / Filtration System. Power requirements are 240 volts, 60Hz, 1 phase, 8.33 Amps.
