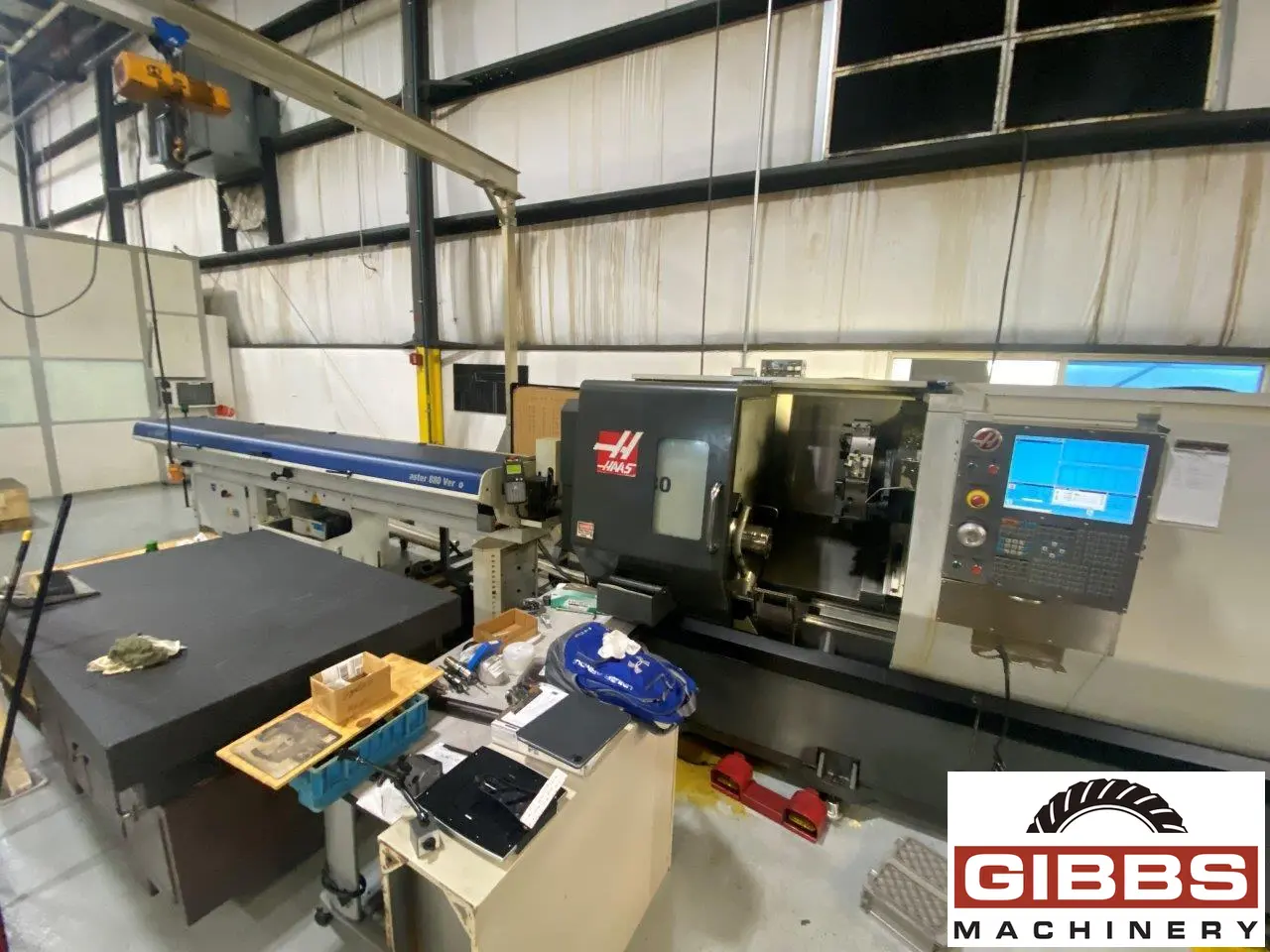

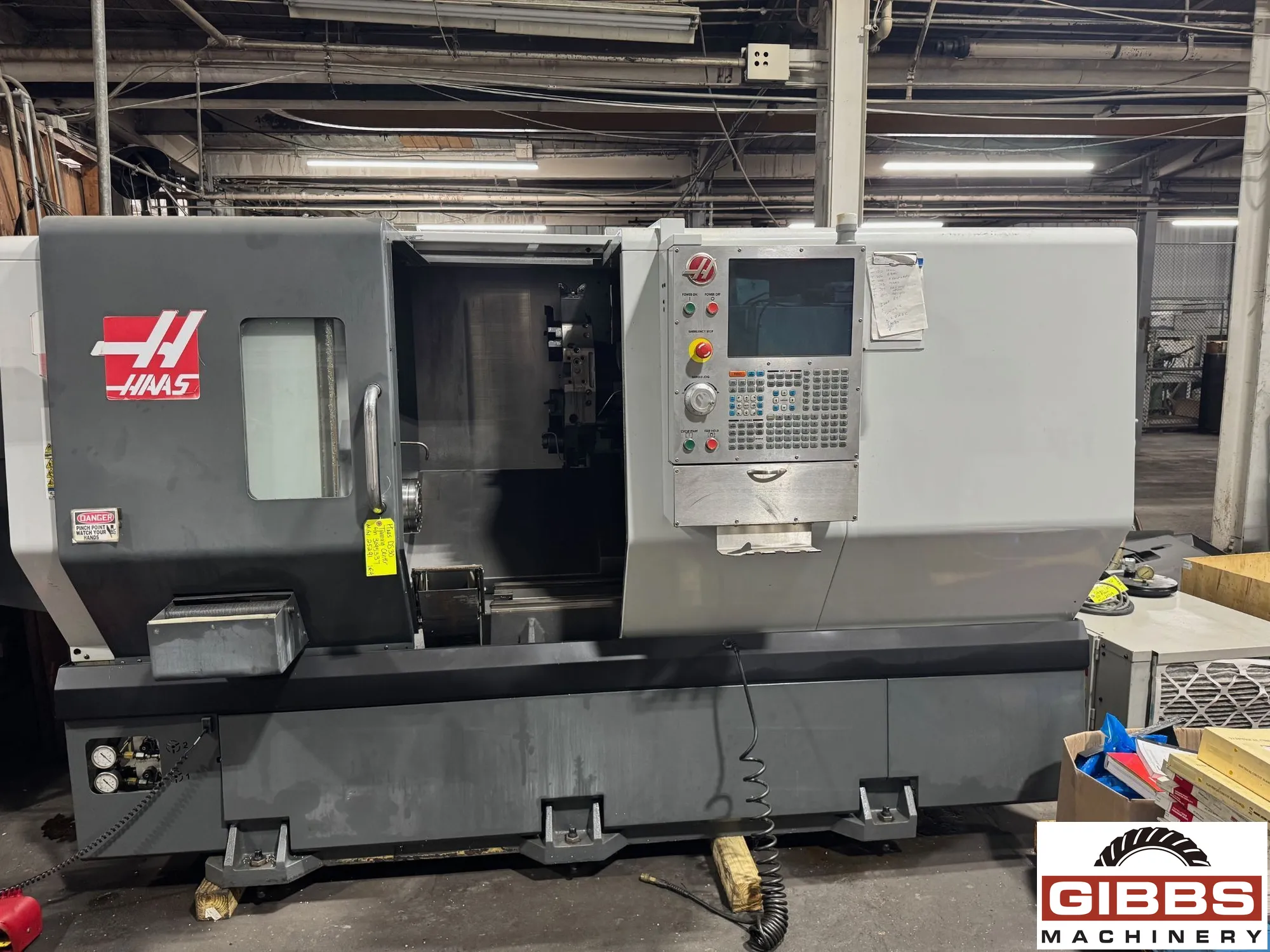

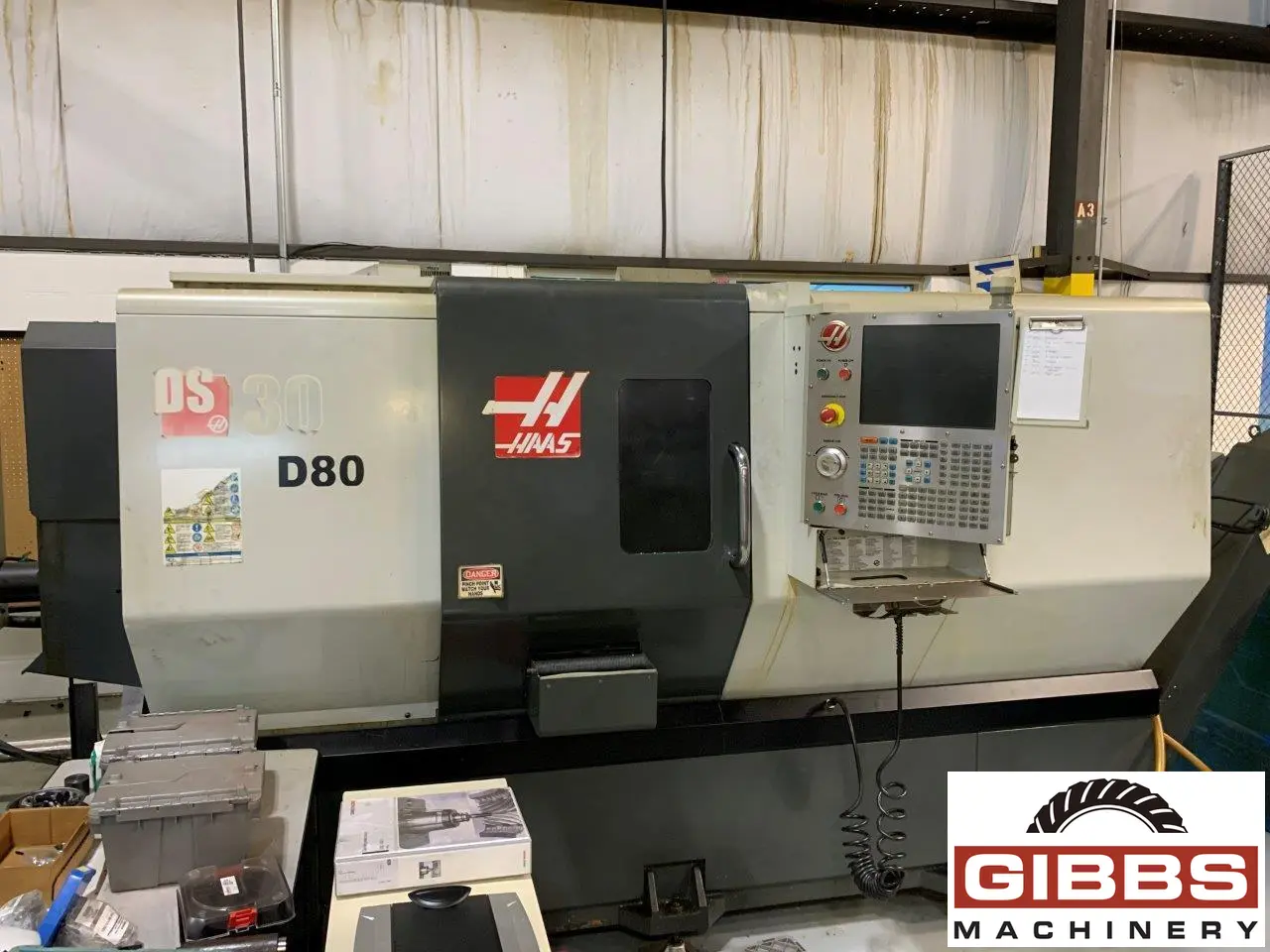

HAAS DS-30 - Horizontal Lathe

Manufacturer

HAAS

Category

Lathes

Type

LATHES, TURNING

Stock

25291

Model

DS-30

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Haas CNC Control

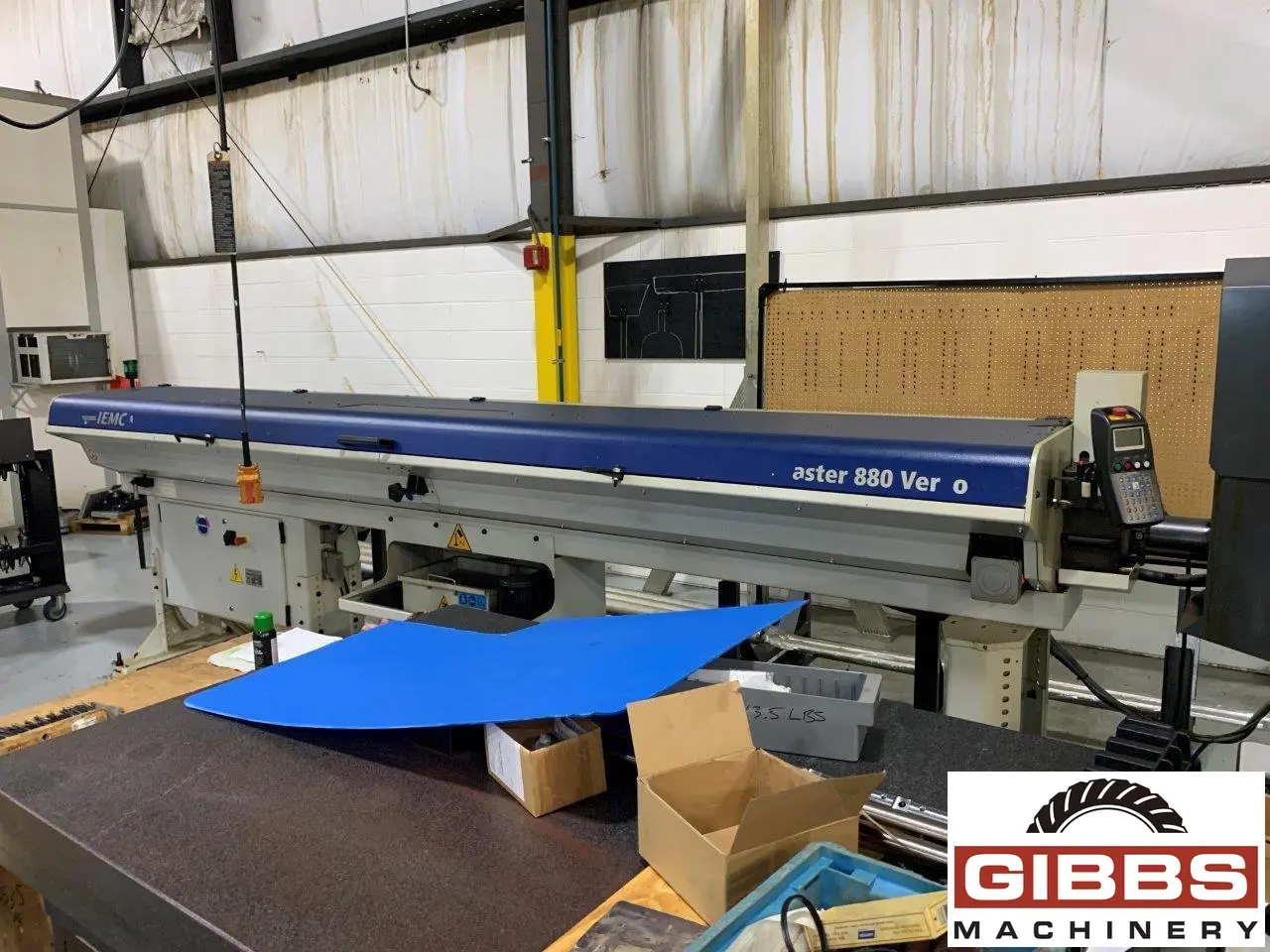

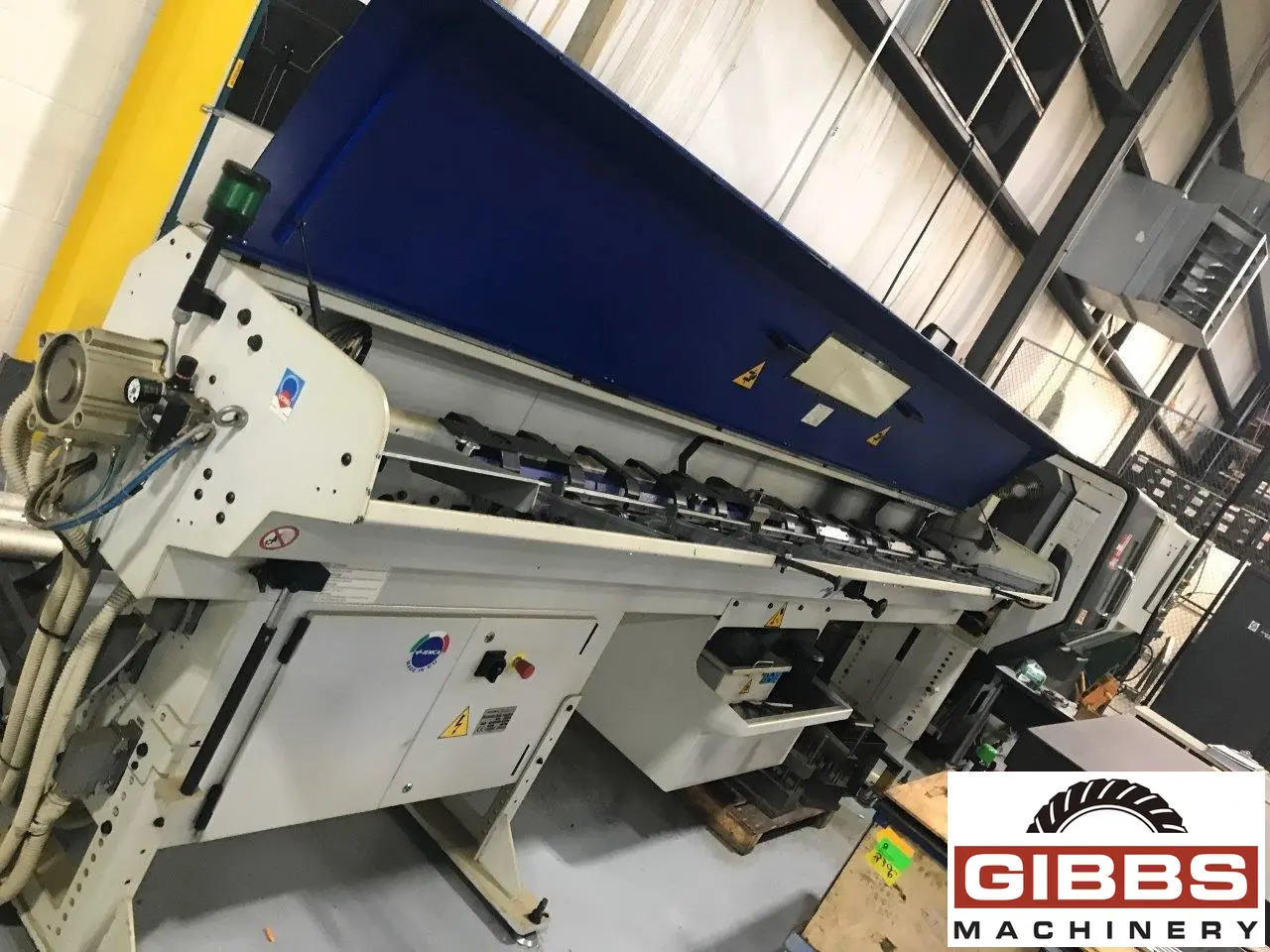

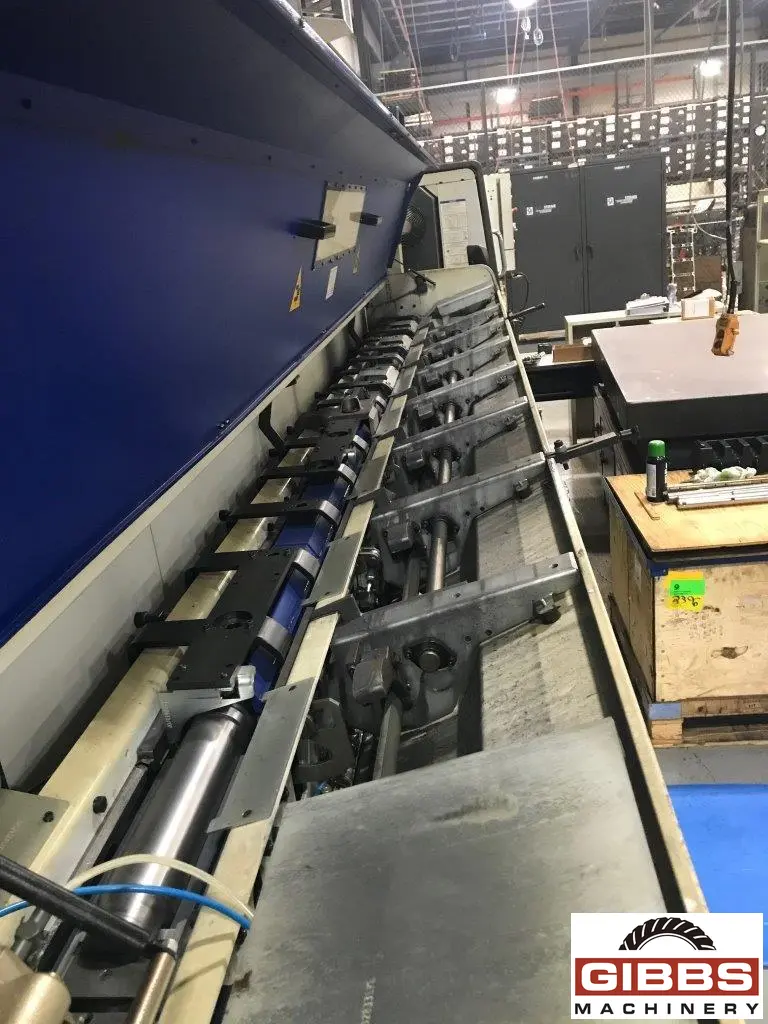

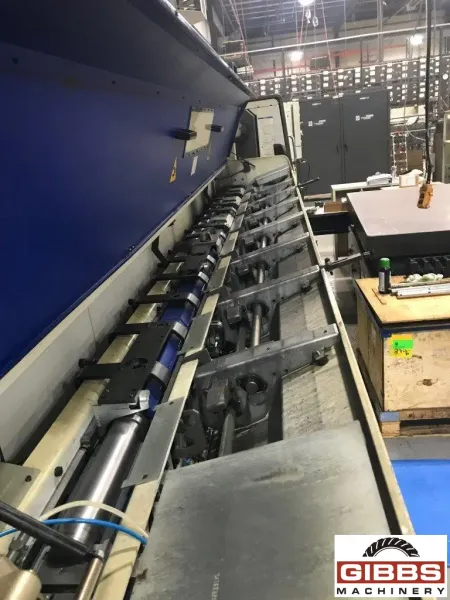

  • IEMCA Master 880 MP Bar Feeder
  • Live Tooling

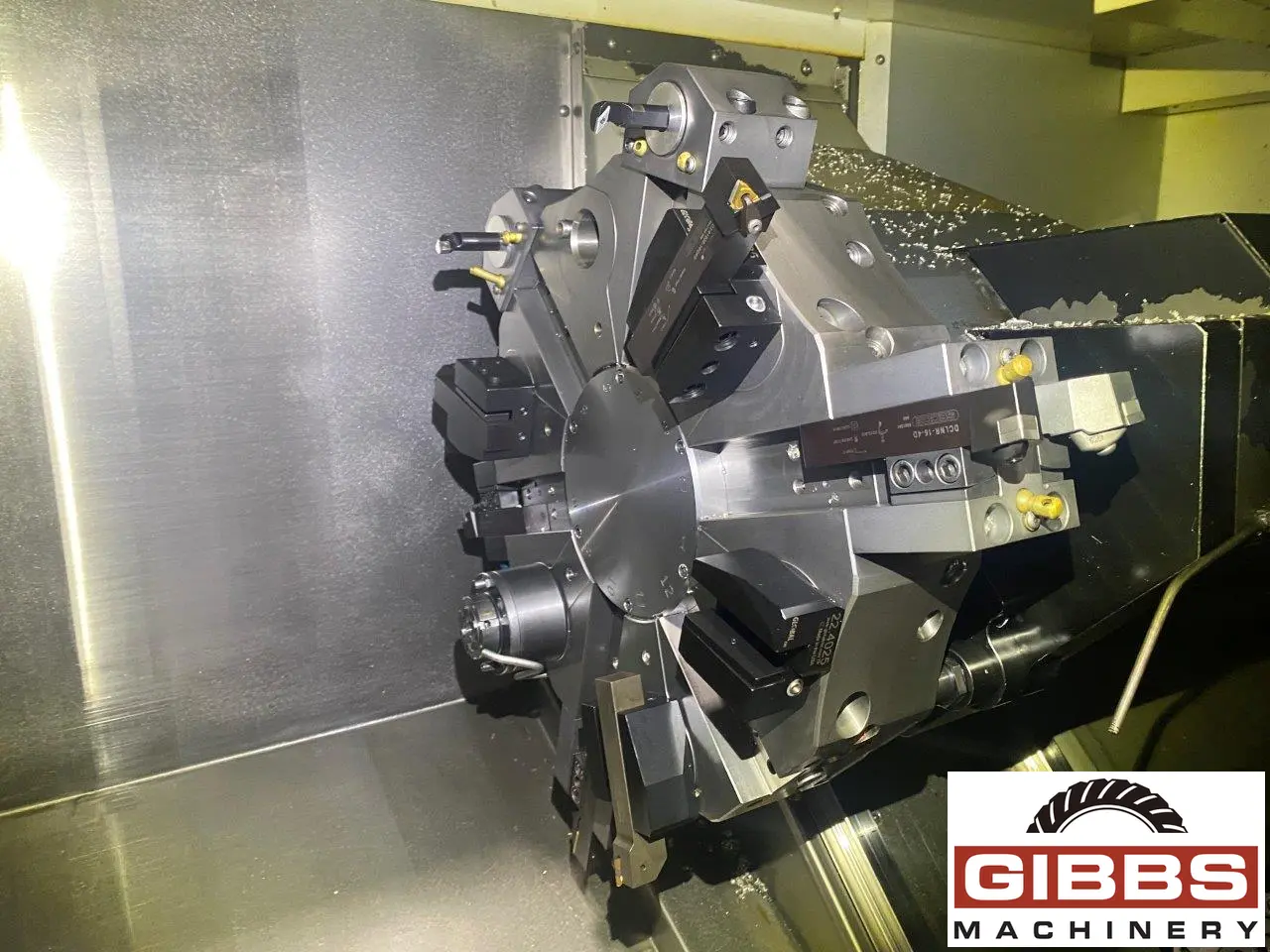

  • 12-Station Hybrid Turret (6 VDI/6 BOT)
  • 15" Color LCD Monitor
  • Memory Lock Key Switch
  • USB Port
  • Rigid Tapping
  • Coolant Tank
  • Collet Chuck on Main Spindle
  • Belt-Type Chip Conveyor
  • Parts Catcher System
  • Live Tooling (LT2-HT) - High Torque Live Tooling W/C Axis; Requires VDI or VG Hybrid Turret
  • Automatic Tool Pre-setter
  • *Includes Standard Toolholder Kit
,

Machine Specifications :

  • Year 2012
  • Manufacturer HAAS
  • Swing 31.75"
  • Machining Length 26.0"
  • Chuck Size 8.0"
  • Bar Capacity 3.0"
  • Power 30.0 HP
  • Max RPM 4,000 RPM
  • Turning Dia 17.99"
  • Tailstock No
  • Sub Spindle Yes
  • Live Tooling Yes
,

HAAS D-30 DUAL SPINDLE CNC LATHE

    Specifications:

  • Number of Axis: 5
  • Swing: 31.75"
  • Turning Diameter: 17.99"
  • Center Distance: 25.98"
  • Chuck Size: 8"
  • Bar Capacity: 3"
  • X-Axis Travel: 12.52"
  • Z-Axis Travel: 25.98"
  • B-Axis Travel (Sub-Spindle): 25.98"
  • C-Axis Index: 0.001 Degrees
  • Spindle Nose: A2-6
  • Spindle Speed: 4000 RPM
  • Main Motor: 30 HP
  • Live Tooling Speed: 6000 RPM
  • Live Tooling Motor: 5 HP
  • Turret Capacity: 12
  • Dimensions: 130" x 90" x 83" H
  • Approximate Weight: 15,000#
