EMAG VL 3 - Horizontal Lathe

Manufacturer

EMAG

Category

Lathes

Type

LATHES, TURNING

Stock

25693

Model

VL 3

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year 2011
  • Manufacturer EMAG
  • Swing 8.3"
  • Chuck Size 7.9"
,

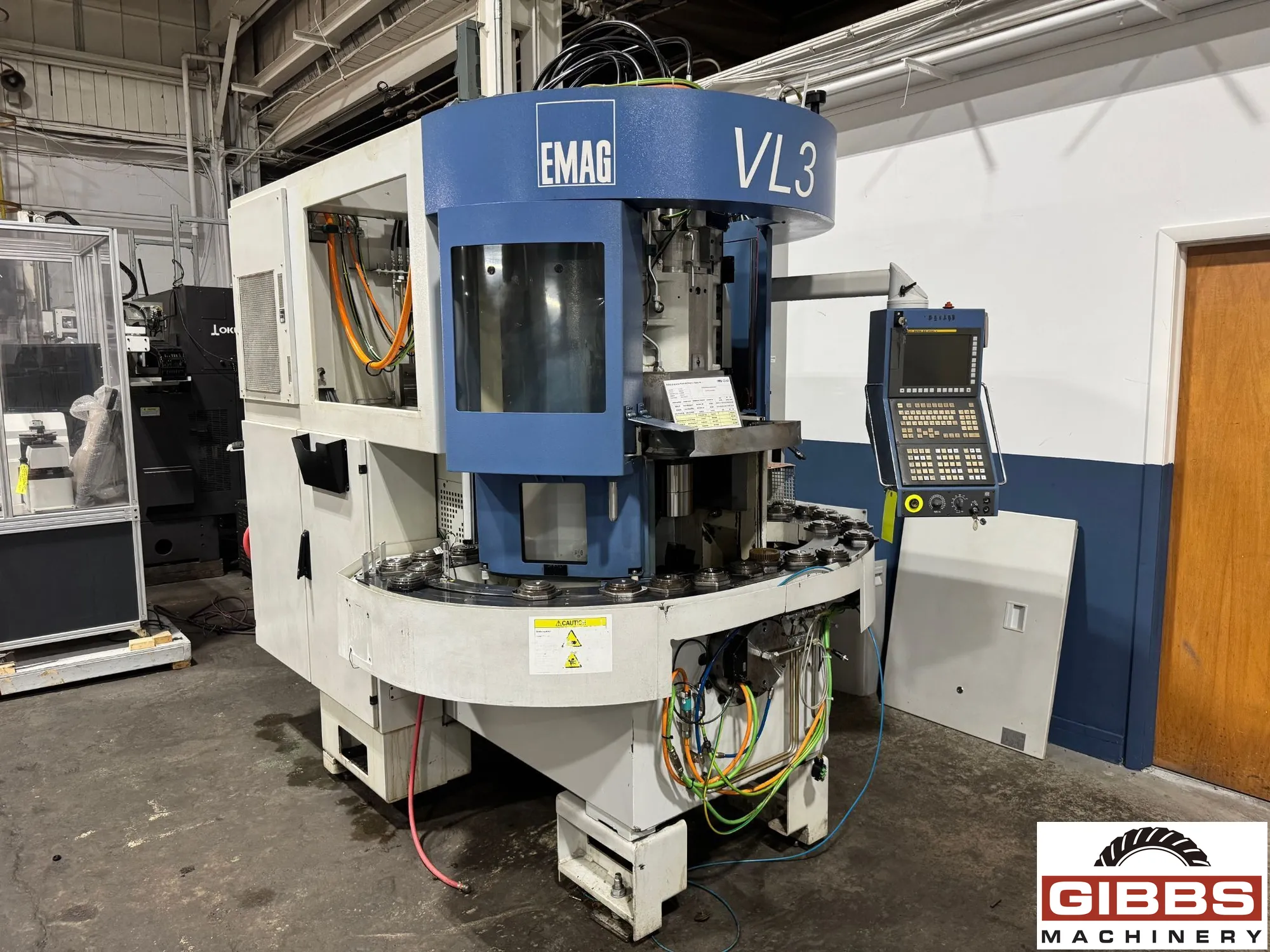

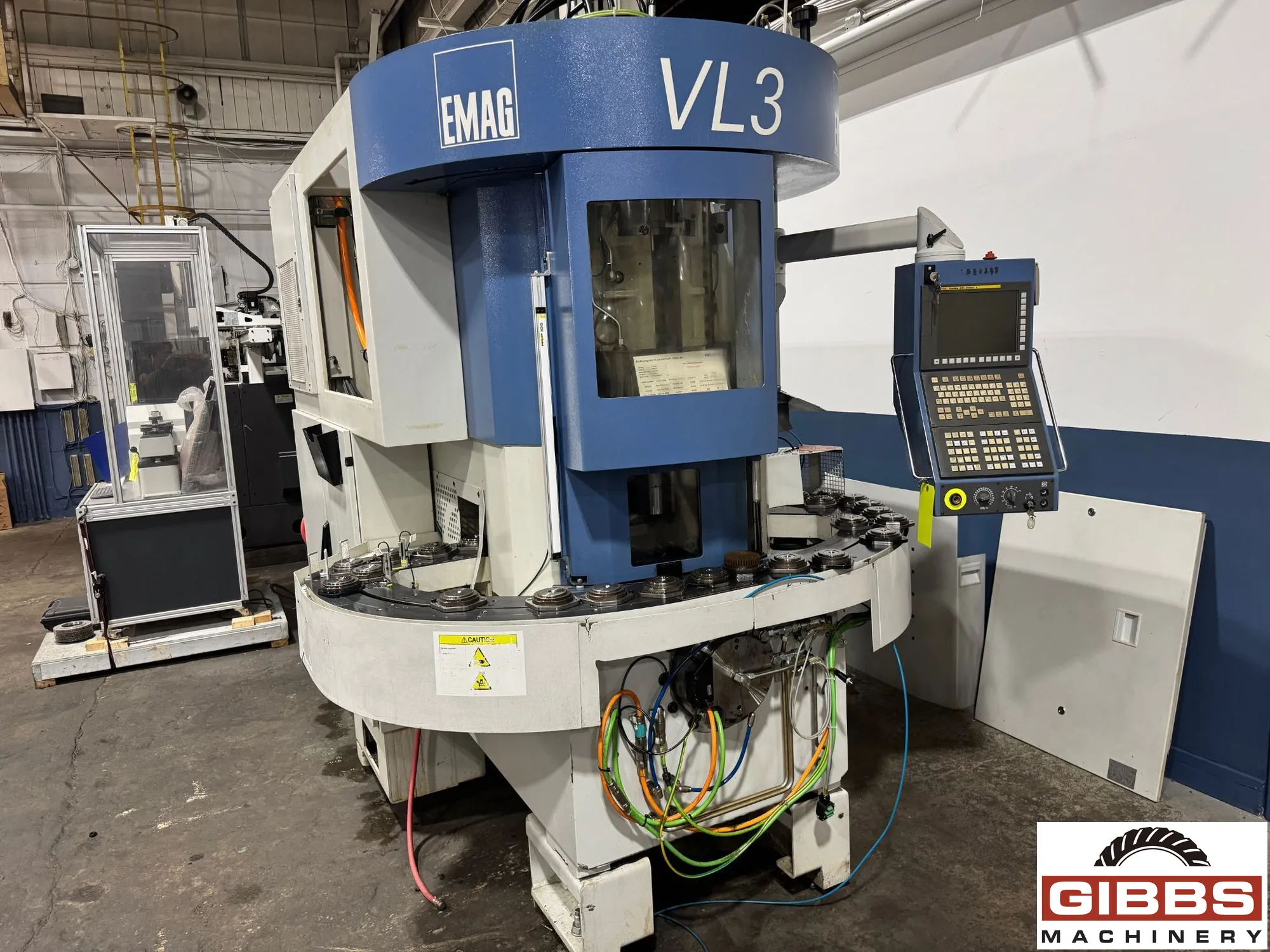

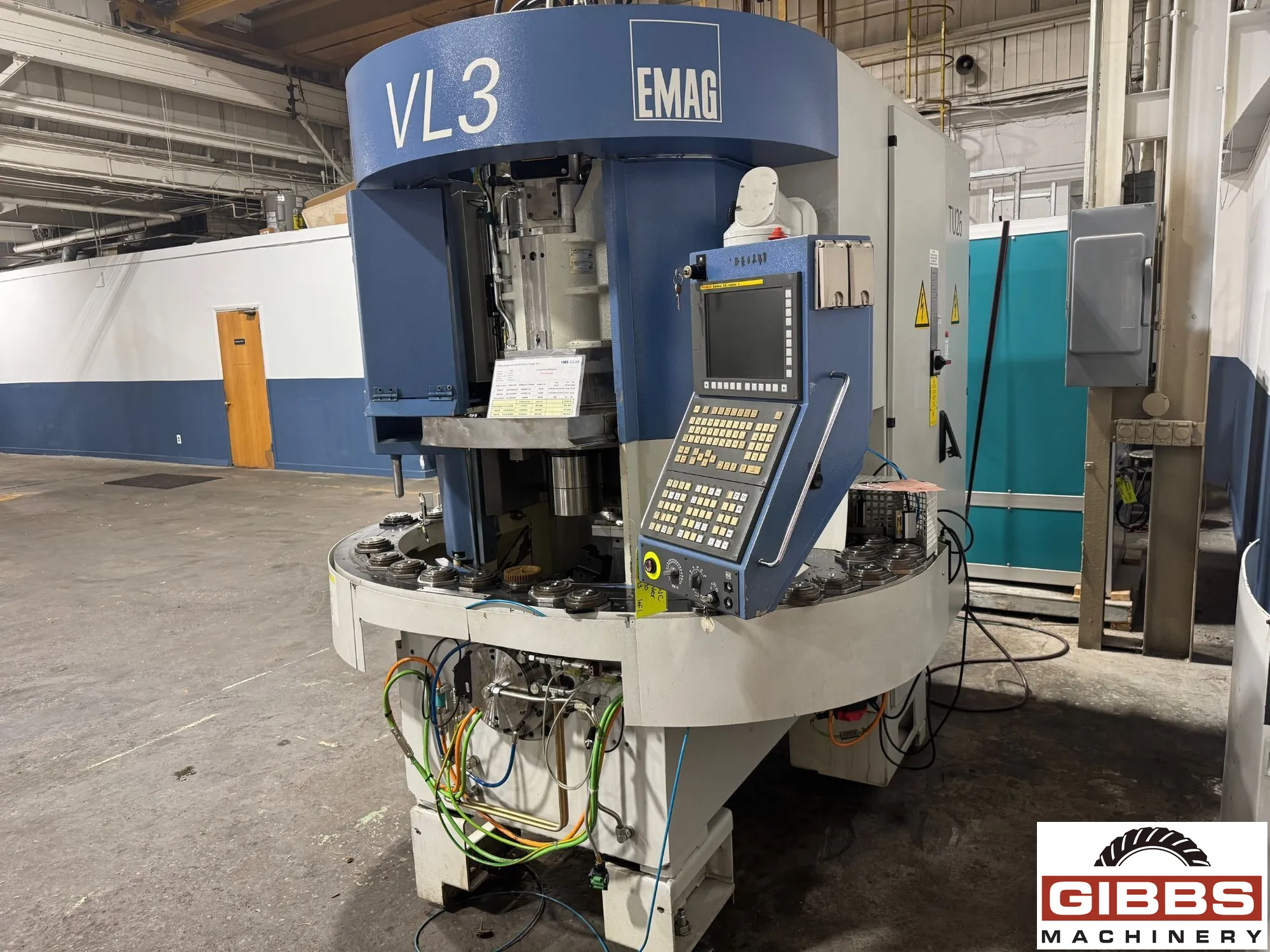

The EMAG VL 3 is a high-performance vertical turning center designed for precision machining of small to medium-sized parts, especially in industries that require high-quality, high-precision machining. It is part of the EMAG series of vertical lathes, which are known for their ability to handle complex turning operations with great efficiency. The VL 3 is widely used in industries such as automotive, aerospace, and general engineering, and is particularly suitable for producing parts like gears, shafts, housings, and other complex geometries.

    Specifications:

  • Number of Axes: 3
  • Maximum Workpiece Diameter: 300 mm (approx.)
  • Maximum Workpiece Length: 300 mm (approx.)
  • Chuck Size: 6” (standard, options for larger sizes)
  • Machine Dimensions: 2,400 mm x 2,200 mm x 2,500 mm (approx.)
  • Machine Weight: 3,200 kg (approx.)
  • Spindle Speed: Up to 6,000 RPM (standard)
  • Spindle Power: 15 kW (continuous)
  • Spindle Torque: 75 Nm
  • Spindle Bore: 65 mm
  • X-Axis Travel: 300 mm
  • Y-Axis Travel: 250 mm
  • Z-Axis Travel: 300 mm
  • Rapid Traverse (X, Y, Z): 20 m/min (maximum)
  • Feed Rate: 12 m/min (max feed rate in all axes)

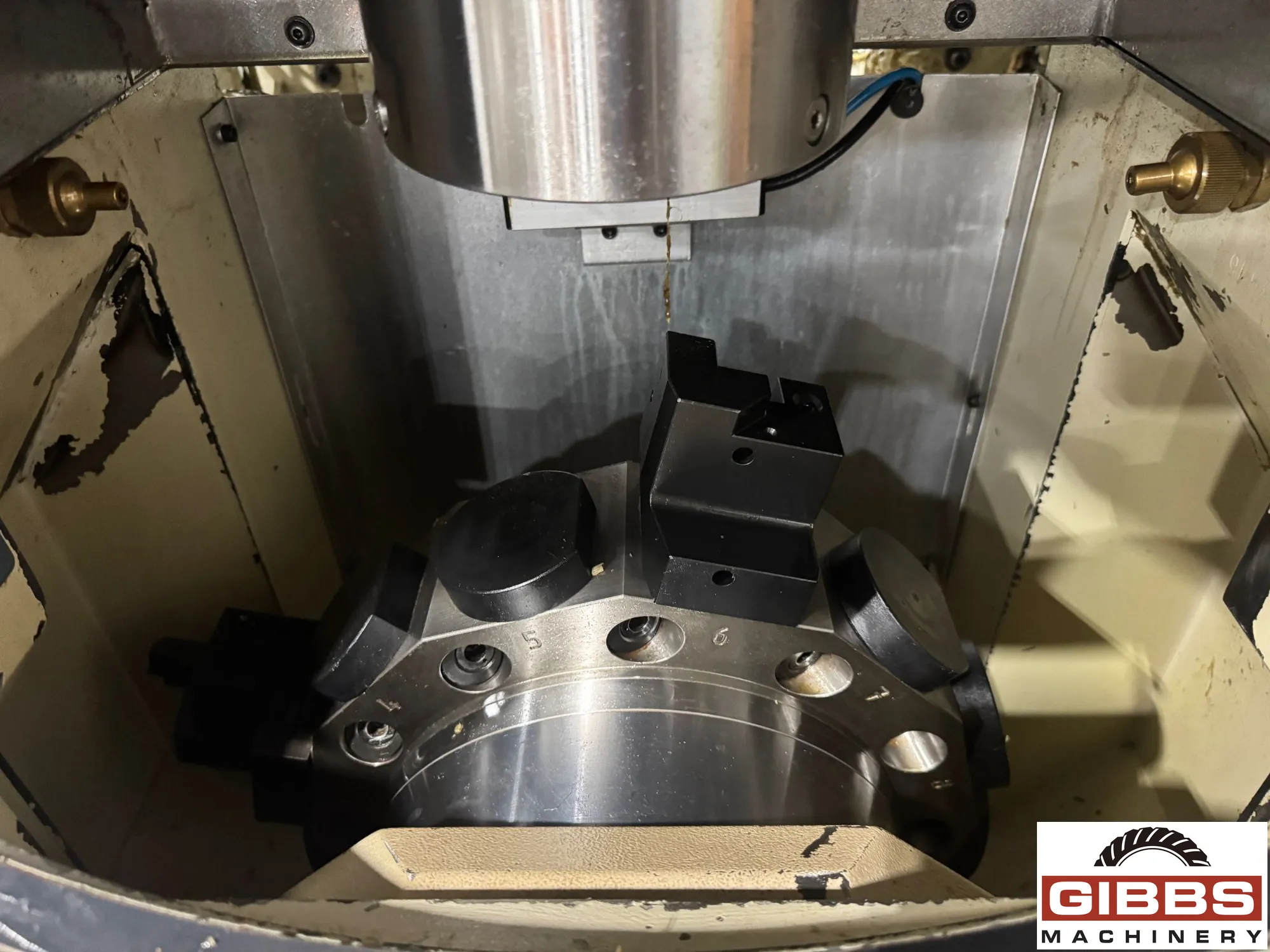

  • Number of Tool Stations: 6 to 12 tool stations
  • Maximum Tool Diameter: 32 mm (in fully populated tool turret)
  • Maximum Tool Length: 100 mm
  • Positioning Accuracy (X, Y, Z): ±0.005 mm
  • Repeatability (X, Y, Z): ±0.002 mm
  • Spindle Runout: < 0.003 mm
