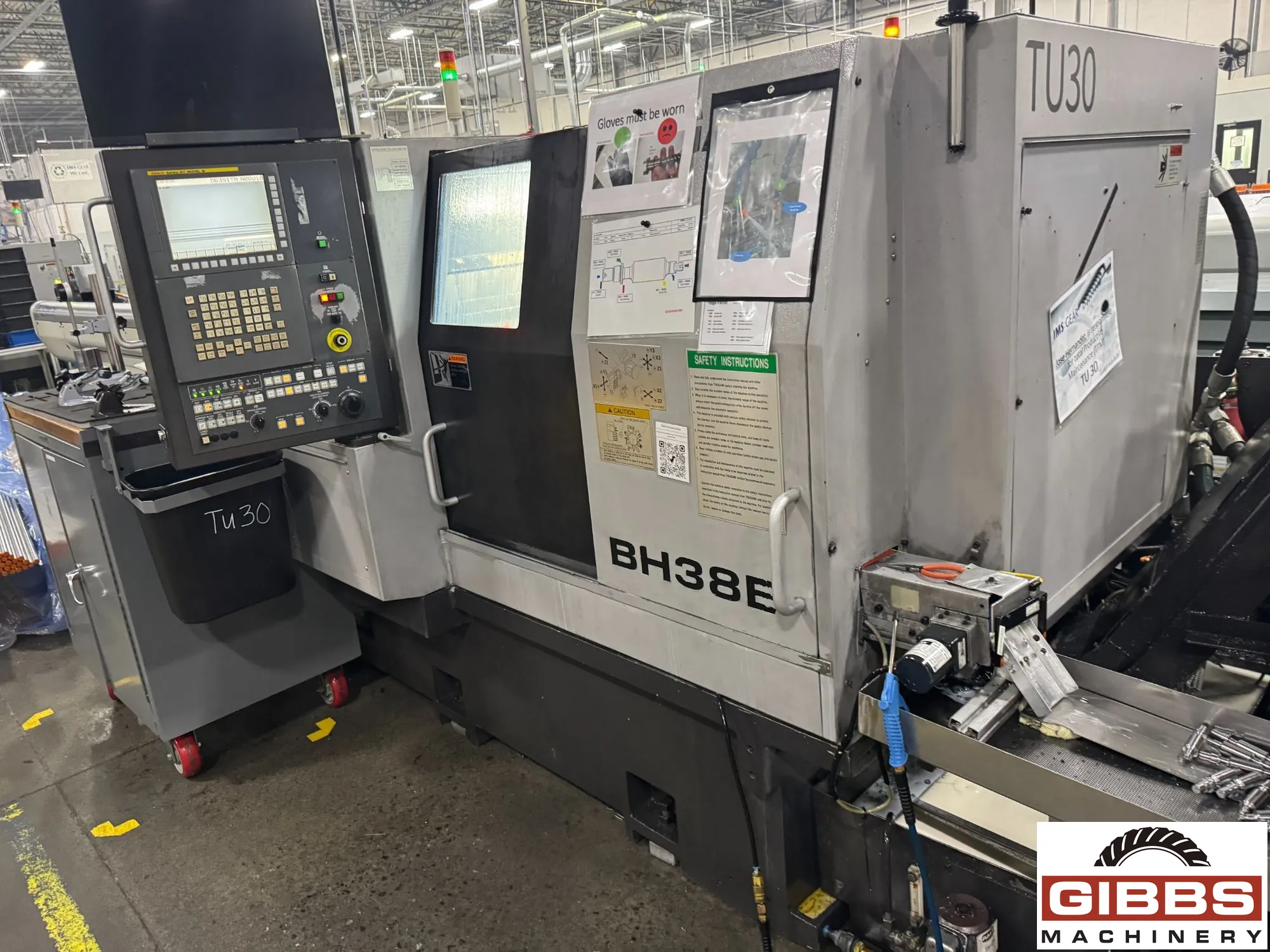

TSUGAMI BH38E - Horizontal Lathe

Manufacturer

TSUGAMI

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

25698

Model

BH38E

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

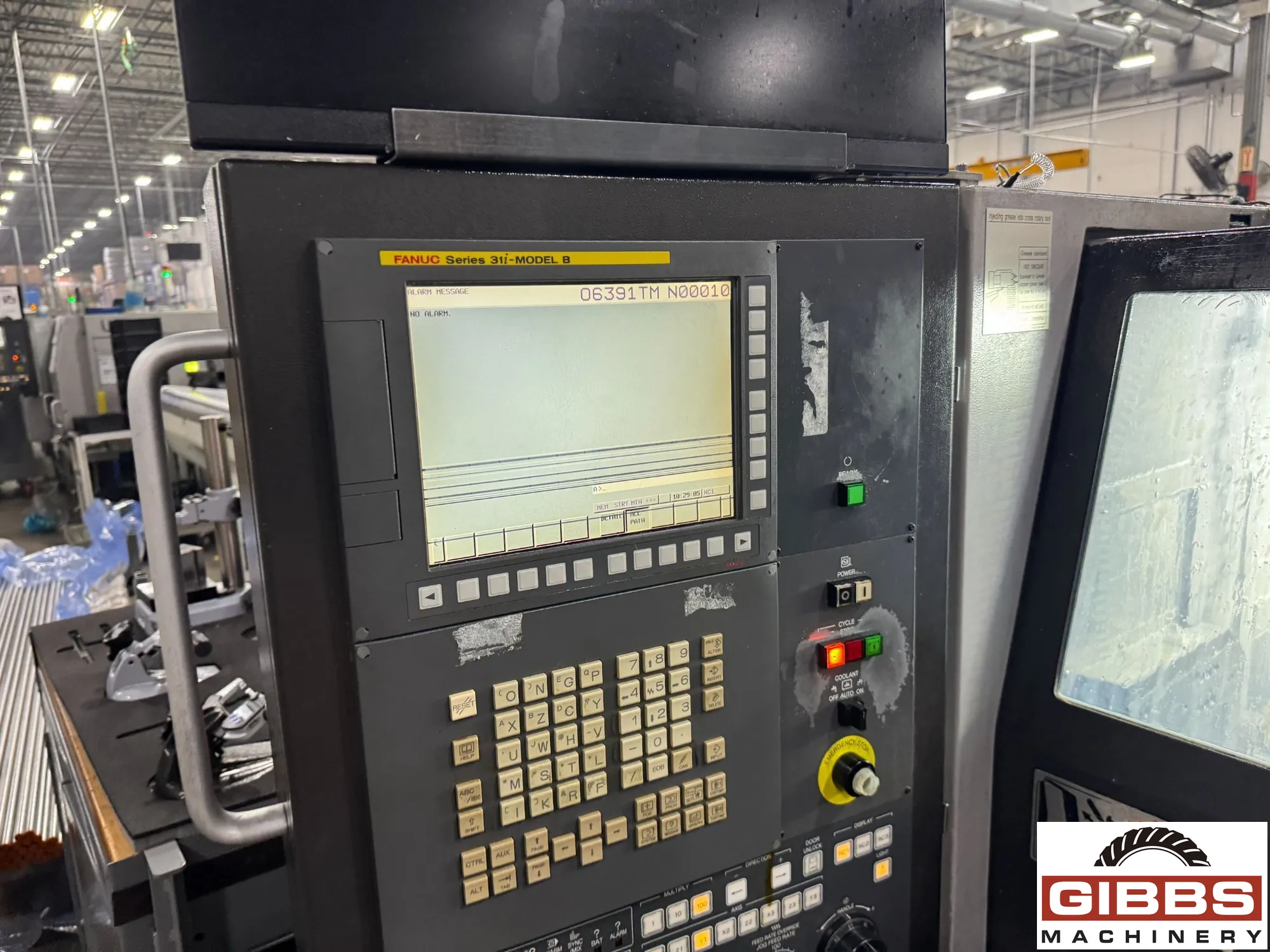

  • Fanuc 31iB Control

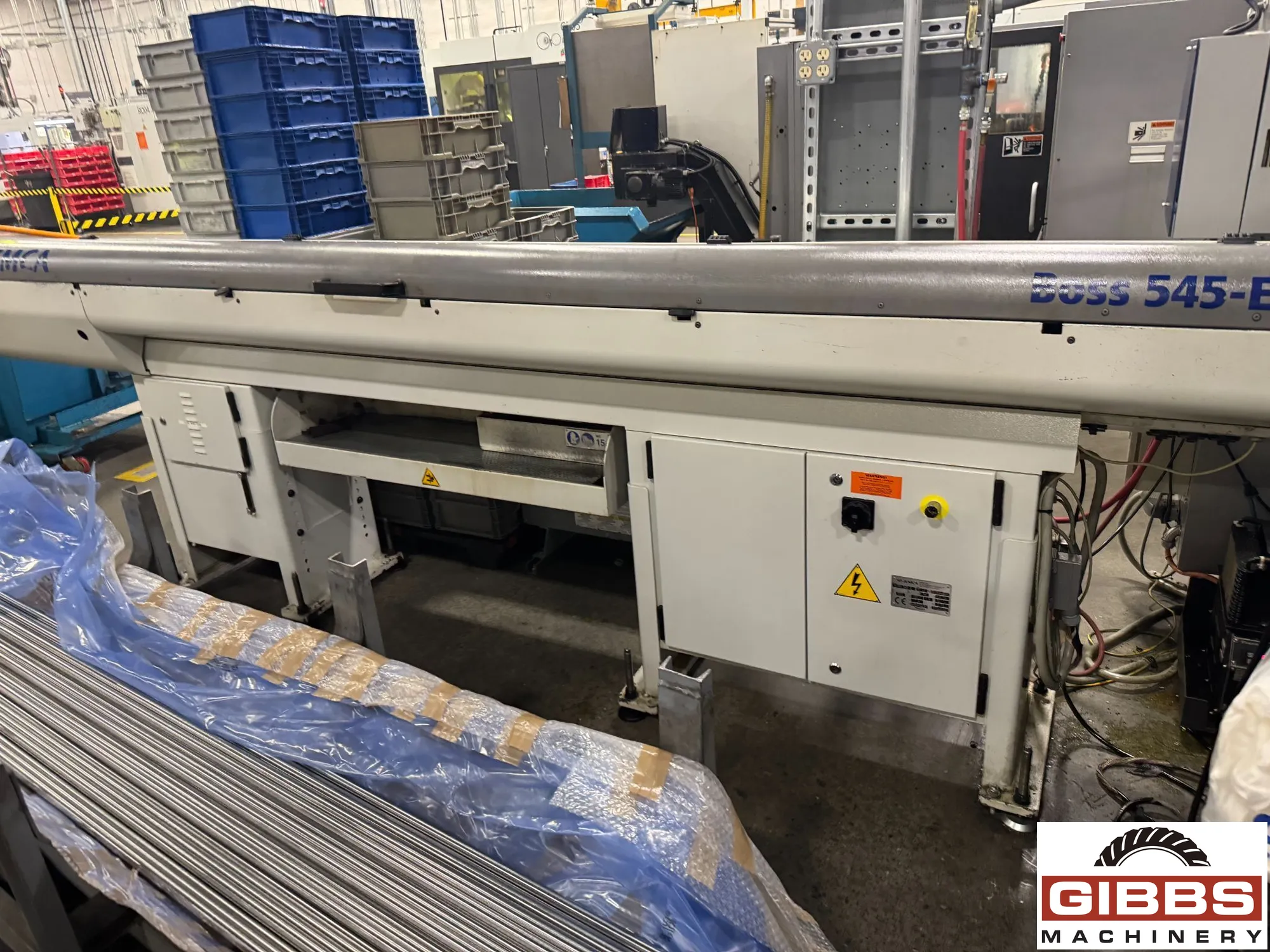

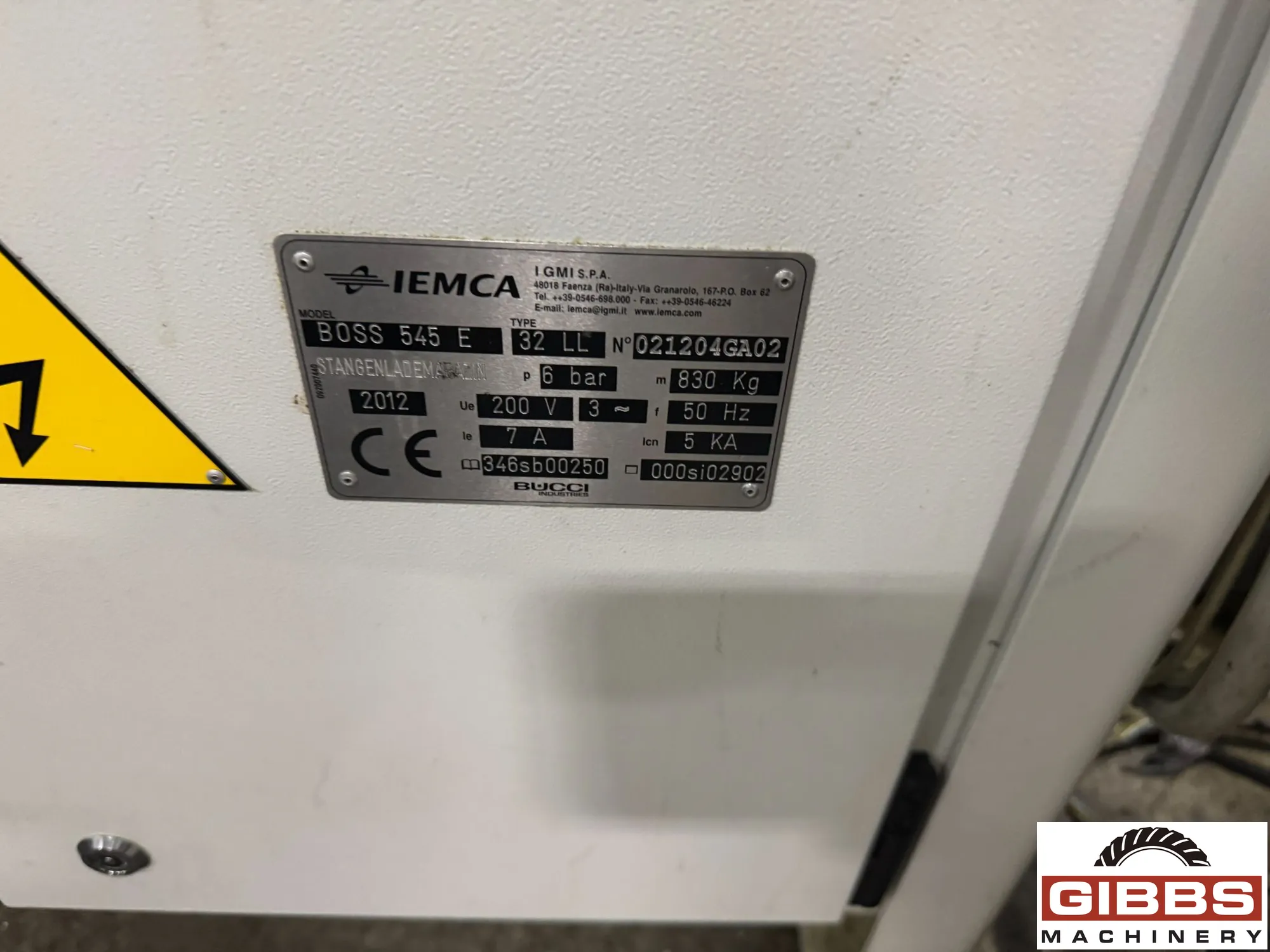

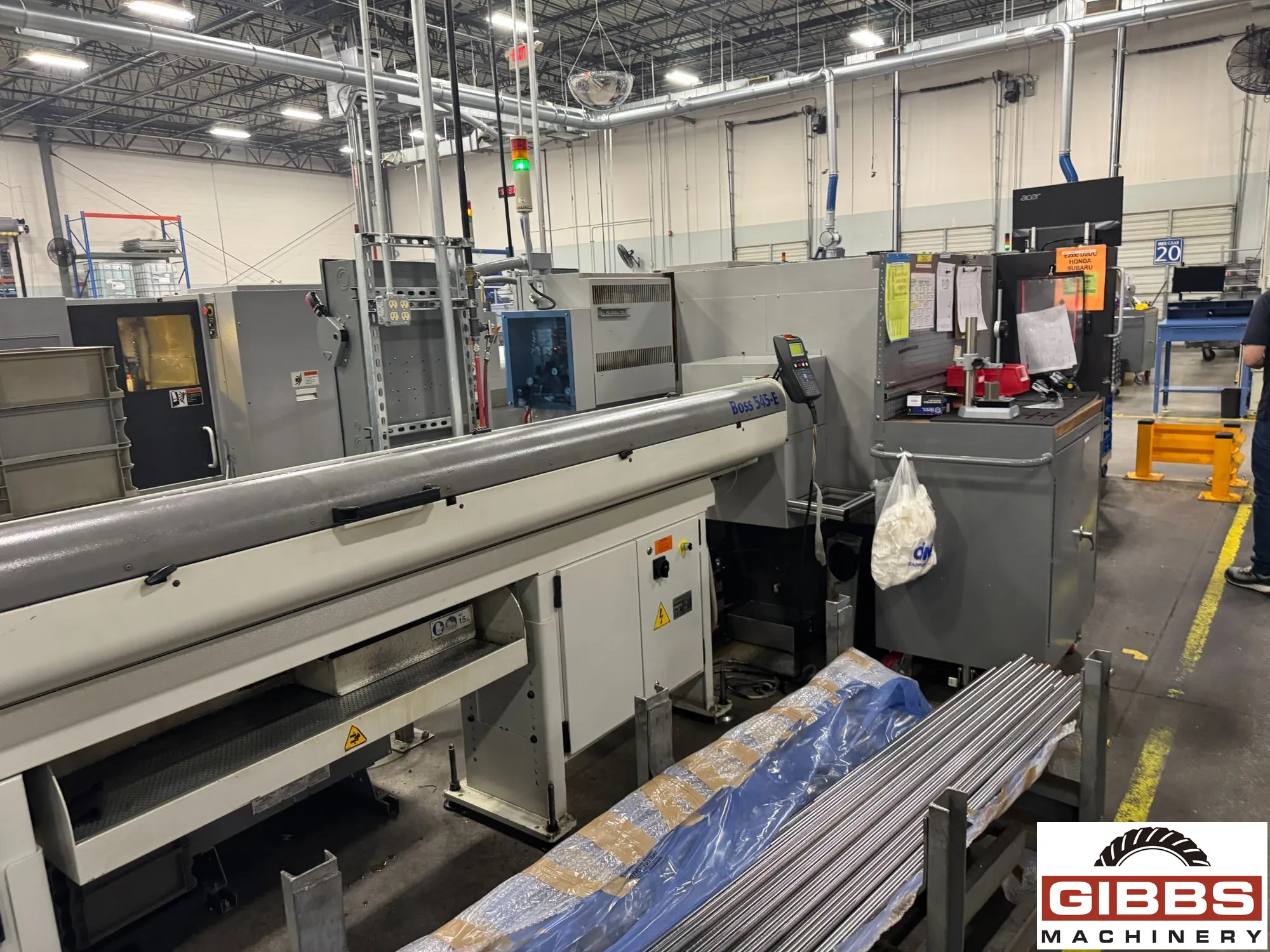

  • Iemca Boss 545E Bar Feeder
  • Turret

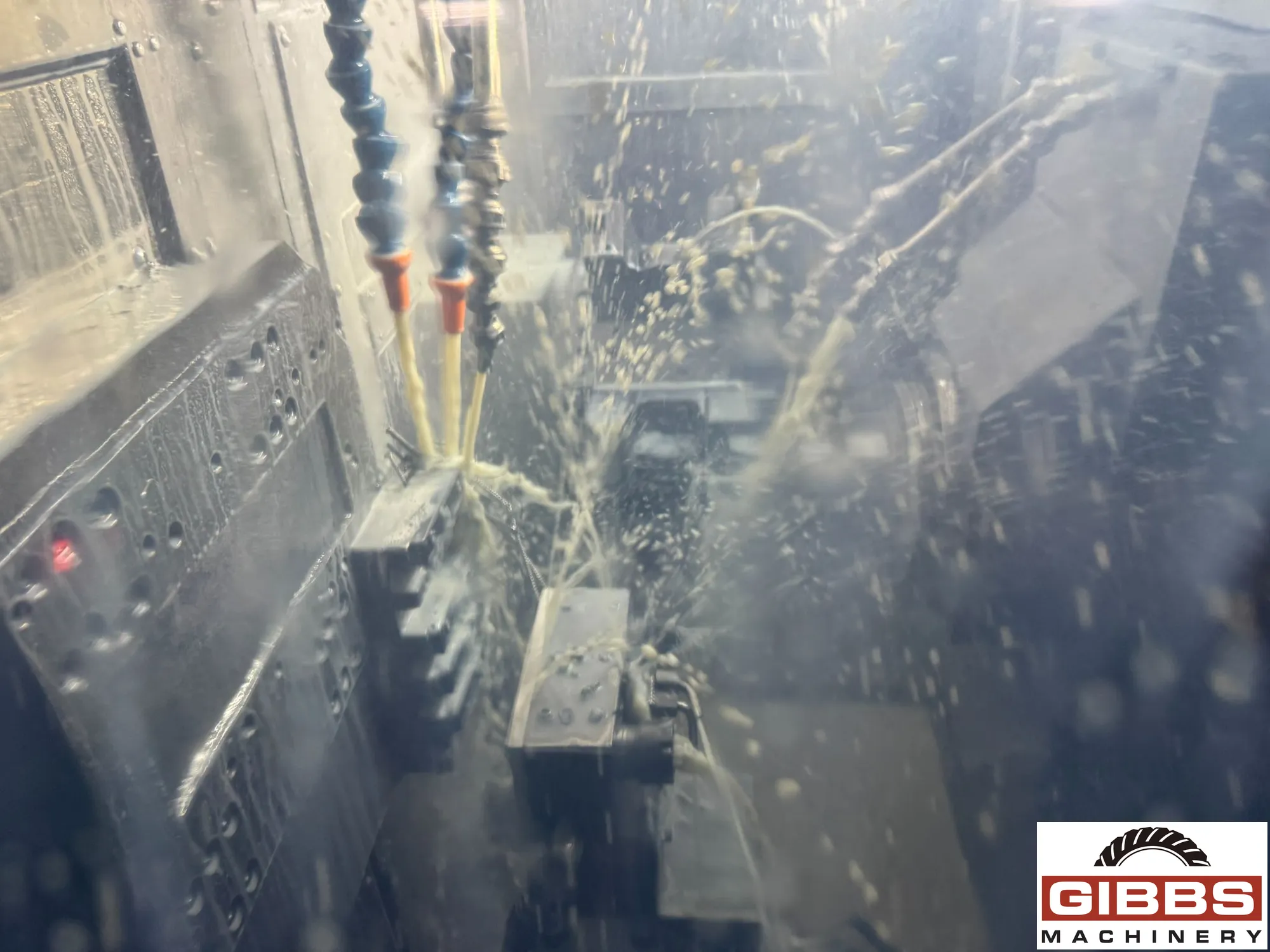

  • Coolant System
  • Chip Conveyor
,

Machine Specifications :

  • Year 2011
  • Manufacturer TSUGAMI
  • Power 5.5
  • RPM 12,000 RPM
  • # Axis 7.0
  • # Axis 7.0
  • Machining Length 9.842"
  • Bar Capacity 1.5"
  • Power 15.0 HP
  • Max RPM 6,000 RPM
  • Turning Dia 1.496"
  • RPM 6,000 RPM
  • Power 15.0 HP
  • Capacity 1.5"
,

The Tsugami BH38E is a Swiss-type CNC automatic lathe, known for its combination of gang and turret tooling, enabling complex part production from bar stock in a single setup. It is a specialized variant within the broader BH38 series, often representing an economy or enhanced version. The "E" designation typically indicates specific enhancements or cost-effectiveness.

    Specifications:

  • Bar Capacity: 1.5"
  • Spindle Speed: 6,000 RPM
  • Spindle Motor: 15 HP
  • Maximum Turning Diameter: 1.496"
  • Maximum Turning Length: 9.842"
  • Collet Type/Capacity: 1.625
  • Sub-Spindle: Standard
  • Sub-Spindle Motor: 7.30 HP
  • Maximum Tools: 12 W/4 Rotary
  • Tool Shank Size: Square
  • Rotary Tool Spindle: 8,000 RPM
  • Rotary Motor: 1.90 HP
  • Rotary Tool Power: 1.30 HP
  • Dimensions: 107" x 71" x 67"
  • Weight: 13,000#
