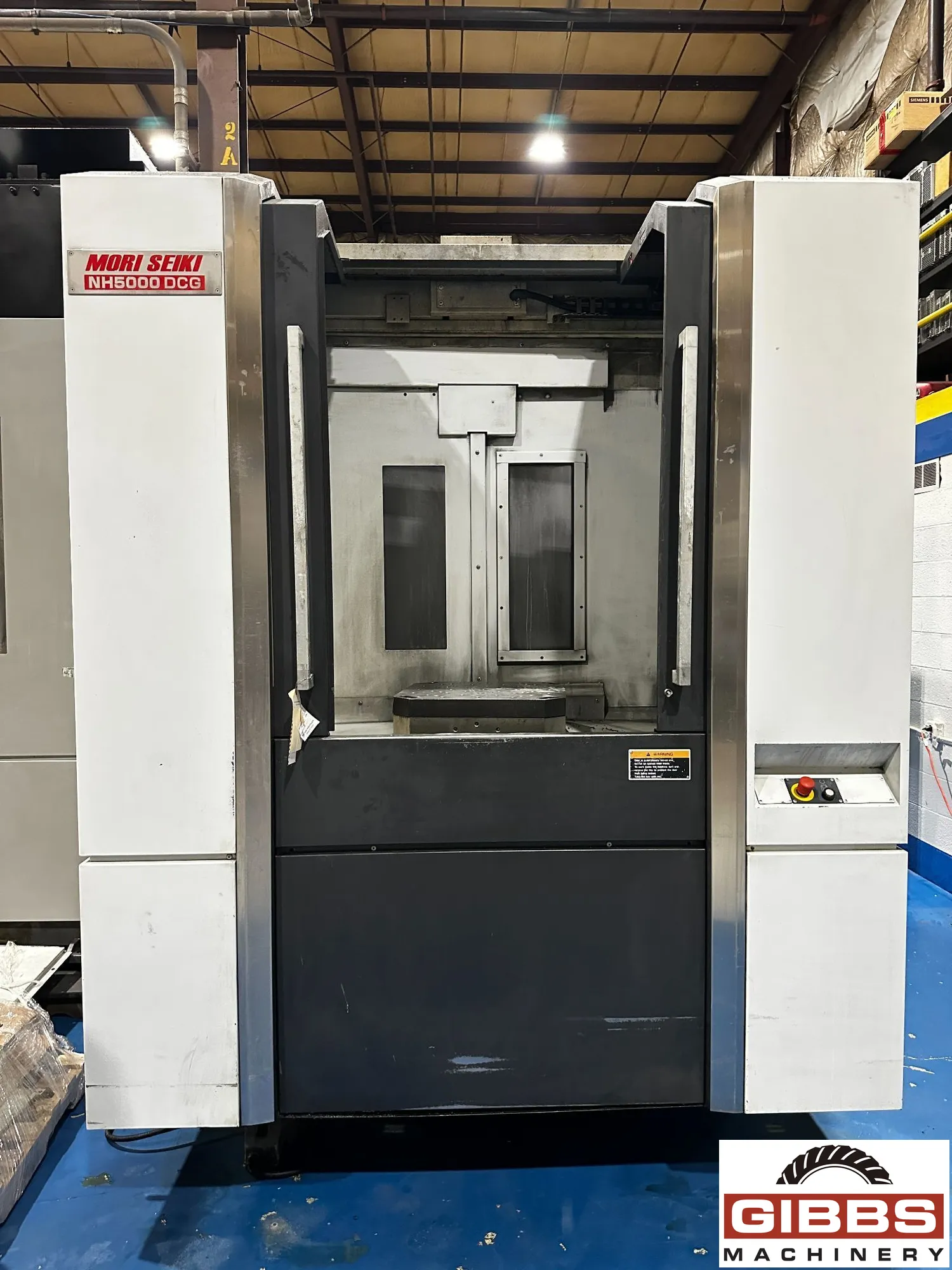

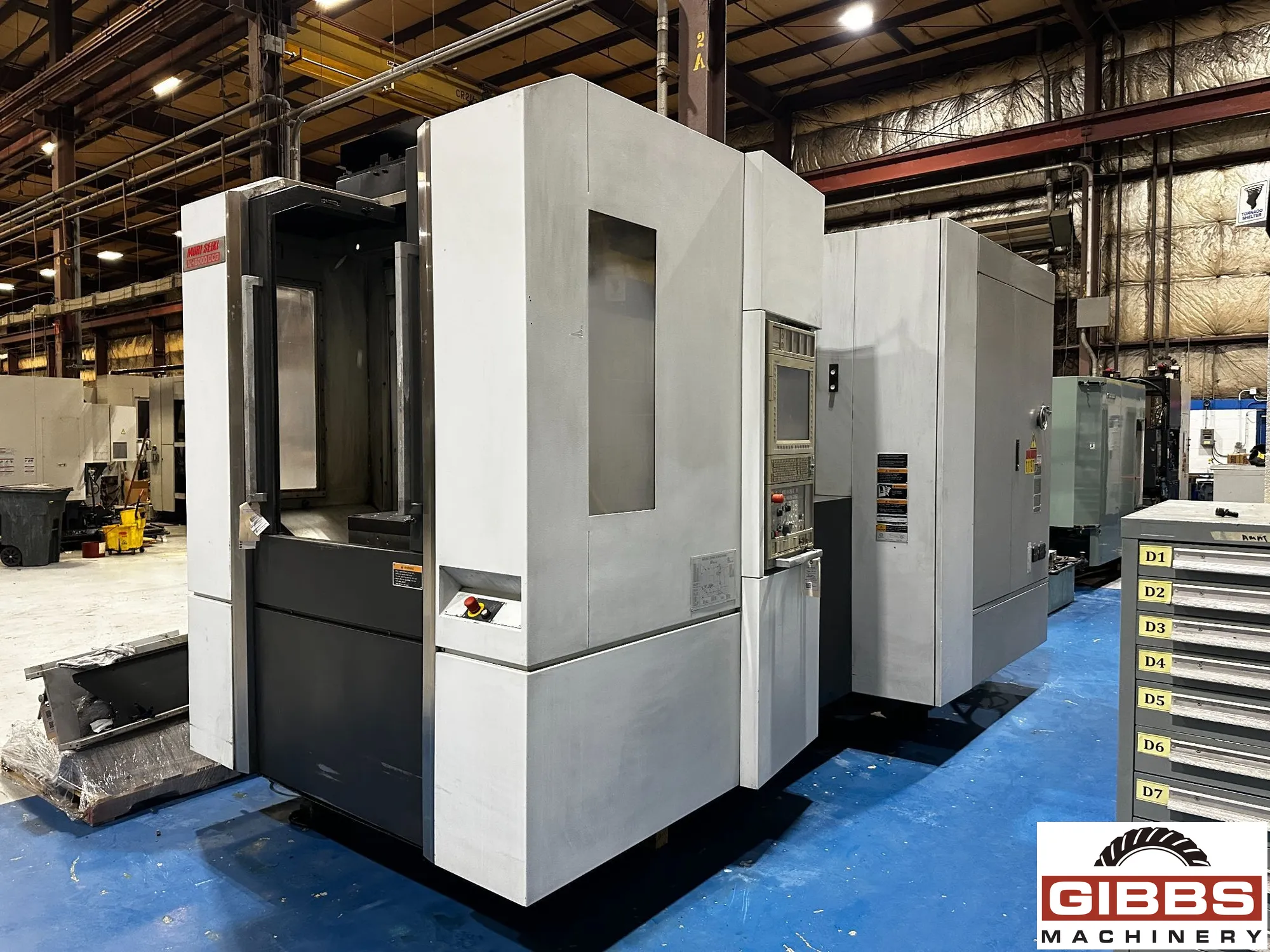

MORI SEIKI NH 5000 DCG - Horizontal Machining Center

Manufacturer

MORI SEIKI

Category

Milling Machines

Type

MILLERS, HORIZONTAL, CNC

Stock

25623

Model

NH 5000 DCG

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

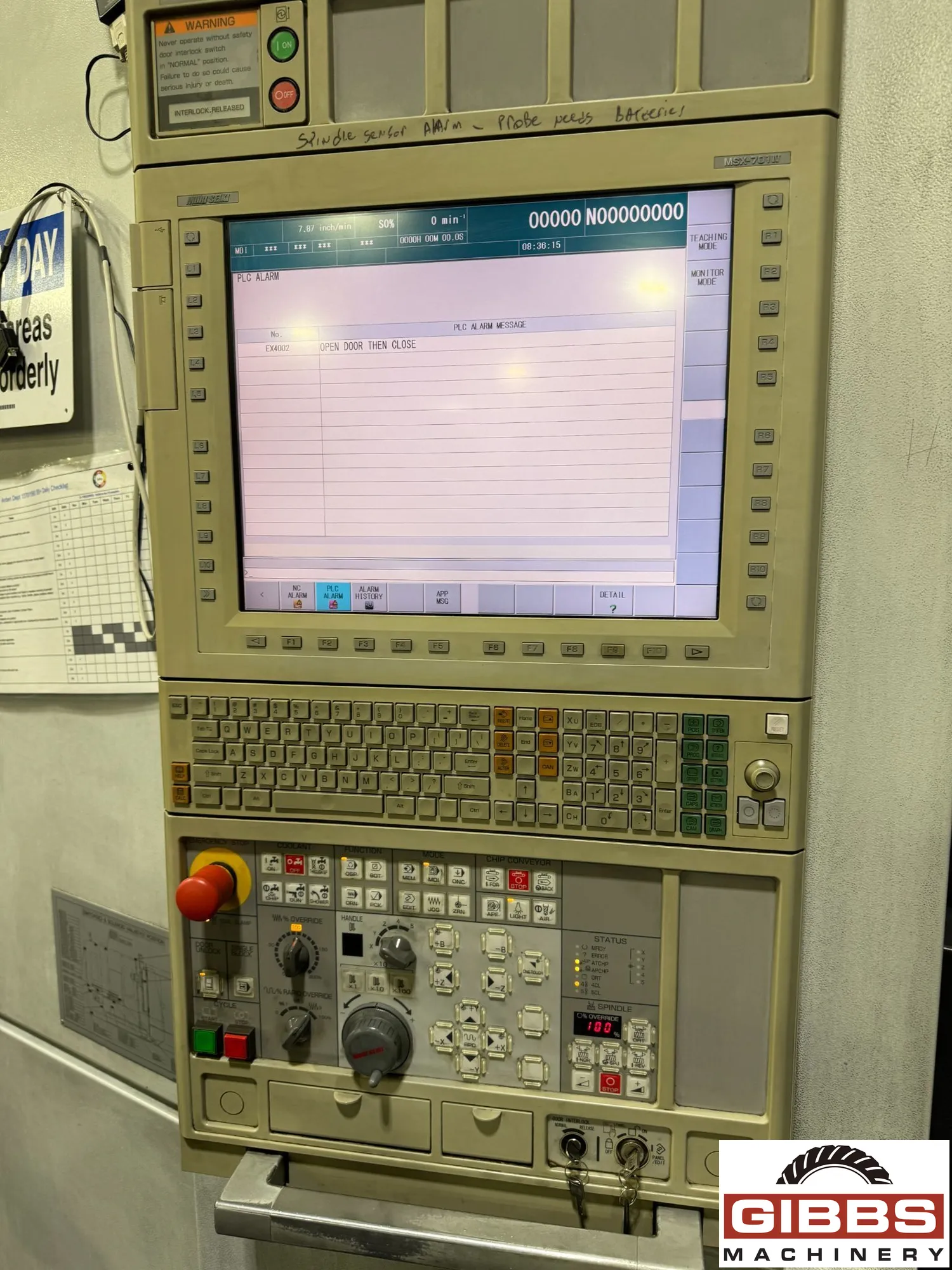

  • Mori Seiki MSX701-IV Controller
  • Coolant Tank & Pumps
  • 1° Degree B-axis Indexing

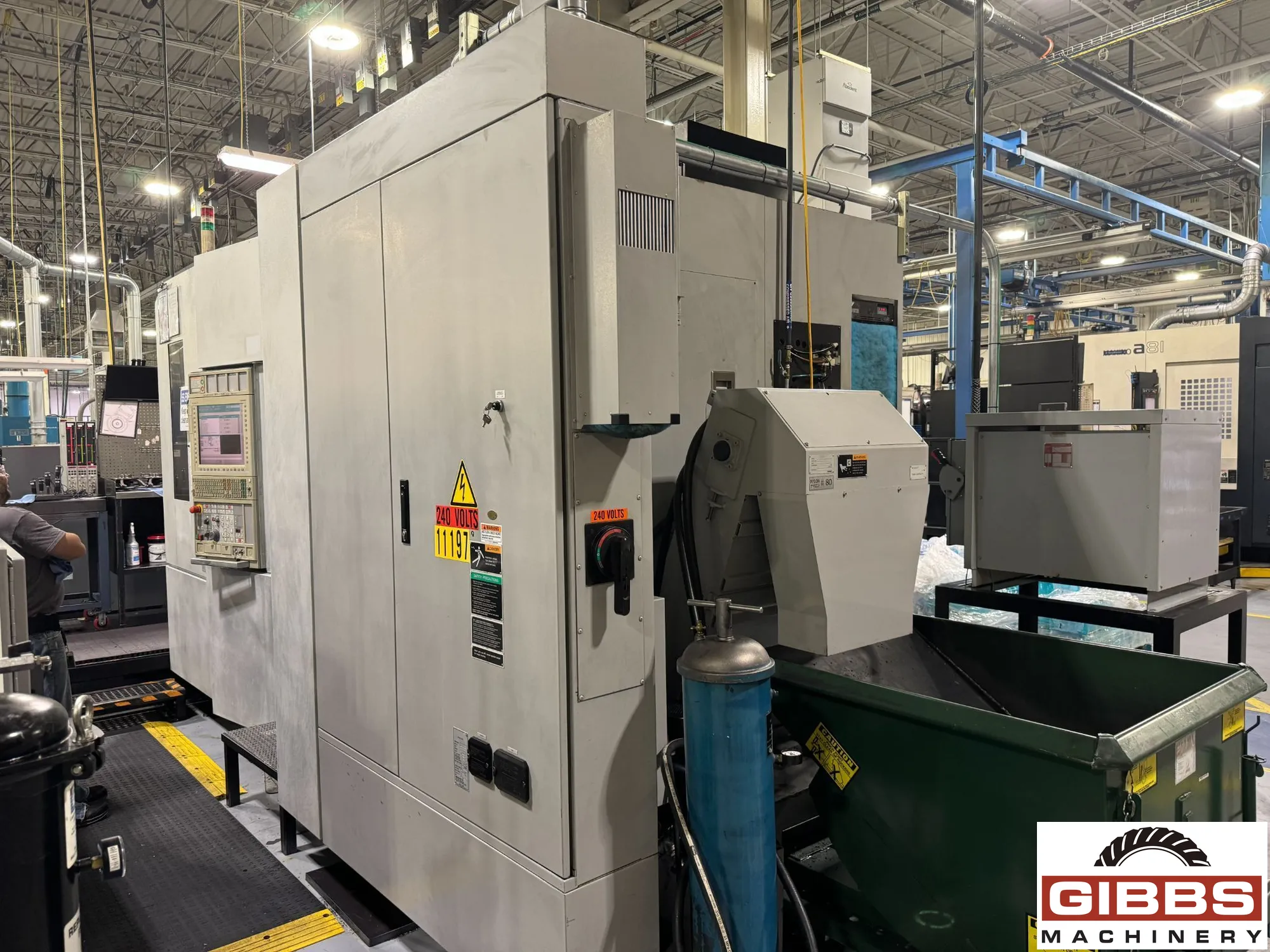

  • Chip Conveyor
  • Low Pressure Coolant Thru Spindle
,

Machine Specifications :

  • Year 2010
  • Manufacturer MORI SEIKI
  • X 28.7"
  • Y 28.7"
  • Z 33.5"
  • Power 30.0 HP
  • RPM 8,000 RPM
  • # ATC 54.0
  • Taper CAT 50
  • Pallet-W 19.7"
  • Pallet-L 19.7"
  • # Axis 4.0
,

The Mori Seiki NH5000 DCG is a high-precision, horizontal machining center known for its exceptional speed and accuracy, featuring a 500mm square pallet and utilizing DMG MORI's proprietary "DCG (Driven at the Center of Gravity)" technology, often paired with a Direct Drive Motor (DDM) option, allowing for high-speed rotation and precise indexing on its rotary axis, making it ideal for demanding machining applications with fast cycle times; it comes in variations with either a No. 40 or No. 50 taper spindle depending on the desired machining capabilities and work envelope size.

    Specifications:

  • Number of Axis: 4
  • Pallet Length: 19.7"
  • Pallet Width: 19.7"
  • Pallet Load Capacity: 1,100 Lbs.
  • Pallet Indexing (B-Axis): 1 Degrees
  • X-Axis Travel: 28.7"
  • Y-Axis Travel: 28.7"
  • Z-Axis Travel: 33.5"
  • Rapid Traverse Rate (X/Y/Z): 1968.5 IPM
  • Spindle Taper: CAT 50

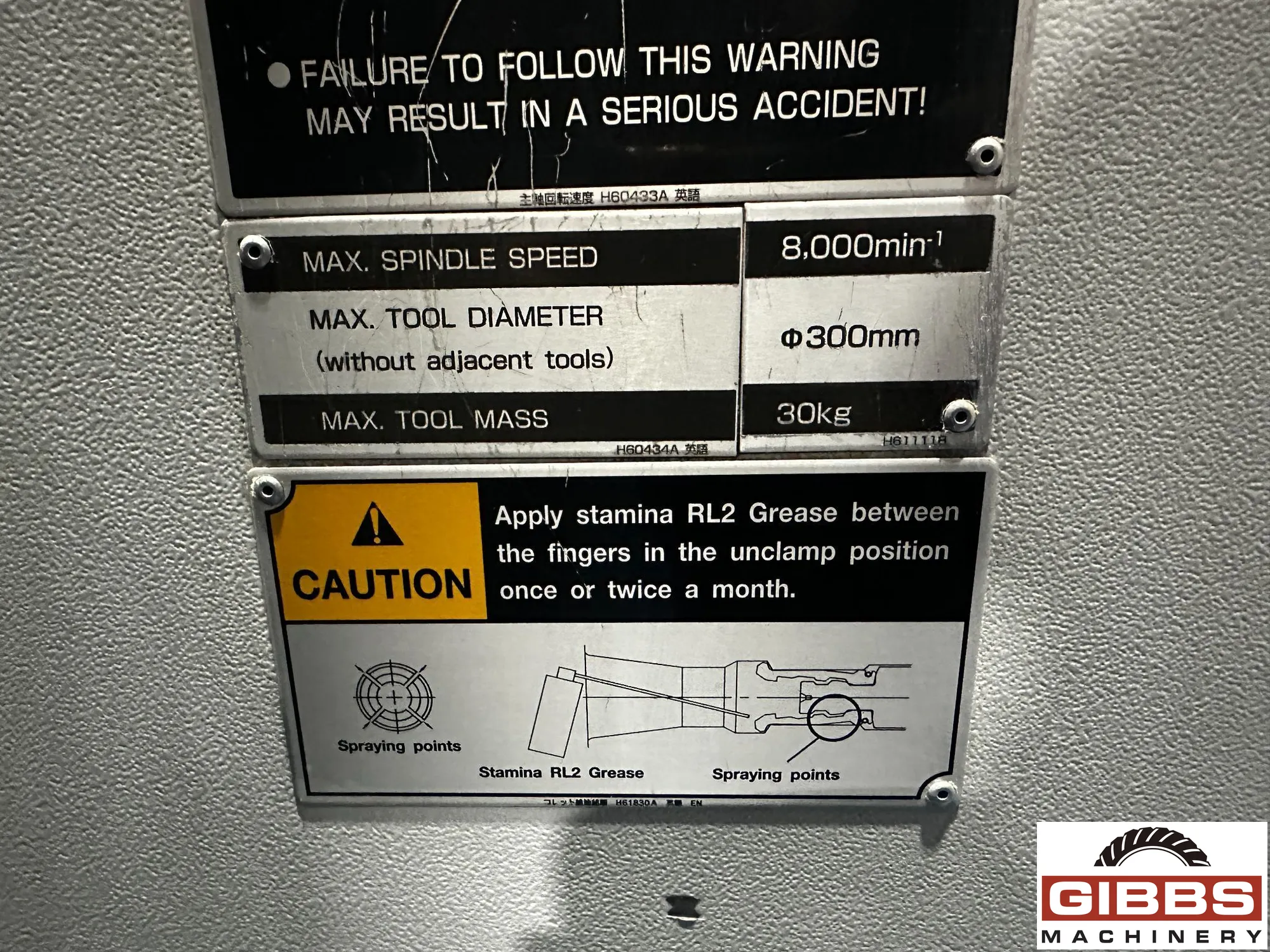

  • Spindle Speed: 8,000 RPM

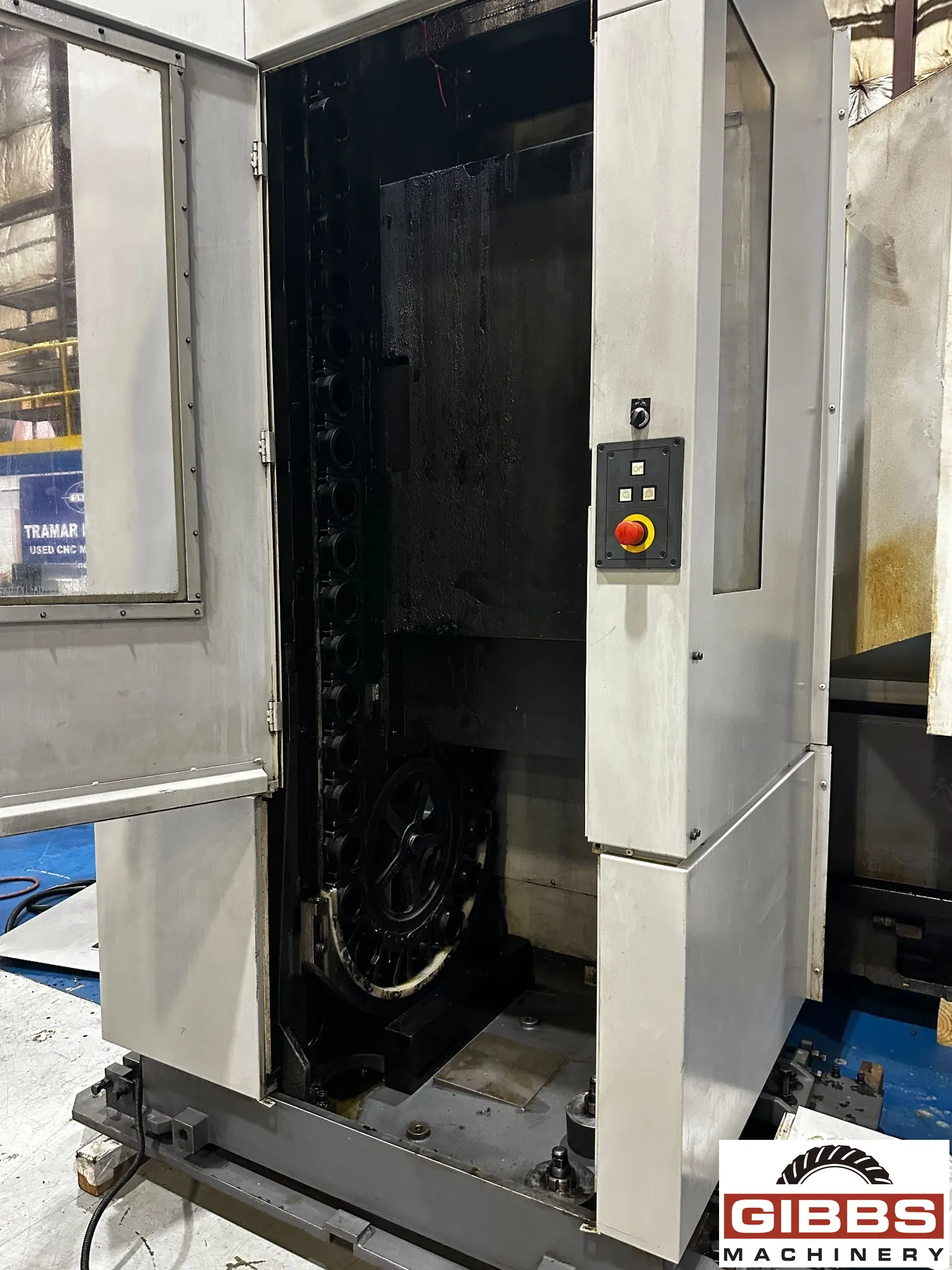

  • Tool Changer Capacity: 54
  • Machine Dimensions: 107.3" x 181.5" x 123.5"
  • Machine Weight: 28,820 Lbs.
