FANUC ROBOCUT A-OID - Miscellaneous Equipment

Manufacturer

FANUC

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, WIRE, CNC

Stock

25483

Model

ROBOCUT A-OID

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year 2008
  • Manufacturer FANUC
  • X-Axis Travel 14.6"
  • Y-Axis Travel 10.6"
  • Z-Axis Travel 10.0"
,

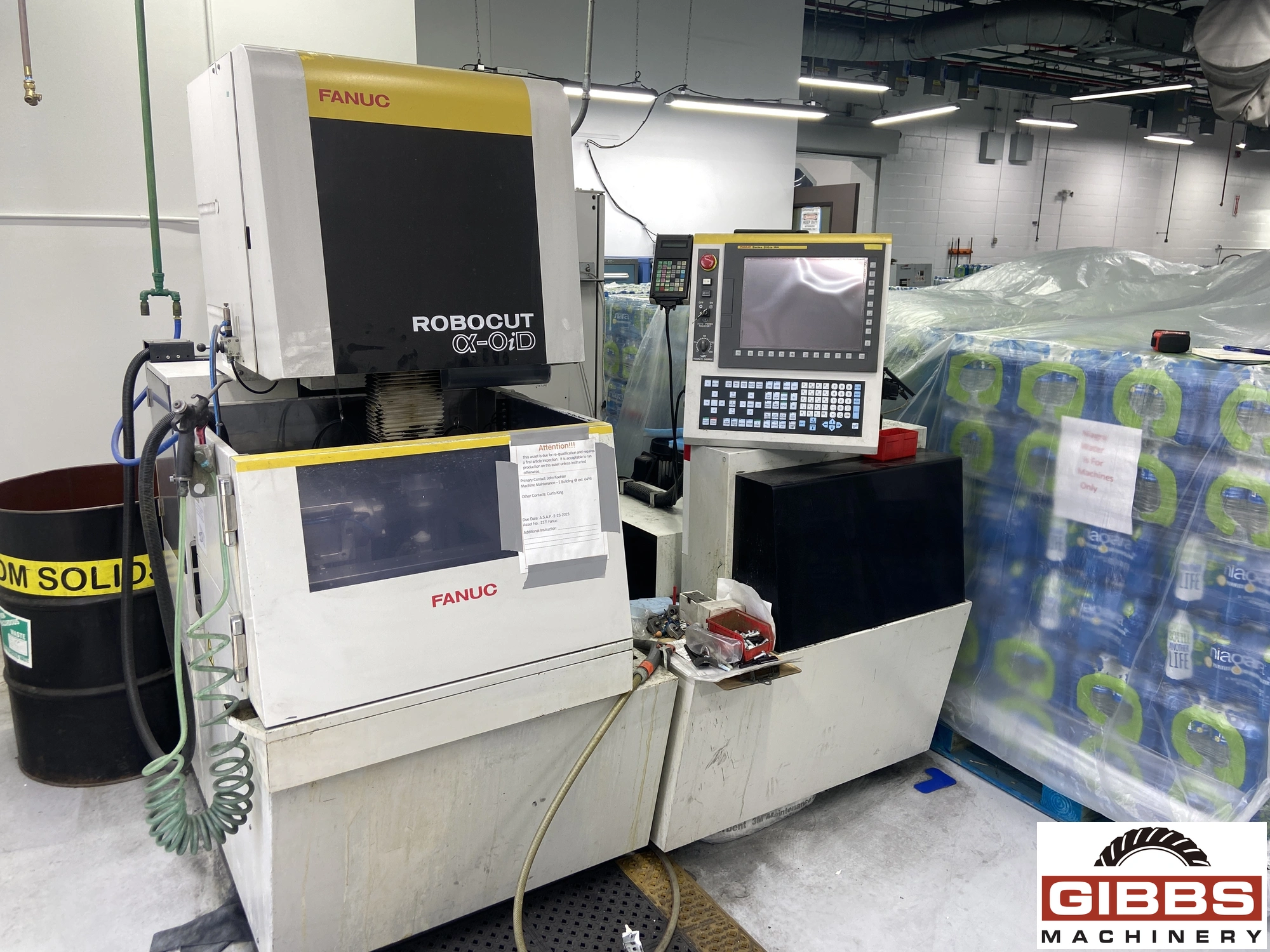

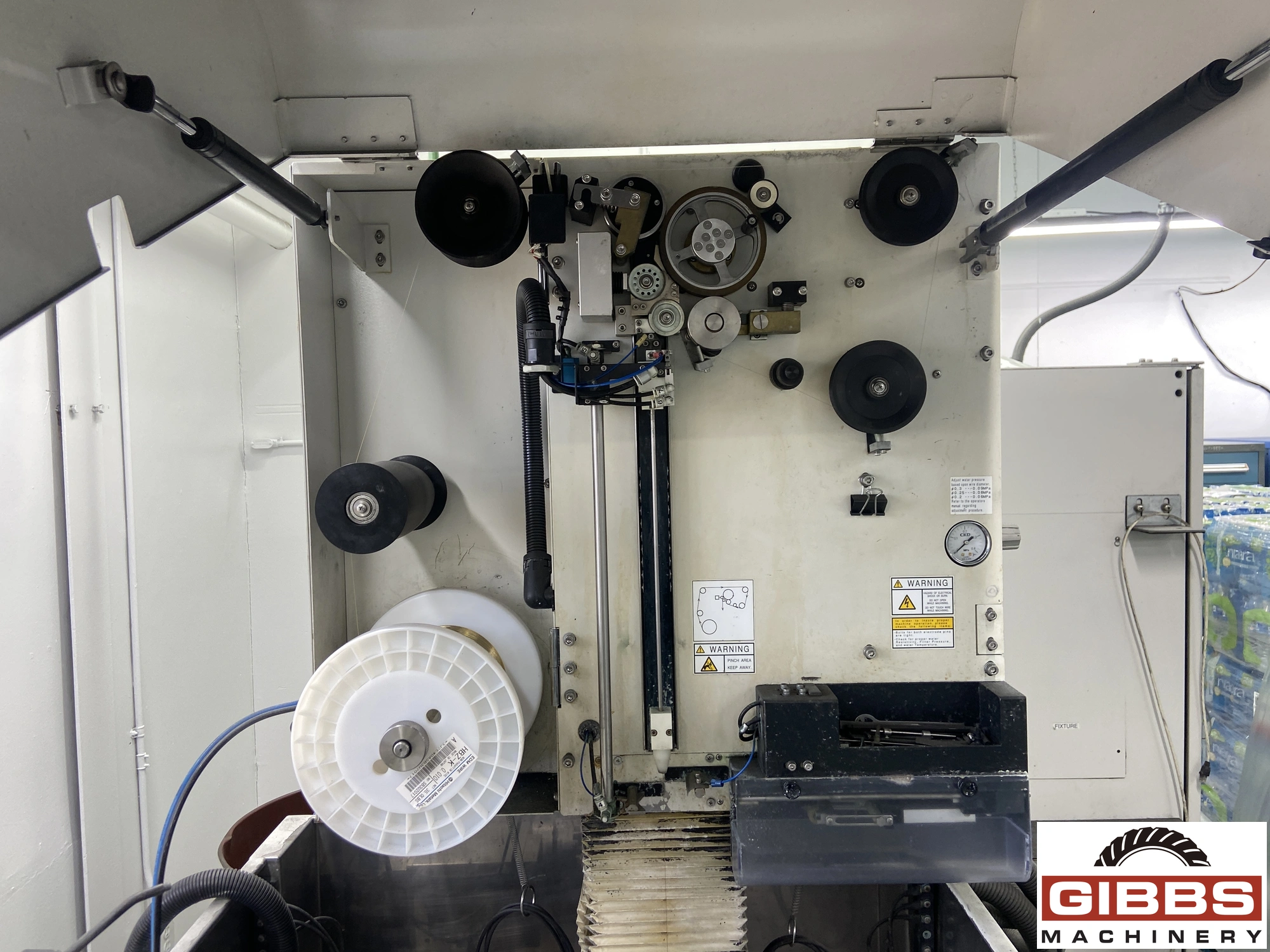

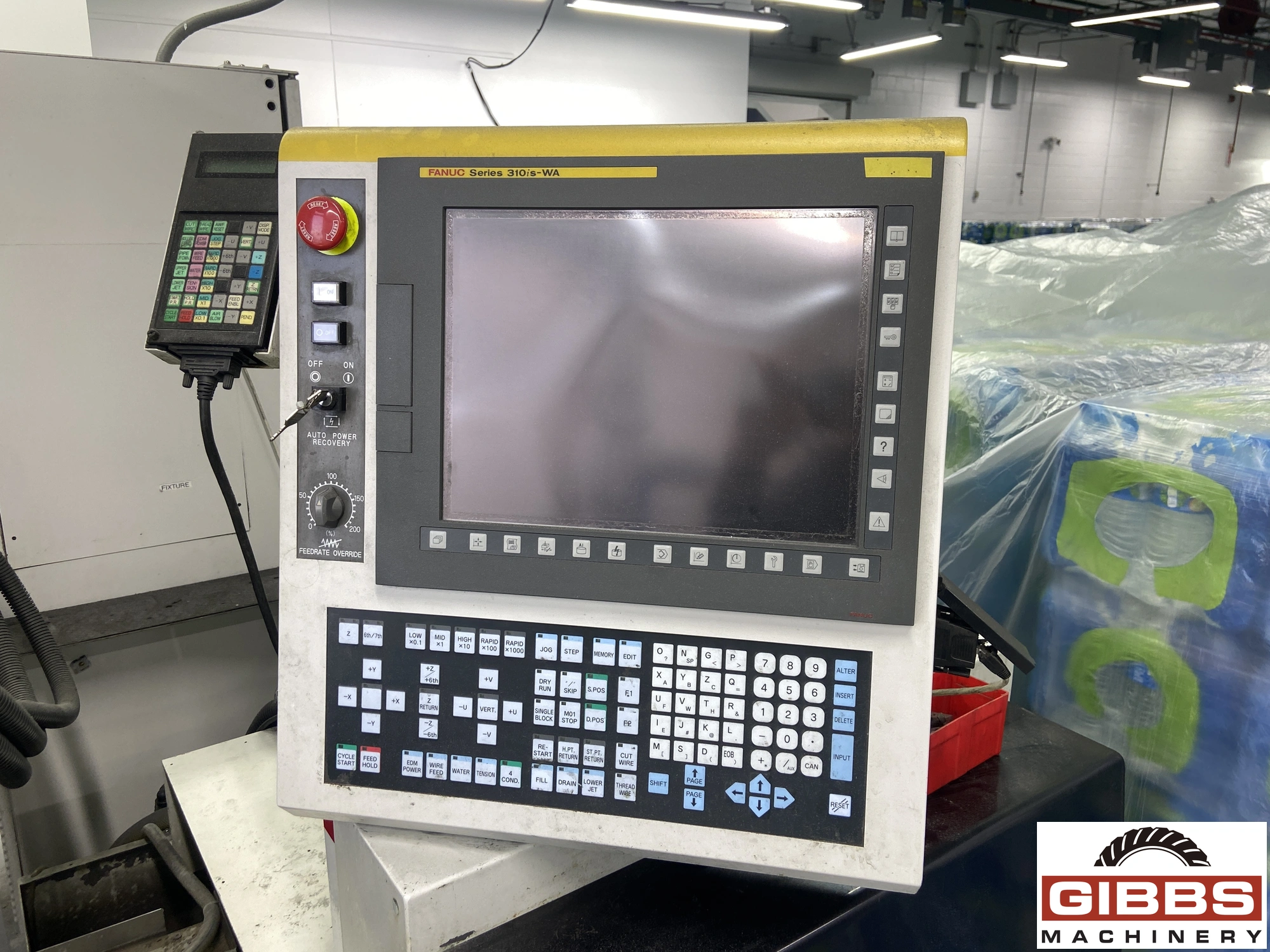

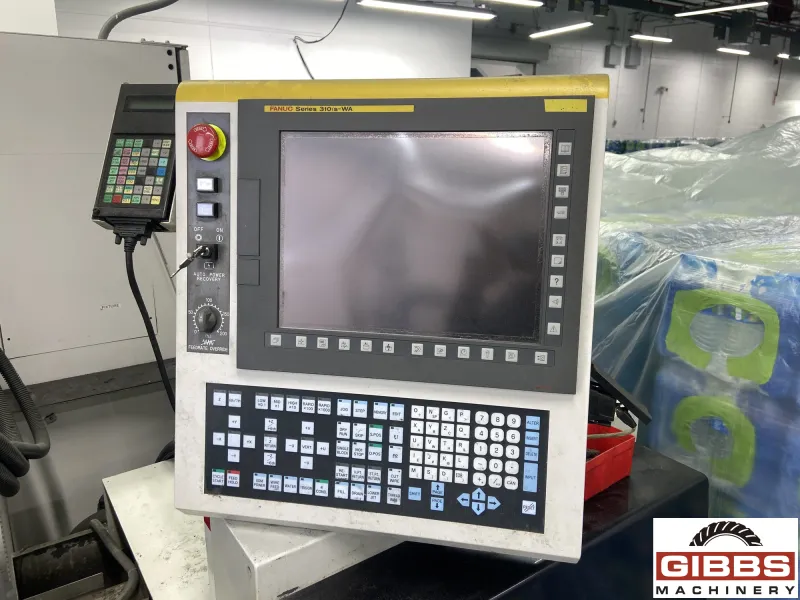

The FANUC ROBOCUT A-OID is a high-precision, compact wire EDM (Electrical Discharge Machining) machine known for its accuracy and ease of use. It utilizes electrical discharge to erode a conductive workpiece, creating intricate shapes with high precision. The machine is equipped with an advanced FANUC CNC control system, a robust frame, and features like automatic wire threading and corner control.

    Specifications:

  • X-Axis Travel: 14.6"
  • Y-Axis Travel: 10.6"
  • Z-Axis Travel: 10"
  • U/V Axis Travel: 2.36" x 2.36"
  • Degree Taper Cutting: 30" at 3.3"
  • Inside Tank Dimensions: 30.5" x 23.6"

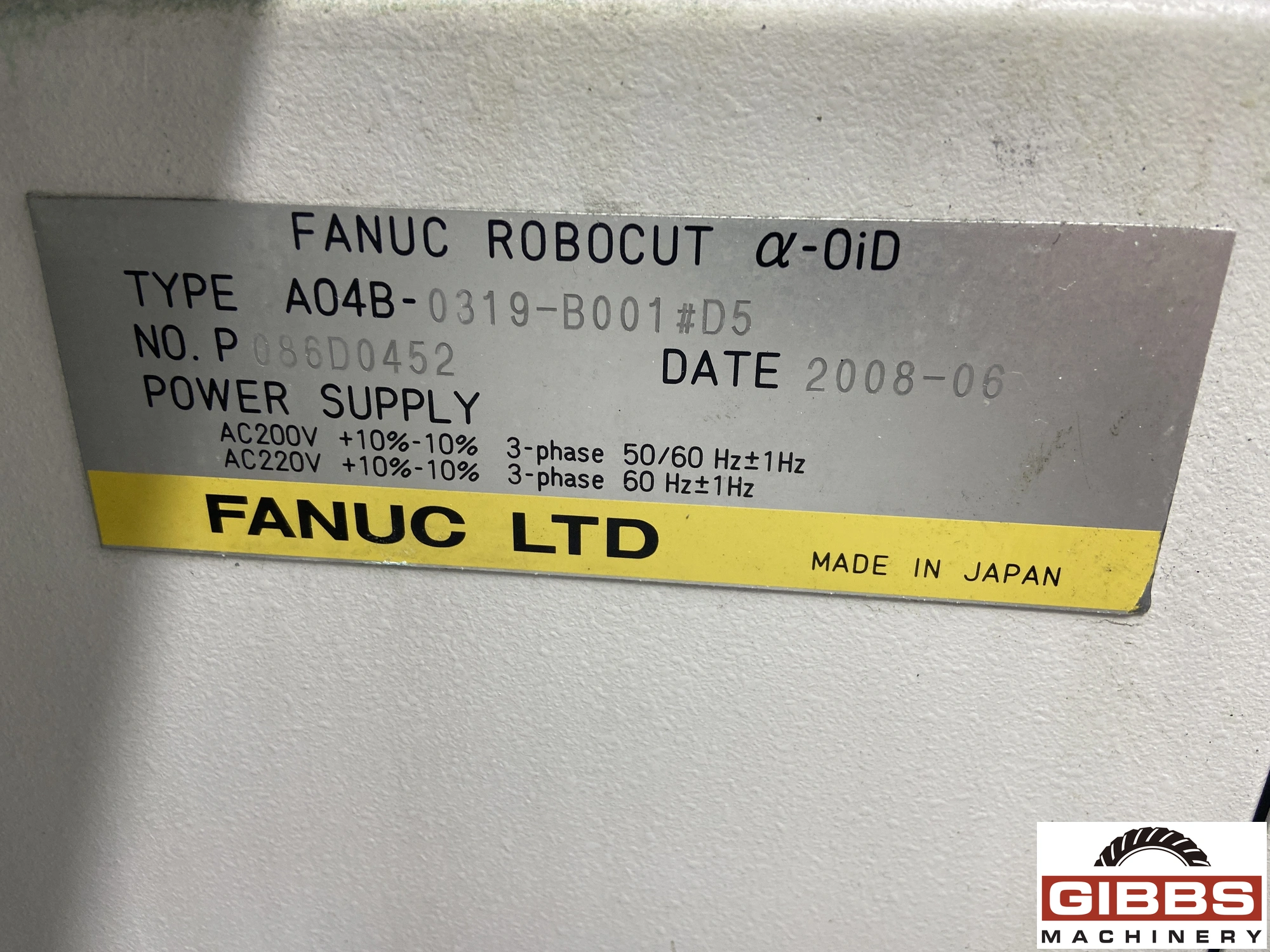

  • Power Requirement: 200-230/3/60
  • Glass Scale Feedback: .00000004 Rotary
  • Wire Diameter: .008" - .012"
  • Max Cutting Speed: Wire .012 Coated, 2.4" Thick, D2 33.5 Sq In/Hour
  • Positioning Accuracy: +/- .0001
  • Dielectric Capacity: 145 Gallons
  • Max Submerged Depth: 9.84"
  • Max Workpiece Size: 30.5" x 23.6" x 10"
  • Max Workpiece Weight: 1,100 Lbs
  • Machine Footprint: 76" x 87" x 77"H
  • Machine Weight: 4,000 Lbs
