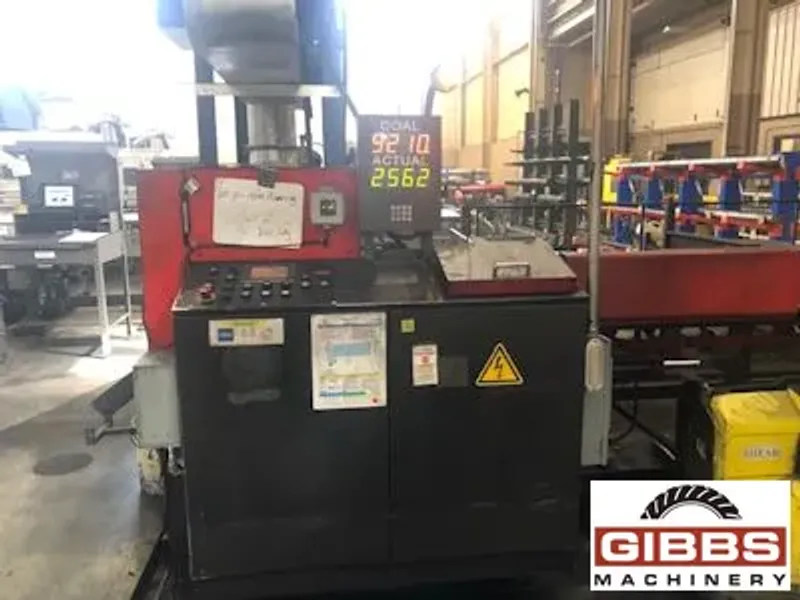

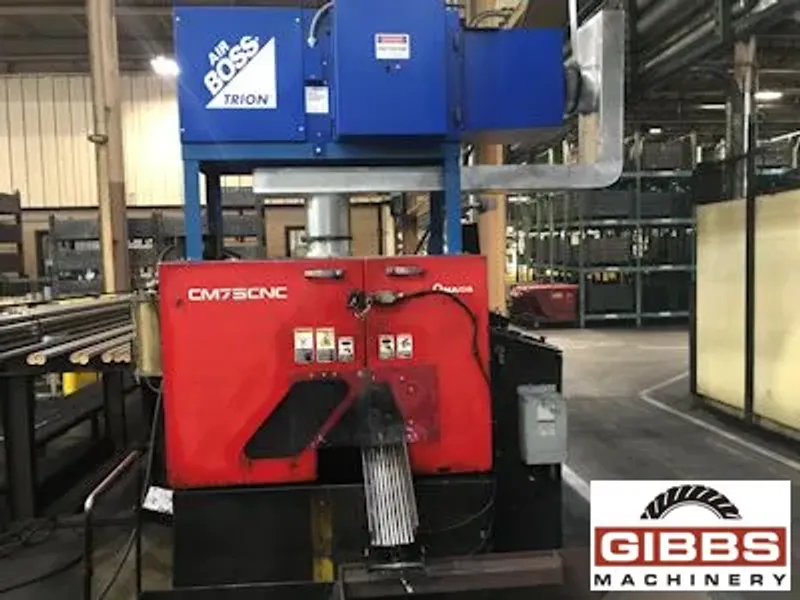

AMADA CM75 - Saw

Manufacturer

AMADA

Category

Saws

Type

SAWS, COLD & CARBIDE

Stock

24403

Model

CM75

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

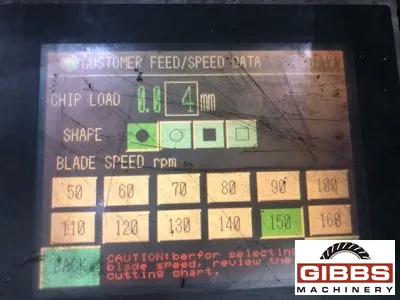

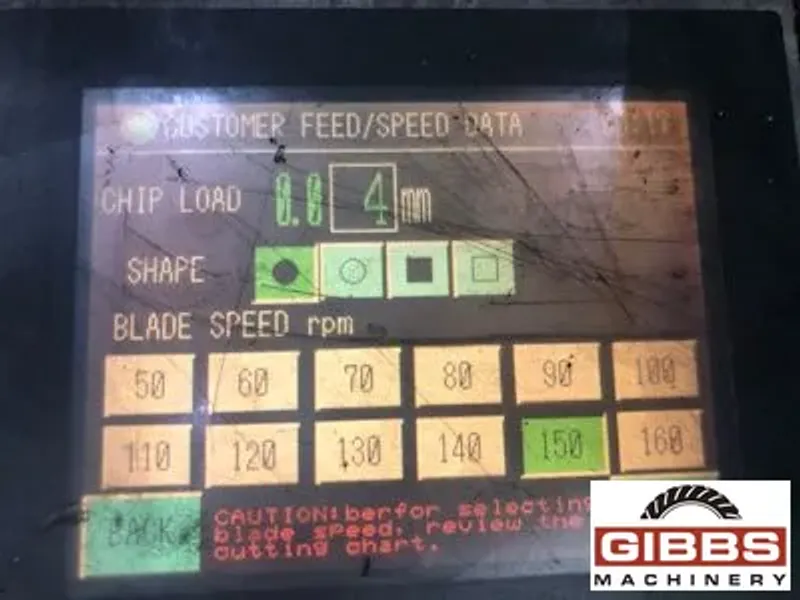

  • CNC Control
  • Anti-Backlash Device
  • Cut Piece Counter
  • Ammeter For Main Motor Amp Draw
  • Self Diagnostics
  • Chip Conveyor
  • Sorting Chute To Separate Trim & Remnants Form Good Cut Pieces
  • Automatic Trim Cut
  • Carbide Stabilizer Pads

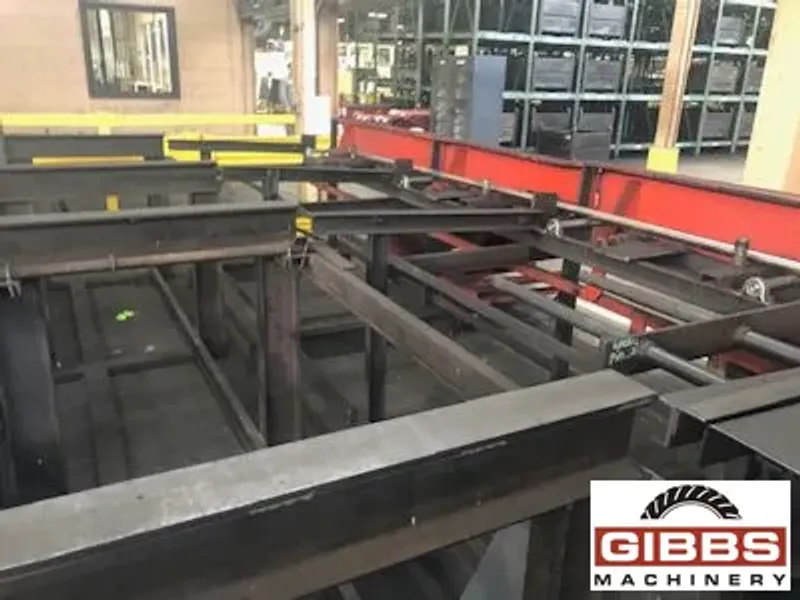

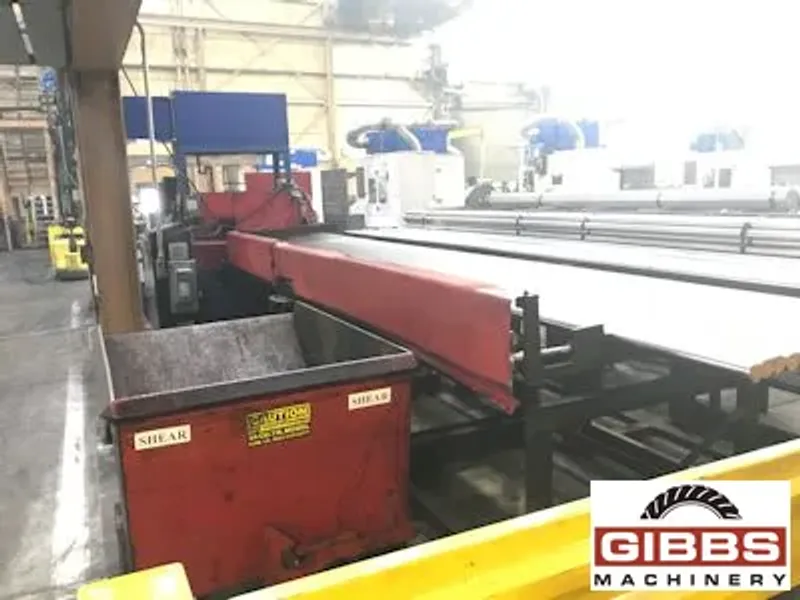

  • 20' Incline Table
  • Controlled Mist System
  • Wire Blade Chip Brush
,

Machine Specifications :

  • Year 2005
  • Manufacturer AMADA
  • Max Dia. Blade 11.21"
,

Check out this used 2005 AMADA CM75 Fully Automatic Carbide Circular Saw! Known for its robustness, this saw comes equipped with a CNC Control, Anti-Backlash Device, and a Cut Piece Counter. It's also kitted with an Ammeter for Main Motor Amp Draw, Self Diagnostics, and a Chip Conveyor. Sorting Chute separates trim & remnants from good cut pieces. It also features an Automatic Trim Cut, Carbide Stabilizer Pads, a 20' Incline Table, Controlled Mist System, and a Wire Blade Chip Brush.

    EQUIPPED WITH:

  • CNC Control
  • Anti-Backlash Device
  • Cut Piece Counter
  • Ammeter For Main Motor Amp Draw
  • Self Diagnostics
  • Chip Conveyor
  • Sorting Chute To Separate Trim & Remnants Form Good Cut Pieces
  • Automatic Trim Cut
  • Carbide Stabilizer Pads
  • 20' Incline Table
  • Controlled Mist System
  • Wire Blade Chip Brush
  • SPECIFICATIONS:
  • Cutting Capacity, Round Solid @ 90 Degrees: 0.4"-2.95"
  • Cutting Capacity, Flat & Profile @ 90 Degrees: 0.4" x 0.4"-2.16" x 2.16"

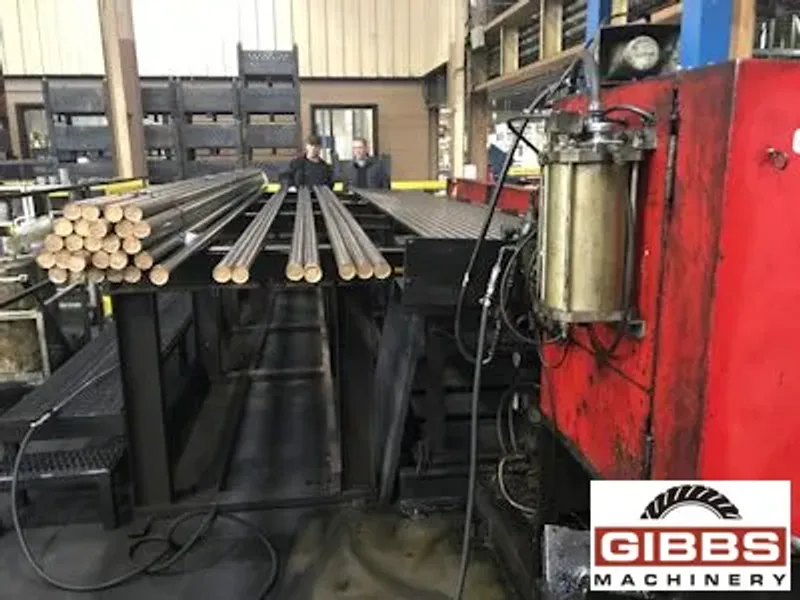

  • Loading Magazine Type: Incline
  • Loading Magazine Length: 20'
  • Saw Blade Dimensions: 11.2" x 1.57" x 0.08"
  • Automatic Feed Length (one stroke): 28.15"
  • Shortest Cut-Off Length (automatic): 0.4"
  • Head Feed (manual/powered): Powered

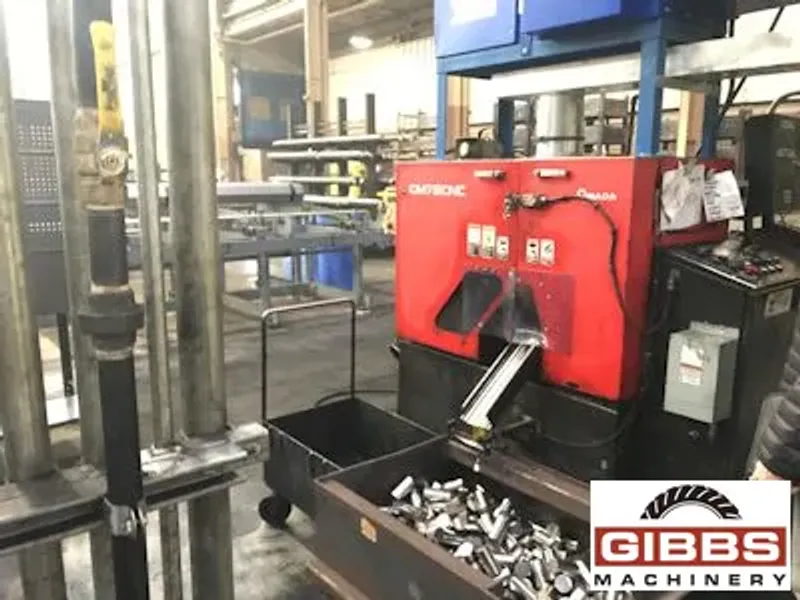

  • Material Discharge: Sorting Chute
  • Way Type: Slides
  • Cutting Speeds: 56-255 RPM (inverter drive)
  • Number of Speeds: Infinite

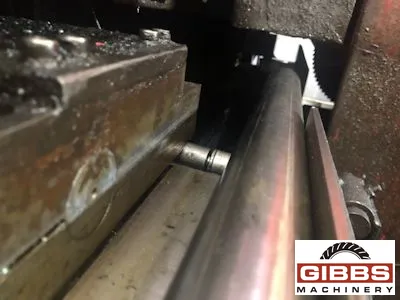

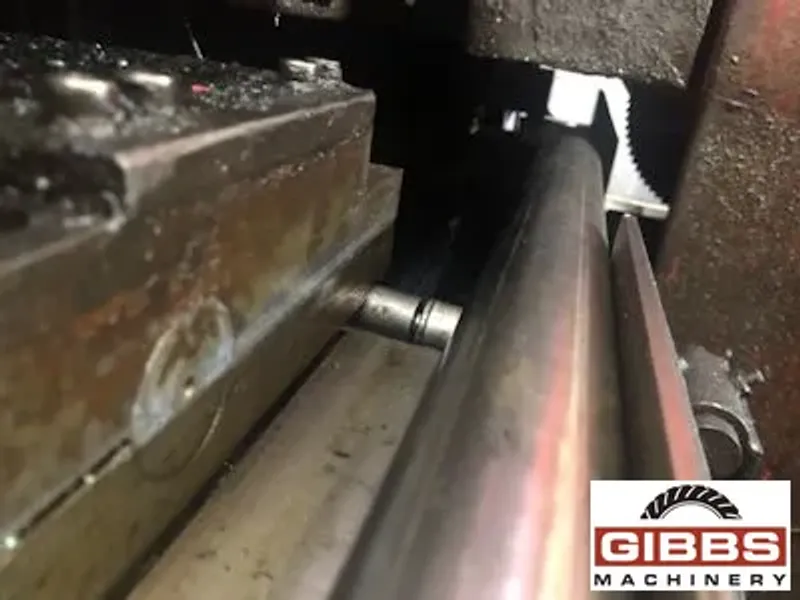

  • Manual/Air/Hydraulic Vise: Hydraulic
  • Coolant Type: Mist
  • Hydraulic Motor: 3 HP
  • Air Requirements: 90 PSI
  • Main Saw Motor: 10 HP
  • Currently Wired: 220 Volt, 3 Phase
  • Dimensions: 80" x 67" x 62" (Saw Only)
  • Weight: 5,512 lbs
