GLEASON HURTH ZSE 150T - Gear Shavers & Hone

Manufacturer

GLEASON HURTH

Category

Gear Machines

Type

GEAR SHAVERS (Including CNC)

Stock

24240

Model

ZSE 150T

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

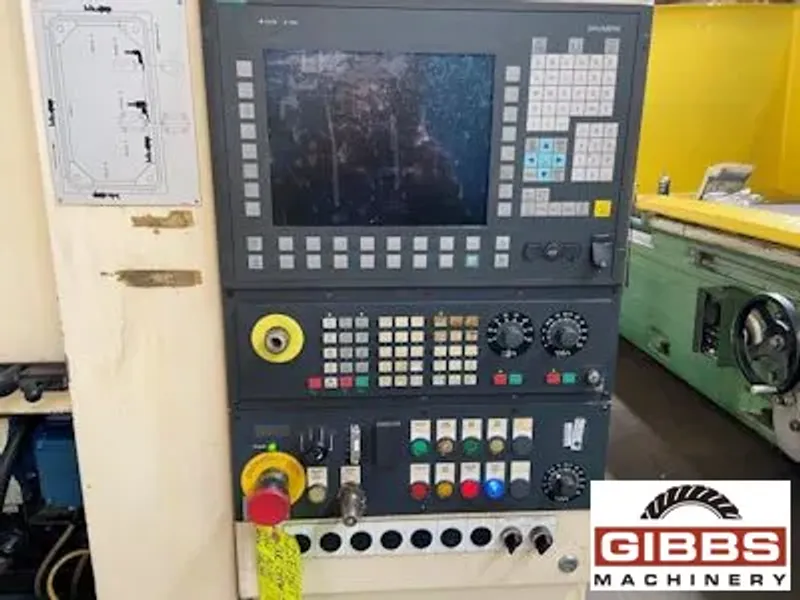

  • Siemens 840D Control
  • Auto Load System
  • Auto Deburring

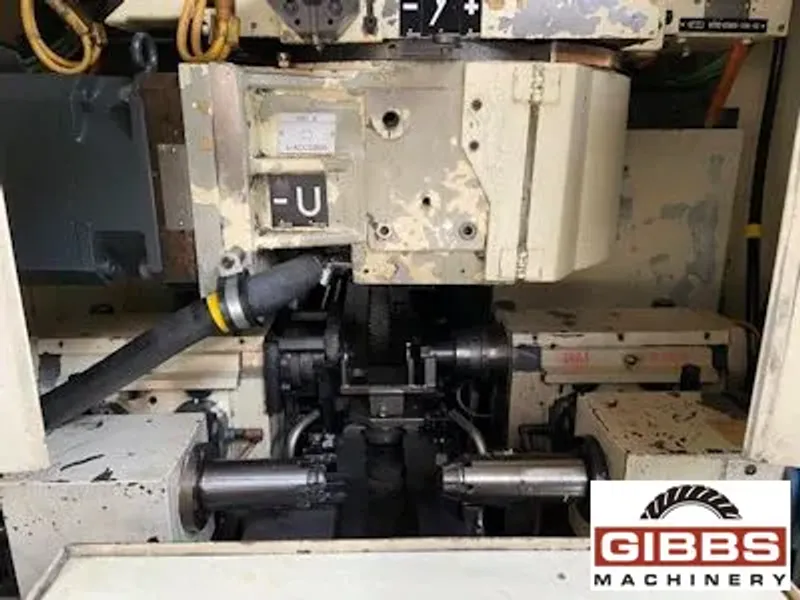

  • Headstock
  • Tailstock
  • Coolant System

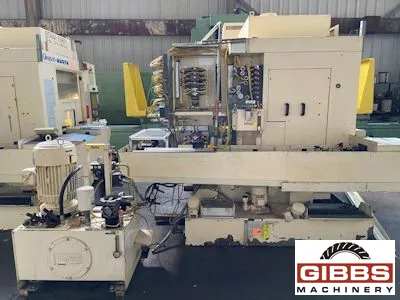

  • Hydraulic System

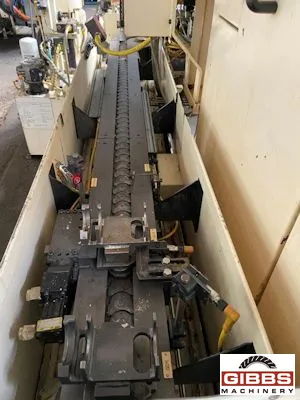

  • Chip Conveyor
  • Transformer
,

Machine Specifications :

  • Year 2002
  • Manufacturer GLEASON HURTH
  • Control Manufacturer Siemens
  • Maximum Tooth Width 1.8"
  • Shaving Cutter Bore Diameter 63.51
  • Minimum/Maximum Width of Shaving Cutter 2"
  • Minimum/Maximum Diameter Shaving Cutter 0"
  • Module 3.5
  • Maximum Workpiece Diameter 7.9"
,

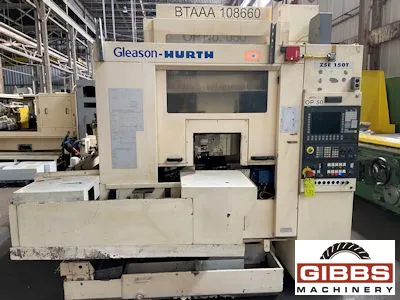

2002 GLEASON HURTH ZSE 150T CNC GEAR SHAVER

    Specifications:

  • Workpiece Diameter, Nominal: 200mm
  • Module, Nominal: 3.5 mm
  • Max. Tooth Width: 45 mm
  • Max. Workpiece Length: 400mm
  • Min./Max. Shaving Cutter Outside Diameter: 200/270mm
  • Max. Shaving Cutter Width: 50.8mm
  • Max. Shaving Cutter Bore Diameter: 63.5 or 100mm
  • Max. Shaving Cutter Speed: 400 rpm
  • Min./Max. Center Distance: 120/130mm
  • Cross Axis Angle Swivel: -21deg/+18deg.
  • Max. Chamfer Rolling Tool Diameter: 205mm
  • Chamfer Rolling tool Bore Diameter: 40mm
  • Secondary Chamfer-Deburring Disc Diameter: 59mm
  • Approximate Dimensions: 143"L x 102"W x 129"H
  • Approximate Weight: 12,125 lbs
