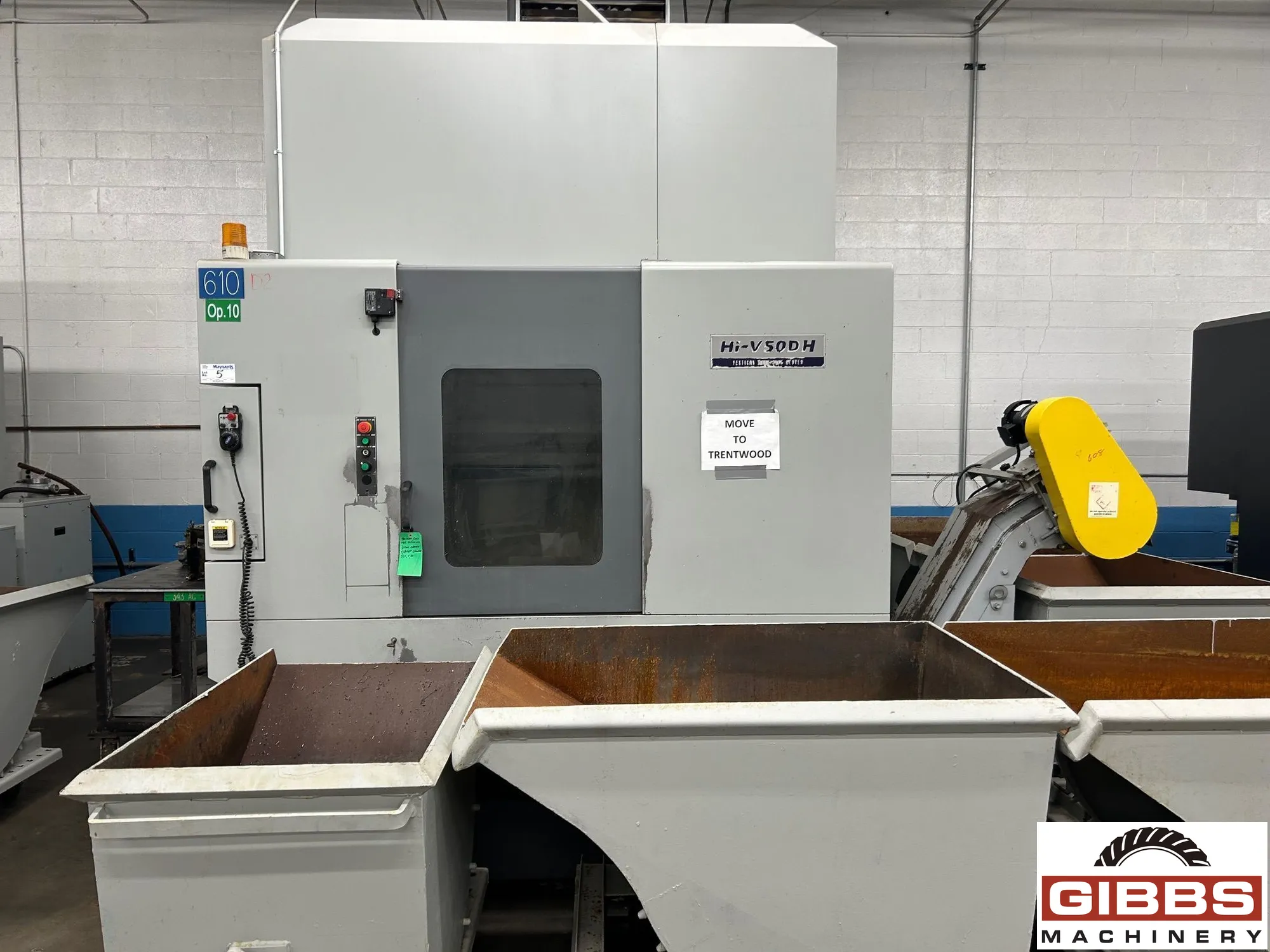

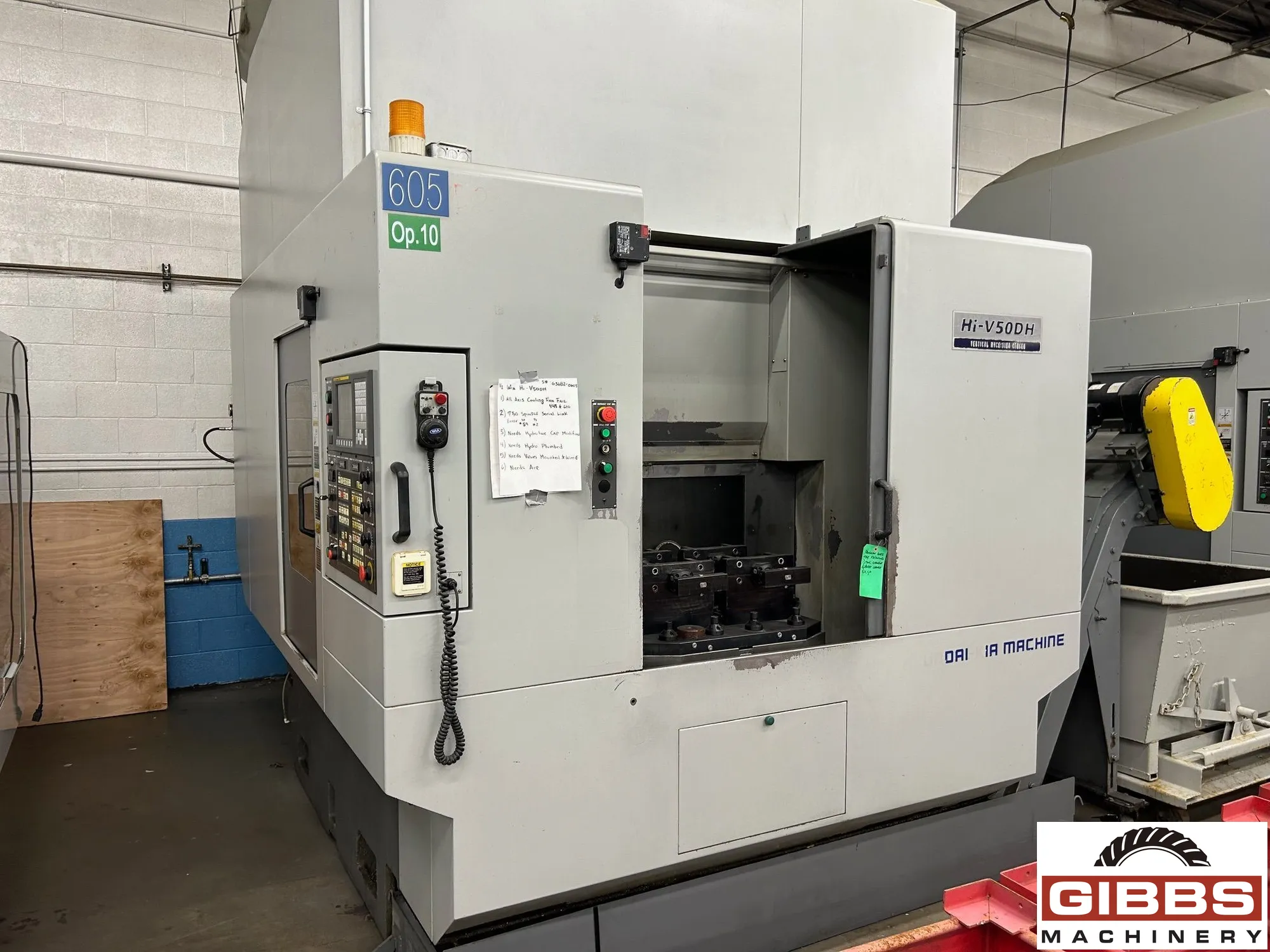

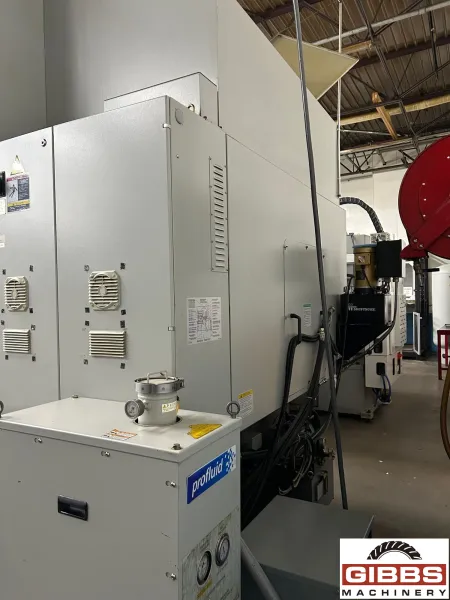

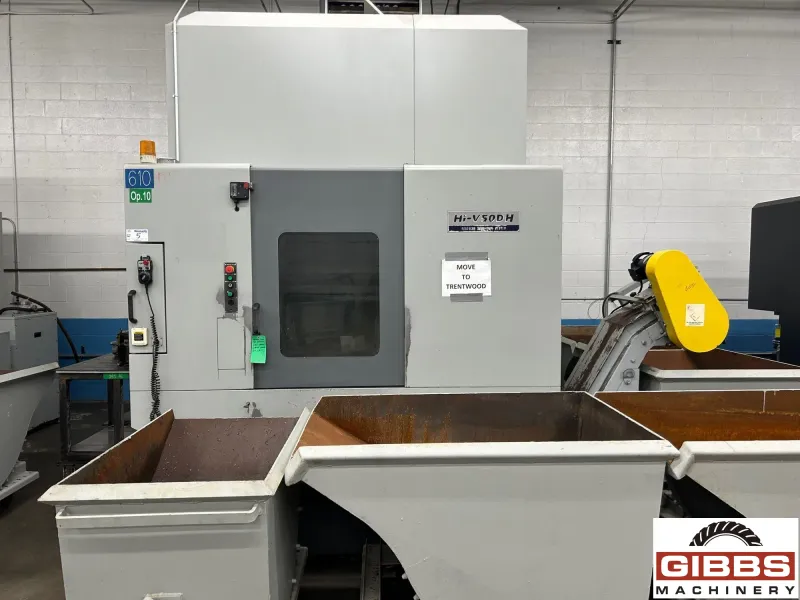

HYUNDAI KIA HI-V50DH - Vertical Machining Center

Manufacturer

HYUNDAI KIA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

25617

Model

HI-V50DH

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

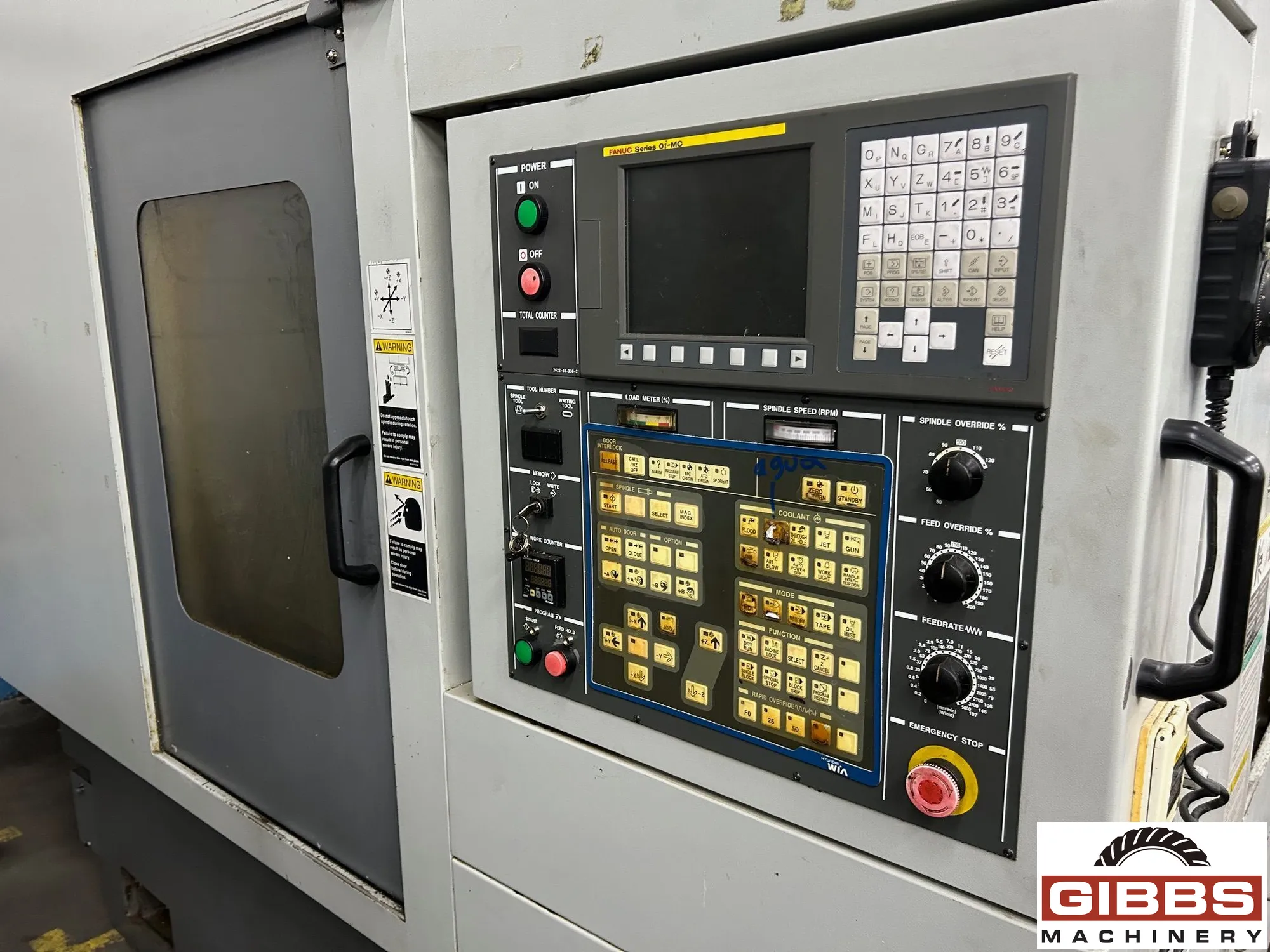

  • Fanuc Oi-MC Control
  • Pallet Changer
  • High Pressure Coolant System
  • Chip Conveyor
  • Coolant System
  • Renishaw Probe
  • 40 Taper

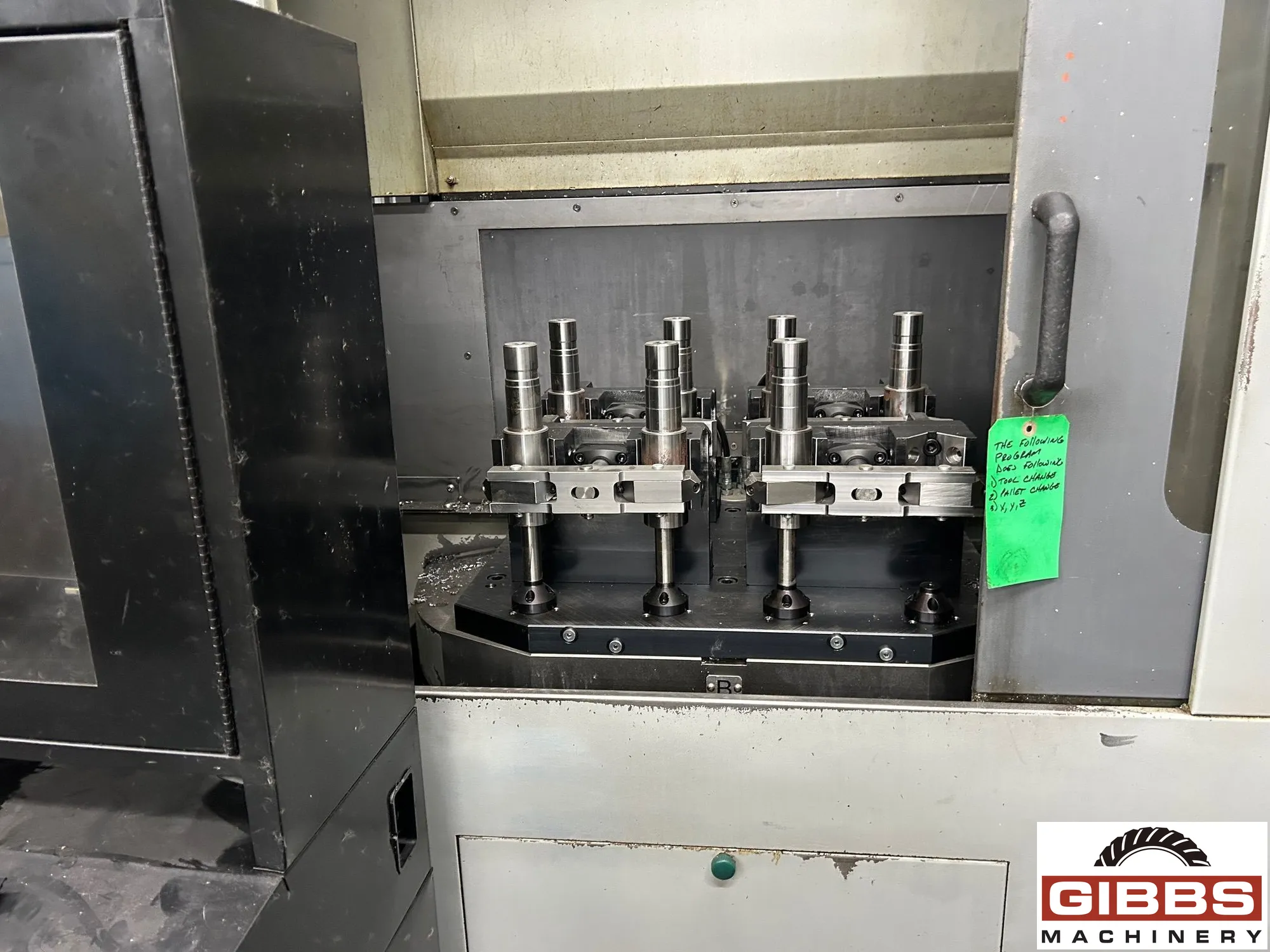

  • 180 Degree Pallet
  • Pulse Generator

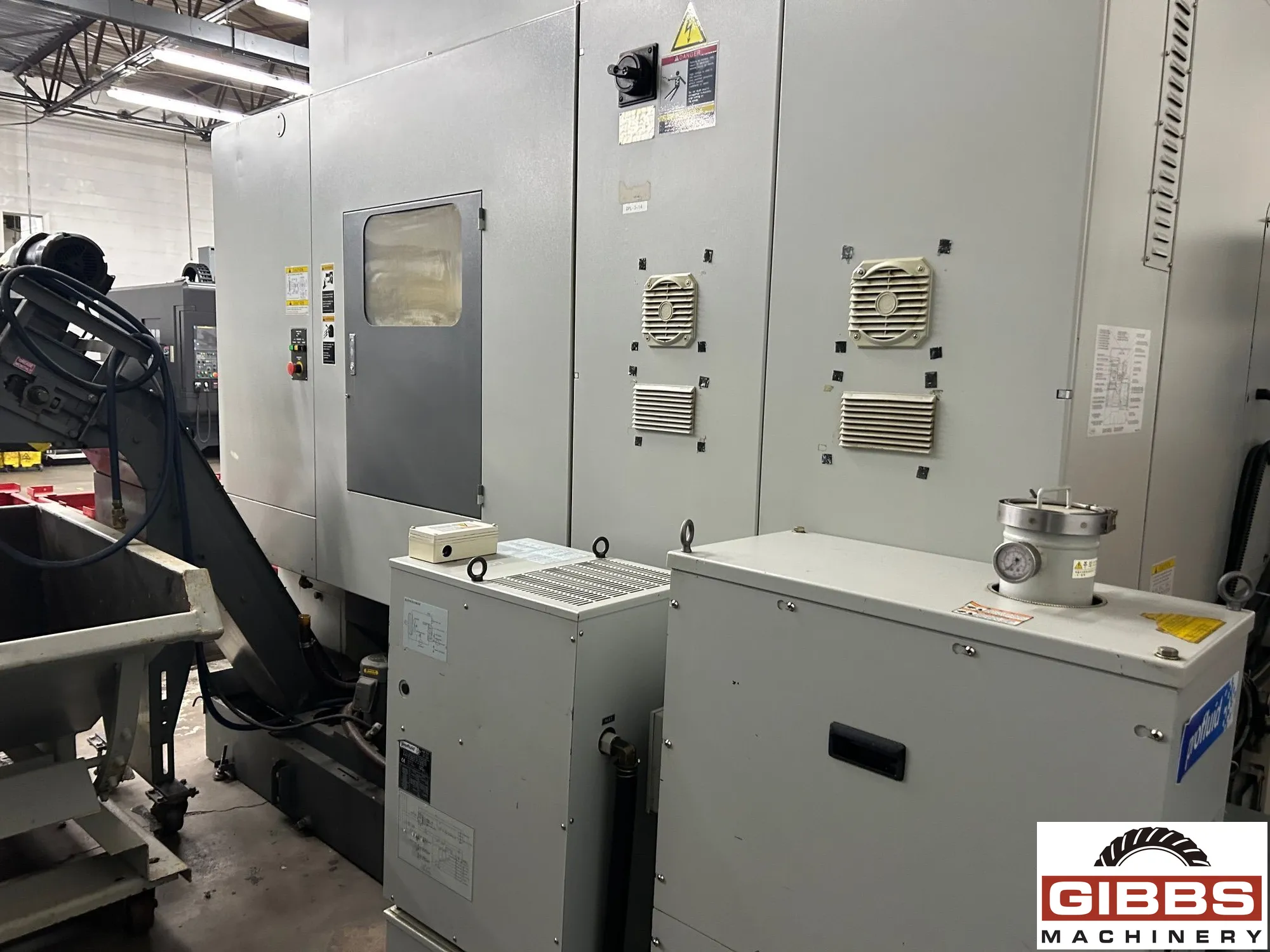

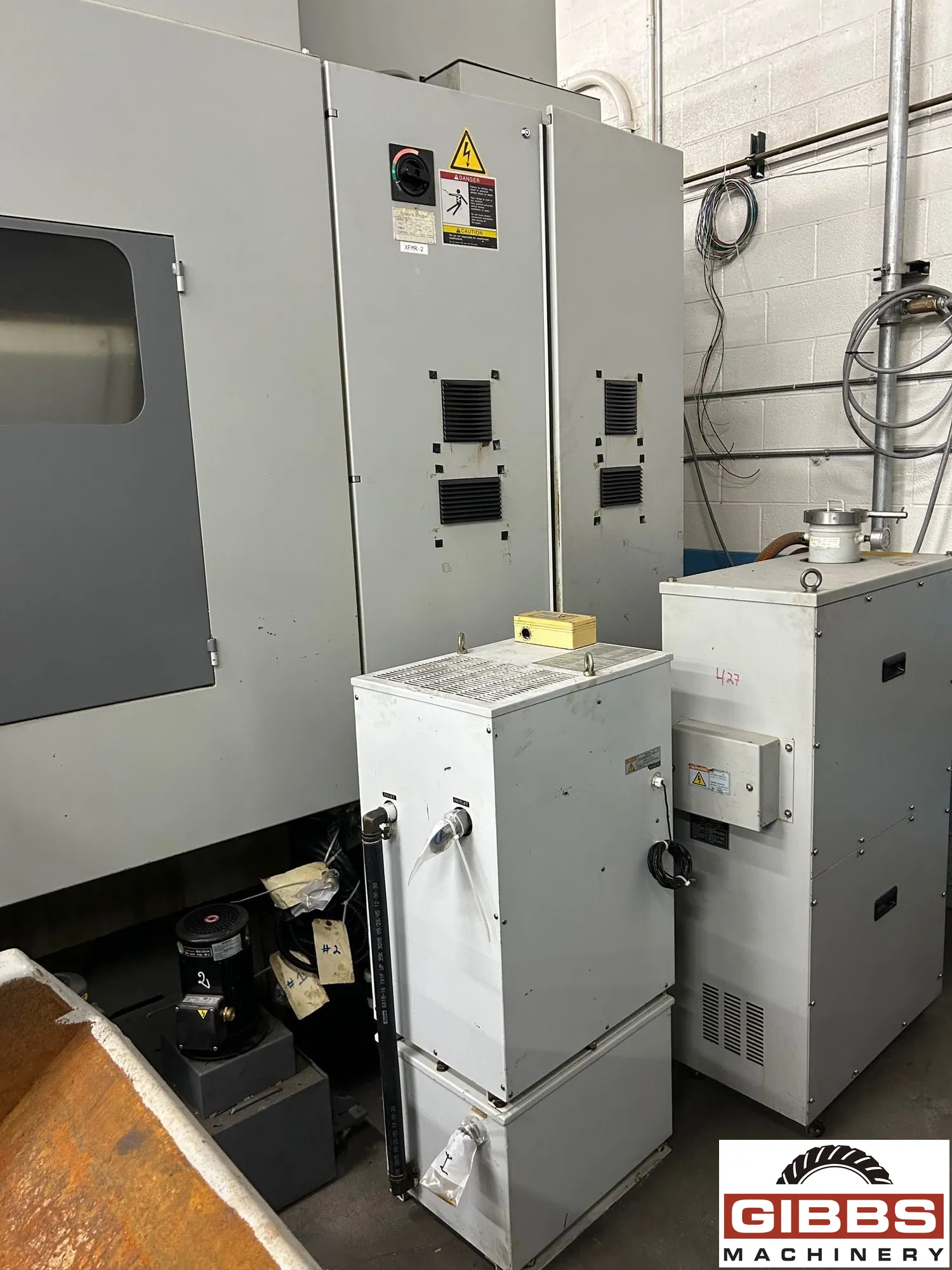

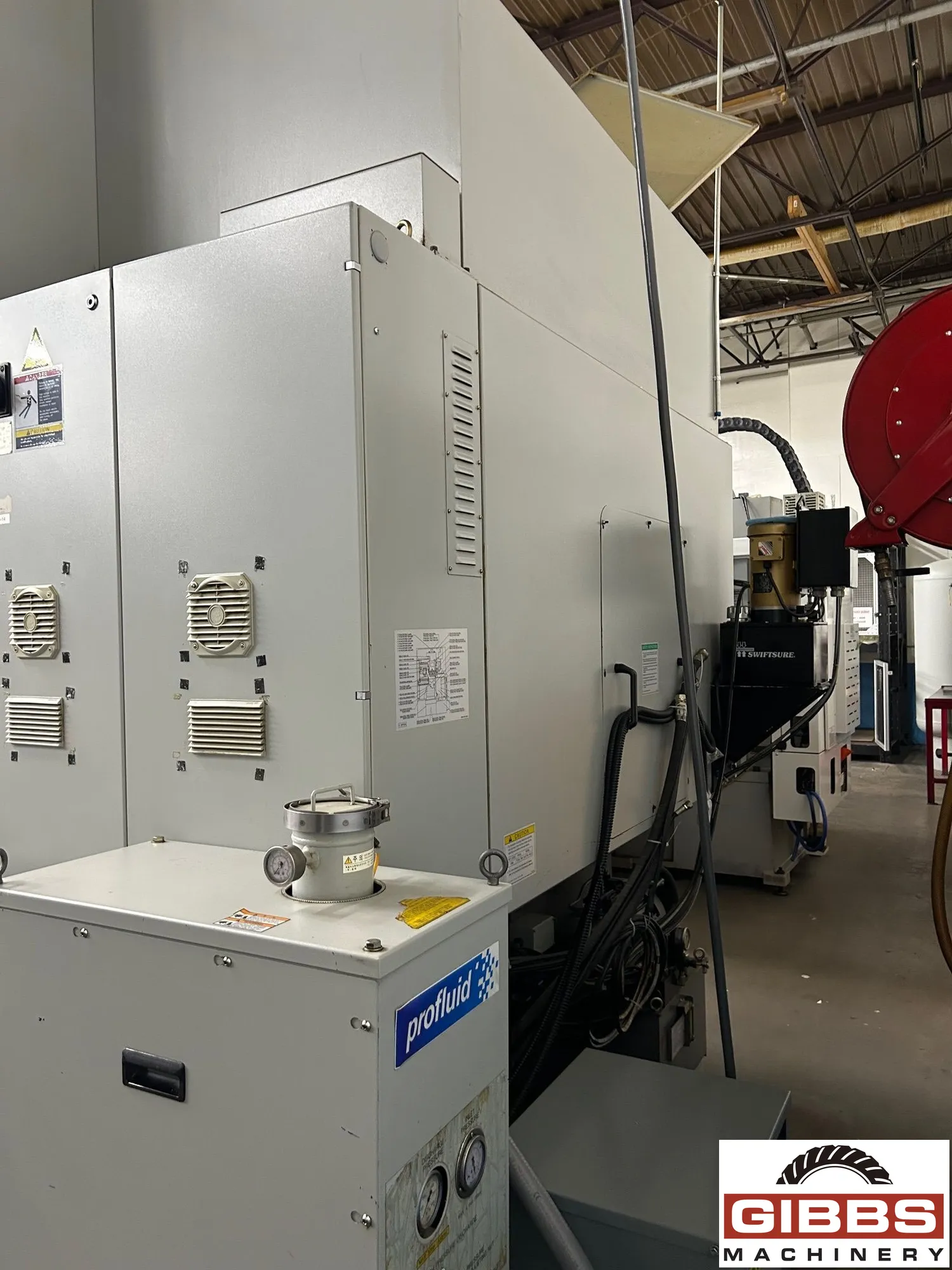

  • Chiller
,

Machine Specifications :

  • Year 2004
  • Manufacturer HYUNDAI KIA
  • X-Axis 23.6"
  • Y-Axis 18.1"
  • Z-Axis 22.4"
  • Power 15.0 HP
  • RPM 12,000 RPM
  • # ATC 24.0
  • Taper 40
  • Table-W 19.7"
  • Table-L 27.6"
,

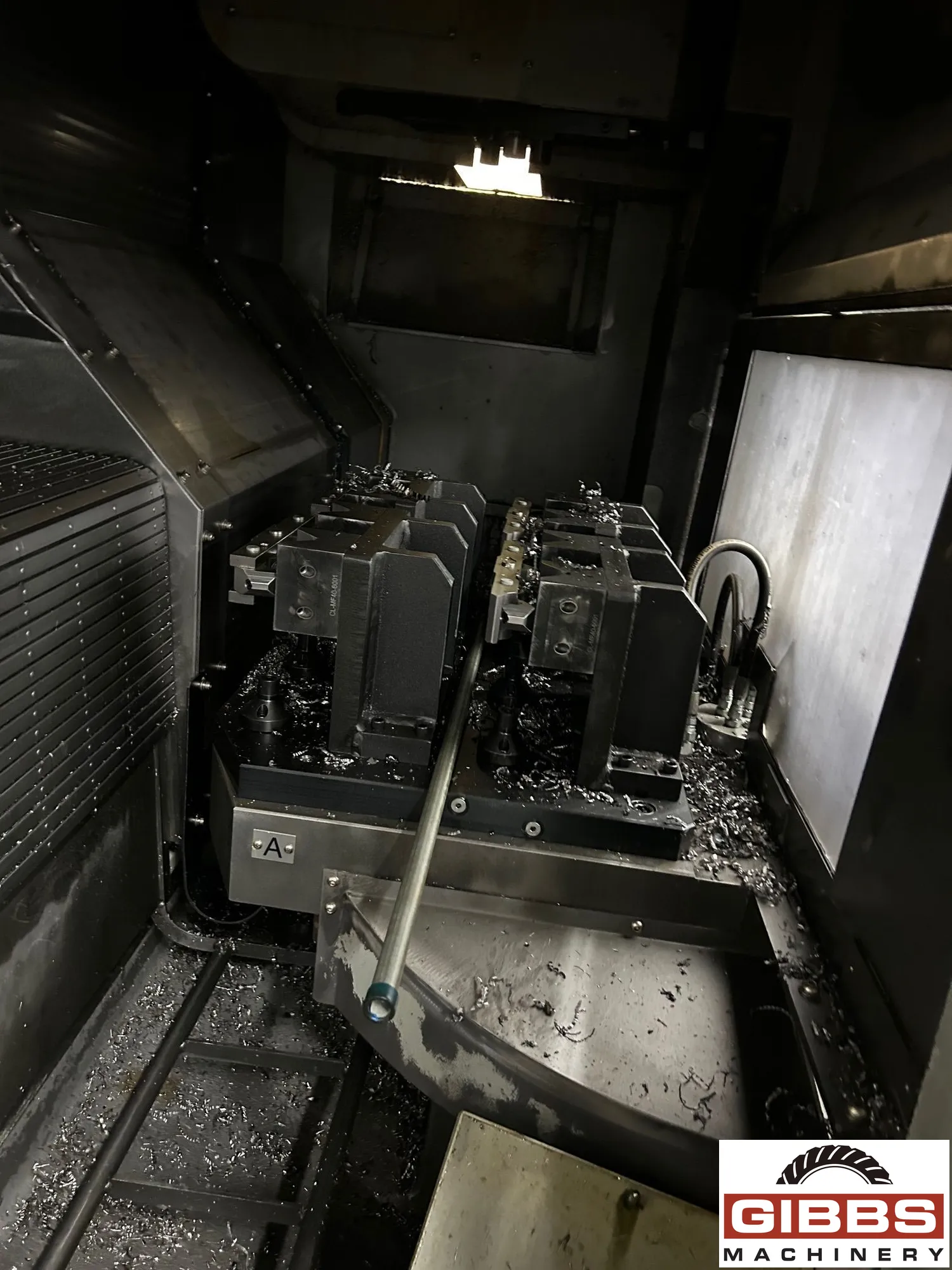

Hi-V50D Series are designed for the high productivity with the high precision, high speed, and precision accuracy. The moving column design with the integral 180 turning pallet table (dual table) allows operator load/unload or set-up work pieces on another pallet while machining on the other pallet for the high productivity.

    Specifications:

  • Table:
  • -Size (length x width): 27.6" x 19.7"
  • -Maximum Load on Table: 772#
  • Travel:
  • -Table Longitudinal (X): 23.6"
  • -Table Cross(Y): 18.1"
  • -Spindle Head Travel (Z): 22.4"
  • -Distance From Column to Spindle Center: 19.7"
  • -Distance From Table Surface to Spindle Nose: 7.9 - 30.3"
  • Spindle:
  • -Taper: NT #40
  • -Speed (RPM): 12,000
  • -Power: 14.7/10 HP
  • -Torque: 51.4 ft/lbs
  • -Spindle Drive: Direct
  • Feed:
  • -Rapid (X,Y): 1,575 ipm
  • -Rapid (Z): 1,181 ipm
  • -Cutting Feed Rate: 394 ipm
  • Machine Weight: 20,944#
  • Floor Space: 106.7" x 115.4"
