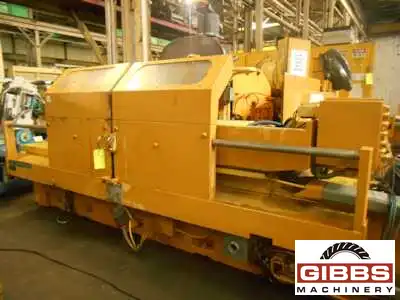

LANDIS 3SE - Cylindrical Grinder

Manufacturer

LANDIS

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN (Angle Head), CNC

Stock

18346

Model

3SE

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • NEW FANUC CONTROL 2007
  • 2-Axis Template Tru-form Servo Step Profile
  • 30 Degree
  • 30" Wheel
  • Dead Headstock
  • Table Traverse
  • Marposs E39
  • Marposs Table Gauge
  • Lateral Locator
  • 3-Gauge
  • TIR Gauge
  • Steady Rests
  • Wheel Balance
  • Servo Motor-Traverse Stepping Motor
  • Mist Collector
,

Machine Specifications :

  • Year 2002
  • Manufacturer LANDIS
  • Gauging (Yes/No) Yes
  • Wheel RPM 1,200 RPM
  • Center Distance 60.0"
  • Swing 14.0"
,

LANDIS 3SE 14" x 60" ANGLEHEAD CNC GRINDER REBUILT BY LANDIS

    Specifications:

  • Swing: 14"
  • Center Distance: 60"
  • Motor: 1200 rpm
  • Motor Pulley Diameter: 7.031"
  • Spindle Pulley Diameter: 6.5"
  • New Wheel Diameter: 30"
  • Worn Wheel Diameter: 22"
  • Max. Wheel: 8500 sfpm
  • Max. Workhead: 333rpm
  • X-Axis Ball Screw Pitch: 5mm per rev.
  • X-Axis Total Stroke: 14.74"
  • X-Axis Motor Pully Wheel Feed Diameter: 3"
  • X-Axis Ball Screw Pulley Diameter: 3"
  • Z-Axis Ball Screw Pitch: 10mm per rev.
  • Z-Axis Total Stroke: 72.88"
  • Z-Axis Motor Pulley Diameter: 3"
  • Z-Axis Ball Screw Pulley Diameter: 6"
  • Total Stroke: +/-2mm
  • Total Marposs Voltage Output: =/-10vdc
  • Dresser One Revolution of the Stepping Motor: .045"
  • Diamond One Revolution of the Stepping Motor: .005"
