KARATS GSM-12N - Gear Shaper

Manufacturer

KARATS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

24940

Model

GSM-12N

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

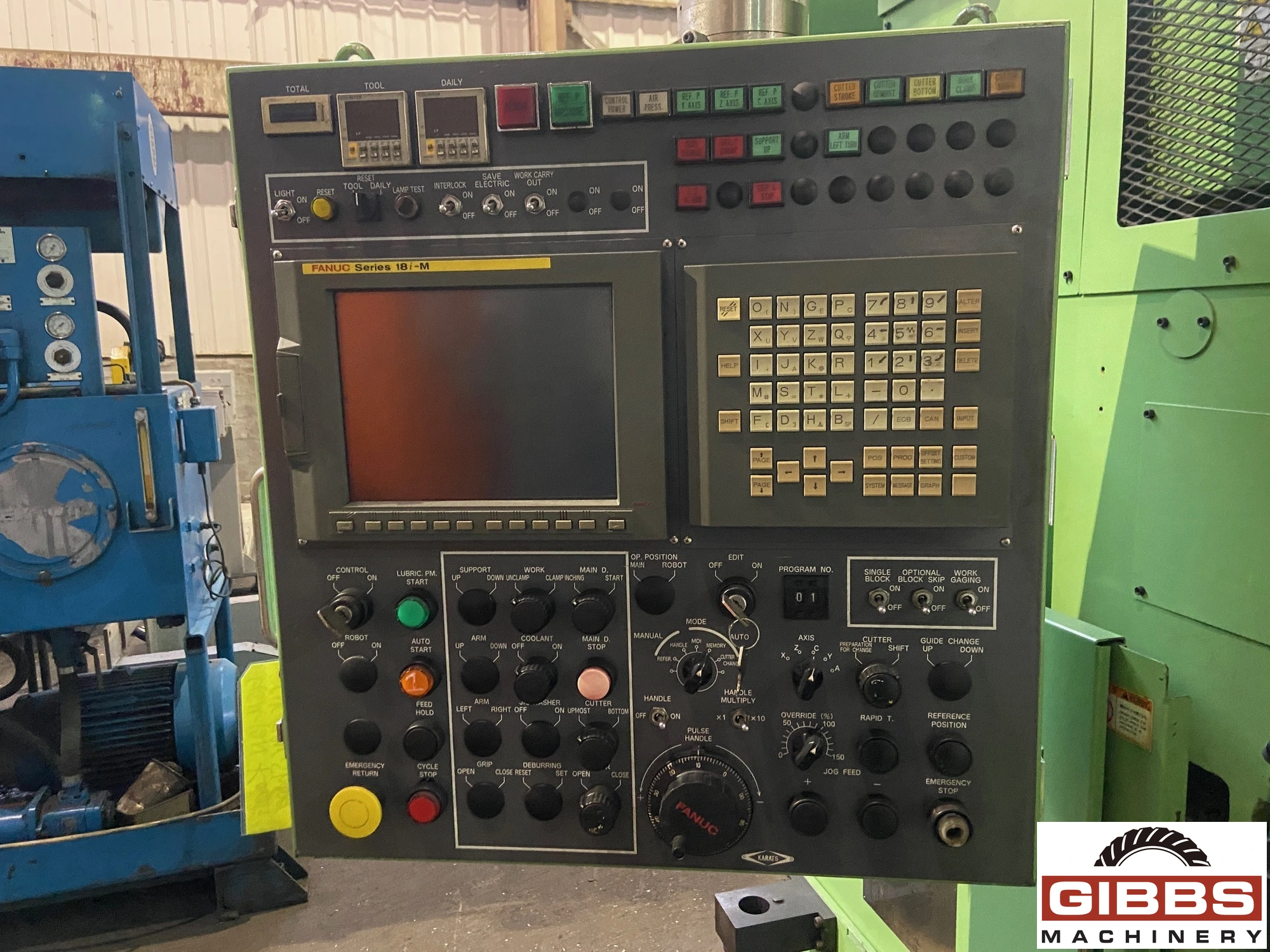

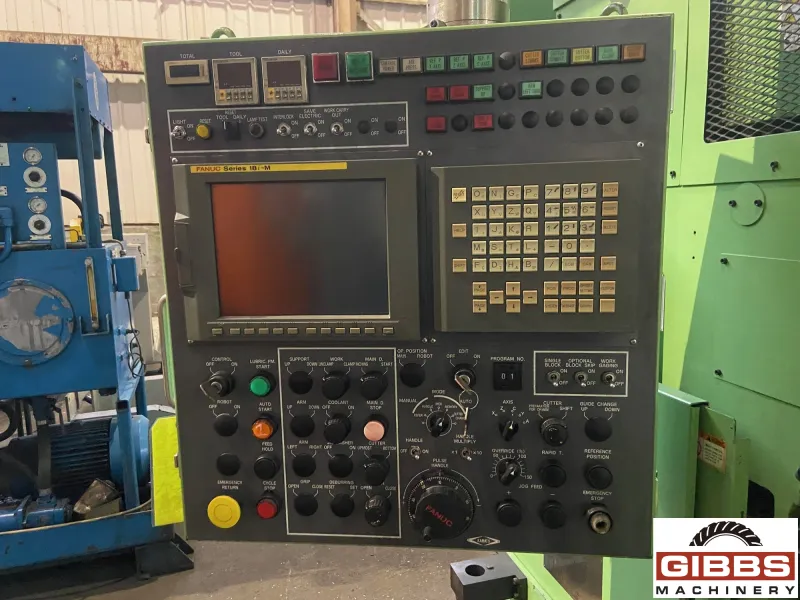

  • Fanuc 18iM CNC Control
  • Control and Operation Panel
  • Automatic Stroke Halt (at up and down end)
  • Straight Guide
  • Hydraulic Oil Unit (with temperature controller)
  • Cutting Coolant Supply Unit
  • Work Fixture
  • Cutter Carrier to Spindle Position
  • Work Area Lighting
  • Signal Light Tower (3 color)

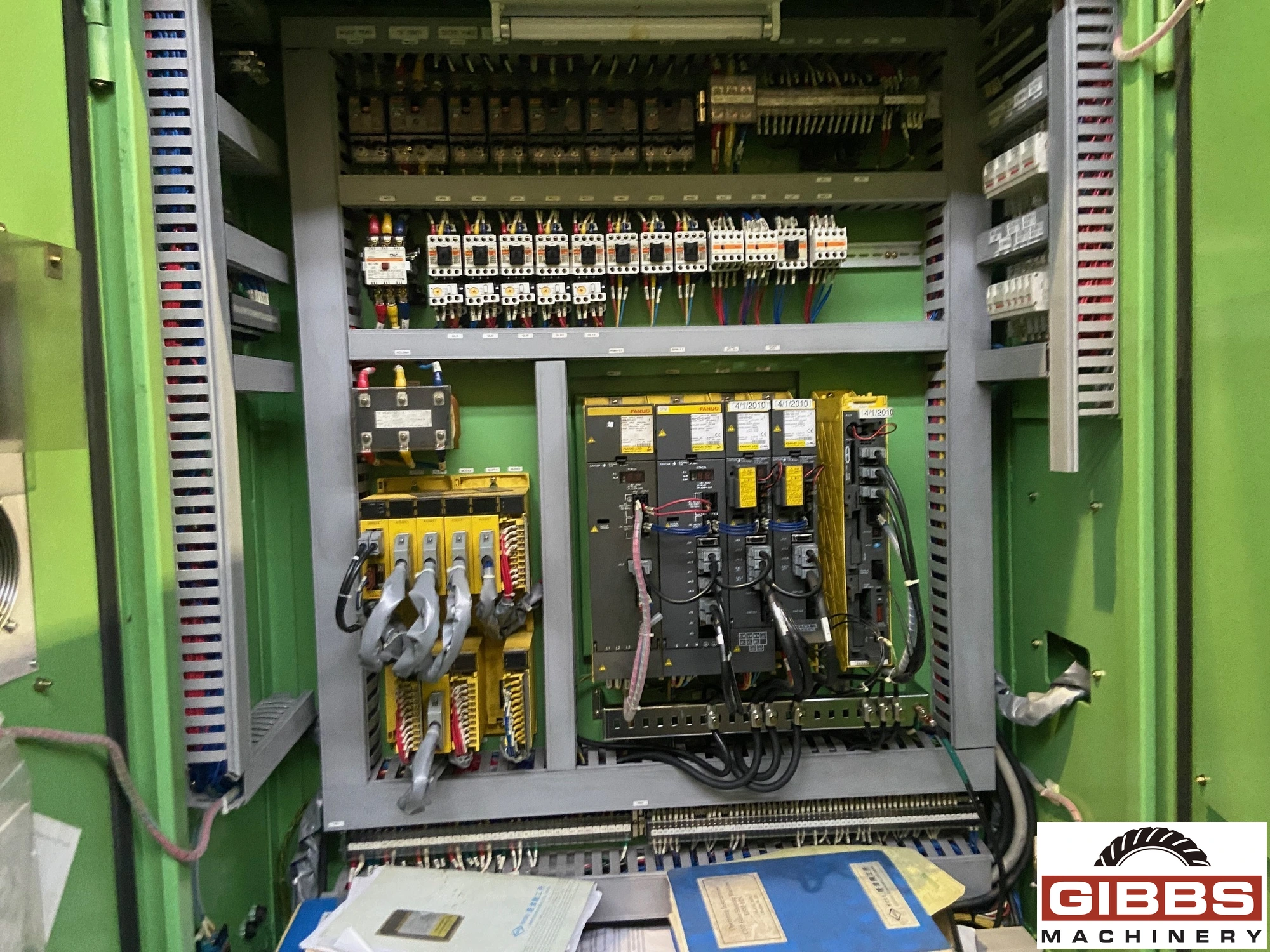

  • Air Conditioner for Control Panel
,

Machine Specifications :

  • Year 2002
  • Manufacturer KARATS
  • Maximum Internal Gear Diameter 4.7"
  • Maximum Workpiece Diameter 4.7"
  • Module 4.0
  • Maximum Face Width 1.6"
  • Cutter Spindle Diameter 3.5"
  • Maximum Stroke Speed 1500.0
  • Spindle Taper 112.0
  • Control Manufacturer Fanuc
  • Diametral Pitch 6.0"
,

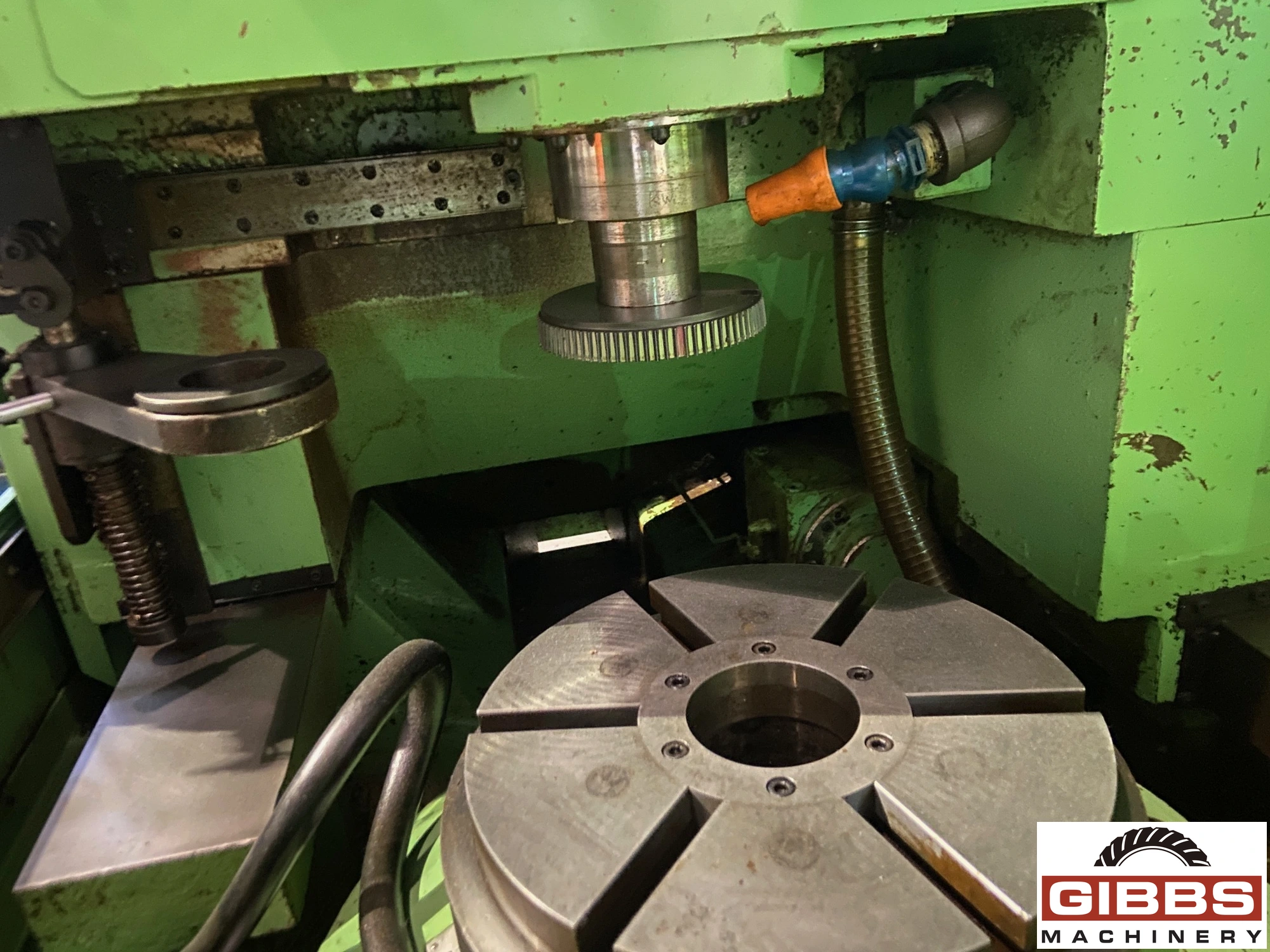

History of Karats gear technology started from production of a turbine pinion hobbing machine in 1921. For 100 years Karats Precision has succeeded to produce many models and large numbers of gear processing machines. This model is one of the master pieces. The cutter head supports the cutter spindle assembly with hydrostatic bearings, guide and stroke guide, assuring higher rigidity as well as vibration damping ability for the stable cutting strokes. The large-sized master worm wheel made of special material keeps its high precision for prolonged use.

    Specifications:

  • Diameter of Work Table: 250 mm
  • Maximum Module: m4
  • Maximum Width of Gear Face: 40 mm (50mm) with conditions
  • Diameter of Hole Through Work Table: 70 mm
  • Diameter of Cutter Spindle: 90 mm
  • Taper Hole in Cutter Spindle Diameter: 45 (1/12 Taper)
  • Number of Cutter Strokes: 300 - 1500 Strokes/Minute
  • Rotary Feed Rate of Cutter (Dia. 100 cutter): 1.5 - 2250 mm/min
  • Radial Infeed Rate (Including rapid feed) 1 - 3000 mm/min
  • Rated Capacity: 20 kVA
  • Main Drive Motor (Continuous Rating): AC 5.5 kW
  • Overall Dimensions (L x W x H): 2200 x 2210 x 2875 mm
  • Net Weight: 7000 kg
