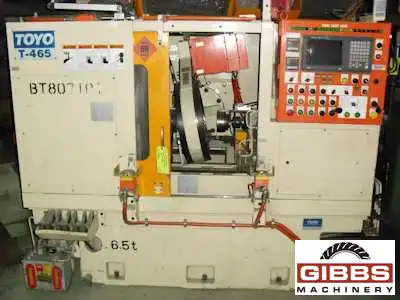

TOYO T-465 - Gear Shavers & Hone

Manufacturer

TOYO

Category

Gear Machines

Type

GEAR HONERS

Stock

6986

Model

T-465

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 160M Control
  • Auto Dress
  • Power Stocks
  • X-Axis Pulse Generator
  • 5-Part Program
  • Coolant System W/Twin Filters & Magnetic Chip Separator
  • Power Door
  • Honing Tool Set-Up For Last Job On Machine
  • Internal Diameter of Honing Tool On Machine (14")
  • Work Light
  • Instruction Book for Control
  • Instruction Book for Set-Up and Operation
,

Machine Specifications :

  • Year 2001
  • Manufacturer TOYO
  • Control Manufacturer Fanuc
  • Maximum Honing Wheel Diameter 11.8"
  • Maximum Tool Width 1.8"
  • Maximum Workpiece Length 15.7"
  • Module 1.0
,

NO.T-465 TOYO CNC GEAR HONE

    Specifications:

  • Machining Work Range
  • Max. Outer Diameter: 250 (350)
  • Min. Outer Diameter: 30
  • Max. Overall Length: 400mm
  • Max. Tooth Width: 45mm
  • Module: 1.0-3.0
  • Cross Feed Device(Z Axis): 430mm Max. Travel
  • Honing Wheel Cutting Feed Device(X Axis): 370 Max. Travel
  • Honing Wheel Swing Device(C Axis)
  • Swing Angle: +30 Degress
  • Honing Wheel Rotation Drive Device(A Axis)
  • Honing Wheel Spindle Speed R/Min: 500
  • Honing Wheel Outer Dia.: 300 (400)
  • Max. Honing Wheel Width: 50mm
  • Crowning Device (Y Axis)
  • Max. Rocking Angle: 1.6 Degrees
  • Max. Distance Between Centers: 600mm
  • Center Height: 1,100mm
  • Floor Space: 2,170W X 2,800D X 2,100H
  • Mass of Machine: 4500 Kg
