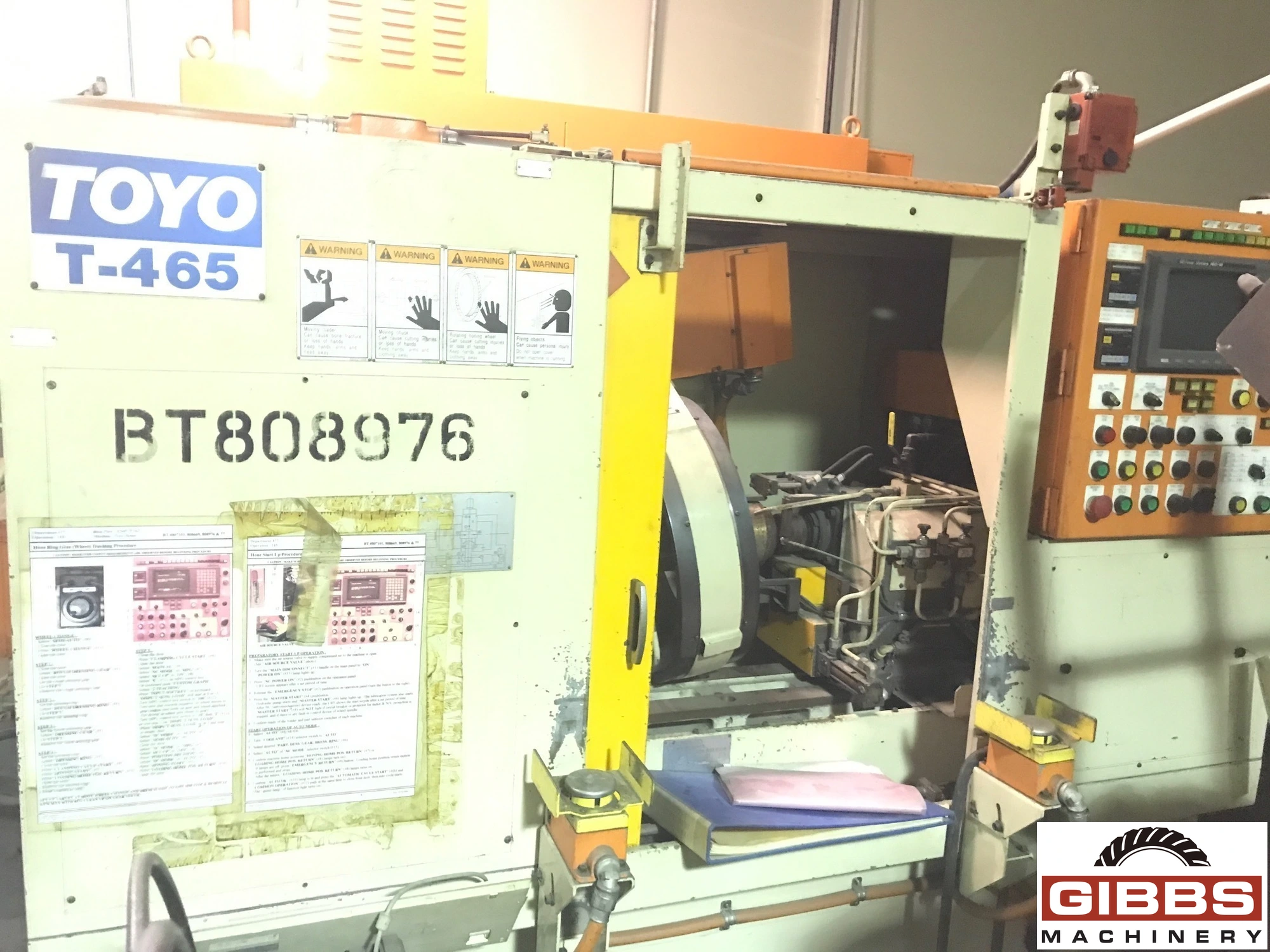

TOYO T-465 - Gear Shavers & Hone

Manufacturer

TOYO

Category

Gear Machines

Stock

6987

Model

T-465

Dealer Location

Michigan

Spec Sheet

Highlights:
  • Fanuc 5 Axis CNC Control 160M
  • 5 Part Program
  • Power Stocks
  • X-Axis Pulse Generator
  • Auto Dress
  • Coolant System W/Twin Filters & Magnetic Chip Separator
  • Power Door
  • Worklight
  • Manual for 160M Control
  • Manual For Set-Up & Operation
  • Internal Diameter Of Honing Tool On Machine (14")
,
  • Year 2001
  • Manufacturer TOYO
  • Control Manufacturer Fanuc
  • Maximum Honing Wheel Diameter 11.8"
  • Maximum Tool Width 1.8"
  • Module 1.0
,

NO.T-465 TOYO CNC GEAR HONE

    EQUPPED WITH:

  • Fanuc 5 Axis CNC Control 160M
  • 5 Part Program
  • Power Stocks
  • X-Axis Pulse Generator
  • Auto Dress
  • Coolant System W/Twin Filters & Magnetic Chip Separator
  • Power Door
  • Worklight
  • Manual for 160M Control
  • Manual For Set-Up & Operation
  • Internal Diameter Of Honing Tool On Machine (14")
  • SPECIFICATIONS:
  • Machining Work Range
  • Max. Outer Diameter: 250 (350)
  • Min. Outer Diameter: 30
  • Max. Overall Length: 400mm
  • Max. Tooth Width: 45mm
  • Module: 1.0-3.0
  • Cross Feed Device (Z Axis): 430mm Max. Travel
  • Honing Wheel Cutting Feed Device (X Axis): 370 Max.Travel
  • Honing Wheel Swing Device (C Axis)
  • Swing Angle: +30 Degress
  • Honing Wheel Rotation Drive Device (A Axis)
  • Honing Wheel Spindle Speed R/Min: 500
  • Honing Wheel Outer Dia.: 300 (400)
  • Max. Honing Wheel Width: 50mm
  • Crowning Device (Y Axis)
  • Max. Rocking Angle: 1.6 Degrees
  • Motor Types:
  • Z Axis Drive Motor: 1.8Kw
  • X Axis Drive Motor: 1.8Kw
  • Y Axis Drive Motor: 0.7Kw
  • C Axis Drive Motor: 1.8Kw
  • A Axis Drive Motor: 2.2/3.7Kw
  • Max. Distance Between Centers: 600mm
  • Center Height: 1,100mm
  • Floor Space: 2,170W X 2,800D X 2,100H
  • Mass Of Machine: 4,500Kg
  • F.O.B. Truck Warren, MI
