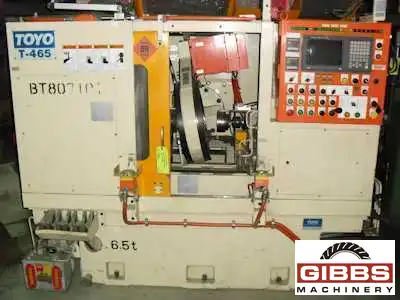

TOYO T-465 - Gear Shavers & Hone

Manufacturer

TOYO

Category

Gear Machines

Type

GEAR HONERS

Stock

6989

Model

T-465

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Power Stock
  • Fanuc 5-Axis CNC Control 160M
  • Auto Dress
  • X Axis Pulse Generator
  • Coolant System w/Twin Filters
  • Magnetic Chip Separator
  • Honing Tool Set Up for Last Job is Still in the Machine
  • Internal Diameter of Honing Tool on Machine 14"
  • 5-Part Program
  • Power Door
  • Work Light
  • Manual for 16M Control
  • Manual for Set-Up & Operation
,

Machine Specifications :

  • Year 2001
  • Manufacturer TOYO
  • Control Manufacturer Fanuc
  • Maximum Tool Width 1.8"
  • Module 1.0
,
NO.T-465 TOYO CNC GEAR HONE
    EQUIPPED WITH:
  • Power Stock
  • Fanuc 5-Axis CNC Control 160M
  • Auto Dress
  • X Axis Pulse Generator
  • Coolant System w/Twin Filters
  • Magnetic Chip Separator
  • Honing Tool Set Up for Last Job is Still in the Machine
  • Internal Diameter of Honing Tool on Machine 14"
  • 5-Part Program
  • Power Door
  • Work Light
  • Manual for 16M Control
  • Manual for Set-Up & Operation
  • SPECIFICATIONS:
  • Machining Work Range
  • Max. Outer Diameter: 250 (350)
  • Min. Outer Diameter: 30
  • Max. Overall Length: 400mm
  • Max. Tooth Width: 45mm
  • Module: 1.0-3.0
  • Cross Feed Device(Z Axis): 430mm Max. Travel
  • Honing Wheel Cutting Feed Device(X Axis): 370 Max. Travel
  • Honing Wheel Swing Device(C Axis):
  • Swing Angle: +30 Degress
  • Honing Wheel Rotation Drive Device(A Axis):
  • Honing Wheel Spindle Speed R/Min: 500
  • Honing Wheel Outer Dia.: 300 (400)
  • Max. Honing Wheel Width: 50mm
  • Crowning Device (Y Axis):
  • Max. Rocking Angle: 1.6 Degrees
  • Motor Types:
  • Z-Axis Drive Motor: 1.8Kw
  • X-Axis Drive Motor: 1.8Kw
  • Y-Axis Drive Motor: 0.7Kw
  • C-Axis Drive Motor: 1.8Kw
  • A-Axis Drive Motor: 2.2/3.7Kw
  • Max. Distance Between Centers: 600mm
  • Center Height: 1,100mm
  • Floor Space: 2,170W X 2,800D X 2,100H
  • Mass Of Machine: 4,500Kg
  • F.O.B. Truck Warren, MI
