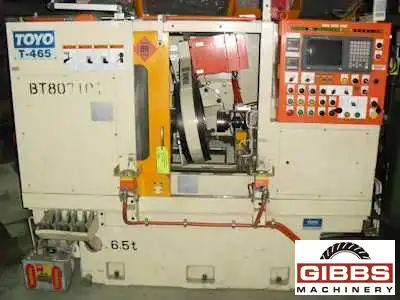

TOYO T-465 - Gear Shavers & Hone

Manufacturer

TOYO

Category

Gear Machines

Type

GEAR HONERS

Stock

6993

Model

T-465

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 5 Axis CNC Control 16M
  • Power Stocks
  • Power Door
  • X Axis Pulse Generator
  • Coolant System with Twin Filters &
  • Magnetic Chip Separator.
  • Hone Tool Set-Up For Last Job is
  • Still in the Machine.
  • 5 Part Program
  • Work Light
  • Auto Dress
  • Manual for 16M Control
  • Manual for Set-Up & Operation
,

Machine Specifications :

  • Year 2001
  • Manufacturer TOYO
  • Control Manufacturer Fanuc
  • Maximum Tool Width 1.8"
  • Module 1.0
,

No. 465 TOYO CNC GEAR HONE (JAPAN)

    EQUIPPED WITH:

  • Fanuc 5 Axis CNC Control 16M
  • Power Stocks
  • Power Door
  • X Axis Pulse Generator
  • Coolant System with Twin Filters &
  • Magnetic Chip Separator.
  • Hone Tool Set-Up For Last Job is
  • Still in the Machine.
  • 5 Part Program
  • Work Light
  • Auto Dress
  • Manual for 16M Control
  • Manual for Set-Up & Operation
  • SPECIFICATIONS:
  • Machining Work Range
  • Max. Outer Diameter:250 (350)
  • Min. Outer Diameter:30
  • Max. Overall Length:400mm
  • Max. Tooth Width:45mm
  • Module:1.0-3.0
  • Cross Feed Device(Z Axis):430mm Max. Travel
  • Honing Wheel Cutting Feed Device(X Axis):370 Max. Travel
  • Honing Wheel Swing Device(C Axis)
  • Swing Angle:+30 Degress
  • Honing Wheel Rotation Drive Device(A Axis)
  • Honing Wheel Spindle Speed R/Min:500
  • Honing Wheel Outer Dia:300 (400)
  • Max. Honing Wheel Width:50mm
  • Crowning Device (Y Axis)
  • Max. Rocking Angle:1.6 Degrees
  • Motor Types
  • Z Axis Drive Motor:1.8Kw
  • X Axis Drive Motor:1.8Kw
  • Y Axis Drive Motor:0.7Kw
  • C Axis Drive Motor:1.8Kw
  • A Axis Drive Motor:2.2/3.7Kw
  • Max. Distance Between Centers:600mm
  • Center Height:1,100mm
  • Floor Space:2,170W X 2,800D X 2,100H
  • Mass Of Machine:4,500Kg
  • This machine appears to be in near new condition. It was installed in
  • 2001 and removed from service in 2003. Has very, very low hours.
  • FOB:TRUCK, WARREN, MI
