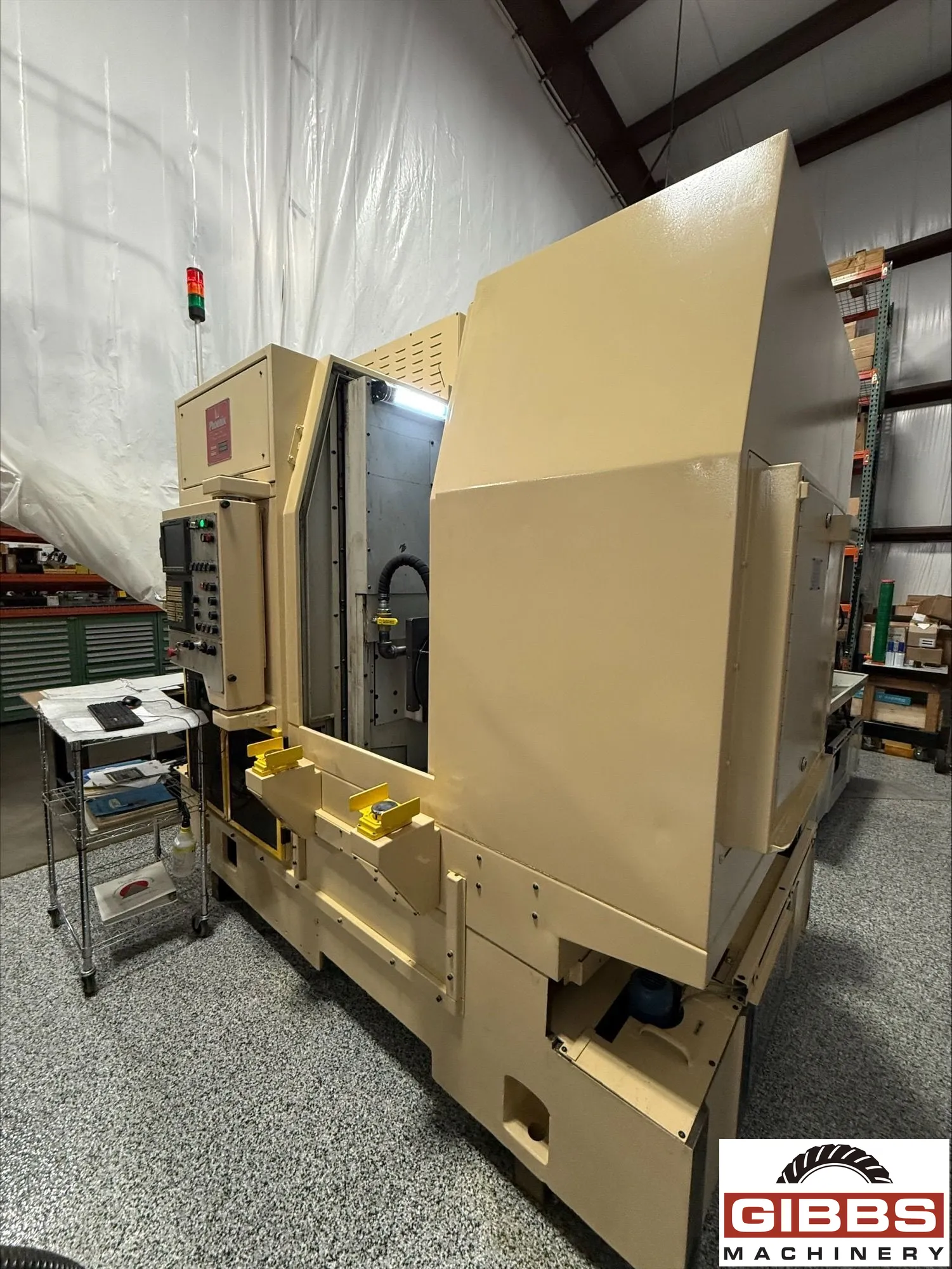

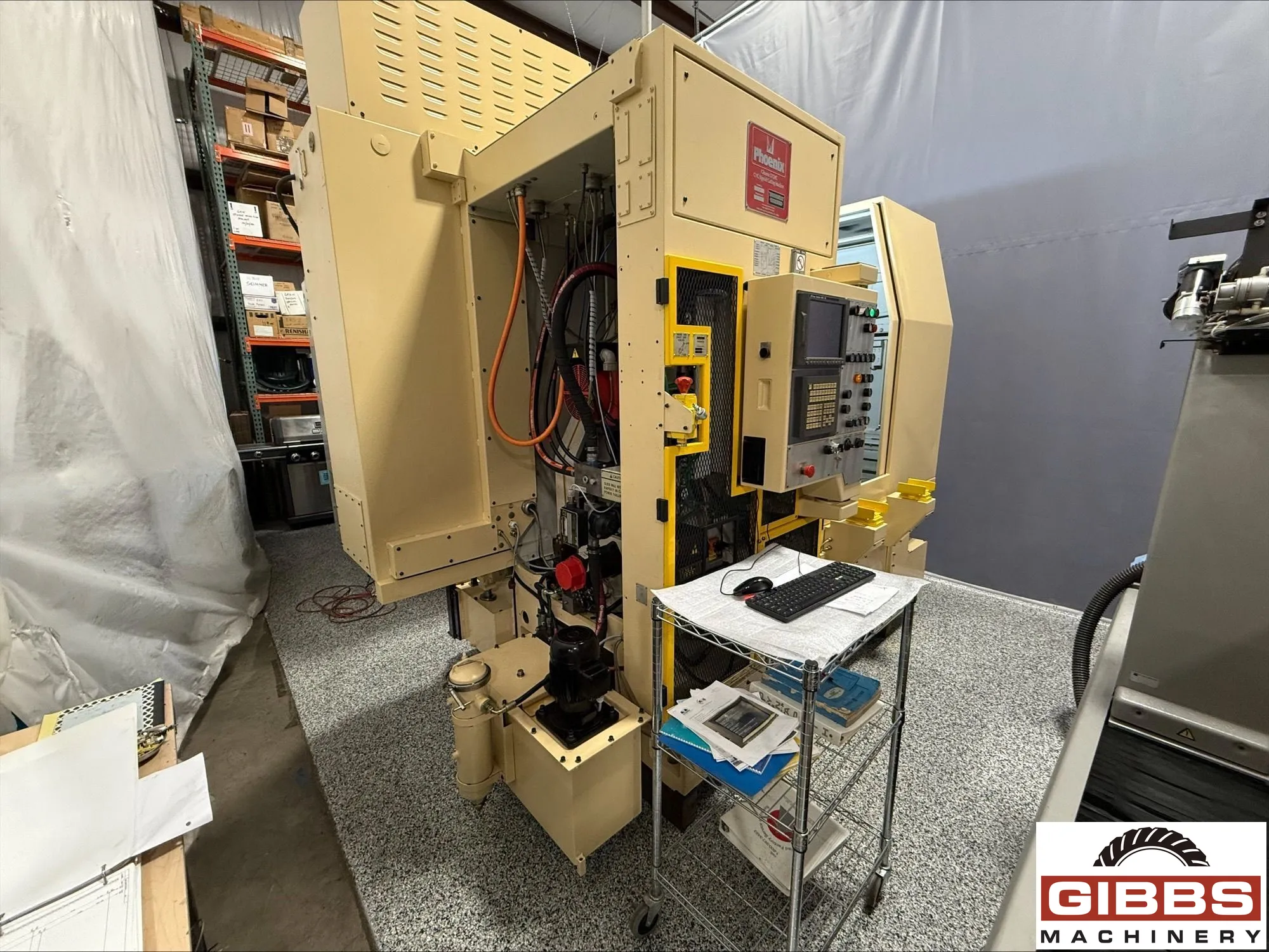

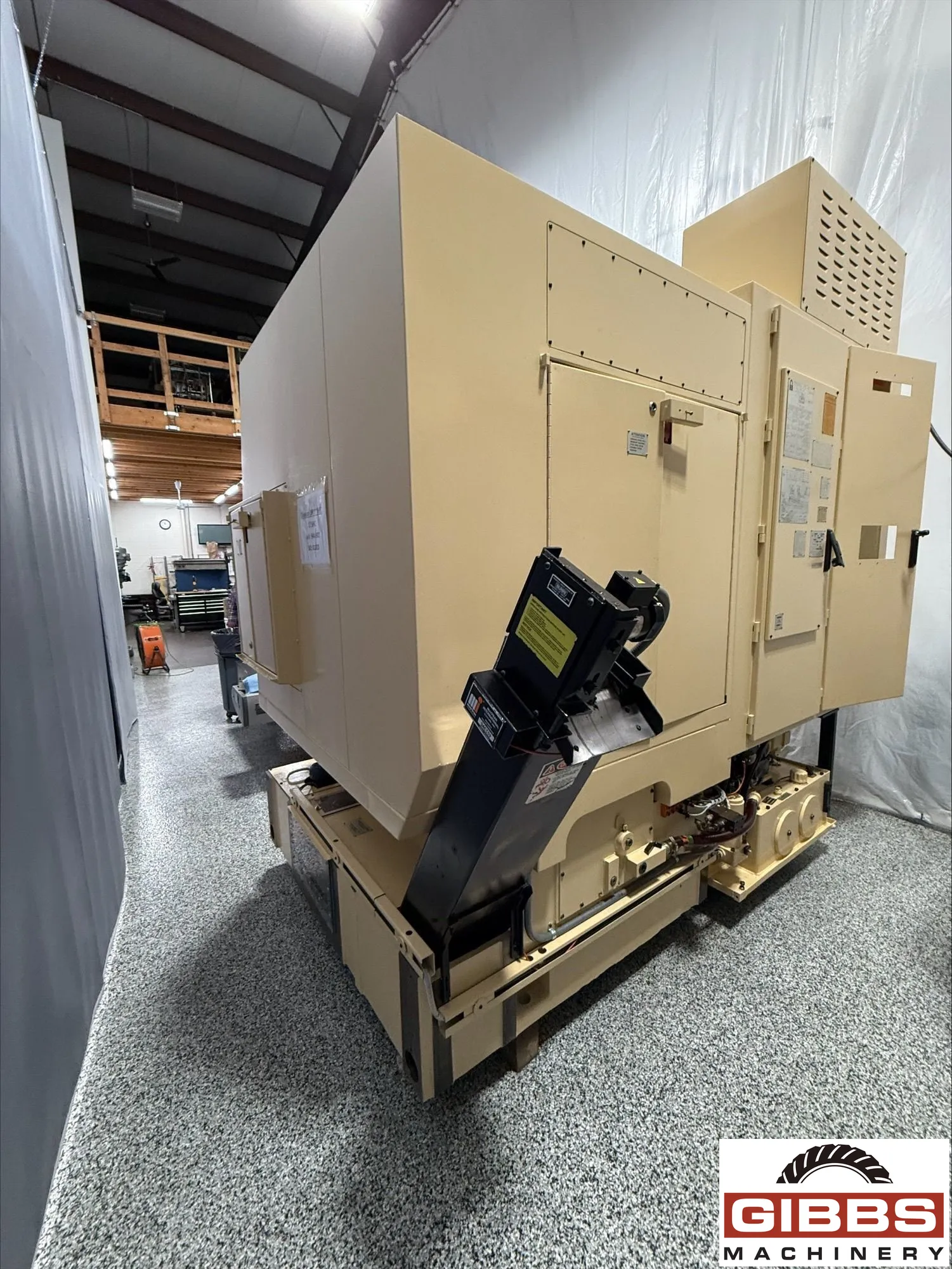

GLEASON 175HC - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

24994

Model

175HC

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

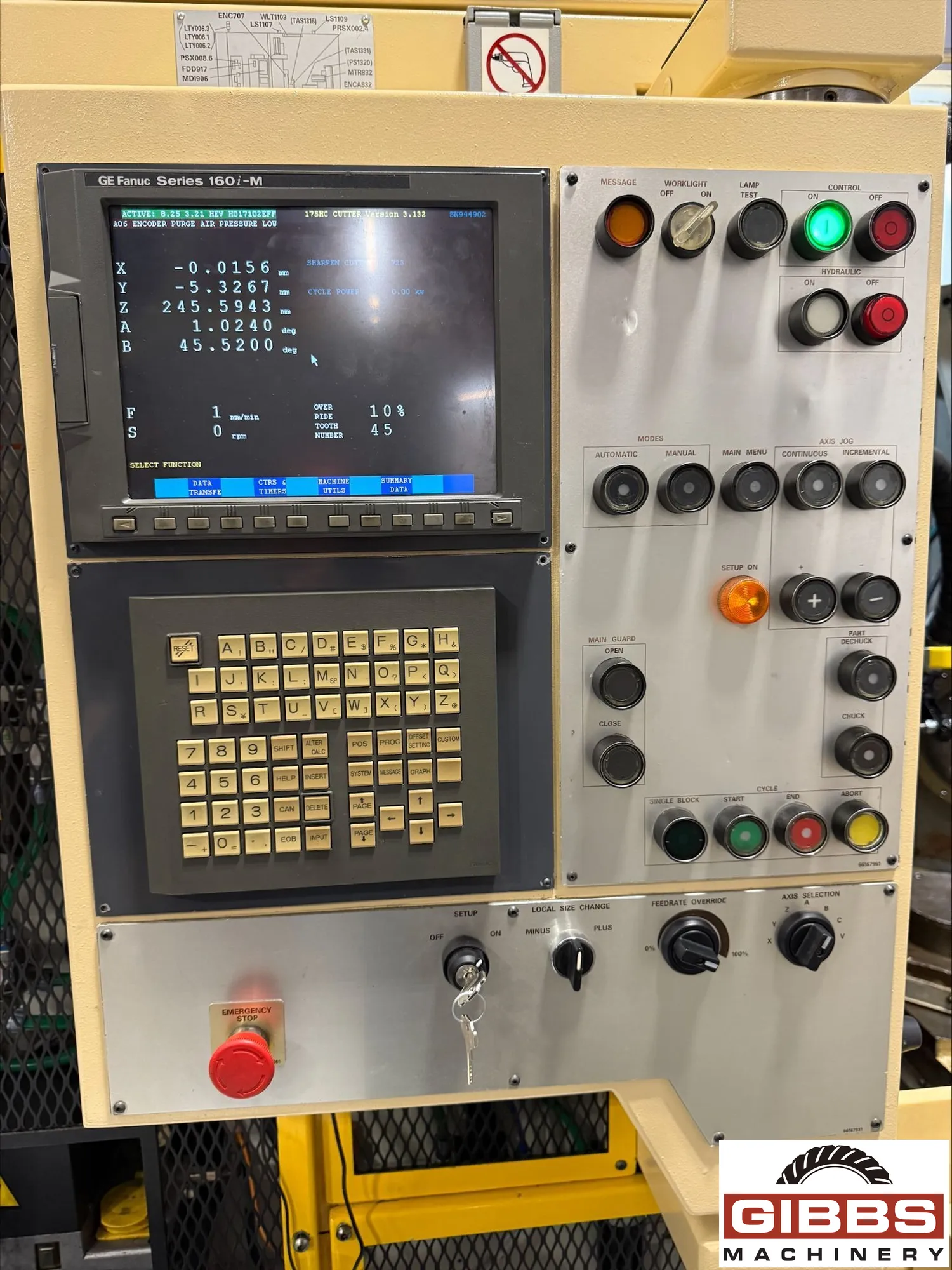

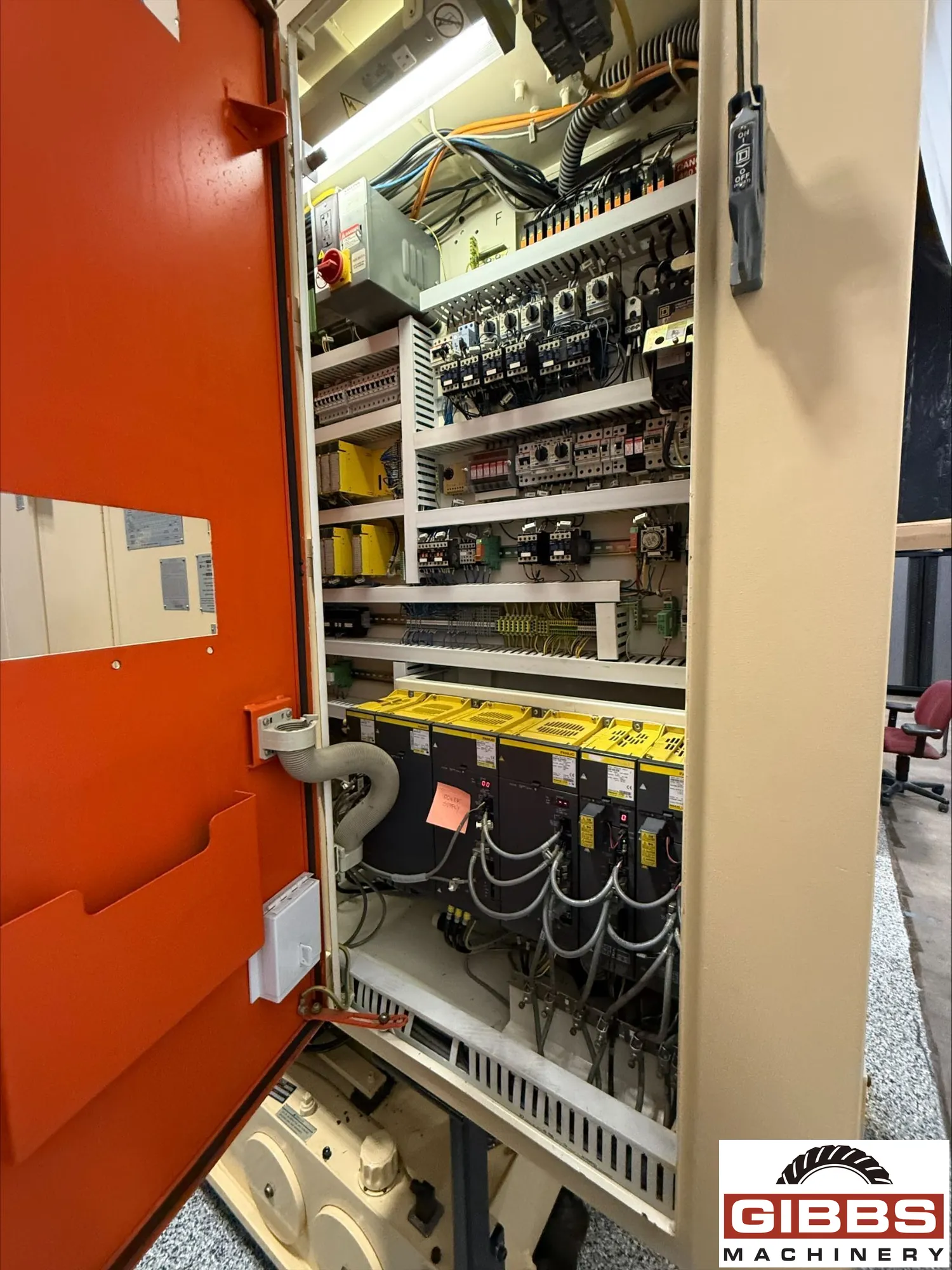

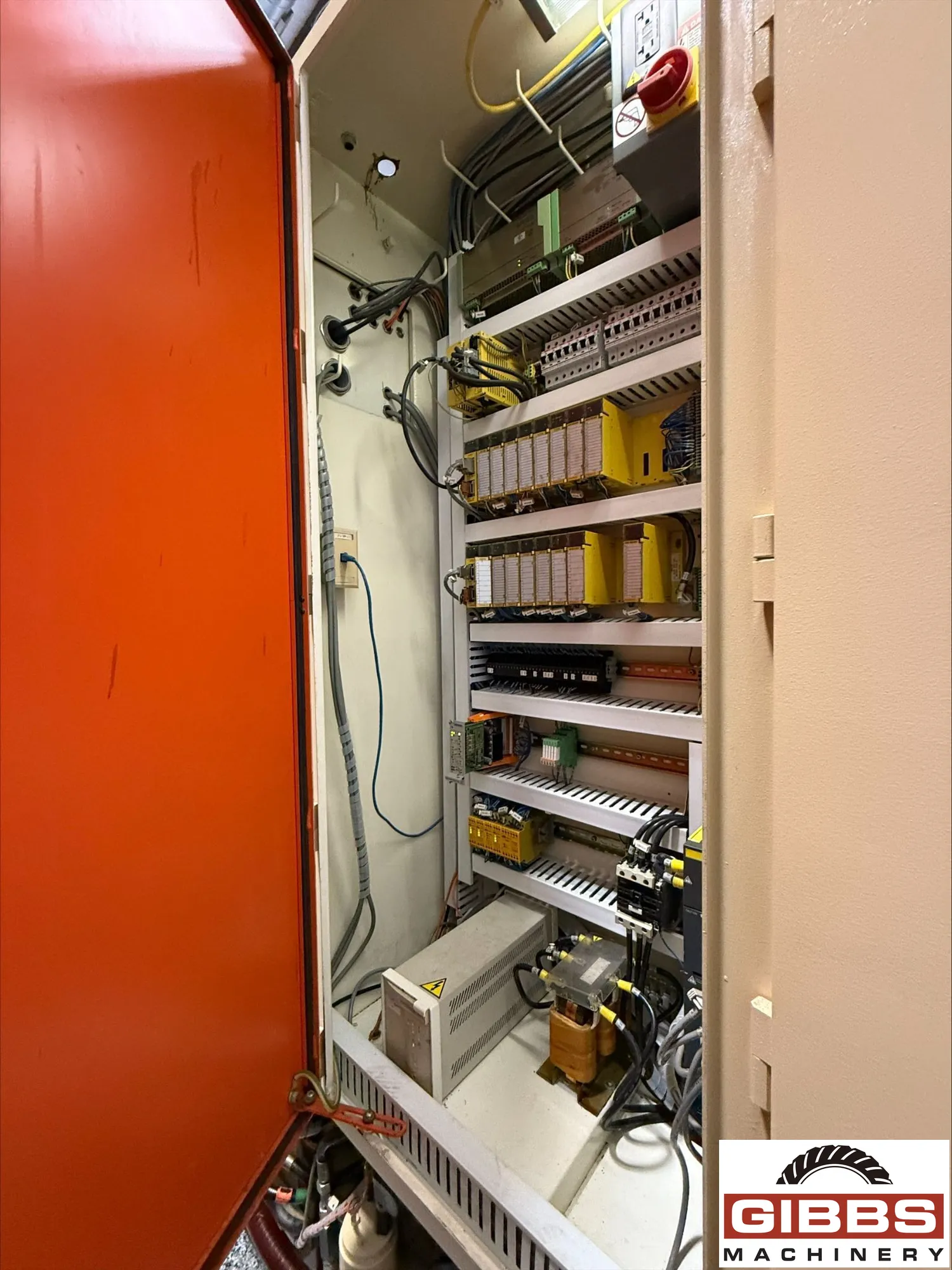

  • Fanuc 160i-MB Control

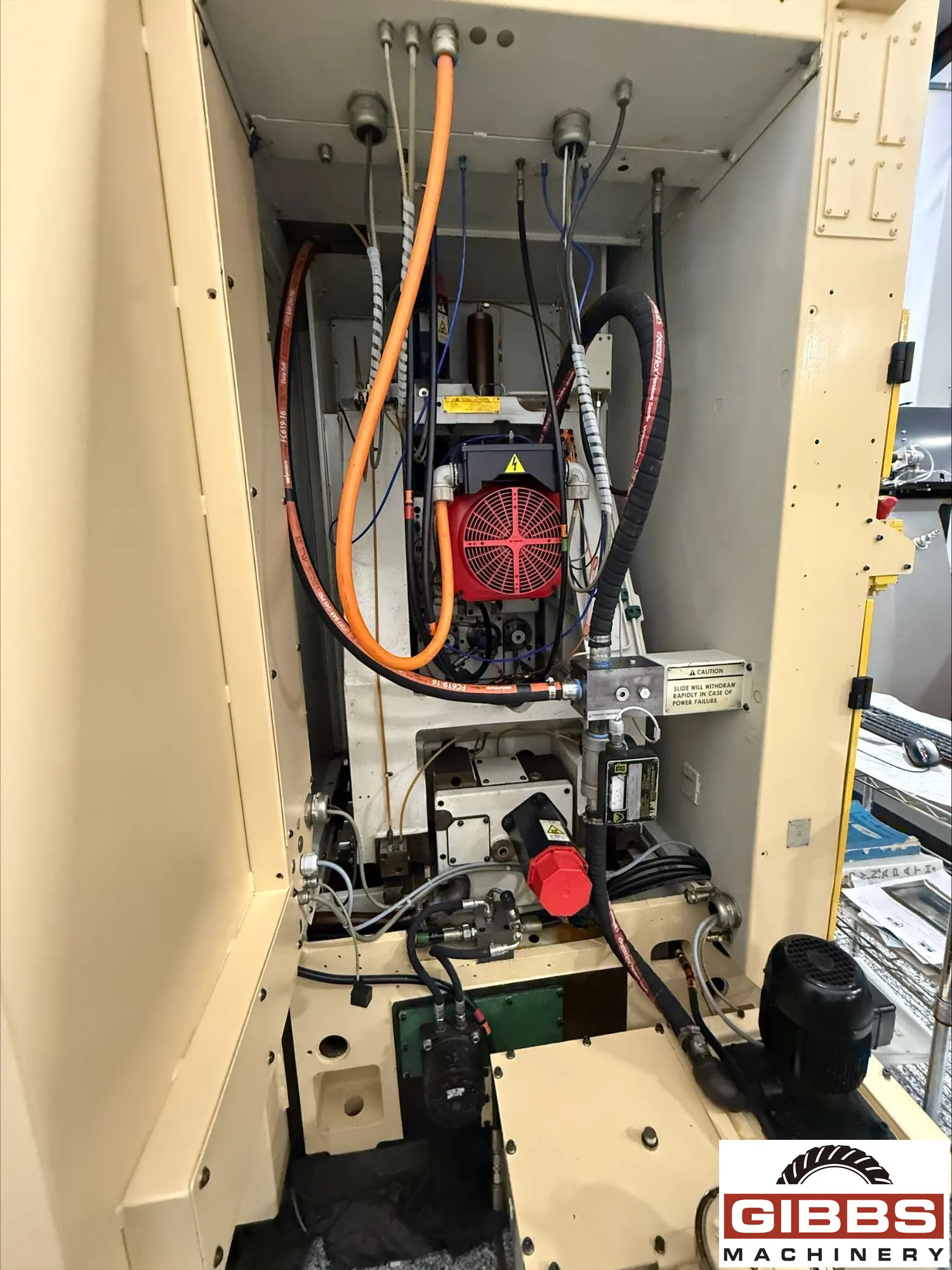

  • Hydraulic System
  • Chiller
  • Coolant System
  • Manuals
,

Machine Specifications :

  • Year 2000
  • Manufacturer GLEASON
  • Control Manufacturer Fanuc
  • Extreme Ratio 5:1
  • Maximum Face Width 1.6"
  • Maximum Diameter Gear 7.5"
,

175HC GLEASON CNC SPIRAL BEVEL GEAR GENERATOR - DRY CUTTING

    SPECIFICATIONS:

  • Extreme Ratio: 10:1
  • Root Angle Range (B-Axis): -5 deg. TO 90 deg.
  • Equivalent Root Angle Range: -8 deg. to 90 deg.
  • (Equivalent refers to cradle type machine.)
  • Face Hobbing:
  • Examples of Maximum Gear Pitch Diameter
  • -35 Degree Spiral
  • -152 mm TRI-AC Cutter w/13 Blade Groups
  • -Max. Pitch Diameter @ the following ratios
  • a.) 1:1: 6"
  • b.) 2:1: 7.5"
  • c.) 5:1: 7.5"
  • Max. Full Depth: 0.550"
  • Max. Face Width: 1.6"
  • Face Milling:
  • Examples of Maximum Gear Pitch Diameter
  • -35 Degree Spiral
  • -7.5" Diameter Cutter
  • -Max. Pitch Diameter @ the following ratios
  • a.) 1:1: 6.750"
  • b.) 2:1: 8.5"
  • c.) 5:1: 8.5"
  • Max. Full Depth: 0.625"
  • Max. Face Width: 1.6"
  • Max. Swinging Base Travel (B-Axis): -5 deg. to 90 deg.
  • Max. Vertical Travel (Y-Axis): -4" to 7"
  • Max. Horizontal Travel (X-Axis): -6" to 4"
  • Sliding Base Travel (Z-Axis): 2" to 12"
  • Machine Center to Work Spindle Face (Fixed): 4.5"
  • Tooth Number: 5 to 200 Inclusive
  • Cutting Diameters:
  • Conventional Face Milling: 1.1" to 7.5"
  • Helixact: 100mm to 200mm
  • Fine Pitch: 102mm to 152mm
  • Coarse Pitch: 152mm only
  • Speeds:
  • B-Axis--Swinging Base (Degrees per Second): 30deg./sec.
  • A-Axis--Work Spindle (Face Milling)(RPM): 0-75
  • A-Axis--Work Spindle (Face Hobbing)(RPM): 0-375
  • C-Axis--Cutter Spindle (RPM): 30-500
  • X-Axis--Horizontal (Inches per Second): 4.92"/sec.
  • Y-Axis--Vertical (Inches per Second): 4.92"
  • Z-Axis--Sliding Base (Inches per Second): 4.92"/sec.

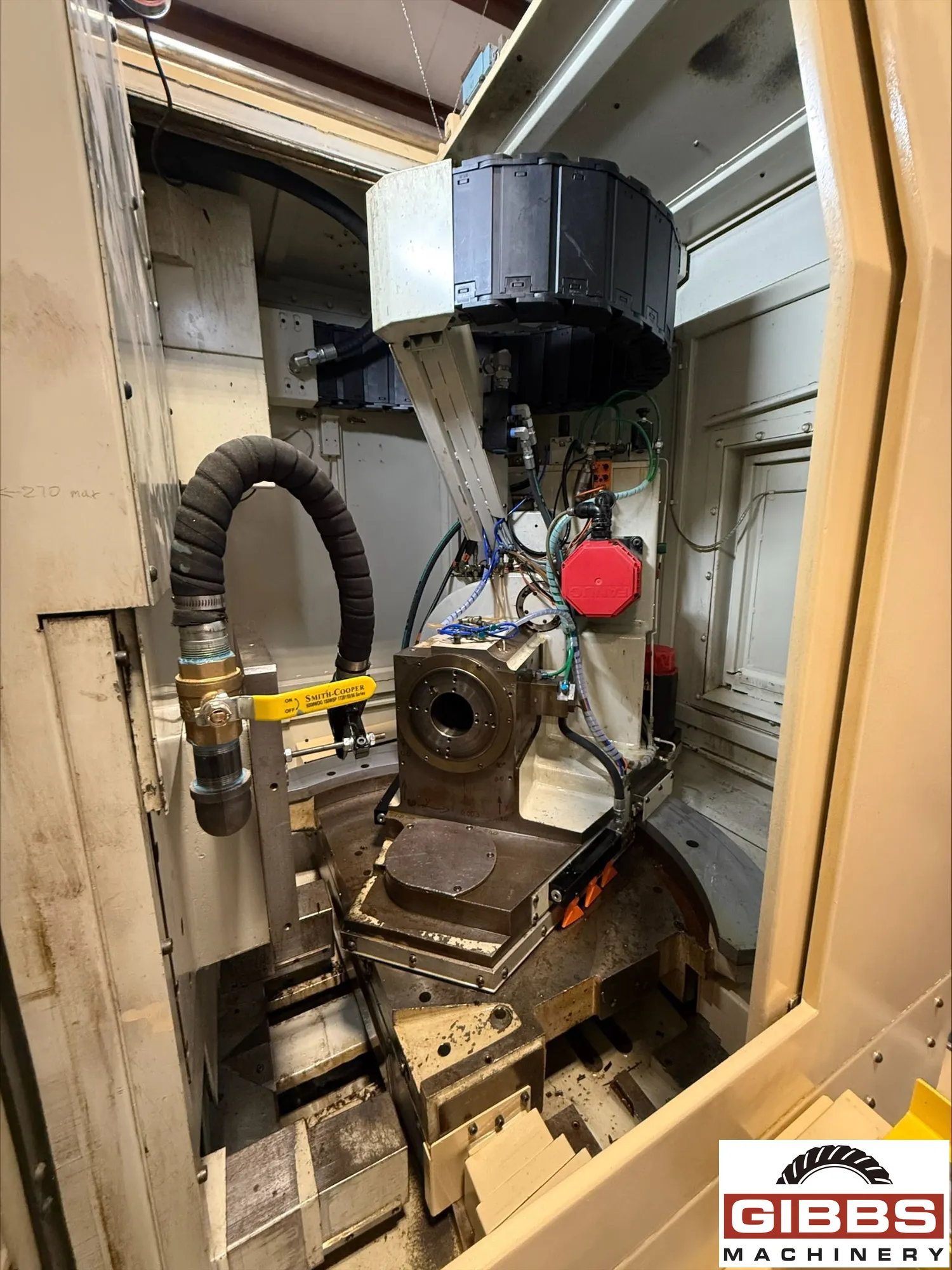

  • Work Spindle:
  • Diameter of Taper at Large End (#39 Taper): 3-29/32"
  • Taper per Foot: 39/64"
  • Depth of Taper: 3"
  • Floor Space: 95.75" x 63.5"
  • Height (less mist collector): 90.75"
  • Approx. Weight: 22,000 lbs
