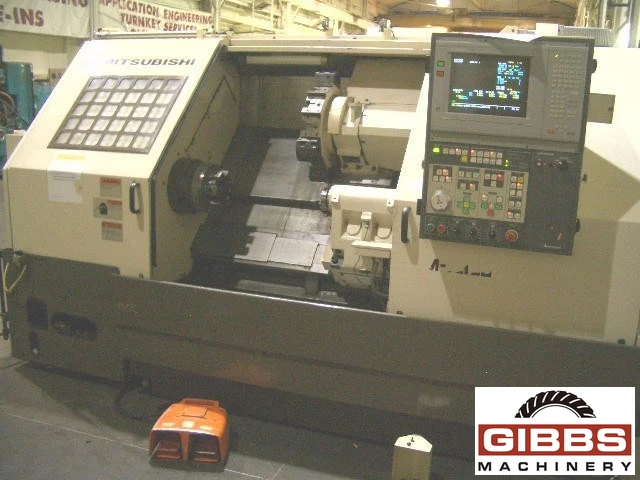

MITSUBISHI M-TC10B - Horizontal Lathe

Manufacturer

MITSUBISHI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

8854

Model

M-TC10B

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Meldas 500 Control
  • Automatic Tool Measuring System
  • X-Axis MP Scale Feedback
  • 8" Chuck
  • Programmable Tailstock
  • Spindle Orientation
  • Conversational Automatic Programming
  • Worklight
,

Machine Specifications :

  • Year 1999
  • Manufacturer MITSUBISHI
,

MITSUBISHI M-TC10B 23" x 41" CNC LATHE, 1999 USED ONLY 7900 HOURS

    SPECIFICATIONS:

  • Hole Thru Spindle: 3 1/2"
  • Swing Over Bed: 23.6"
  • Swing Over Saddle: 13.8"
  • Max. Turning Diameter: 10.2"
  • Distance Between Centers: 41.2"
  • Rapid Traverse Rate X-Axis: 591 IPM
  • Z-Axis: 787 IPM
  • Cross Travel Of Turret (X-Axis): 8.1"
  • Longitudinal Travel Of Turret (Z-Axis): 42.9"
  • Main Motor Output: 20HP
  • Standard Chuck: 10"
  • Spindle Nose: JIS A2-8
  • Thru-Hole Capacity(Max. Bore For Bar Work): 2.9"
  • Spindle Speed: 22-3000 RPM
  • Turret:No. Of Tools: 12
  • Tailstock Quill Travel: 3.9"
  • Weight: 10,780 lbs
