MITSUBISHI ST40 CNC - Gear Shaper

Manufacturer

MITSUBISHI

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25112

Model

ST40 CNC

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year 1999
  • Manufacturer MITSUBISHI
  • Maximum Workpiece Diameter 15.7"
  • Guide Electronic
  • Maximum Internal Gear Diameter 9.8"
  • Module 3.2
  • Table Diameter 20.5"
,

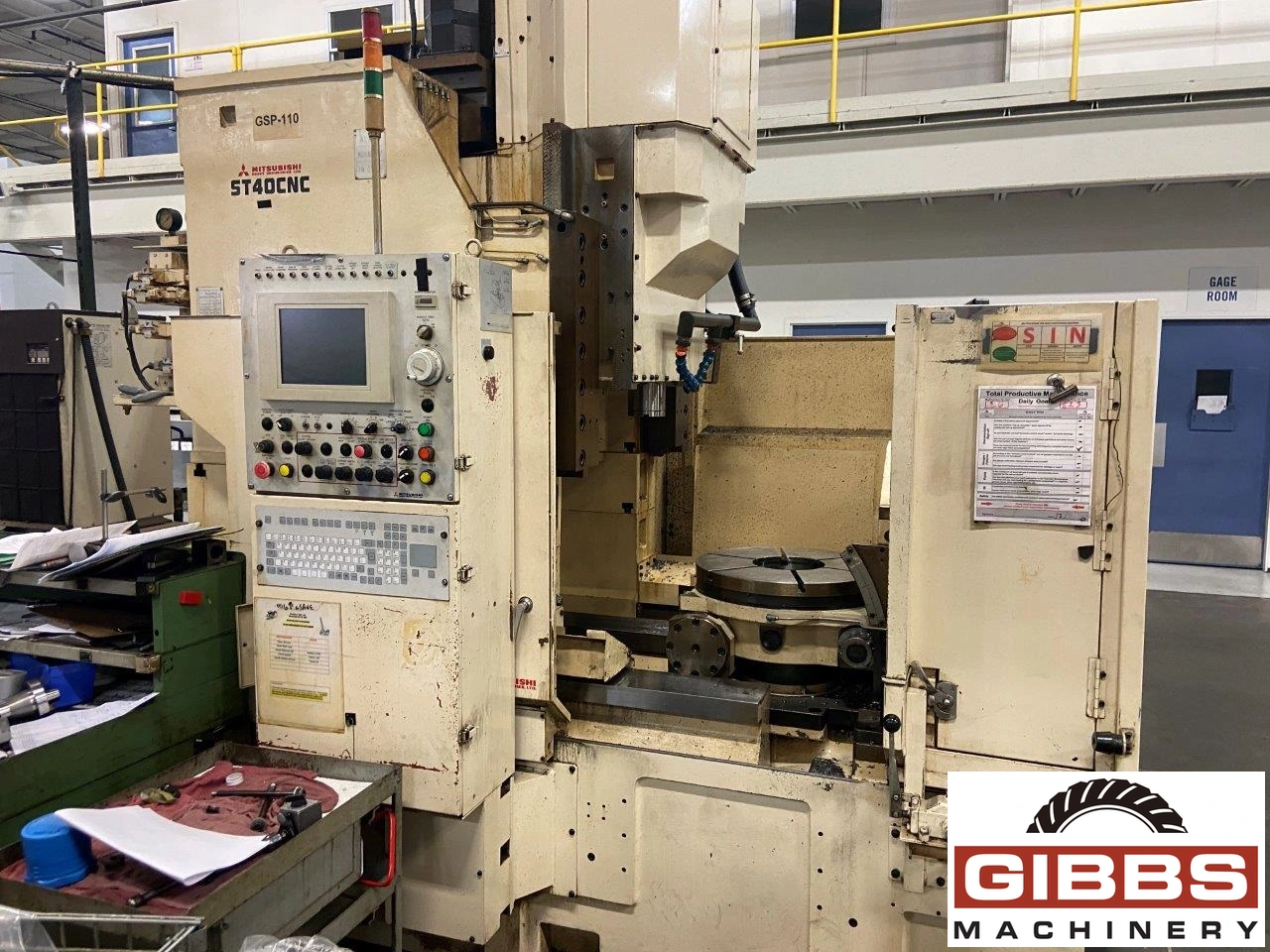

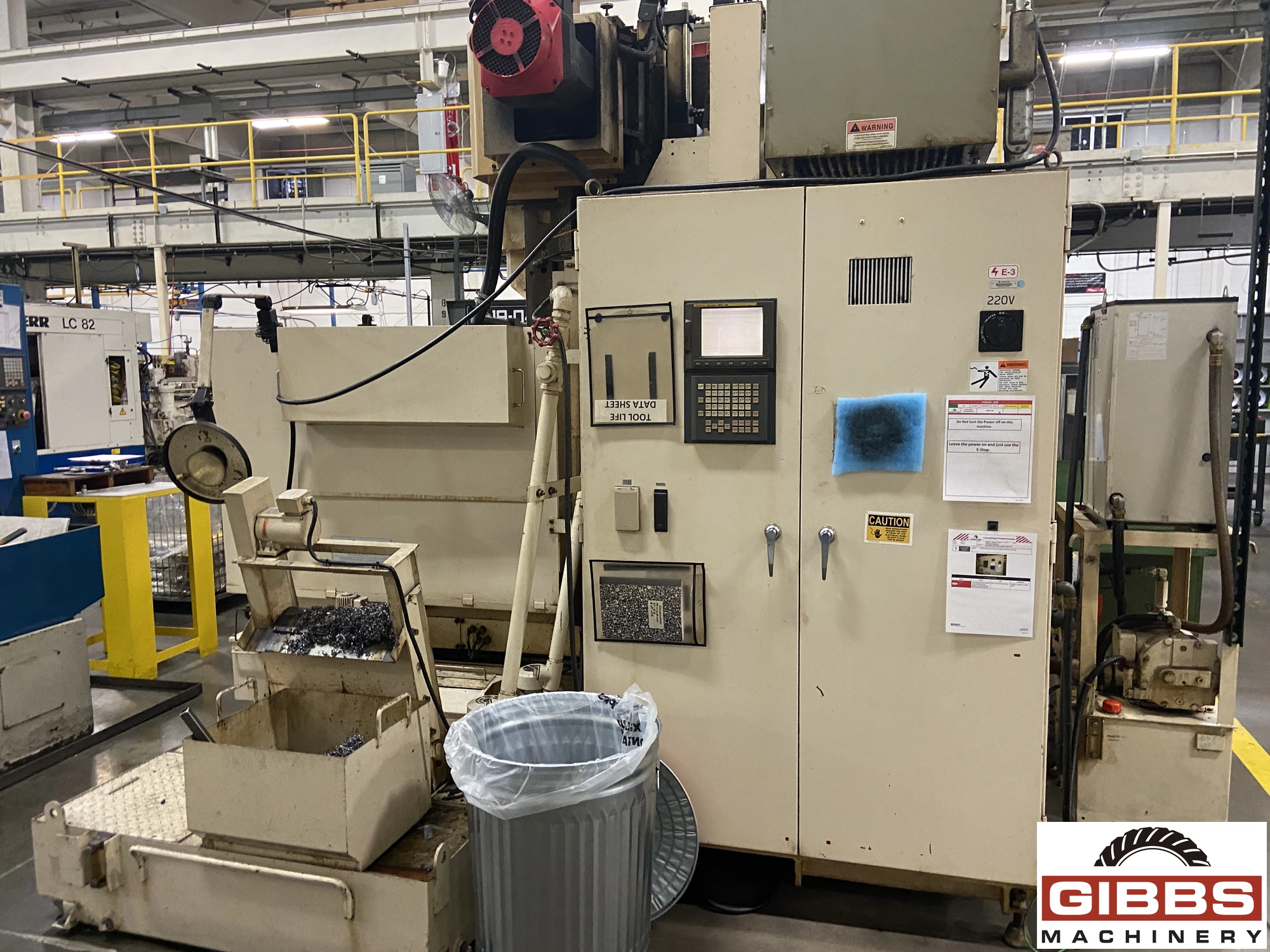

The Mitsubishi ST40 is a CNC gear shaping machine that can create internal or external gears, splines, helicals, and spurs. It is used in the manufacturing of gears for a variety of products, including automobiles, aircraft, and construction machinery.

    Specifications:

  • Max. Diameter of Workpiece (External): 400mm, 15.75"
  • Max. Diameter of Workpiece (Internal): 250mm, 9.84" + Cutter Dia.
  • Max. Module: 8 Module: 3.2 D.P.
  • Max. Width of Workpiece: 115mm, 4.53"
  • Max. Cutter Stroke Length: 135mm, 5.3"
  • Cutter Max. Helix Angle: +-36deg.
  • Cutter Stroke (Infinitely Variable): 60-500 str/min.
  • Rotary Feed: 2.5-3,200 0.098-126.0 mm/min IPM
  • Radial Feed: 0.001-0.1 0.00004-0.004 mm/str.in/str.
  • Rapid Feed: 5,000mm/min., 196.9ipm
  • Cutter Spindle Dia.: 110 mm, 4.33"

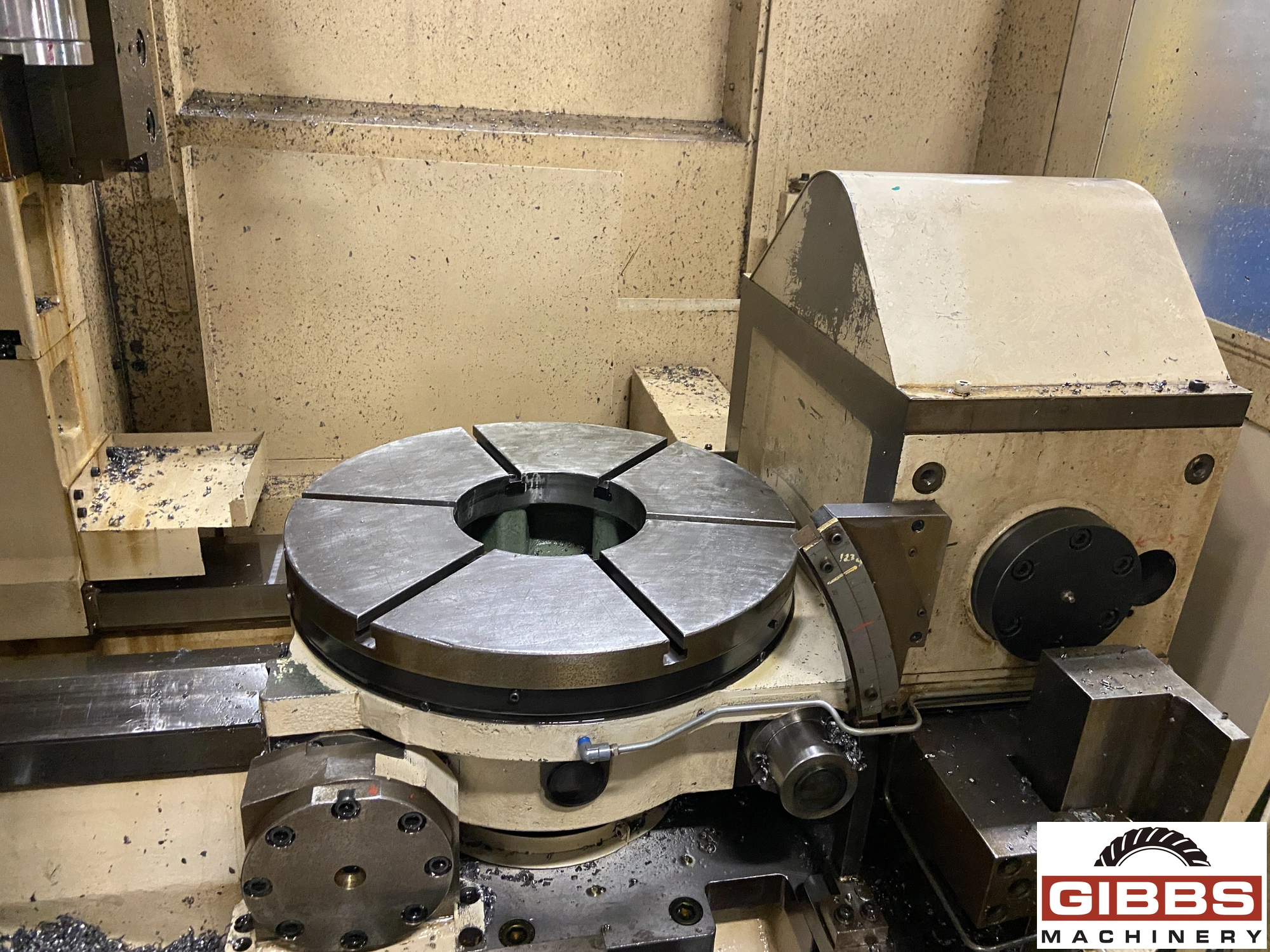

  • Work Table Dia.: 520mm, 20.5"
  • Main Motor: 12kW, 16.2HP
  • Power Consumption: 40 kVA
  • Approx. Dimenions: 135"L x 102"W x 112"H
  • Machine Weight: 8,000kg, 17,600 lbs
