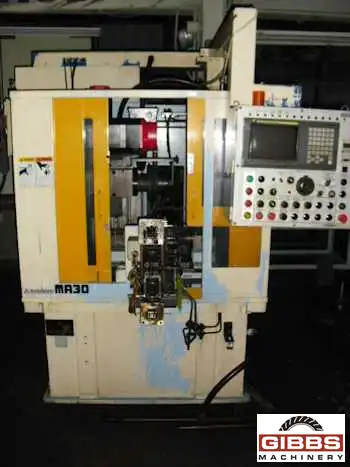

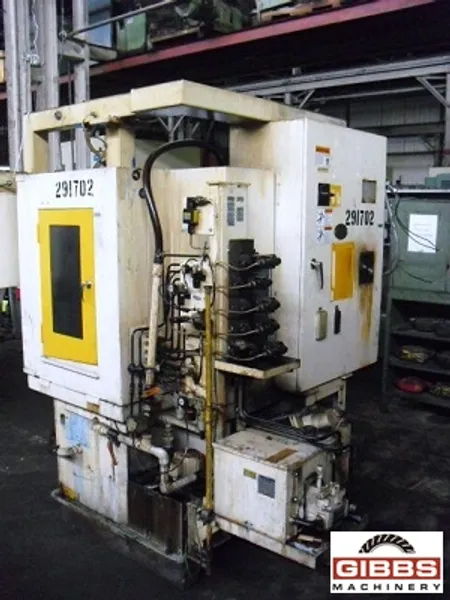

MITSUBISHI MA30CNC - Gear Chamfering & Deburring

Manufacturer

MITSUBISHI

Category

Gear Machines

Type

GEAR CHAMFERING, POINTING, ROUNDING

Stock

16668

Model

MA30CNC

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

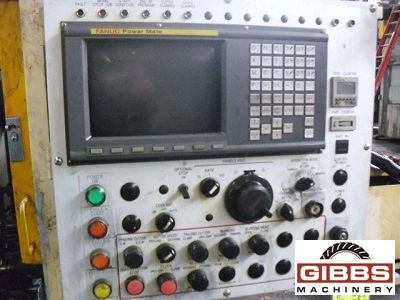

  • Fanuc Control
  • Magnetic Chip Conveyor
  • Coolant System with Pump & Piping
  • Transformer
  • Power Lube
  • Auto Feed
  • Full Enclosure
,

Machine Specifications :

  • Year 1999
  • Manufacturer MITSUBISHI
  • Control Manufacturer Fanuc
  • Maximum Face Width 7.8"
  • Module 16.9
  • Maximum Workpiece Diameter 11.0"
,

MODEL NO. MA30CNC MITSUBISHI GEAR CHAMFERING AND DEBURRING MACHINE,1999

    Specifications:

  • Max. Part Diameter: 11"
  • Diametral Pitch: 0.5-16.9
  • Max. Face Width: 2.36"
  • Max. Diameter Frasing Cutting: 9.84"
  • Travel Stroke: 7.87"
  • Center Distance Between Frasing Cutter & Part Arbor: 4.33"Min./12.2"Max.
  • Rotational Speed: 1-150 rpm
  • Max. Deburring Cutter Stroke Diameter: 6.3"
  • Max. Stroke: 5.1"
  • Center Distance Between Deburring Cutter and Part Arbor Axes: 5.1"
  • Upward/Downward Distance Between Deburring & Arbor Axes: Up 0mm, Dwn 40mm
  • Travel Distance Per Pitch: 0.4", Max. 4 Pitches
  • Travel Distance From Opening to Closing: Left 0.4", Right 2.36"
  • Base Stock: 3.9"
  • Follow Stock: 3.9"
  • Frasing Cutter Drive: 400W, w/ 1/15 Reduction Gear
  • Hydraulic Pump: 1.5kW, 4 Phases
  • Installation Area: 4'2" x 7'4"
  • Approx. Weight: 5,511 lbs
