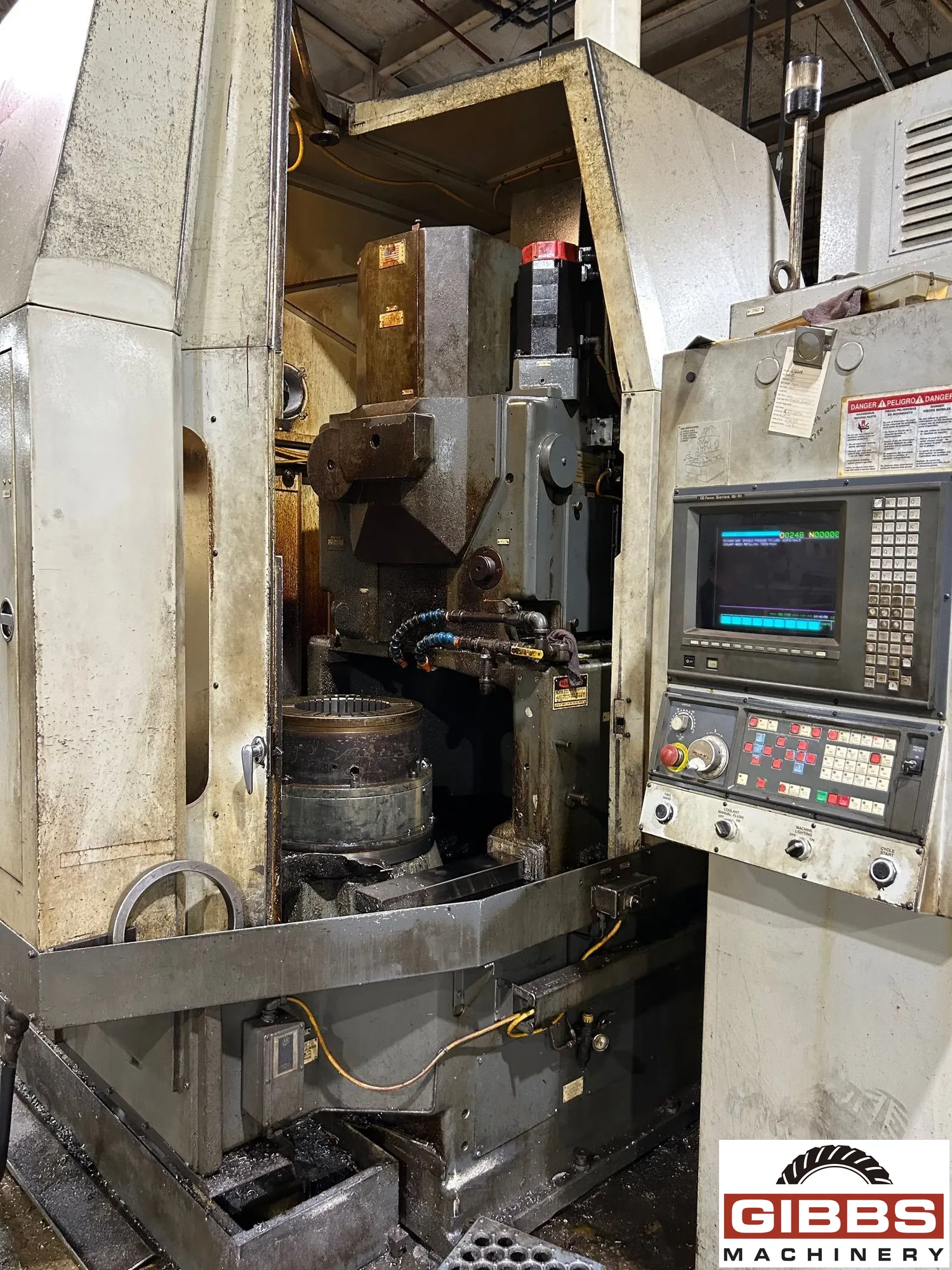

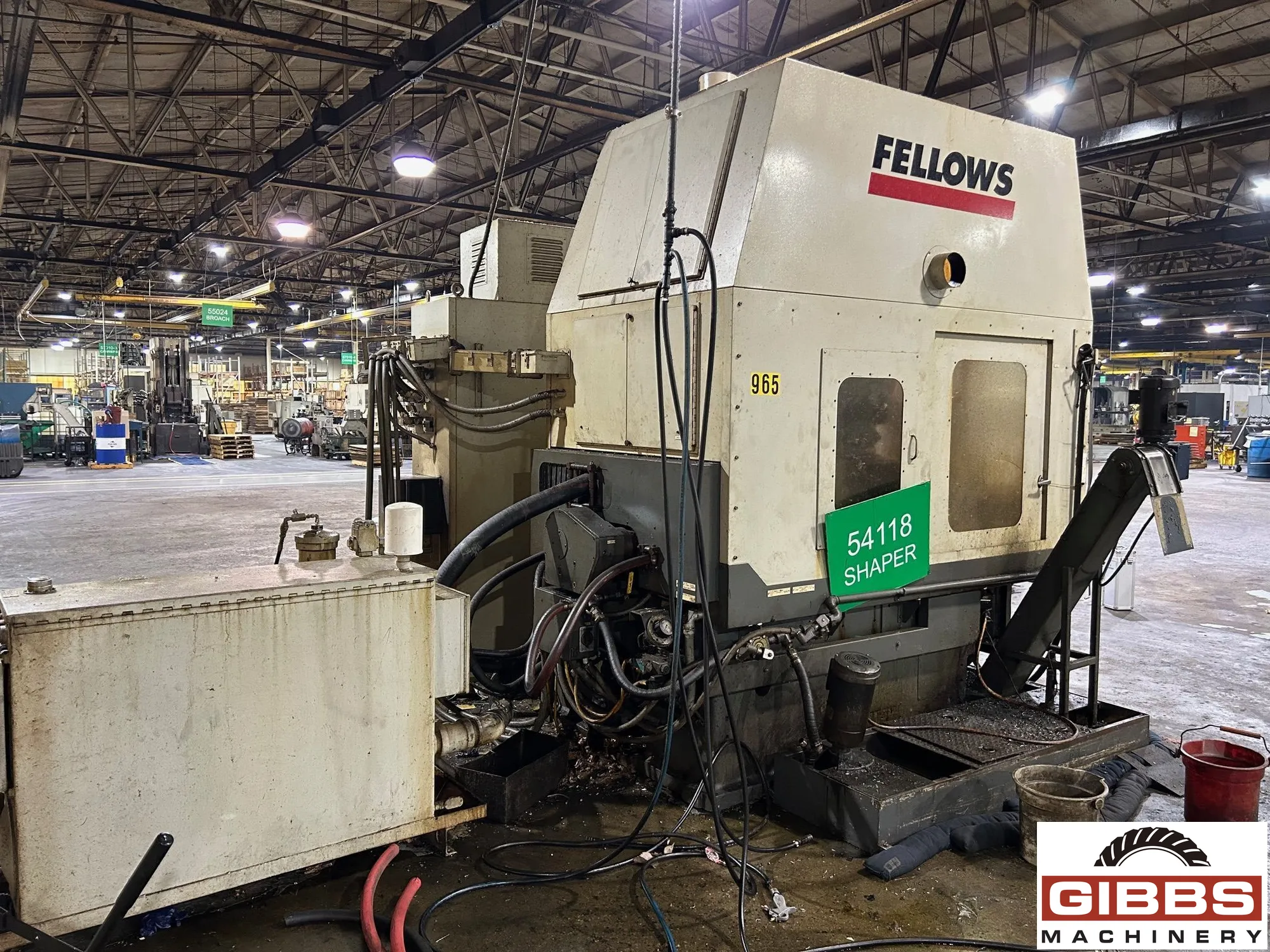

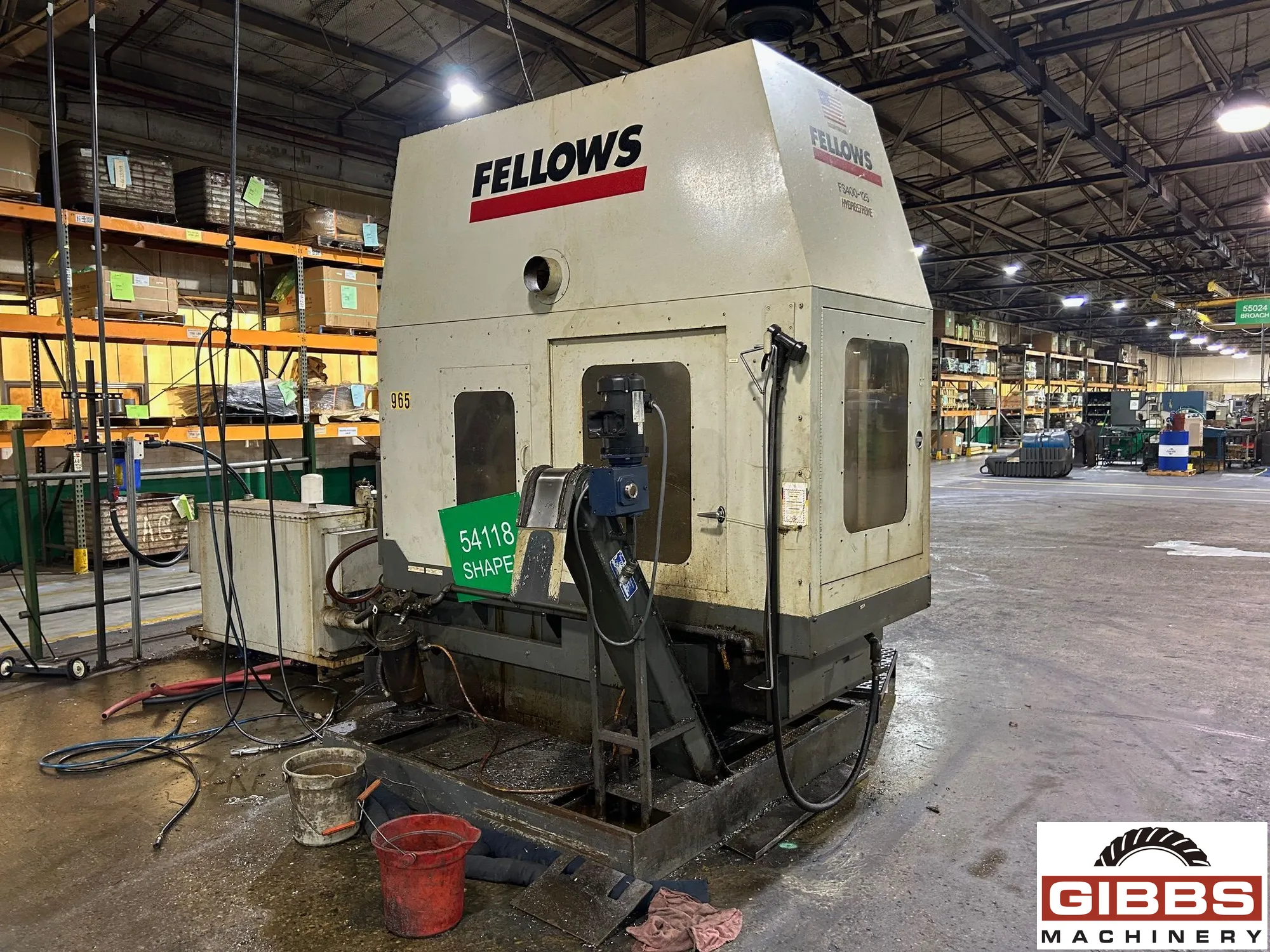

FELLOWS FS-400-125 - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25675

Model

FS-400-125

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

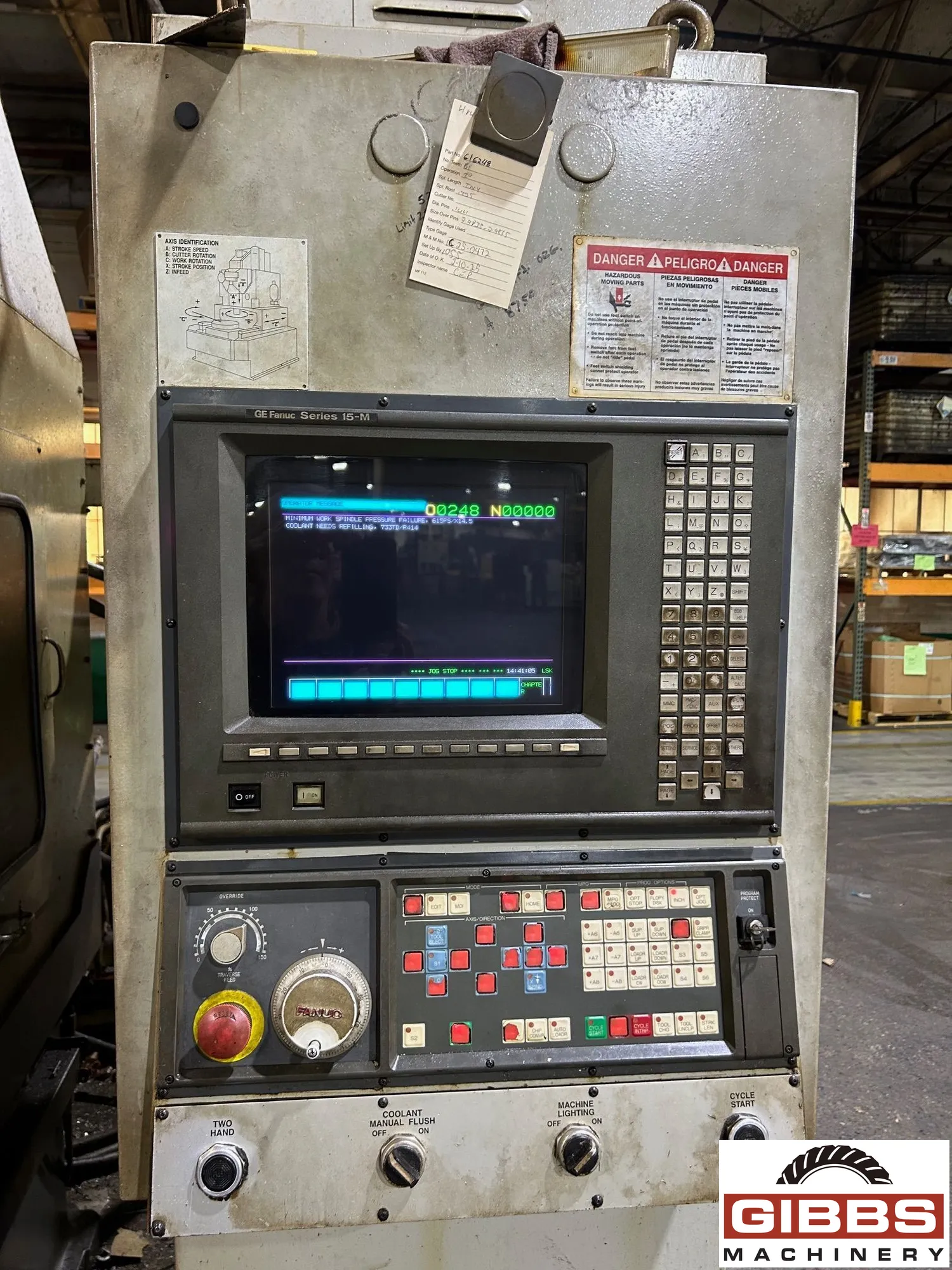

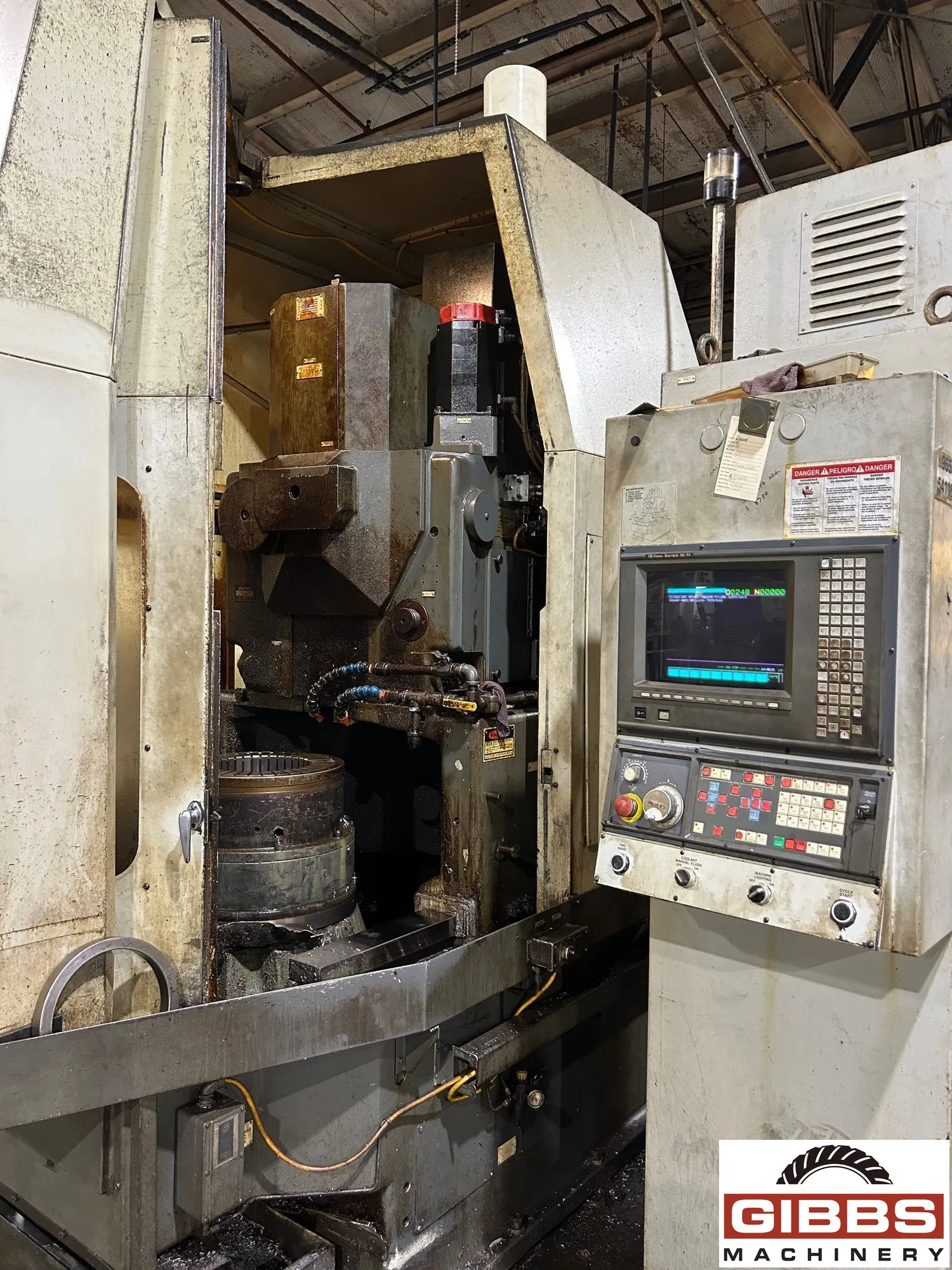

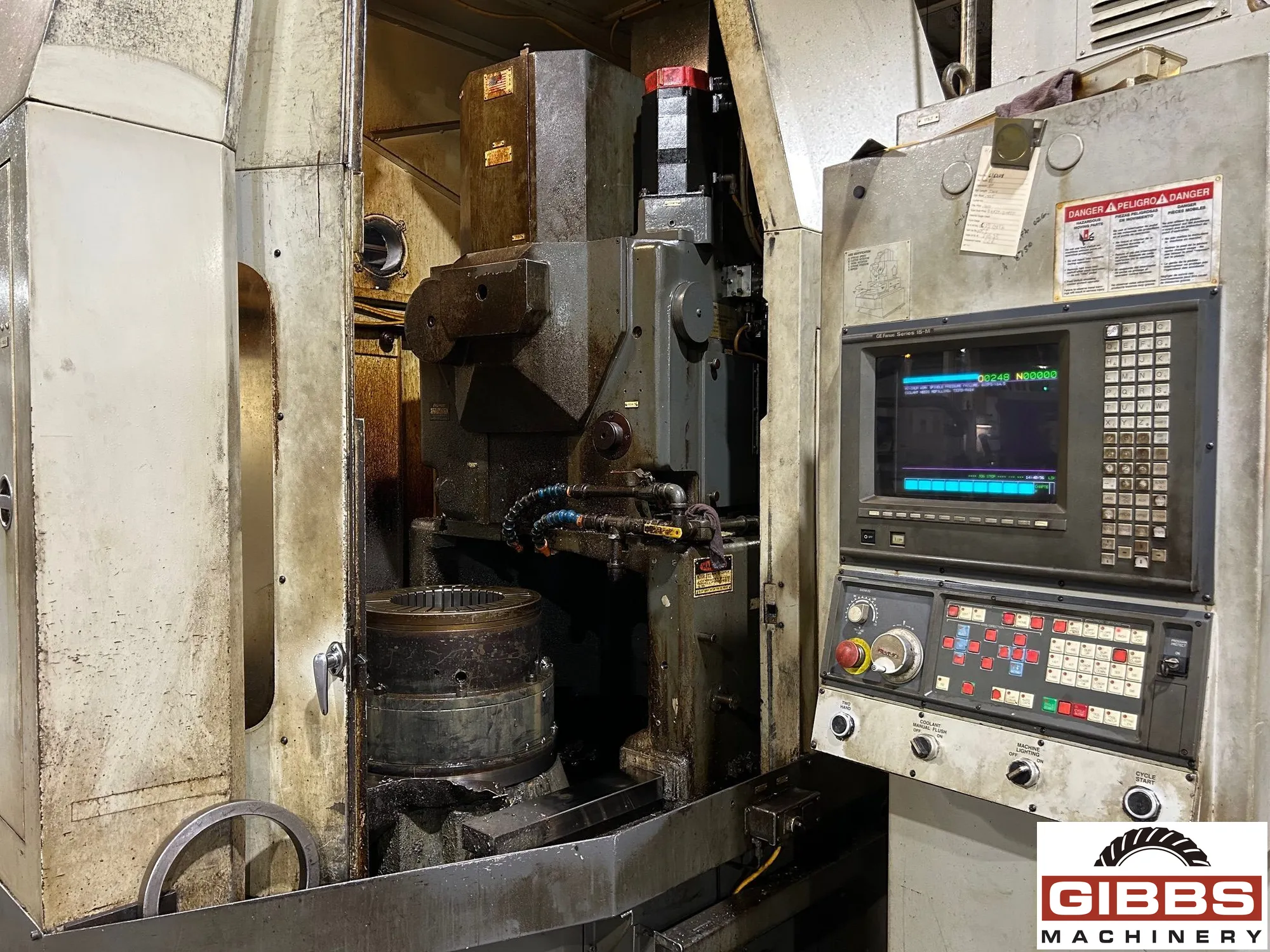

  • Fanuc 15MB Control
  • Hydrostatic Spur Guide

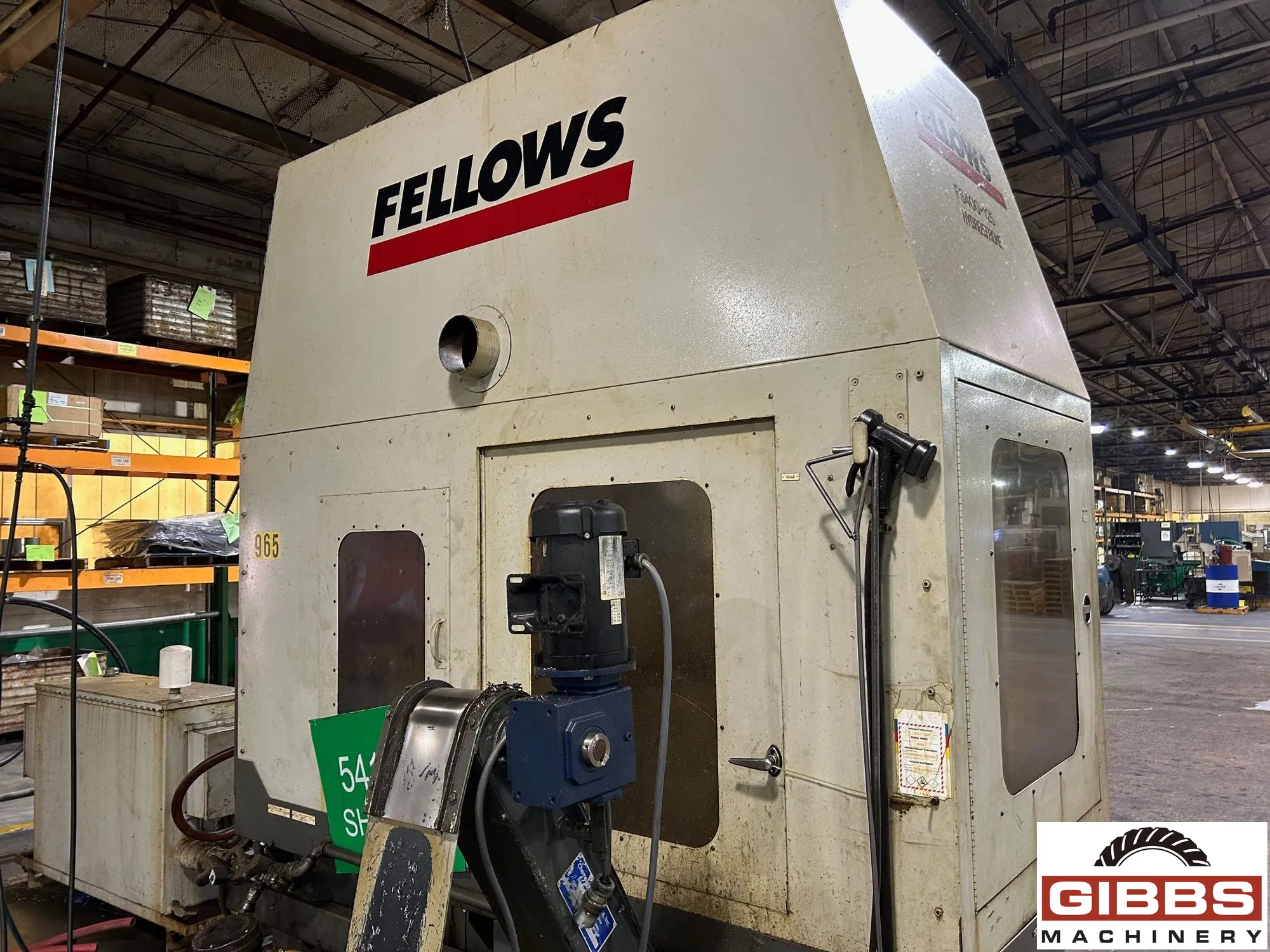

  • Full Enclosure
  • Electronic Index
  • Electronic Stroke Position
  • Automatic Cutter Positioning
  • Cutter Spindle Elevating
  • Hydromechanical Stroking W/Quick Return Ratio
  • Coolant Tank & Pump
  • Magnetic Chip Conveyor
  • Panel Chiller

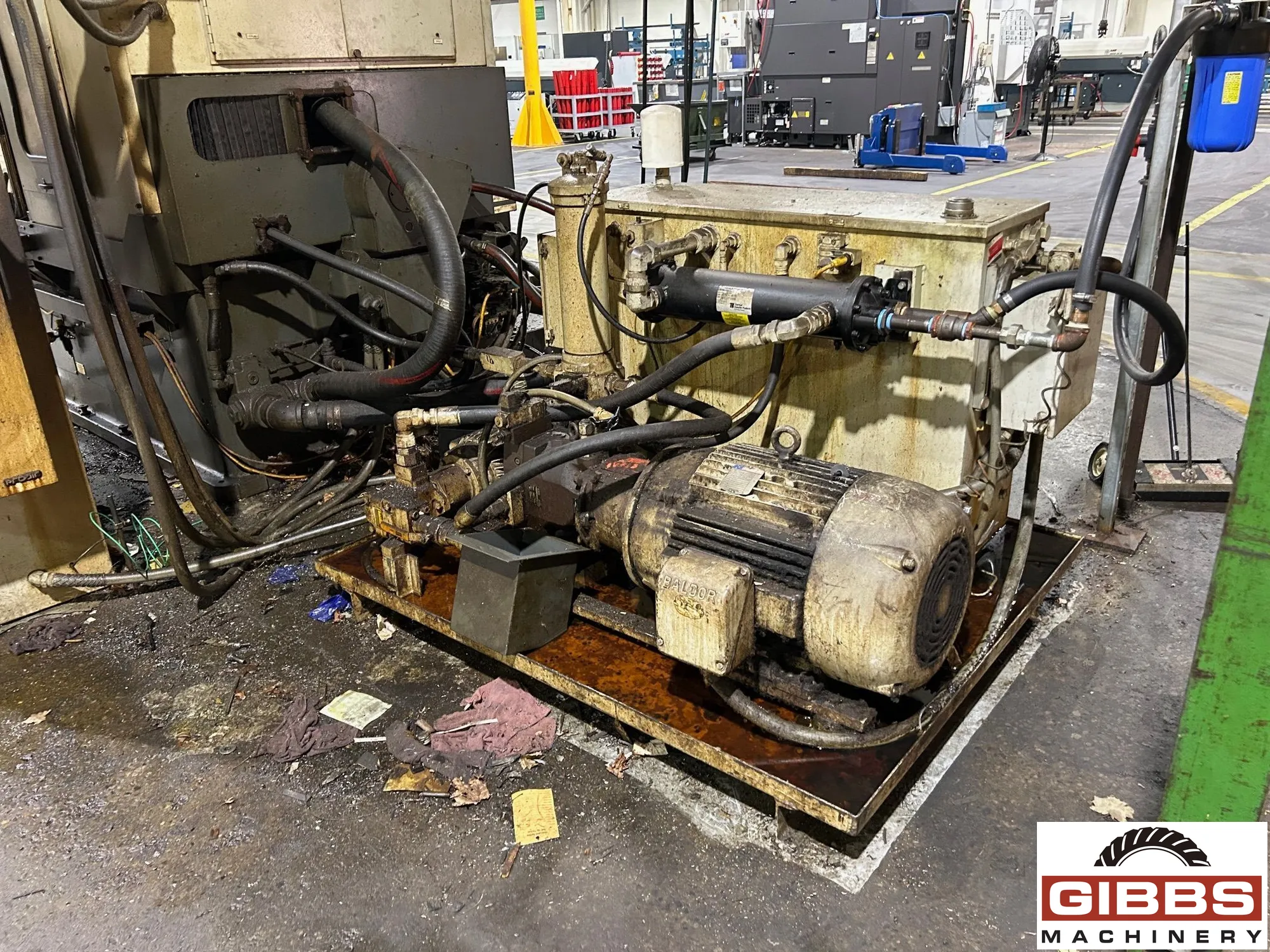

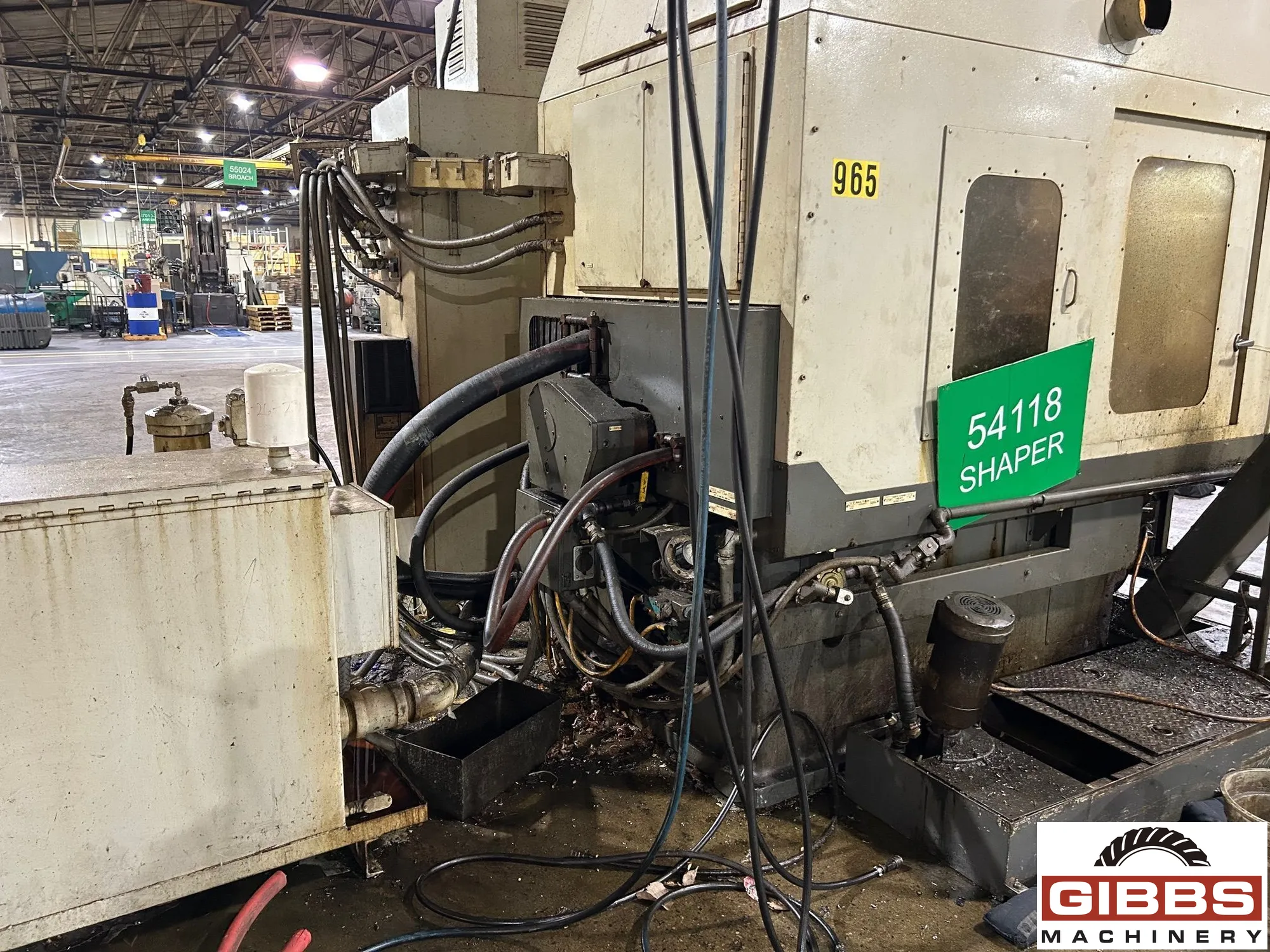

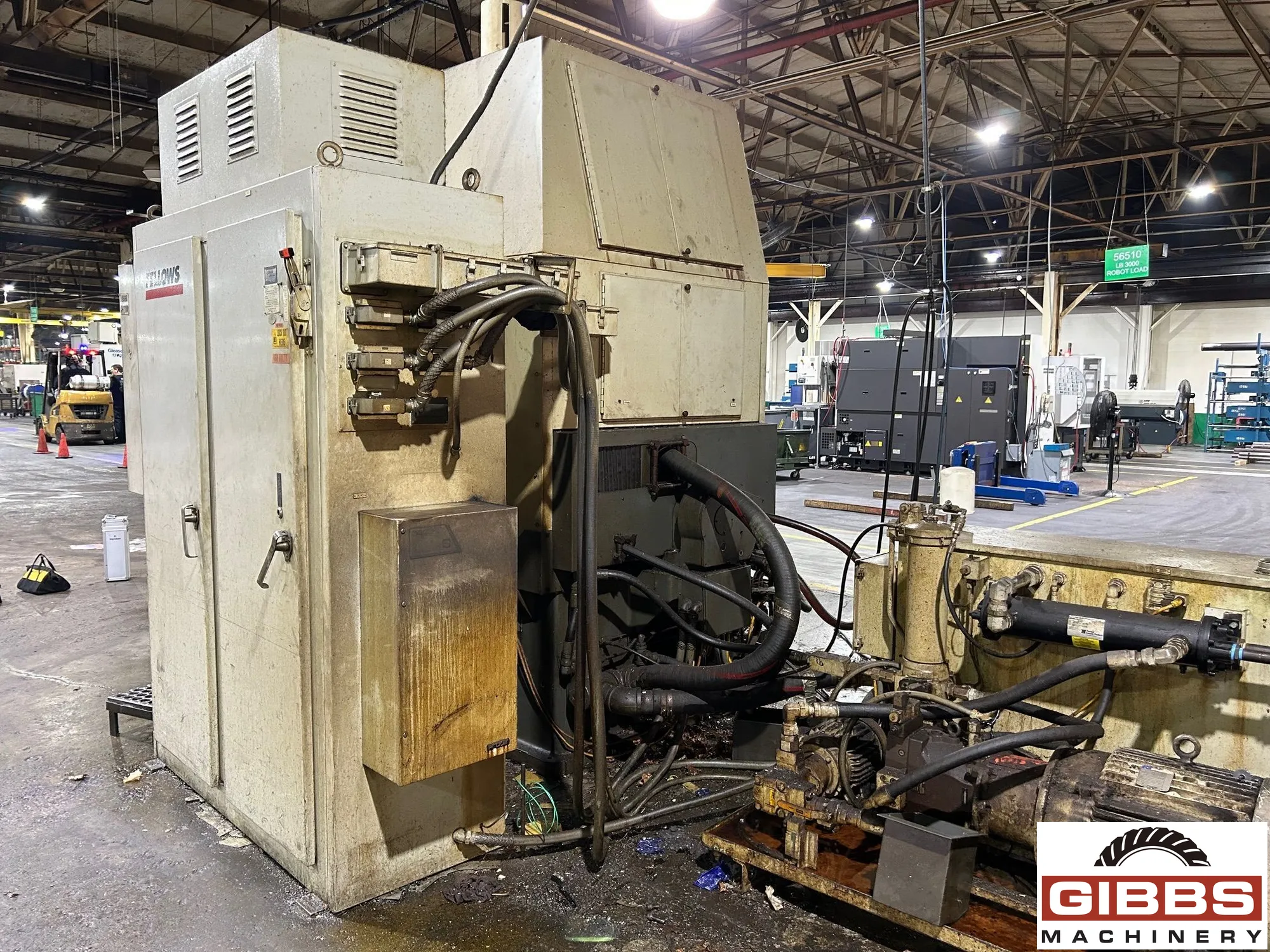

  • Hydraulic System
  • Operating Manuals
,

Machine Specifications :

  • Year 1999
  • Manufacturer FELLOWS
  • Guide Spur
  • Maximum Workpiece Diameter 15.75"
  • Maximum Internal Gear Diameter 15.75"
  • Minimum Center Distance -4.92"
  • Maximum Center Distance 14.6"
  • Module 7.25
  • Diametral Pitch 3.5"
  • Maximum Face Width 5.0"
  • Cutter Spindle Diameter 4.13"
  • Stroke 4.92"
  • Maximum Stroke Speed 800.0
  • Control Manufacturer Fanuc
,

The Fellows Model FS400-CNC HYDROSTROKE Gear Shaper combines the proven, patented hydro-mechanical stroking system with a 6-axis CNC system designed specifically for gear processing. Adaptive controls continuously monitor machine functions to optimize cutting conditions and achieve near optimum productivity.

    Specifications:

  • Nominal Pitch Diameter External/Internal: 15.75"
  • Rated Module/DP Spur or Helical 3.5 D.P.
  • Maximum Gear Face Width: 5"
  • Minimum/Maximum Stroking Speed: 20-800 SPM
  • Maximum Spindle Travel: 6.7"
  • Maximum Helix Angle: 45 Degrees
  • Maximum Center Distance: +14.6"
  • Minimum Center Distance: -4.92"
  • Maximum Overall Length: 12'2"
  • Maximum Overall Width: 6'8"
  • Maximum Overall Height: 7'6"
  • Weight, Machine and Standard Equipment: 18,500#
