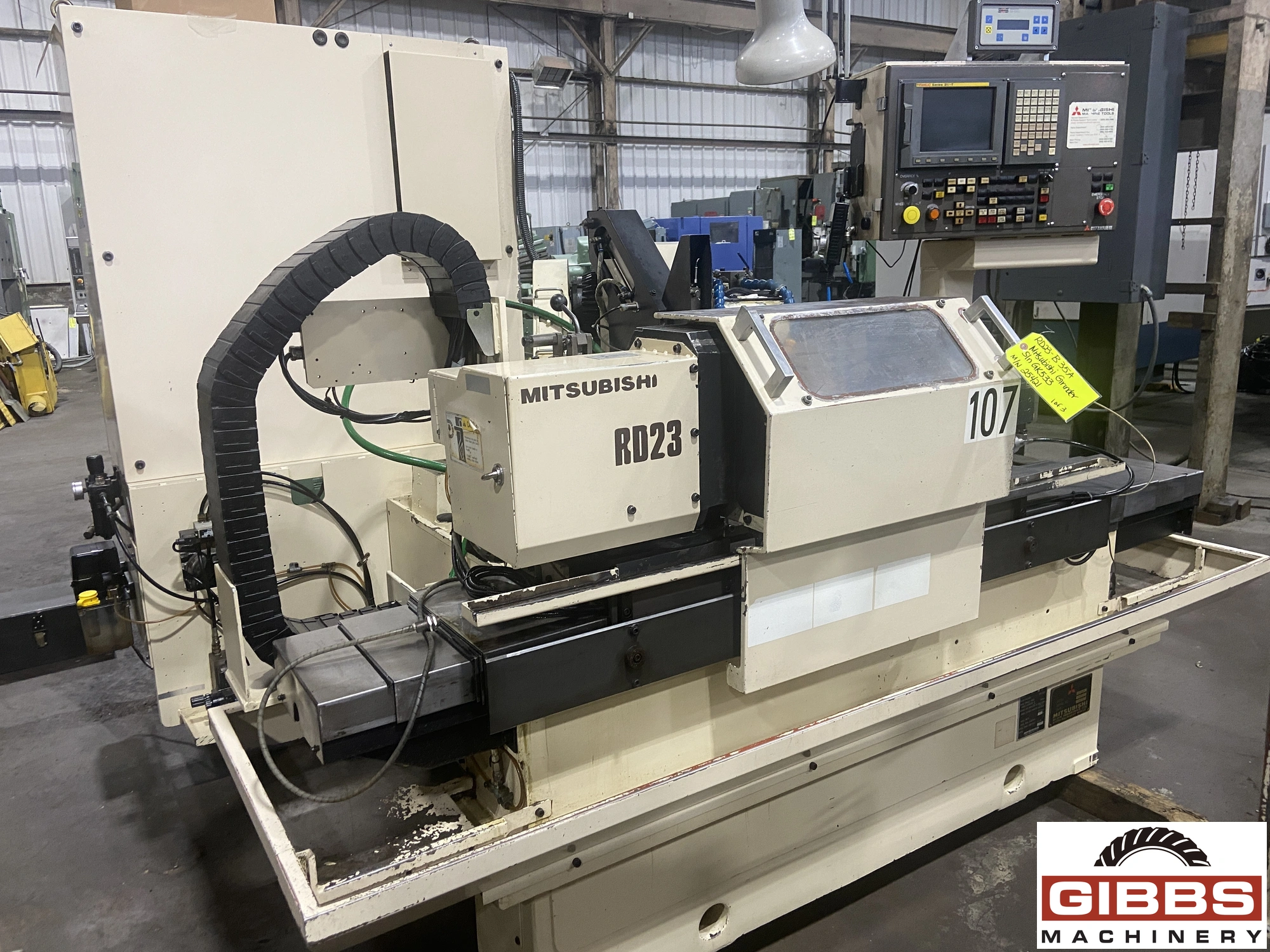

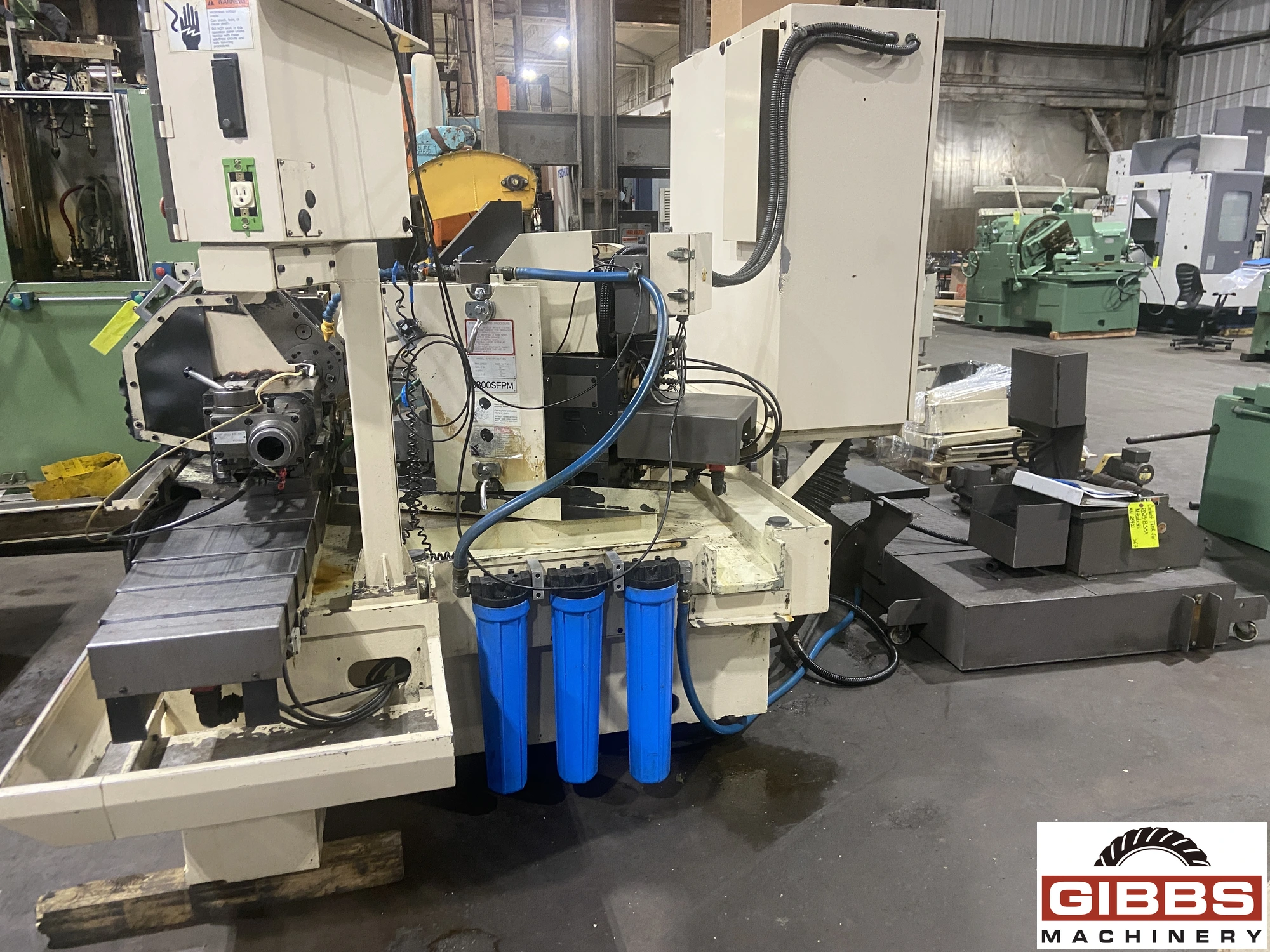

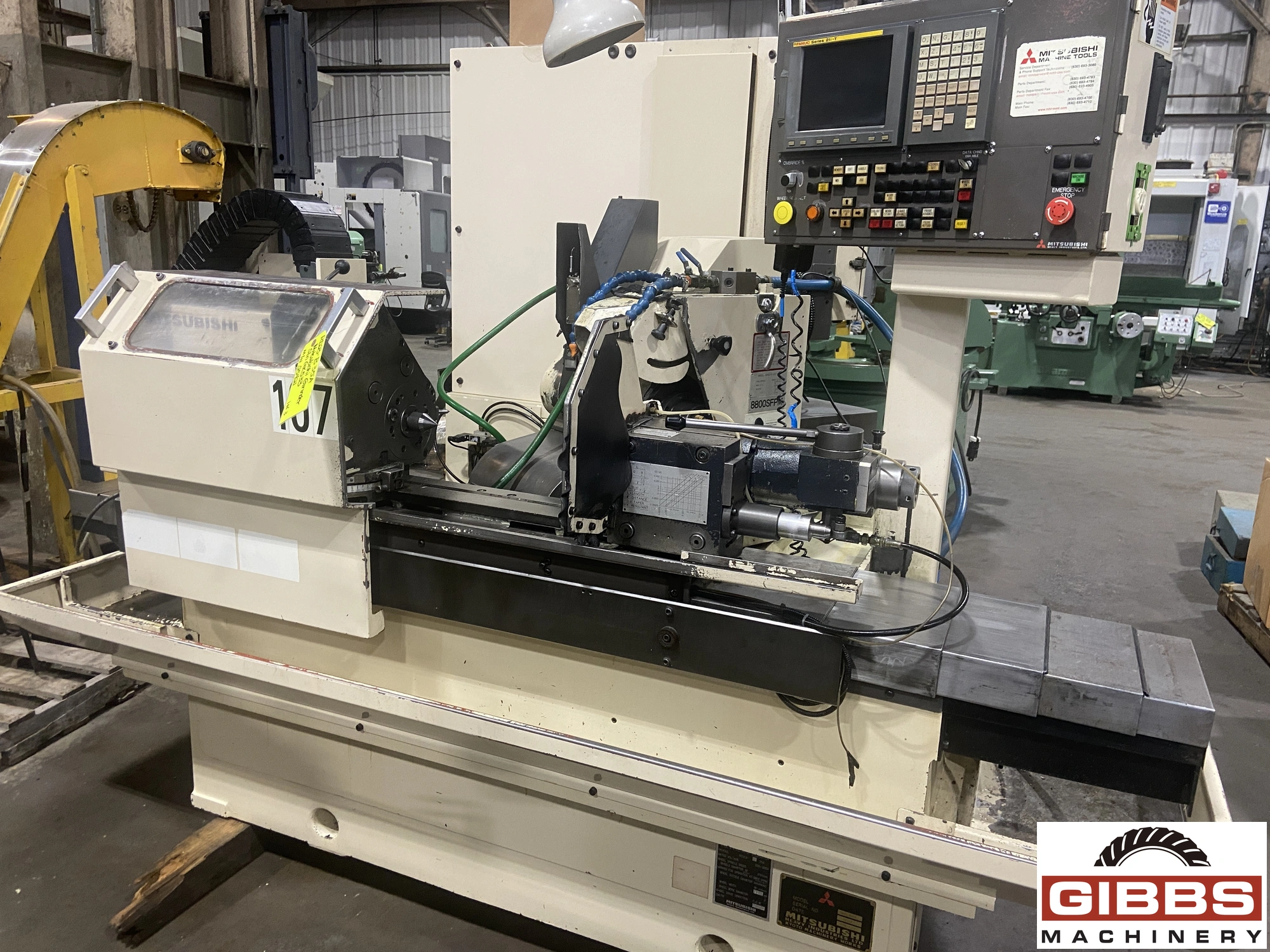

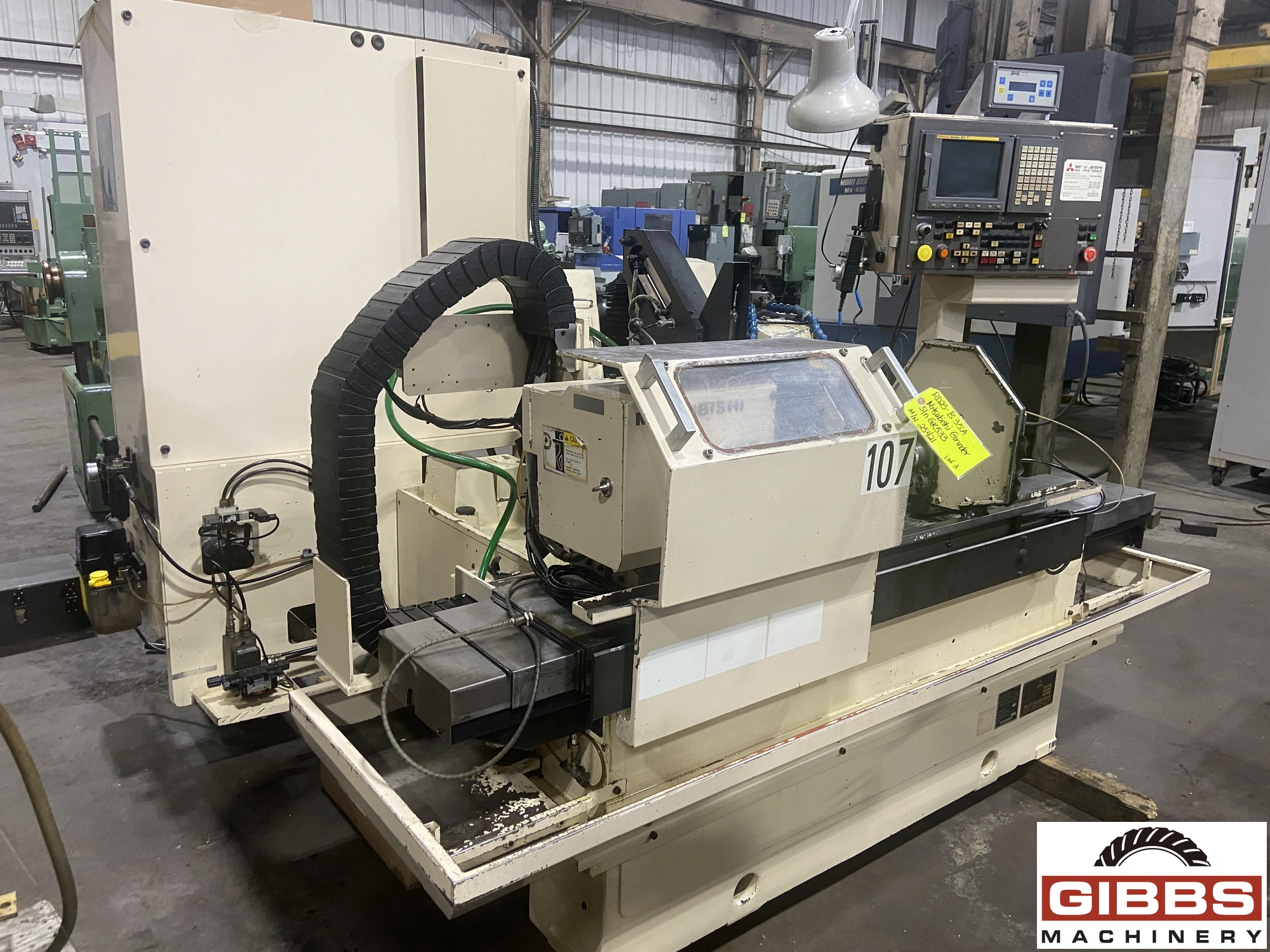

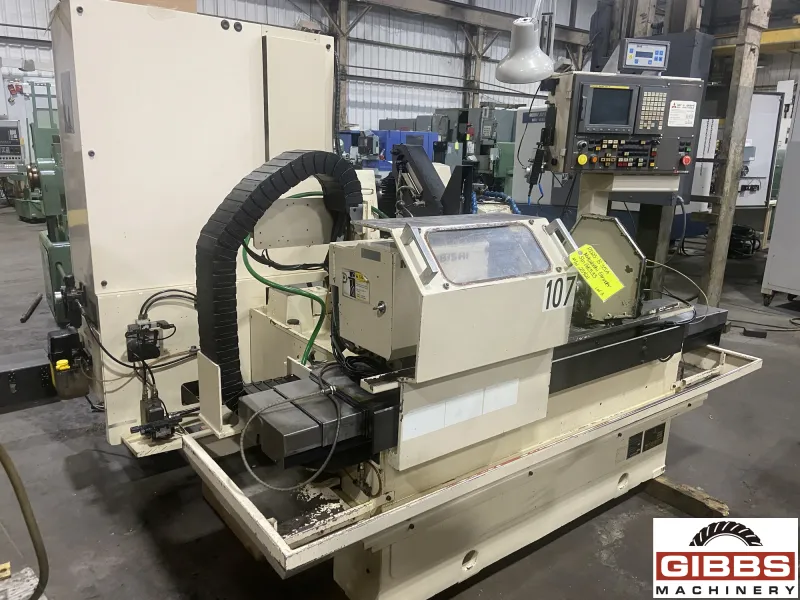

MITSUBISHI RD23-B35A - Cylindrical Grinder

Manufacturer

MITSUBISHI

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN (Angle Head), CNC

Stock

25421

Model

RD23-B35A

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Headstock
  • Tailstock W/Taper Adjustment
  • SBS Balancer

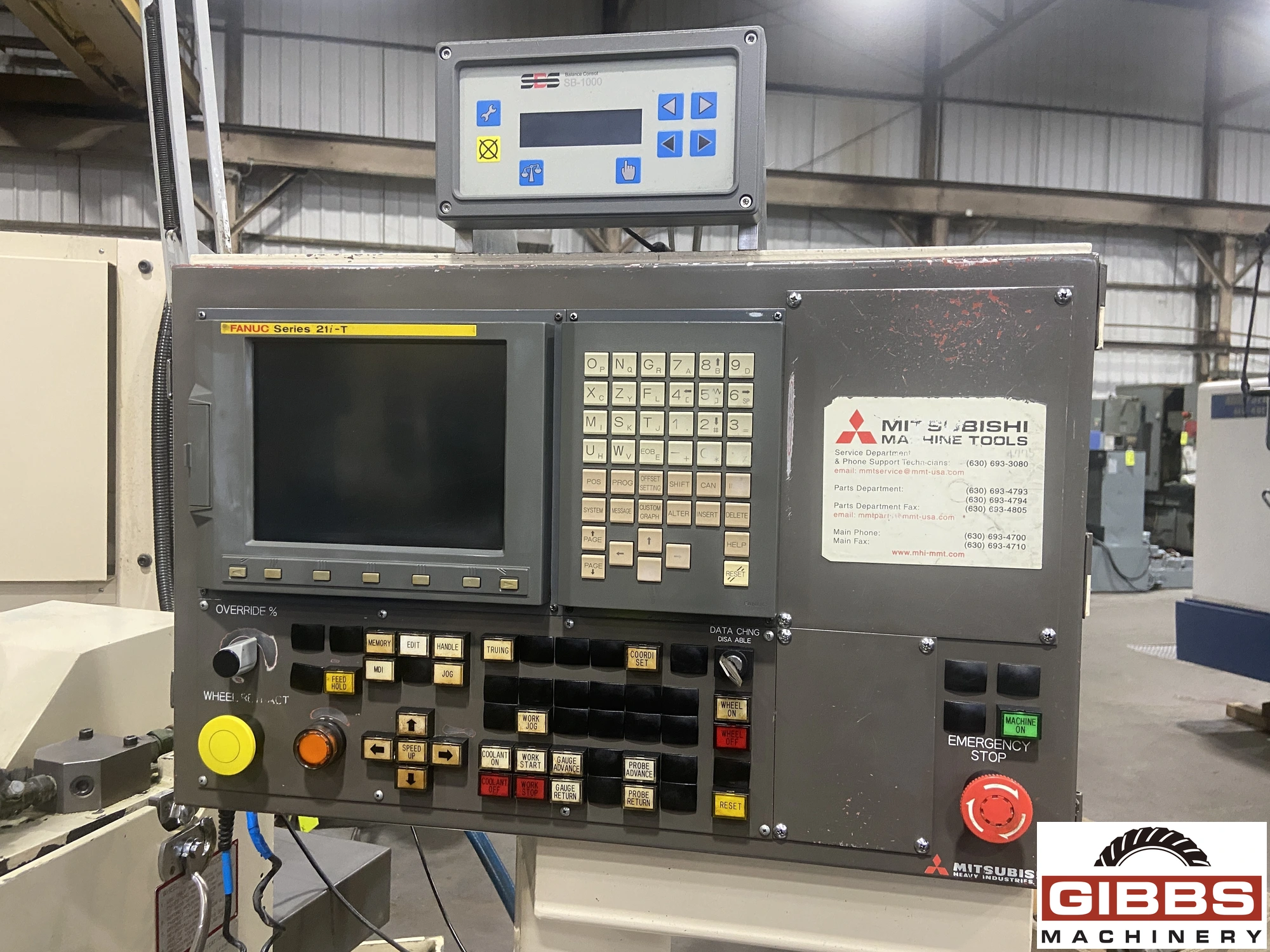

  • Fanuc 21i-T Control
  • Probe
  • Work Light
  • Wheel Mount
  • Auto Programming
  • Dresser
  • 220/3/60 Electrics

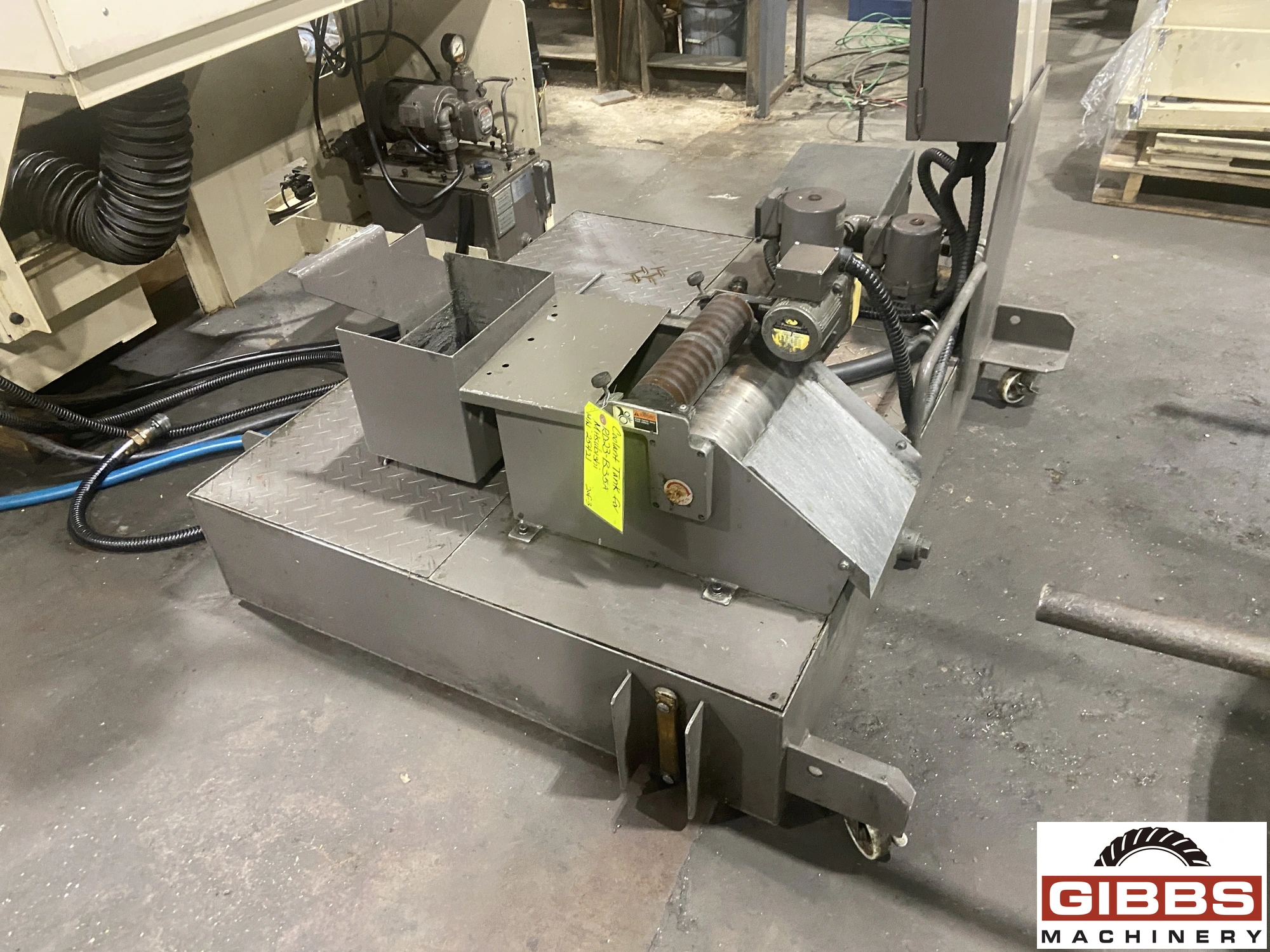

  • Coolant System
  • Splash Guard
  • Manuals
,

Machine Specifications :

  • Year 1999
  • Manufacturer MITSUBISHI
  • Swing 9.1"
  • Center Distance 13.8"
  • Plain or Angle Head Angle Head
  • Grinding Wheel Dia. 5.9"
  • Wheel RPM 8,000 RPM
  • Plunge (Yes/No) No
  • Gauging (Yes/No) No
  • Dresser (Yes/No) Yes
,

The MITSUBISHI RD23-B35A is a CNC (Computer Numerical Control) angle head grinder. It is a cylindrical grinder capable of both plain and angle head grinding. This machine features simultaneous two-axis control and is equipped with a single-point diamond nib dresser. The model has a swing of 9.1 inches, a center distance of 13.8 inches, and a grinding wheel with an external diameter of 5.9 inches.

    SPECIFICATIONS:

  • Swing: 9.1"
  • Center Distance: 13.8"
  • Wheel External Diameter: 5.9"
  • Wheel Internal Diameter X Width: 5.0" X 2.0'
  • Headstock No. Of Speeds: 8-8,000 RPM (Infinitely Variable)
  • Headstock Center Taper: Morse Taper No.4
  • Tailstock Center Taper: Morse Taper No.4
  • Tailstock Taper Fine Adjustment Stroke: +0.005"
  • Dresser: Single Point Diamond Nib
  • Controlled Axes: Simultaneous Two Axes Control
  • Machine Dimensions: 116.9"D x 102.3"W x 67.5"H
  • Machine Weight: 6,600 Lbs
