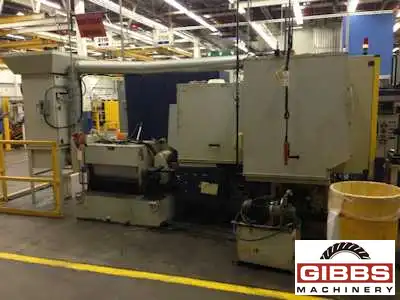

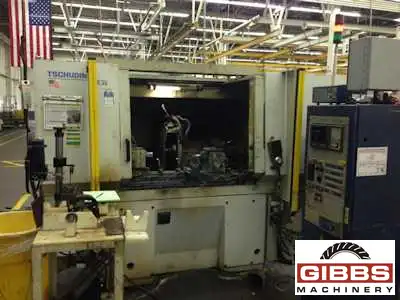

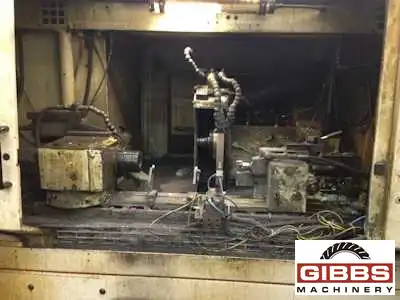

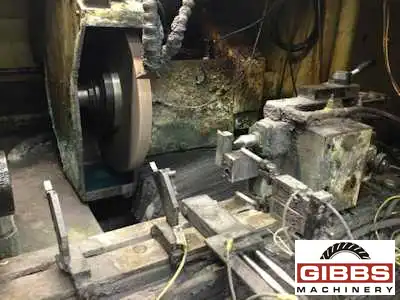

TSCHUDIN PL66 - Cylindrical Grinder

Manufacturer

TSCHUDIN

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, CNC

Stock

19969

Model

PL66

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 16TB
  • 2-Work Rests
  • Pulse Generator
  • Marposs Gauge P-5
  • SBS 4500 Balancer

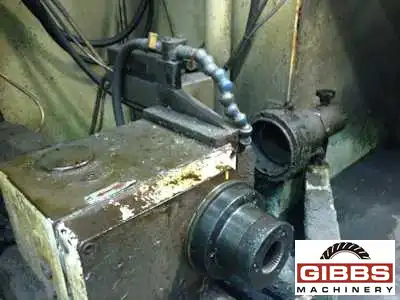

  • Tailstock Mount
  • Dresser

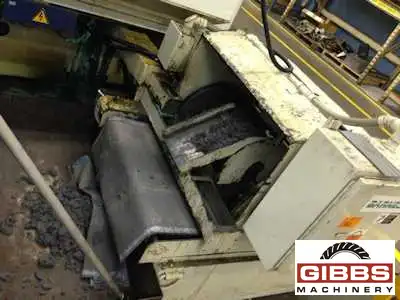

  • Barnes Chip Separator W/Mag & Paper Filtration
  • Coolant W/Mag Paper
  • Hydraulic Unit
  • Light Curtain

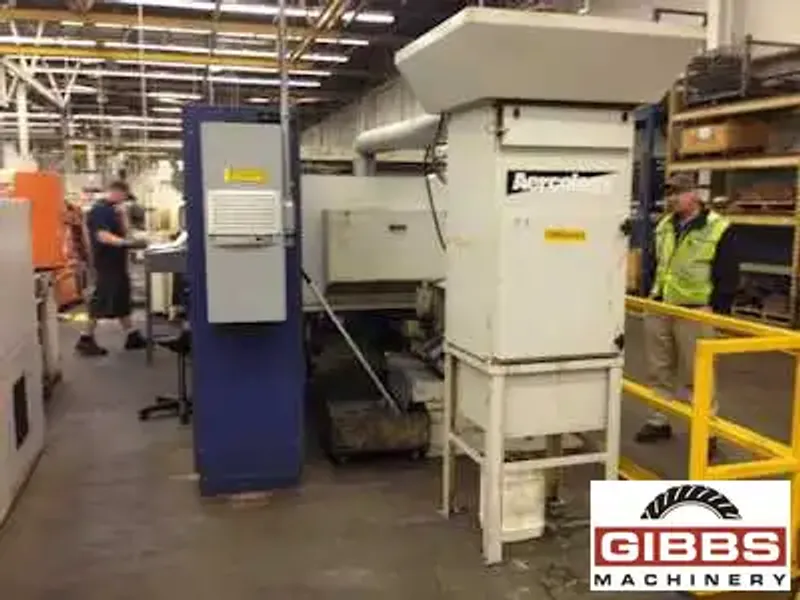

  • Mist Collector "Aercology McLean Midwest"
  • Work Light
  • Operators Manual
,

Machine Specifications :

  • Year 1999
  • Manufacturer TSCHUDIN
  • Dresser (Yes/No) Yes
  • Gauging (Yes/No) Yes
  • Wheel RPM 0 RPM
  • Grinding Wheel Dia. 23.6"
  • Plain or Angle Head Plain
  • Center Distance 25.6"
,

12" x 28" MODEL PL66 TSCHUDIN CNC CYLINDRICAL GRINDER,1999

    Specifications:

  • Distance Between Centers: 650mm
  • Center Height: 150mm
  • Grinding Length: 650mm
  • Max. Diameter of Grinding Range w/New Wheel: 298mm
  • Min. Diameter of Grinding Range w/Worn Wheel: 1mm
  • Grinding Wheel Diameter: 600mm
  • Standard Wheel Width: 120mm
  • Motor Power: 15 kW
  • Grinding Wheel Peripheral Speed: 45 m/s
  • X-Axis Wheelhead Slide Travel: 340mm
  • Max. Travel Speed: 8000 mm/min
  • Least Input Increment: 0,0001 mm
  • Resolution: 0,0001mm
  • Swivelling Range: +30/-45 deg.
  • Speed Range: 20-1000 rpm
  • Z-Axis Table Travel Slide: 950 mm
  • Max. Travel Speed: 8000 mm/min
  • Least Input Increment: 0,0001 mm
  • Table Swivelling Range: +9,0/-9,0 deg.
  • Approx. Machine Floor Space LxWxH: 115" x 98" x 82"
  • Approx. Control Box 1 Dimensions LxWxH: 84" x 25" x 85"
  • Approx. Control Box 2 Dimensions LxWxH: 25" x 21" x 80"
  • Approx. Mist Collector Dimensions LxWxH: 43" x 34" x 93"
