SICMAT RASO 400 - Gear Shavers & Hone

Manufacturer

SICMAT

Category

Gear Machines

Type

GEAR SHAVERS (Including CNC)

Stock

20818

Model

RASO 400

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

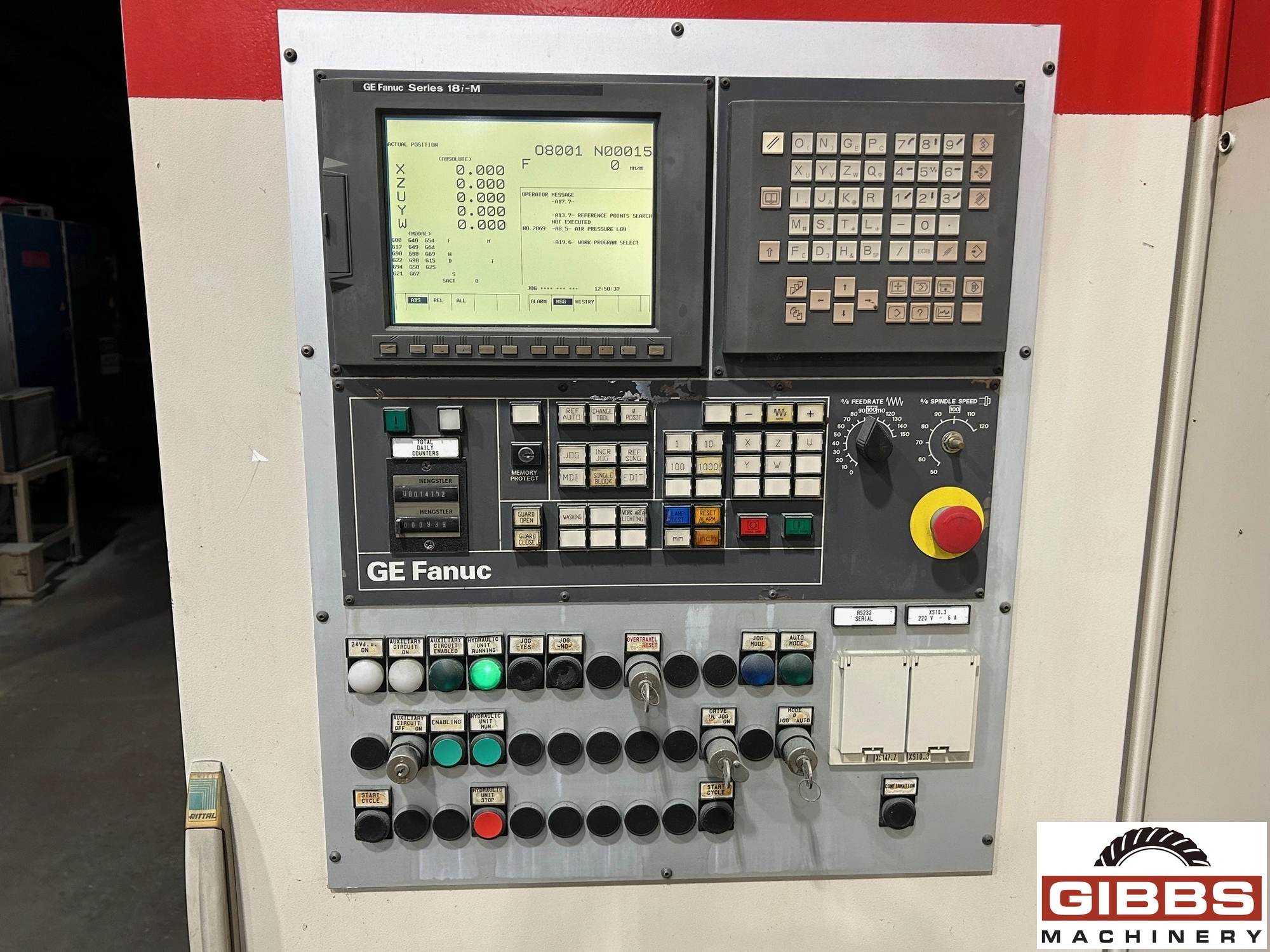

  • Fanuc 18iM Control

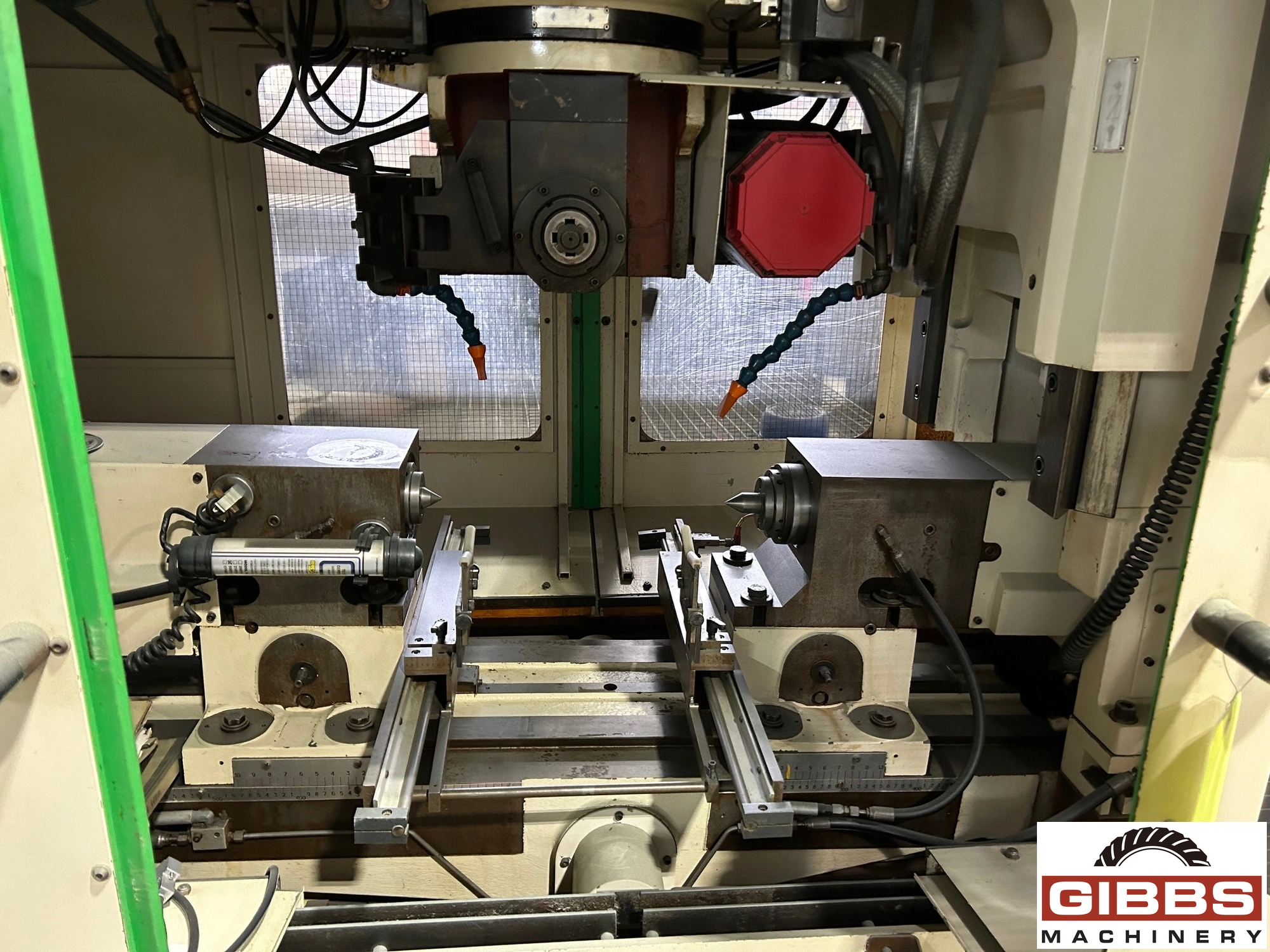

  • Power Stocks w/Centers
  • Crowning

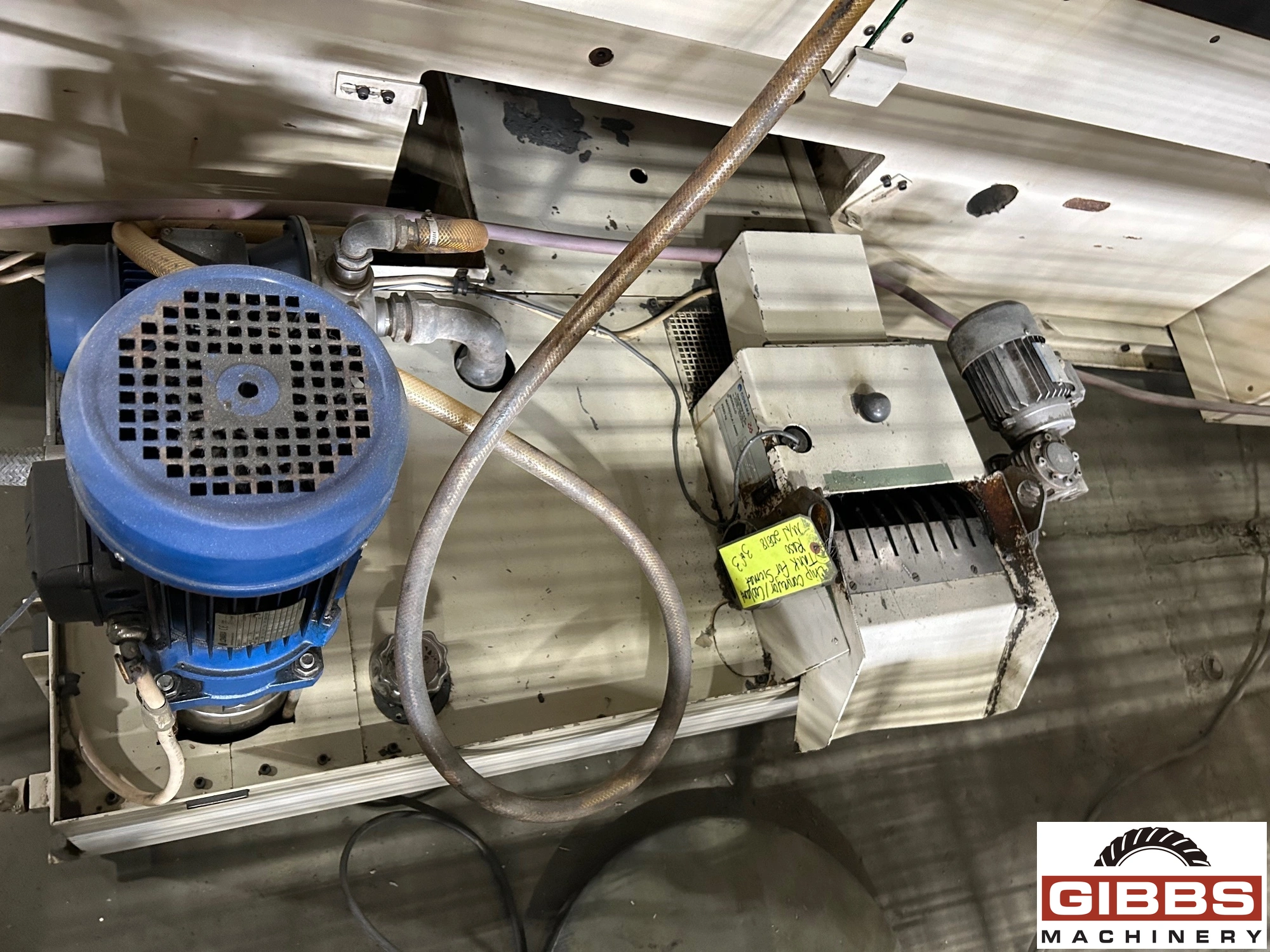

  • Coolant System
  • Chip Separator
  • Full Machine Enclosure

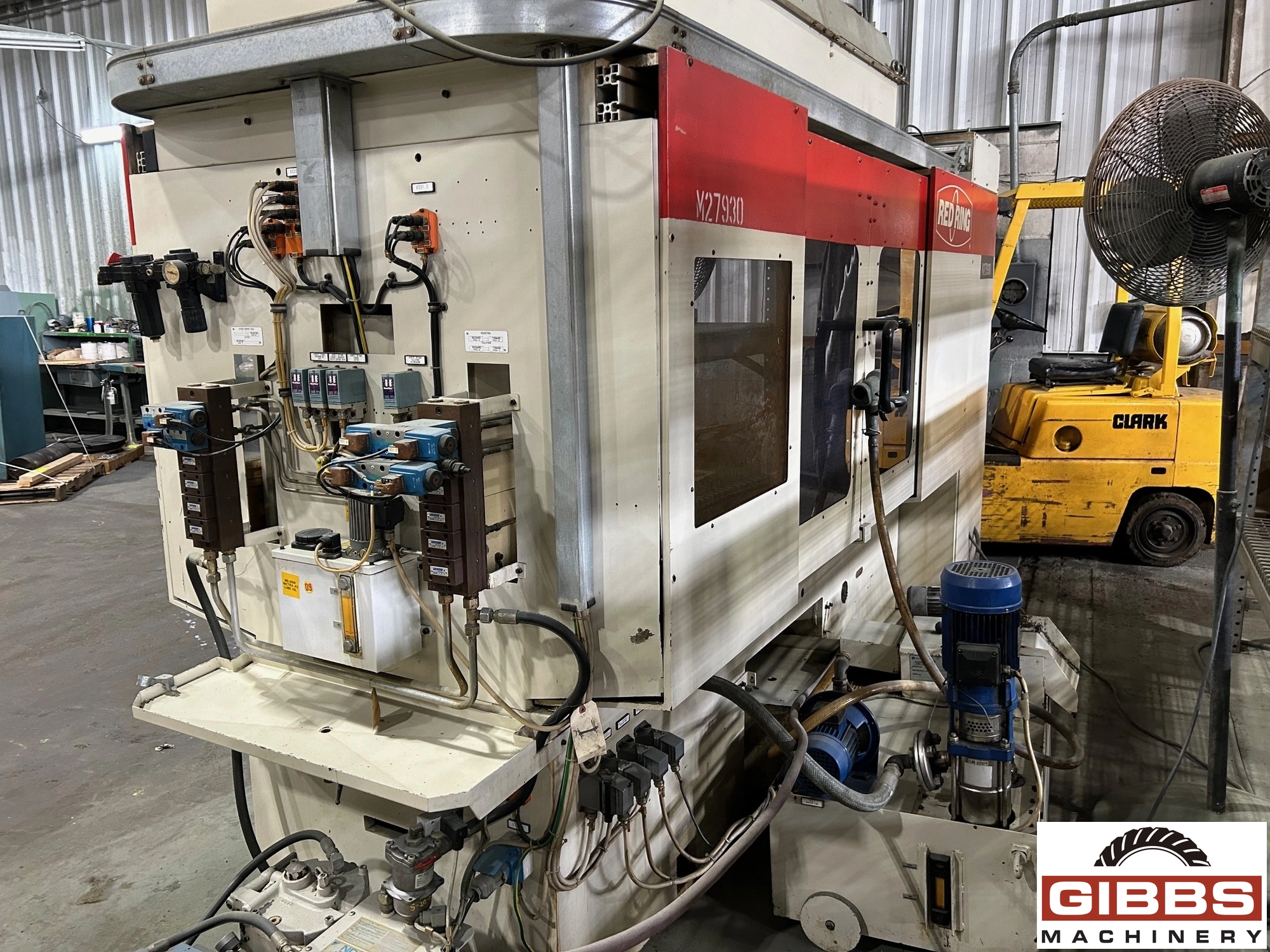

  • Hydraulic System
  • Rittal Refrigeration

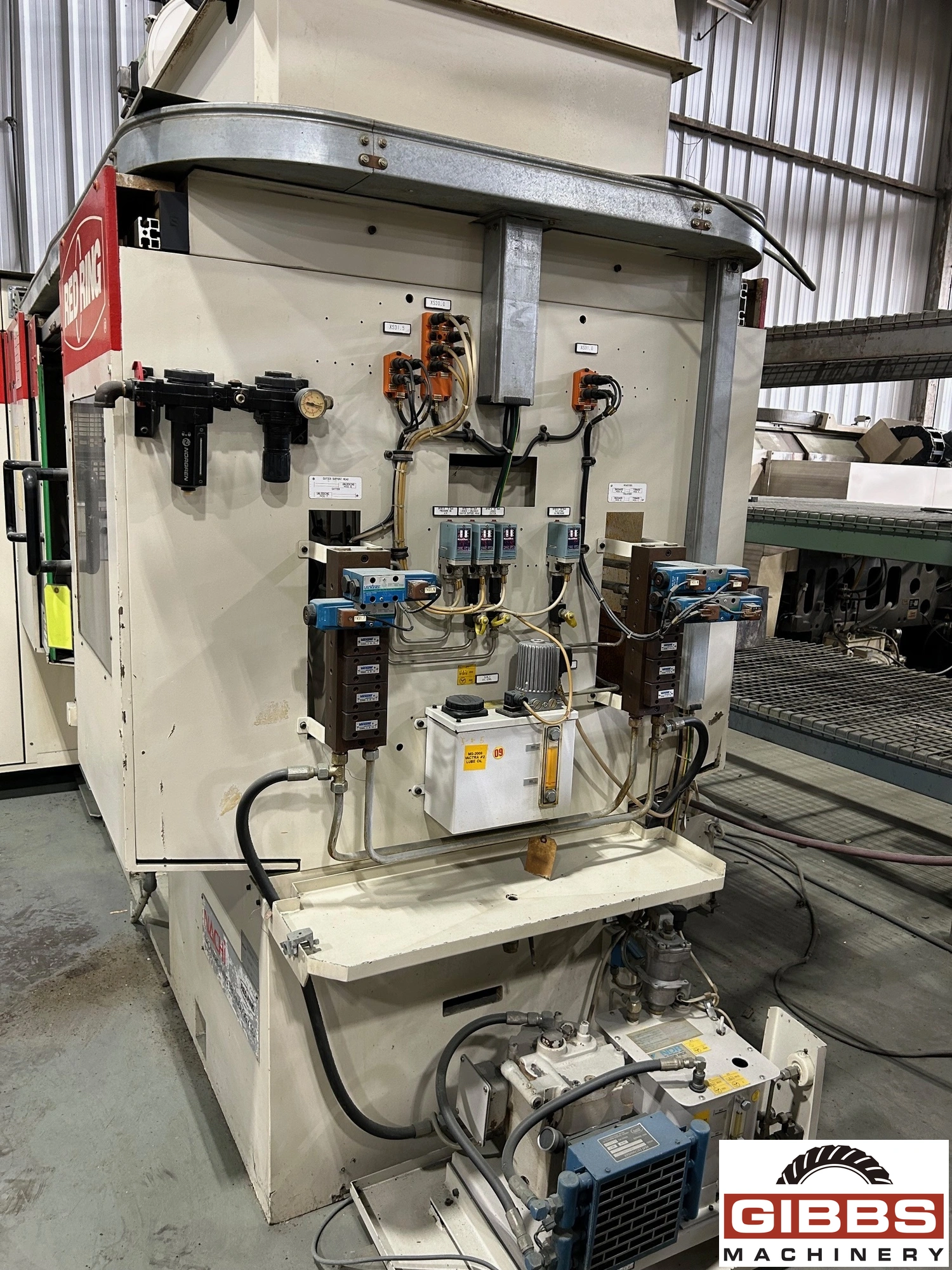

  • Pneumatic System
  • Worklight
  • Manuals
,

Machine Specifications :

  • Year 1997
  • Manufacturer SICMAT
  • Control Manufacturer Fanuc
  • Maximum Tooth Width 7.1"
  • Shaving Cutter Bore Diameter 100.0
  • Minimum/Maximum Width of Shaving Cutter 0.8"
  • Minimum/Maximum Diameter Shaving Cutter 7"
  • Module 8.0
  • Maximum Workpiece Diameter 15.7"
,

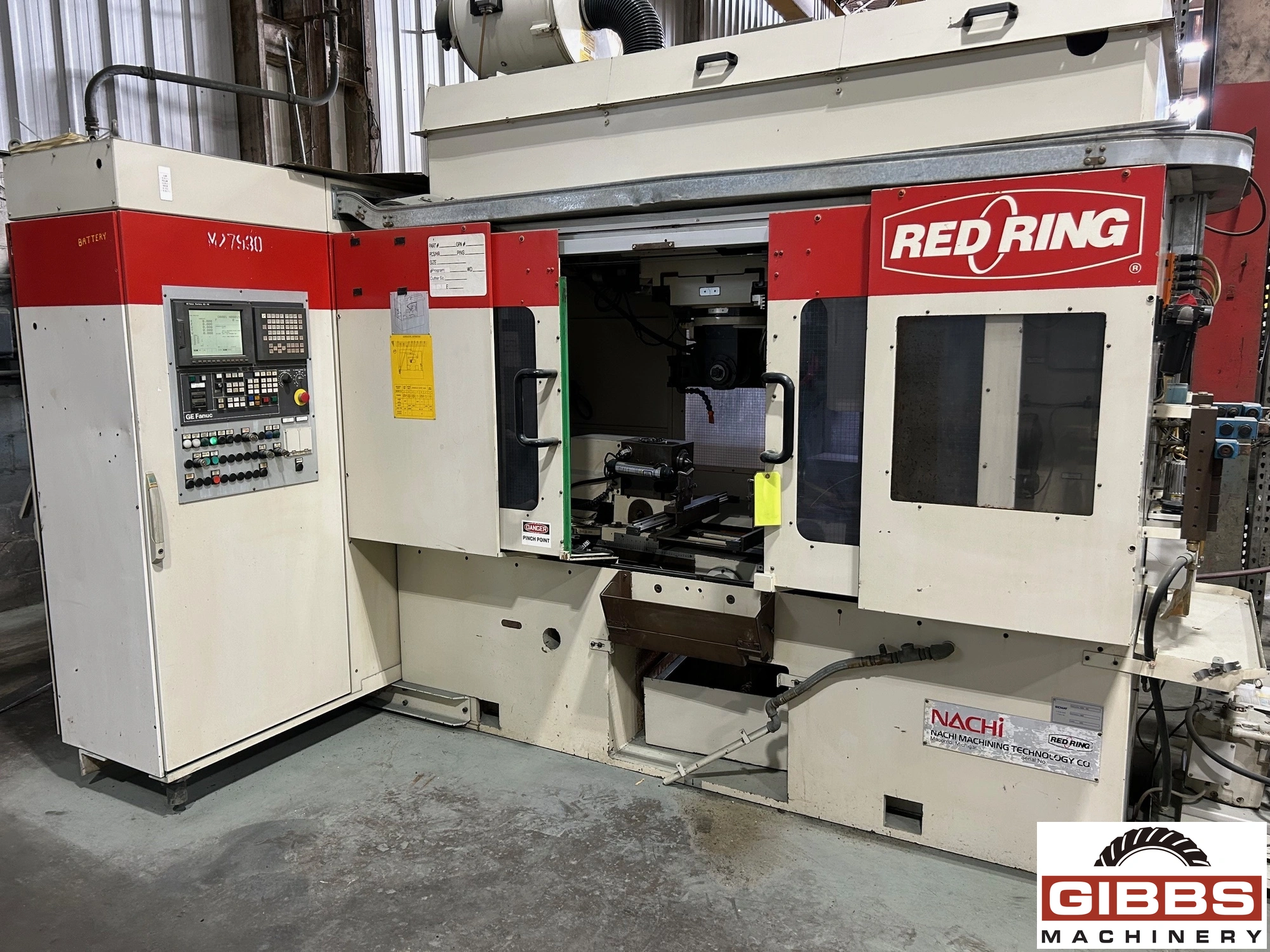

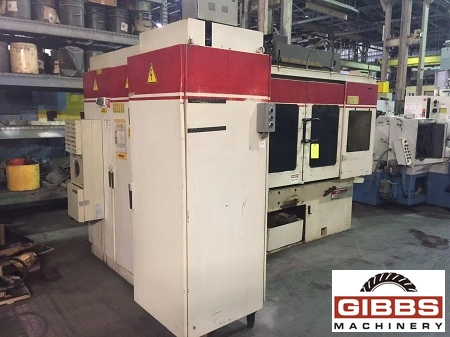

SICMAT RASO 400 CNC GEAR SHAVER, 1997

    Min/Max Module (diagonal cycle): 1-8 mm

  • Min./Max Distance Between Workp./Shaving: 119-329mm
  • Min/Max. Diameter of the Shaving Cutter: 178-254mm
  • Shaving Cutter Bore Diameter: 63.5 (100)mm
  • Min./Max. Width of Shaving Cutter (std): 19-50.8mm
  • Max. Tooth Width to be Shaved (std): 180mm
  • Table Oscillation: +/- 1.7 degrees
  • Axis "Z" Stroke: 210mm
  • Axis "X" Stroke: +/- 15mm
  • Axis "U" Stroke: +/- 90mm
  • Axis "W" Stroke: +/- 15mm
  • Axis "Y" Stroke: +/- 60mm
  • Net Weight Electric Cabinet Included: 8000 Kg.(18,000 lbs.)
  • Machine Dimensions LxWxH: 121" X 99" X 105"

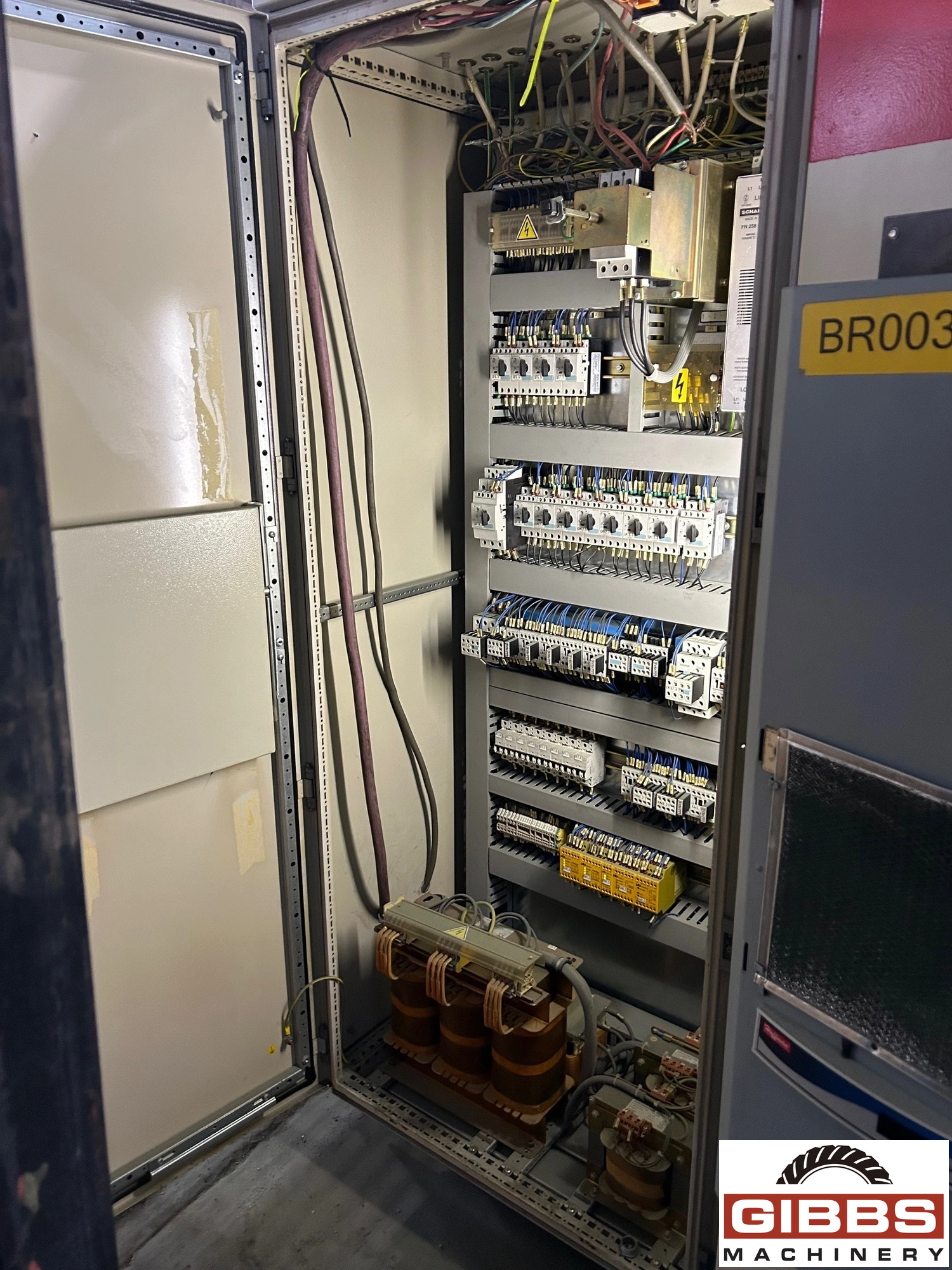

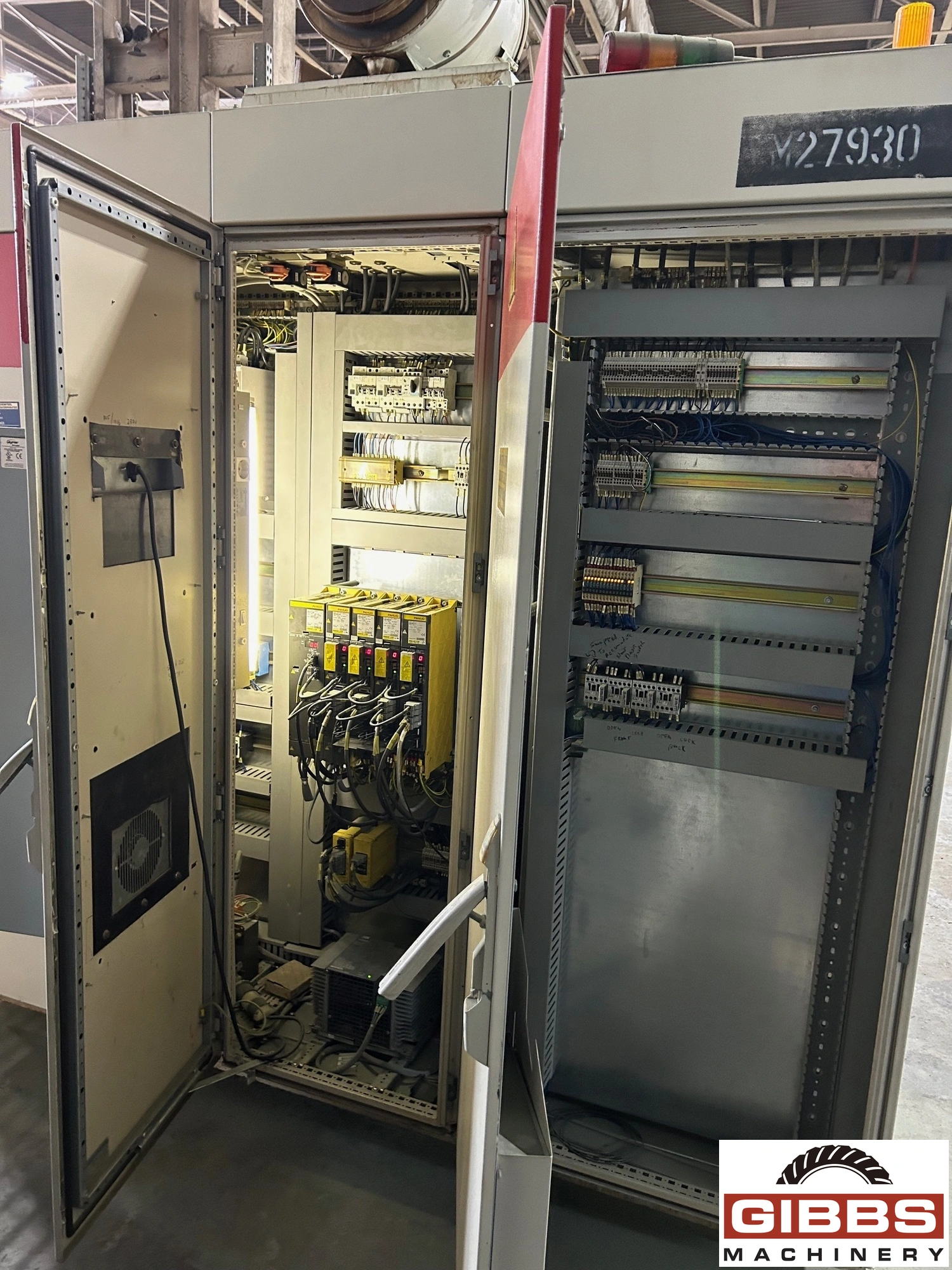

  • Dimensions for Electrical Cabinet: 87"L X 24"W X 120"H
