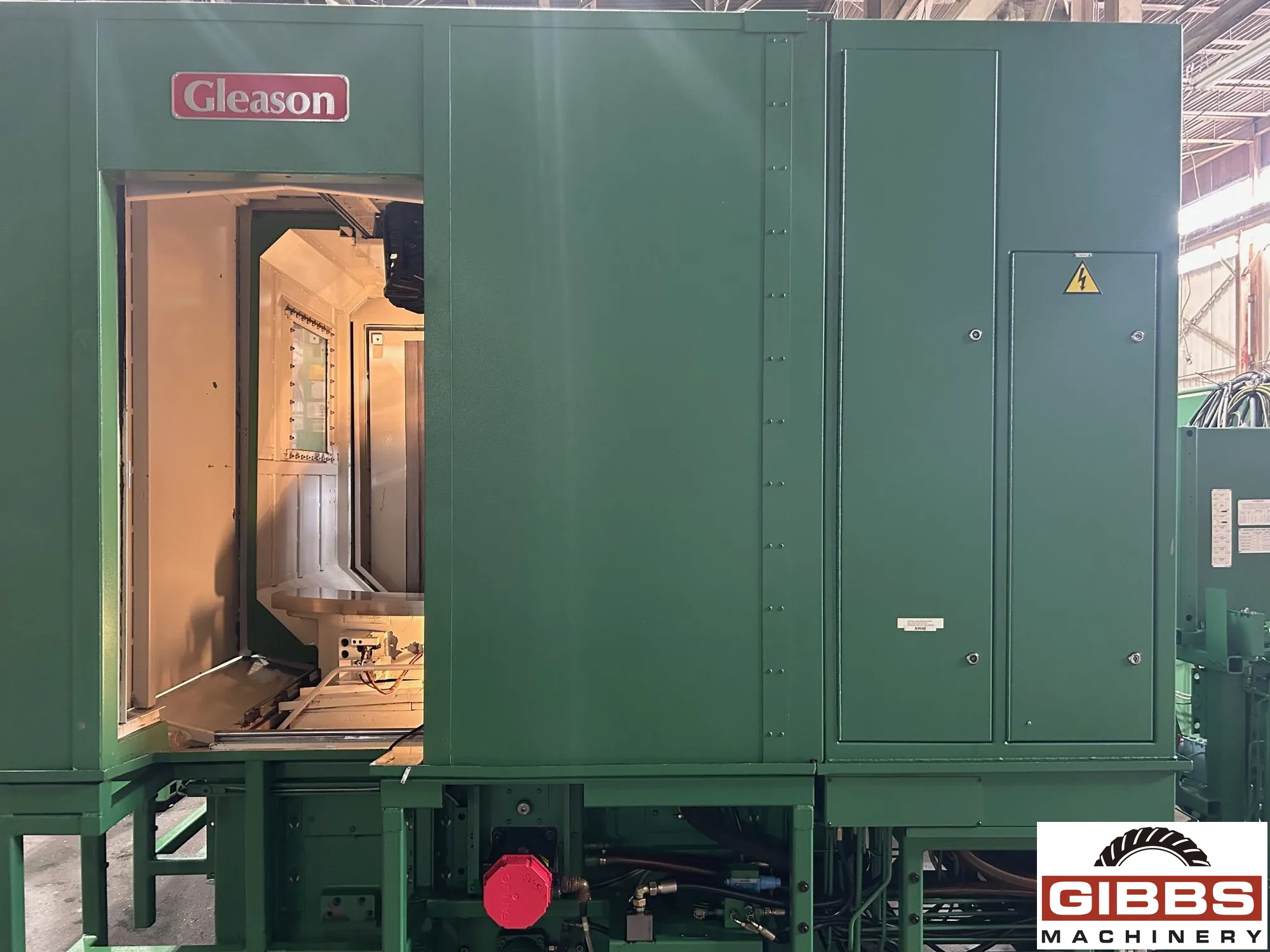

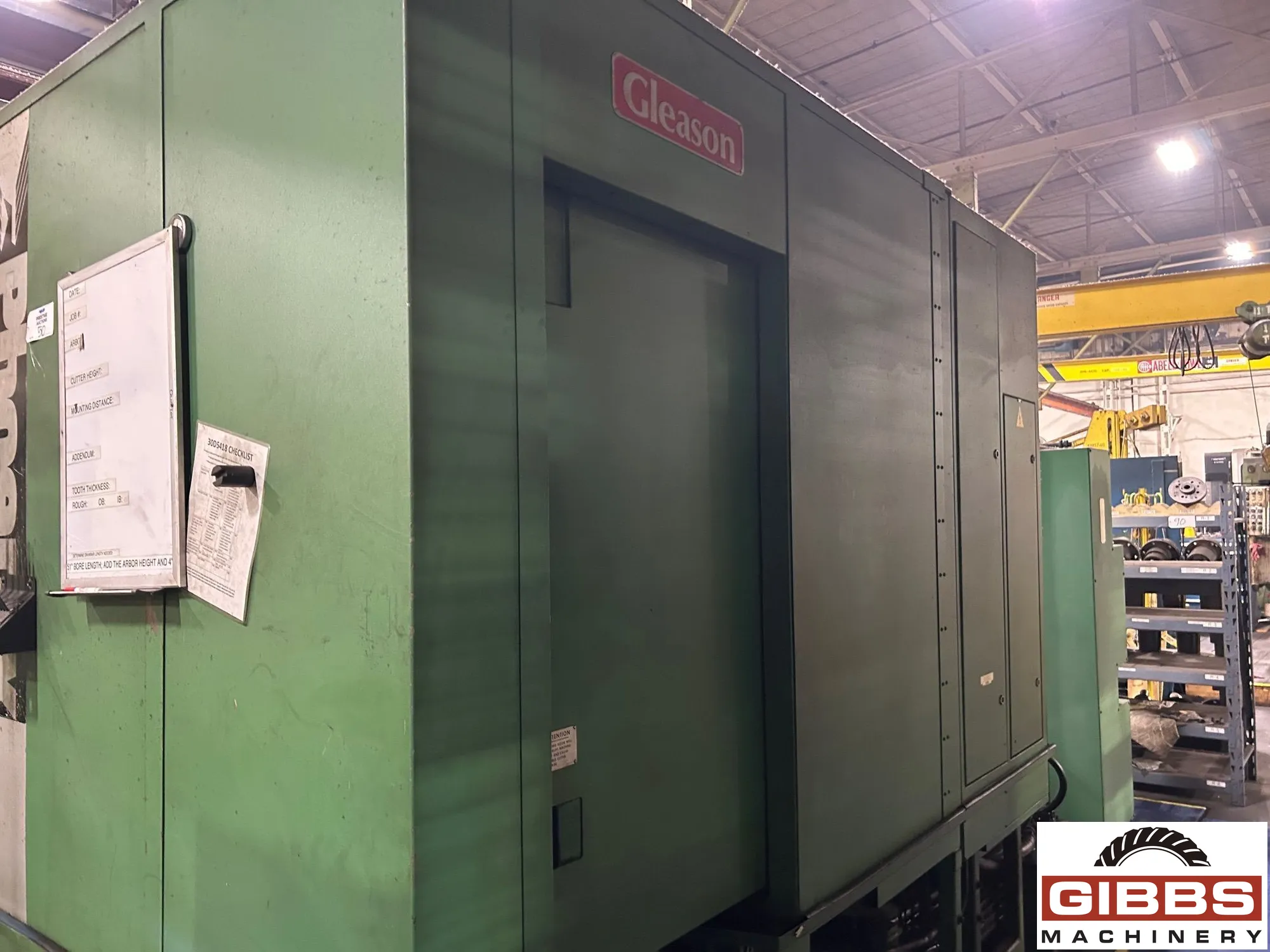

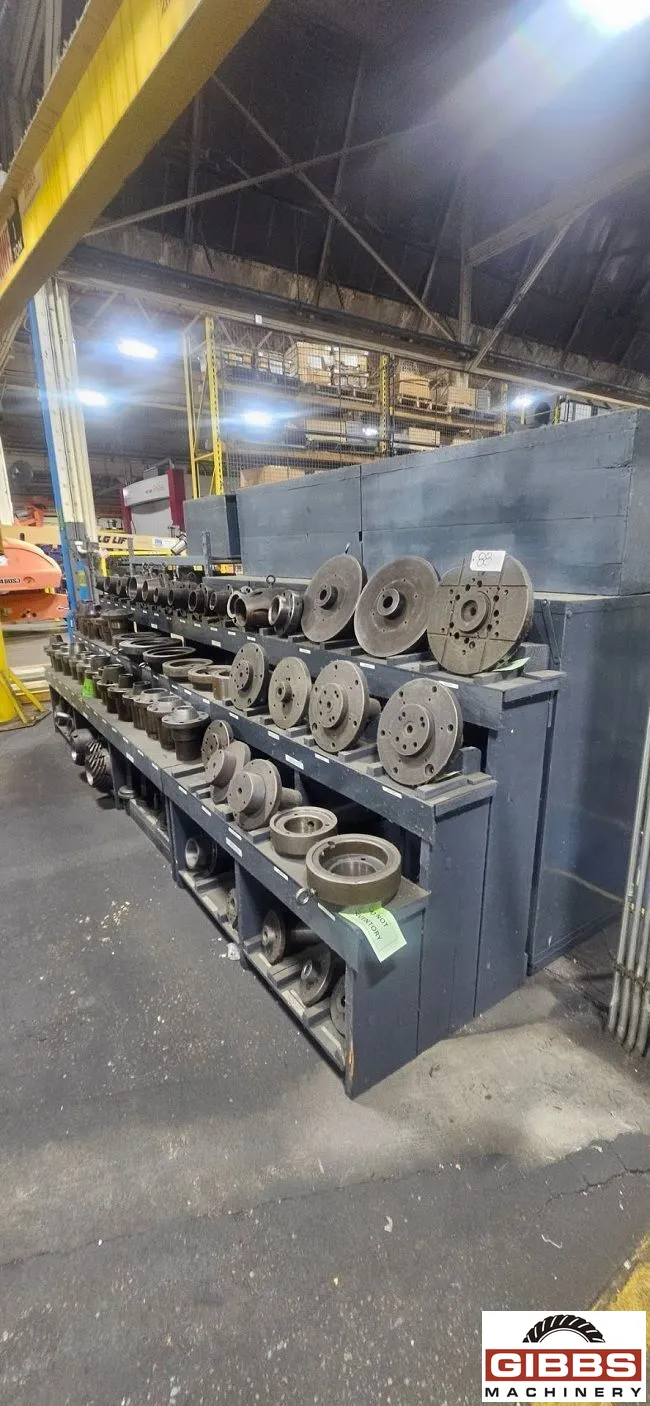

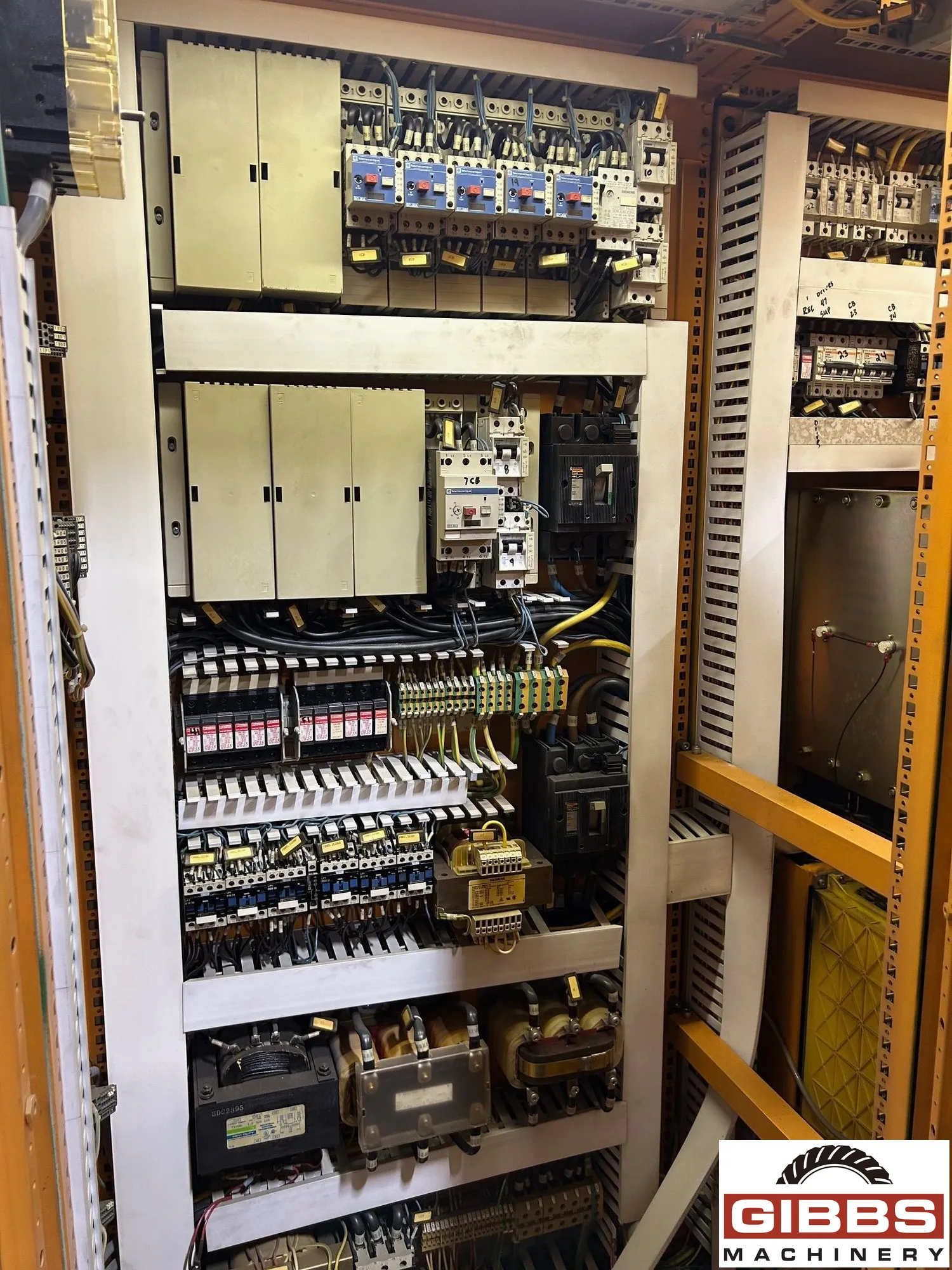

GLEASON PHOENIX 1000HC - Spiral Bevel Gear Generator

Manufacturer

GLEASON PHOENIX

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

25734

Model

1000HC

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

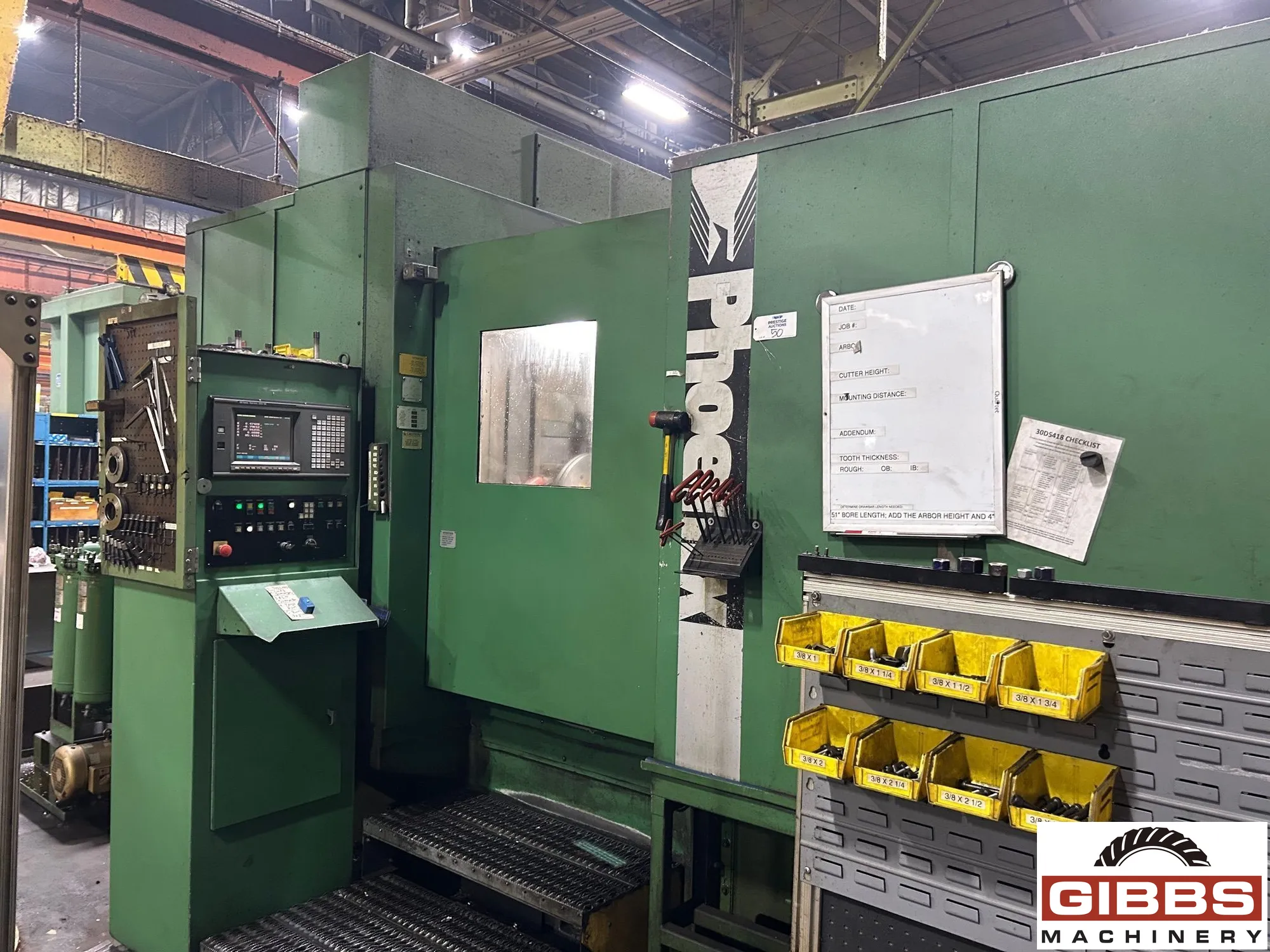

  • Fanuc 150MB Control

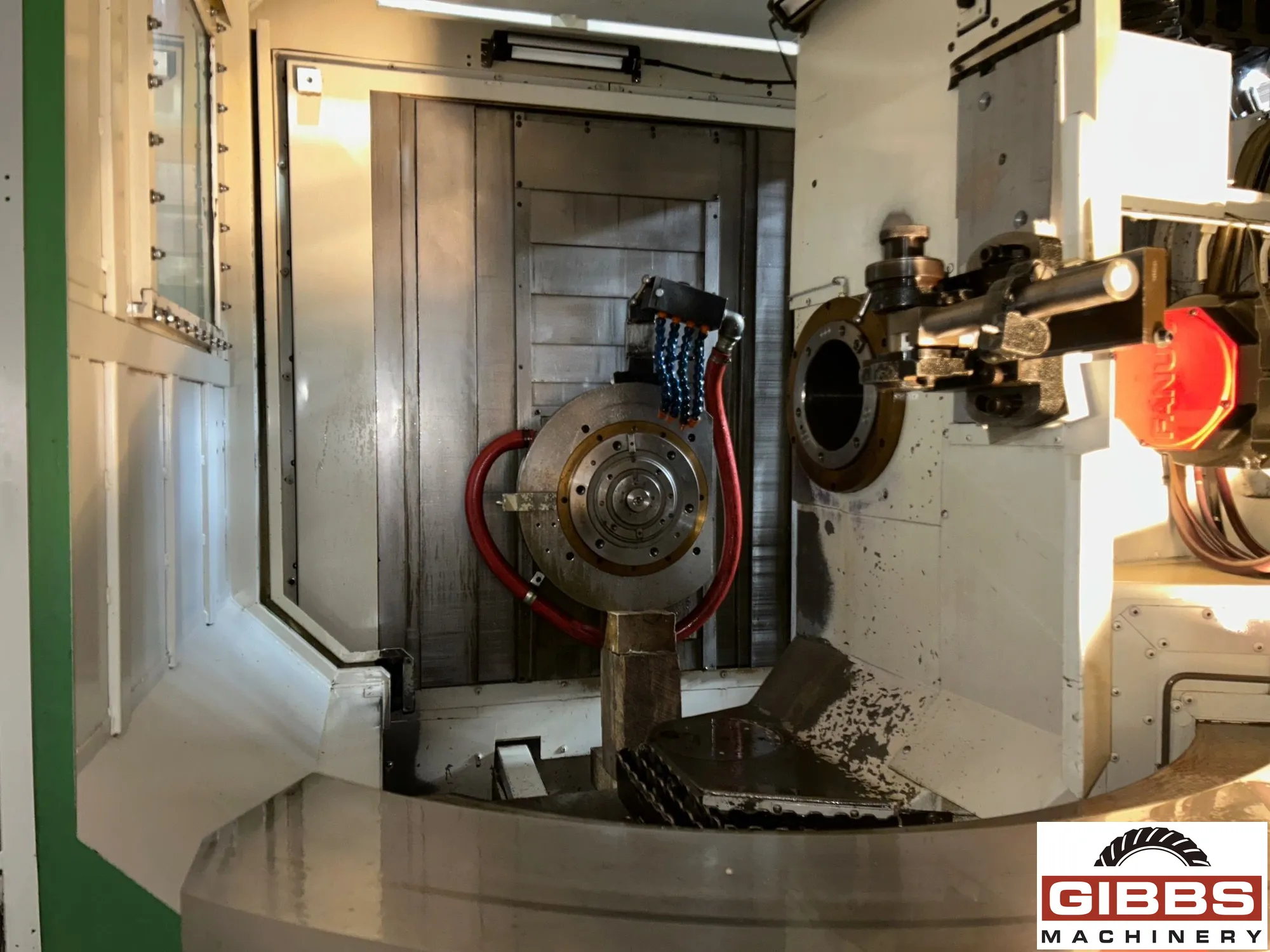

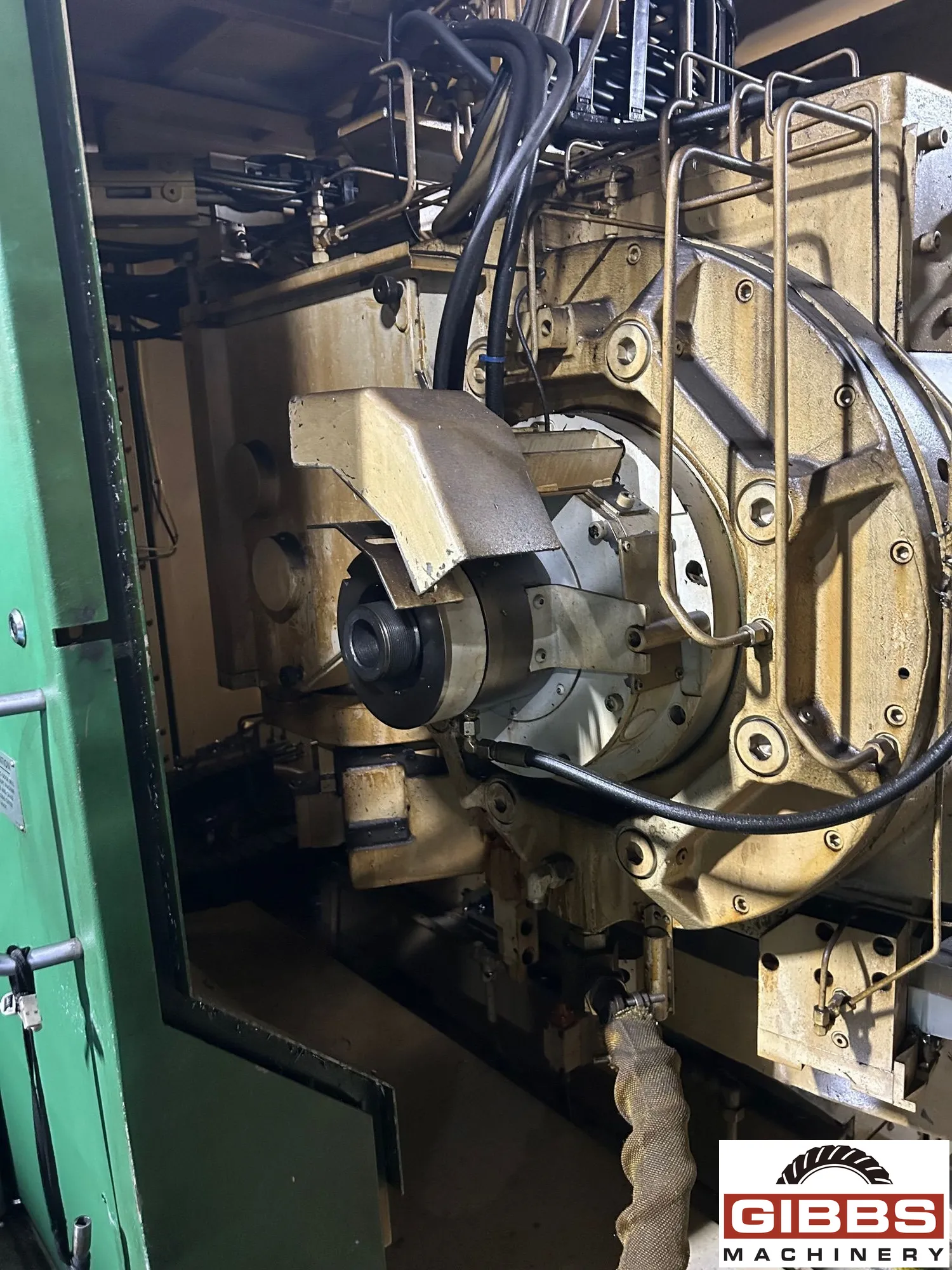

  • Hydraulic Chucking Work Spindle
  • Large Bore Work Spindle #80 Taper
  • Stock Divider
  • Helical Motion
  • Modified Roll
  • Hansen Coolant Chiller & Filtration
  • Coolant Tank & Pumps
  • Chip Conveyor
  • Chip Hopper
  • Reven Mist Collector
  • Hydraulic System
  • Transformer
  • Cutter Bolt
  • Work Light
  • Operator Platform
  • Hand Tools
  • Documentation
,

Machine Specifications :

  • Year 1996
  • Control Manufacturer Fanuc
  • Extreme Ratio 10-1
  • Maximum Face Width 6.0"
  • Maximum Diameter Gear 39.37"
  • Manufacturer GLEASON PHOENIX
  • 39.37
  • 6.0
  • 10-1
  • Fanuc
,

The Gleason Phoenix 1000HC is a CNC (Computer Numerical Control) hypoid cutting machine designed for the fast, flexible production of large-diameter bevel gears using methods such as face hobbing, face milling, and power skiving. It features a robust, reliable design with excellent chip containment, a user-friendly Fanuc control system for easy programming and operation, and capabilities for cutting various gear types, including straight and spiral bevel gears, face gears, and face clutches.

    Specifications:

  • Extreme Ratio: Face Milling: 10:1, Face Hobbing: 10:1
  • Full Depth: Maximum: Face Milling:1.25" (31.75mm), Face Hobbing: 0.93" (23.50mm)
  • Face Width: Maximum: Face Milling:6.00" (152.00mm),Face Hobbing: 3.00" (76.20mm)
  • Range of Tooth Numbers: 1-300 Inclusive
  • Gear Pitch Diameter, Maximum: 1000 mm (39.37")
  • Cutter Size, Maximum: 18" (diameter) Face Milling
  • Cutter Size, Maximum: 350 mm (radius) Face Hobbing
  • Root Angle Range (B-Axis) 5 deg.to 90 deg., Face Hobbing:5 deg. to 90 deg.
  • Machine Center to Work Spindle Face:9.00"Fixed, 229mm (Fixed)
  • A-Work Spindle: 0 to 67 RPM, 0 to 333 RPM
  • B-Swinging Base: 0 to 30 deg./sec, N/A
  • C-Cutter: 0 to 500 deg., Same
  • X-Horizontal: +/-305mm (+/-12")
  • Y-Vertical: +/-305 mm (+/-12")
  • Z-Sliding Base: -25/+700mm (-1/+28")
  • B-Root Angle: -5 Degree/+90 Degree
  • Diameter of Taper Hole at Large End: 8" (#80 Taper) to 6" (#60 Taper)
  • Taper Per Foot:3/4", Same
  • Depth of Taper Front:6", 152.40 mm
  • Depth of Bore: 678 mm (26.7")
  • Diameter of Taper Bore: 140 mm (5.5")
  • Diameter Through Spindle of Hole:7.125", 180.98 mm
  • MACHINE DIMENSIONS:
  • Length x Width:233"x 209", 5920 mm x 5310 mm
  • Height: 129", 3280 mm
  • Weight: 65,000 lbs., 29,484 kg
