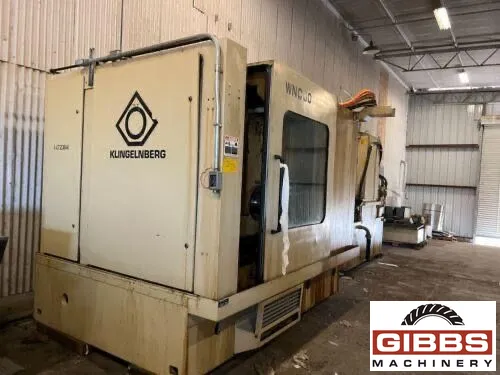

KLINGELNBERG WNC 30 - Bevel Gear Grinder

Manufacturer

KLINGELNBERG

Category

Gear Machines

Type

GEAR GRINDERS

Stock

25718

Model

WNC 30

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

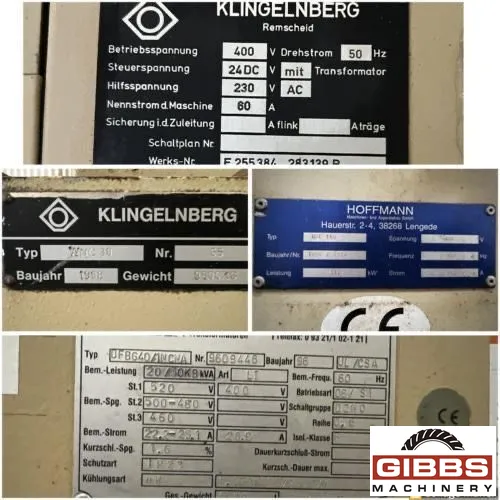

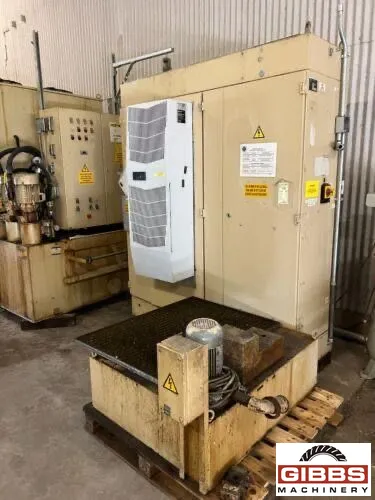

  • Type DFBG40/1NCNA Rathgeber Transformer
  • Type UBF 150 Hoffmann Filter System
,

Machine Specifications :

  • Year 1996
  • Manufacturer KLINGELNBERG
  • Module 8.0
  • Range of Tooth Numbers 5 - 360
  • Maximum Wheel Diameter 11.8"
,

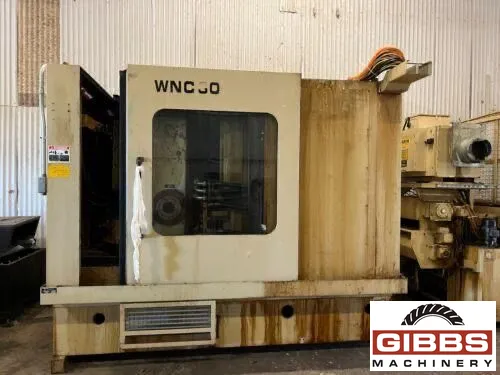

The Klingelnberg Model WNC 30 is a high-precision CNC spiral bevel gear grinding machine designed for universal soft and hard finishing of curved-toothed bevel gears and face clutches. It accommodates workpieces up to 300--410 mm in diameter, modules from 1 to 8 mm, and tooth counts ranging from 5 to 360

    Specifications:

  • Maximum Wheel Diameter: 300 (410) mm
  • Biggest Tooth Width: 50 mm
  • Module: 1-8 mm
  • Number of Teeth: 5-360
  • Hypoid Offset: +/- 50 mm
  • Number of Spindles: 2
  • Machine Weight Ca.: 12,500 kg
  • Dimensions (L x W x H): 6840 x 3510 x 2590 mm
