FELLOWS FS180 - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

12118

Model

FS180

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 15M Control
  • Hydrostatic Guide
  • Manual Pulse Generator
  • Cutter Spindle Backoff
  • Programmable Multi-Surface Cutting Capability
  • Lubrication System
  • Inch/Meter
  • Coolant System w/Chip Conveyor
  • Programmable Tool and Work Offsets
  • Hydraulic System
  • 100 Part Programs
  • High Intensity Work Lamp
  • Spur Guide
  • Automotive Loader
,

Machine Specifications :

  • Year 1993
  • Manufacturer FELLOWS
  • Control Manufacturer Fanuc
  • Cutter Spindle Diameter 6.0"
  • Stroke 1.5"
  • Diametral Pitch 7.0"
  • Maximum Internal Gear Diameter 7.0"
  • Maximum Workpiece Diameter 7.0"
,

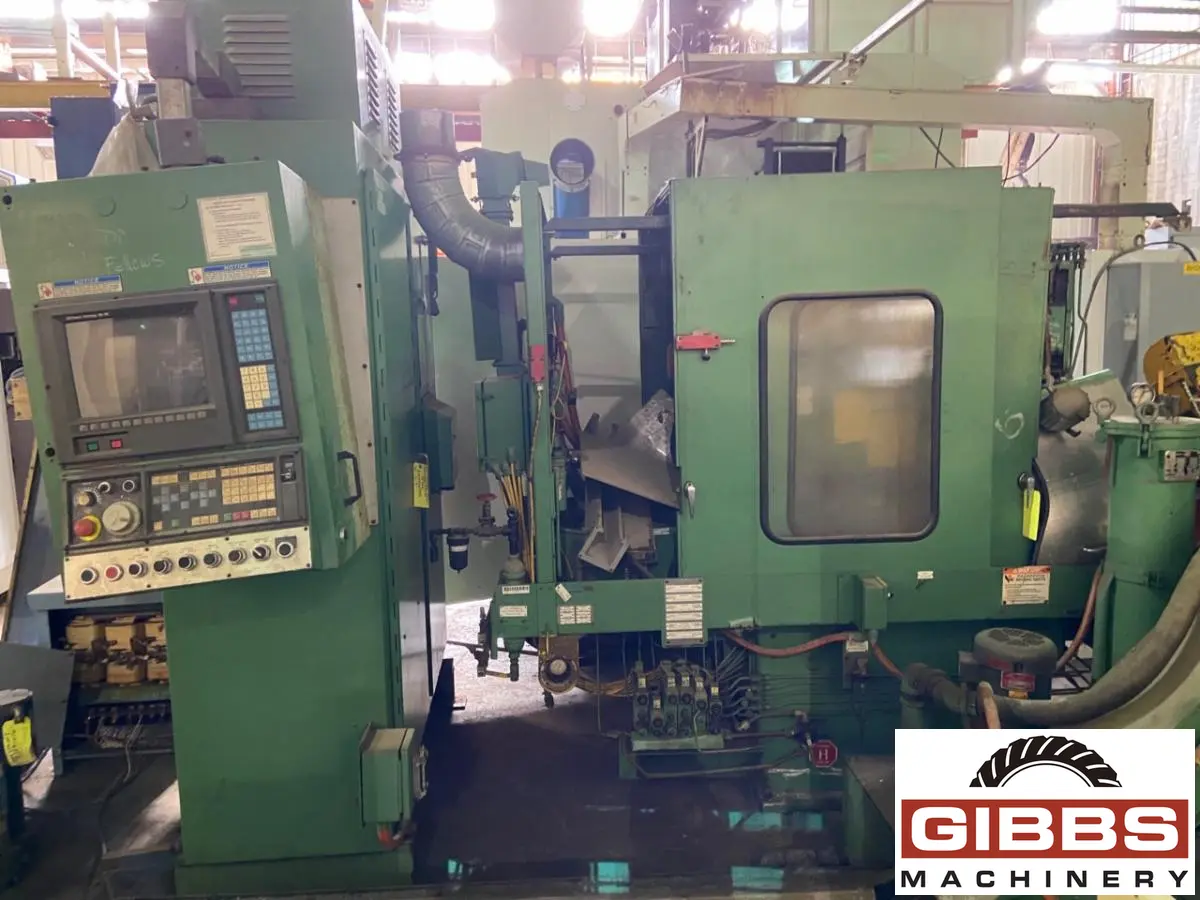

FS180 FELLOWS CNC GEAR SHAPER, 1993

    Specifications:

  • Max. OD, External: 180mm, 7"
  • Max. Pitch Diameter Internal: 180mm, 7"
  • Max. Diameter Pitch: 4mod, 6.3
  • Max. Face Width: 32mm, 1.250"
  • Max. Stroking Speed in Actual Production: 1700SPM, 1700SPM
  • Max. Stroke Length: 38mm, 1.50"
  • Max. Helix Angle: 45 Deg., 45 Deg.
  • Max. Center Distance: +160mm, +6.3"
  • Min. Center Distance: -70mm, -2.76"
  • Max. Cutter Dia.: 152mm, 6"
  • Max. Overall Length: 94"
  • Max. Overall Height: 103"
  • Max. Overall Depth: 80"
  • Net Weight With Motors: 3,860kg, 8,500 lbs
  • Control and Power Unit
