HUFFMAN HS134 - Gear Cutter Sharpener

Manufacturer

HUFFMAN

Category

Broaches

Type

BROACH SHARPENERS

Stock

11758

Model

HS134

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc 15m
  • Heidenhein Scales
  • Volkman Controls
  • Headstock W/Center
  • Tailstock W/Center
  • Steady Rest
  • 7-1/2 HP Grinding Wheel Motor
  • Borazon Grinding Wheels
  • Automatic Lubrication
  • Coolant System That Delivers Up To 20 GPM at 80 PSI W/Refrigeration
  • Full Enclosure
  • Worklight
  • Operator's Manual
,

Machine Specifications :

  • Year 1993
  • Manufacturer HUFFMAN
  • Control Manufacturer Fanuc
  • Grinding Wheel Diameter 0.0"
  • Wheel Spindle Speed 0 RPM
  • Swing Over Ways 18.0"
  • Maximum Broach Diameter 8.0"
  • Maximum Center Distance 96.0"
,

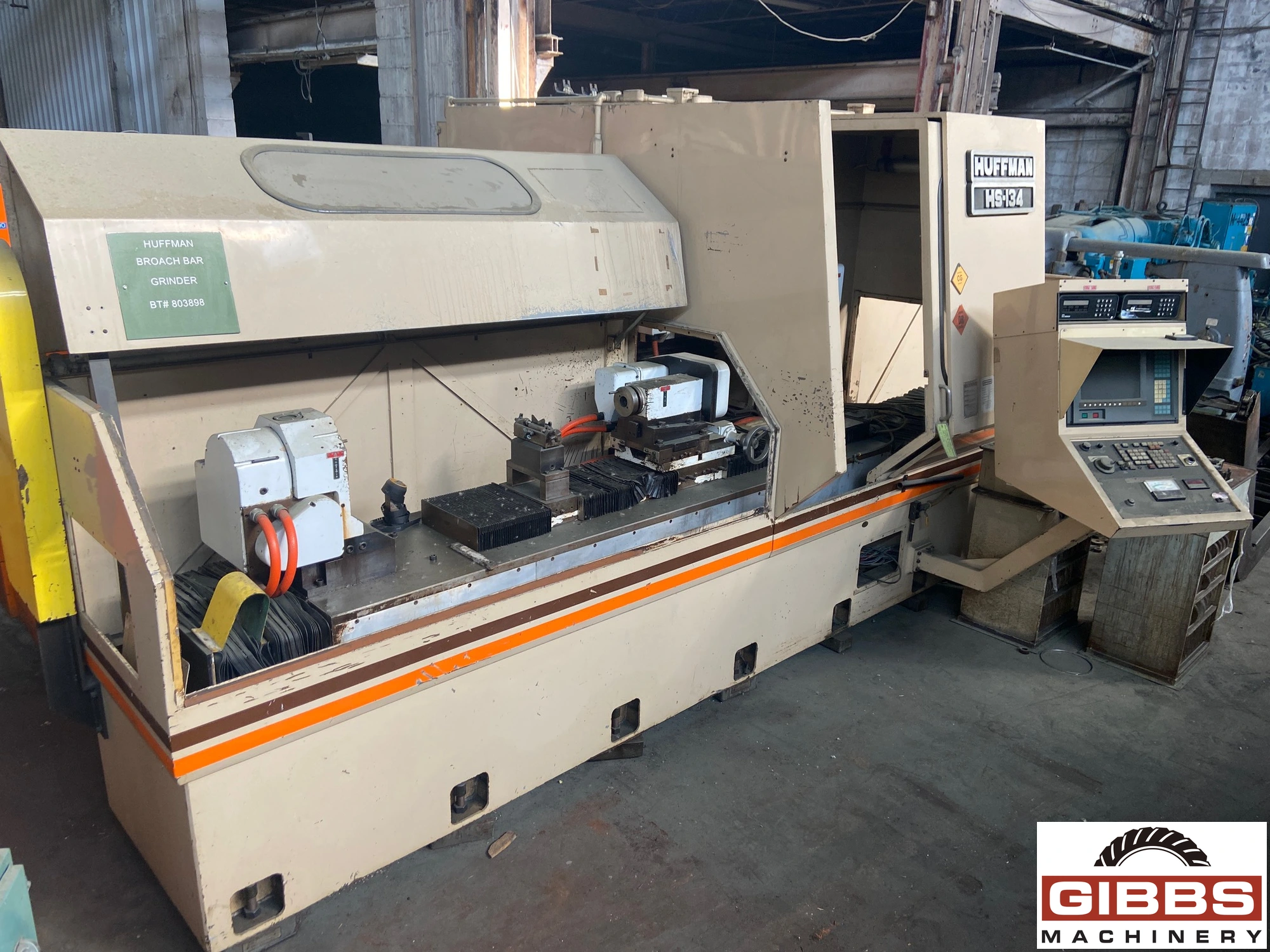

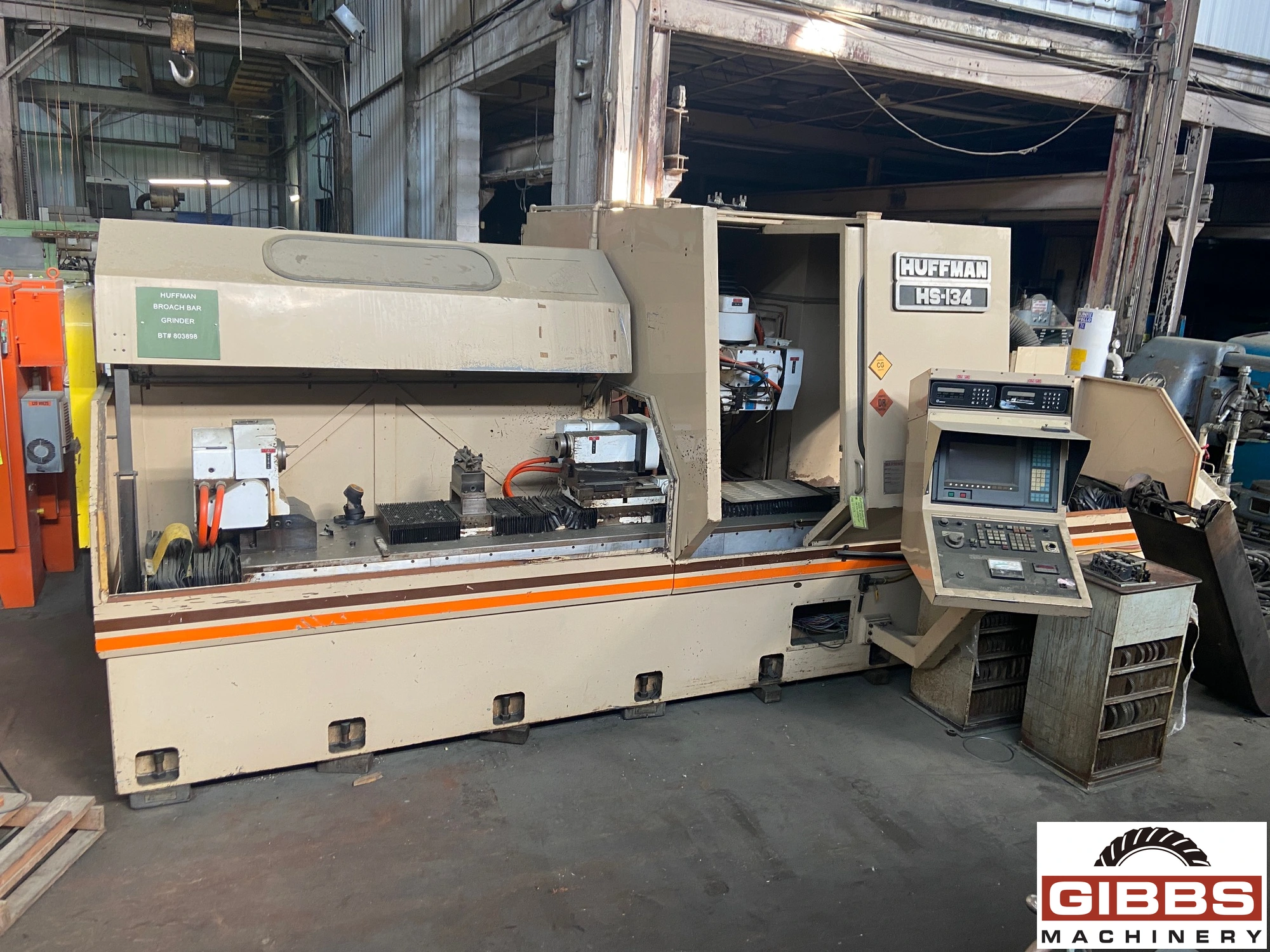

HUFFMAN MODEL HS134 CNC BROACH SHARPENER

    EQUIPPED WITH:

  • Fanuc 15m
  • Heidenhein Scales
  • Volkman Controls

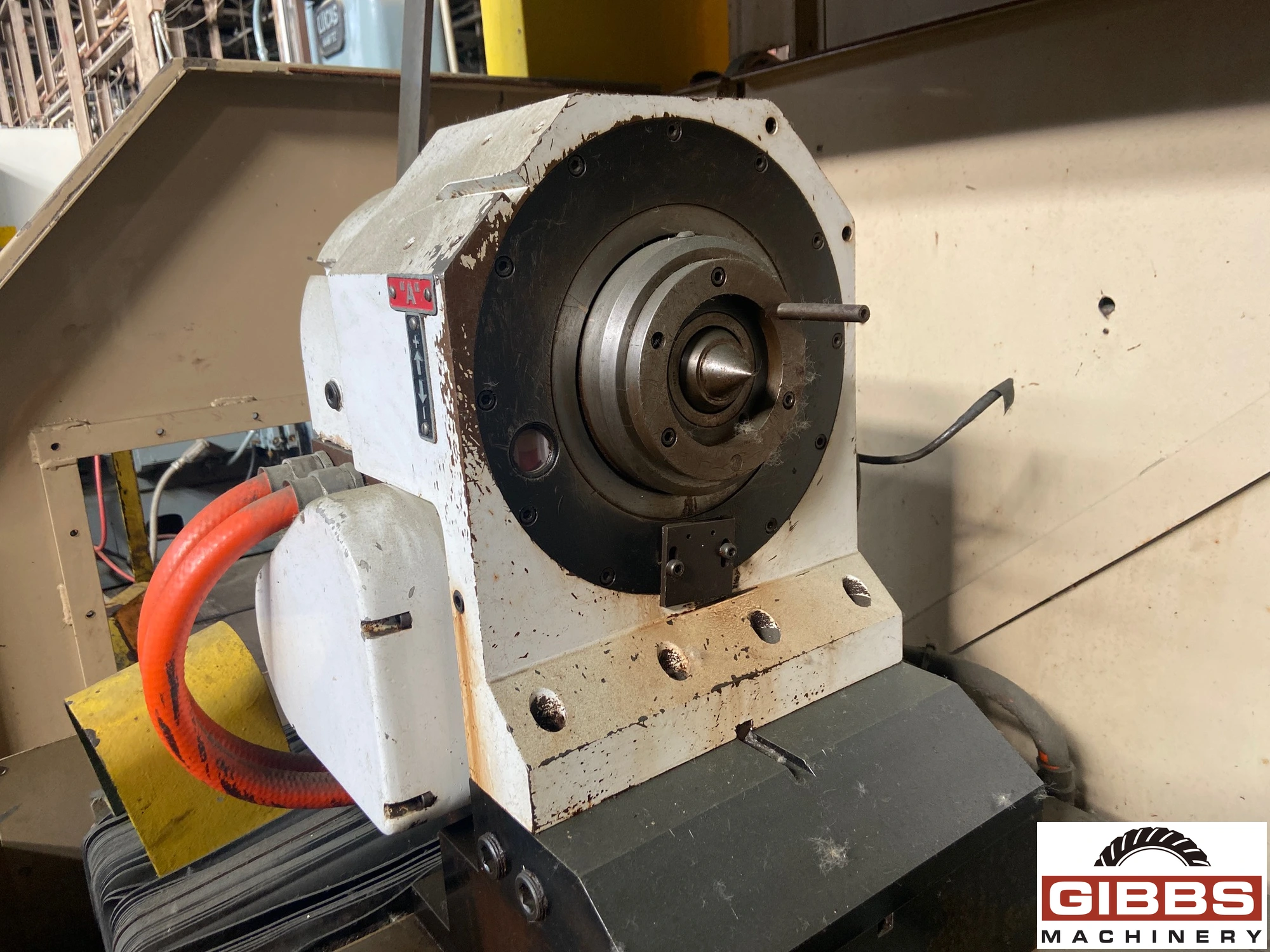

  • Headstock W/Center
  • Tailstock W/Center
  • Steady Rest
  • 7-1/2 HP Grinding Wheel Motor
  • Borazon Grinding Wheels
  • Automatic Lubrication
  • Coolant System That Delivers Up To 20 GPM at 80 PSI W/Refrigeration
  • Full Enclosure
  • Worklight
  • Operator's Manual
  • SPECIFICATIONS:
  • Max. Diameter: 8"
  • Max. Center Distance: 96"
  • Max. Travel: 72"
  • Swing over Ways: 18"
  • Z - Axis: 18"
  • Y - Axis: 18"
  • B - Rotary Axis: +90 Deg
  • C - Rotary Axis: +/- 30 Deg.
  • A,W Rotary Axis: 360 Deg. Rollover
  • Wheel Spindle Range: 4500-18000 rpm
  • Wheel Diameter: 2"- 8", 51mm - 102mm
  • WheelHead: 7 1/2 hp
  • All Linear Axis: 0-200"/Min.
  • A - Rotary Axis: 20,000 Deg./Min.
  • W - Rotary Axis: 54,000
  • Weight: 32,000 lbs
  • F11 TRUCK WARREN
