NATIONAL BROACH GFF - Gear Shavers & Hone

Manufacturer

NATIONAL BROACH

Category

Gear Machines

Type

GEAR SHAVERS (Including CNC)

Stock

16441

Model

GFF

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • 9" Cutter Head
  • Power Stocks
  • Crowning
  • Variable Feed/Speed Cutter Head
  • Heidenhein Scales
  • RS232 Serial Port
  • Auto Loader
  • Coolant W/Magnetic Chip Separator
  • AC Servo Motors
  • Trabon Lube
  • Full Splash Guards
  • Stack Light
  • Manuals
,

Machine Specifications :

  • Year 1993
  • Manufacturer NATIONAL BROACH
,

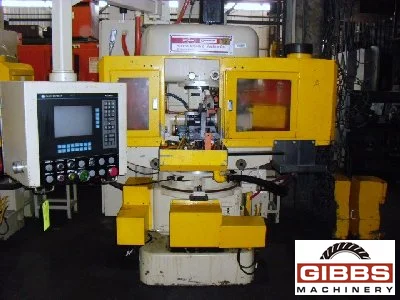

MODEL No. GFF NATIONAL BROACH GEAR SHAVER WITH SERVO DRIVES

    Specifications:

  • Work Gear Pitch Diameter 9" & 12" Cutter Head: 1-12", 1-8"
  • Work Gear Max. O.D. 9" & 12" Cutter Head: 12 1/2", 8 1/2"
  • Diameter Pitch Range: 4-20
  • Distance Between Centers: 23"
  • Cutter RPM 9" & 12" Cutter Head: 50-500, 50-400
  • Max. Table Travel Conventional, Tangential, Diagonal: 5", 2" 5"-2"
  • Diagonal Traverse Angle Straight Shaving: 0 Deg - 90 Deg.
  • Traverse Angle Crown Shaving: 45 Deg. Max. Approx.
  • Max. Table Angle Crowning: 5 deg.
  • Max. Table Angle Taper: 1 Deg 30'
  • Max. Cutter Head Crossed Axes Angle Left & Right: 25 deg.
  • Table Cross Feed Inches Per Minute: .5-35
  • Table Up-Down Feed Inches Per Minute: .004-12.5
  • Table Up-Down Travel: 8 1/8"
  • Approx. Weight: 9600 lbs
  • ** Machine available "as is" for $18,500 **
  • FOB TRUCK: WARREN, MI

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
