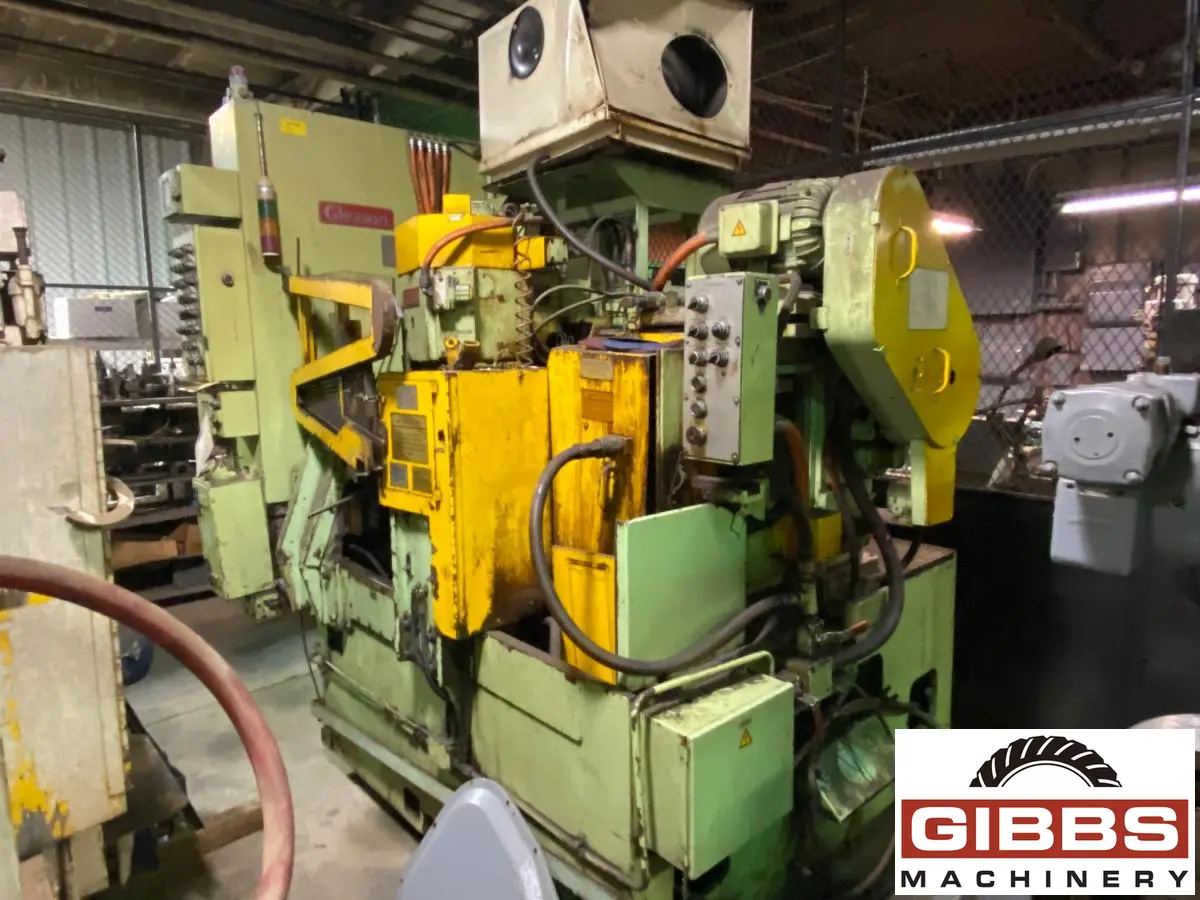

GLEASON 726 REVACYCLE - Straight Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, STRAIGHT

Stock

7832

Model

726 REVACYCLE

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Multiple Cutter Bodies
  • Blades
  • Auto Lube
  • Coolant System
  • Motor and Push Button Controls
,

Machine Specifications :

  • Year 1982
  • Manufacturer GLEASON
  • Diametral Pitch 152.0
  • Maximum Face Width 1.1"
,

The Gleason 726 Straight Bevel REV ACY CLE® Machine is designed for high speed cutting of a wide variety of different ratios and quantities. It cuts straight bevel gears up to 6 Inch pitch diameter and 1 1/8 face width. This versatile machine either completes gears in one cut from the solid blank or roughs and finishes extra depth parts in separate operations. Manual loading is standard but automatic loading is available to increase productivity.

    EQUIPPED WITH:

  • Multiple Cutter Bodies
  • Blades
  • Auto Lube
  • Coolant System
  • Motor and Push Button Controls
  • SPECIFICATIONS:
  • Pitch Diameter- Manual: 152mm
  • Face Width At Root-21 Inch Cutters: 28mm
  • Index Range: 8-50
  • Work Spindle:
  • Diameter Of Tapered Hole At Large End: 99.22mm
  • Taper Per Foot: 15.48mm
  • Depth Of Taper: 15.8mm
  • Counterbore Behind Taper: 57.2 X 77.9 mm
  • Diameter Of Hole Through Spindle: 22.3mm
  • Feeds And Speeds:
  • Cutter Speeds 21 Inch Cutters: 107-163 FT/Min.
  • Feeds 21 Inch Cutters: 2.0-3.1 Sec/Tool
  • Main Drive Motor-10HP: 1800 RPM
  • Hydraulic Motor-7.5HP: 1800 RPM
  • Machine Dimensions L X W Automatic: 3.2 X 2.26m
  • Machine Weight Manual/Automatic: 7484/8664 KG

No Video Available
