NATIONAL BROACH GCX - Gear Shavers & Hone

Manufacturer

NATIONAL BROACH

Category

Gear Machines

Type

GEAR SHAVERS (Including CNC)

Stock

15311

Model

GCX

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • 12" Cutter Head
  • Crowning
  • (1) 3 HP, 1800 RPM Work Drive Motor
  • Adjustable Approximate Work Locators
  • "V" Steadyrest For Supporting Shaft
  • Long Machine Table In Place Of Standard
  • Headstock w/Center
  • Power Tailstock w/Center
  • Taper Attachment
  • Set Up of Change Gears
  • Magnetic Chip Separators
  • Trabon Auto Lube
  • Worklight
,

Machine Specifications :

  • Year 1980
  • Manufacturer NATIONAL BROACH
  • Stroke 10.0"
  • Diametral Pitch 0.0
,

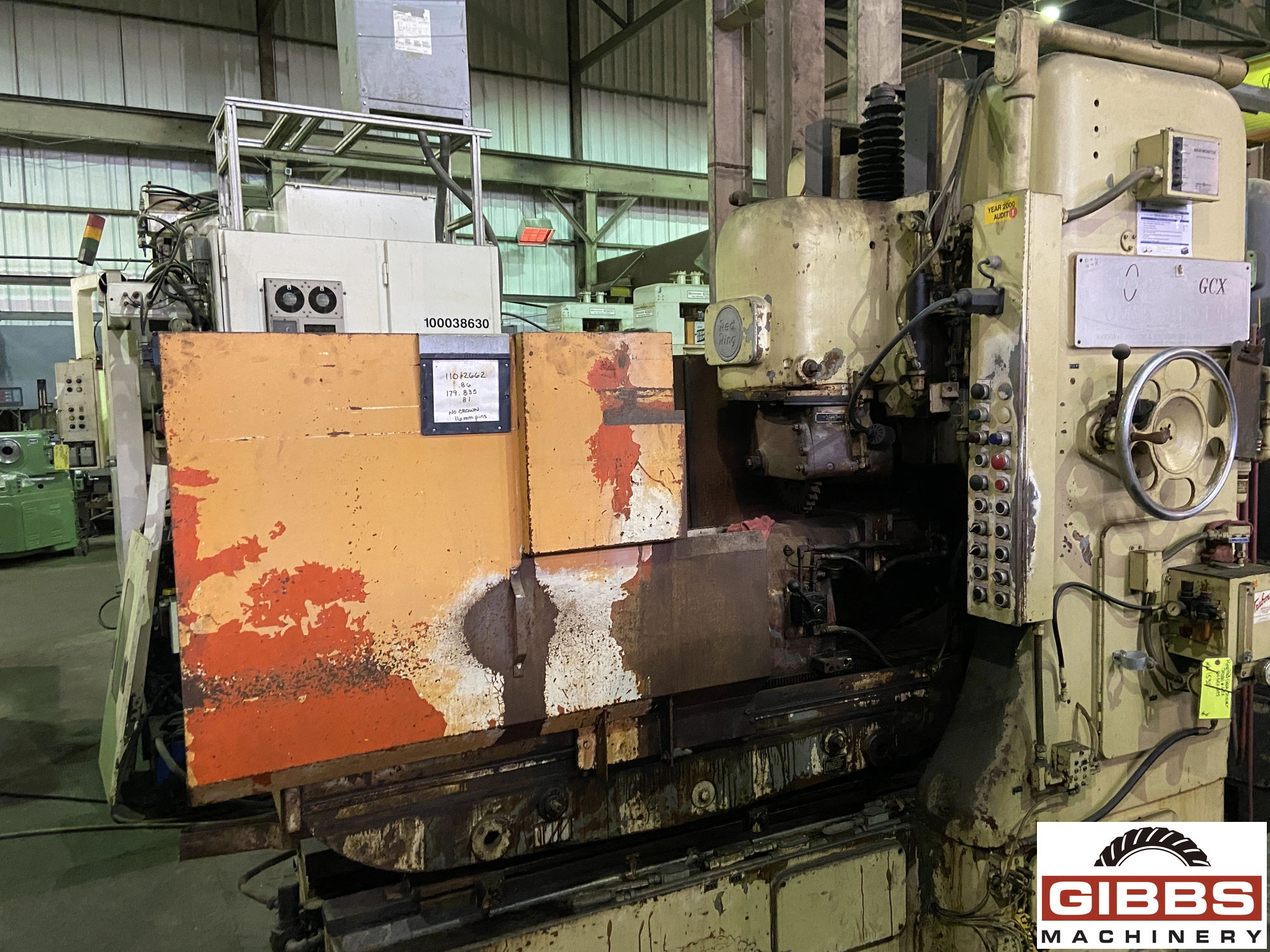

MODEL No. GCX 24" NATIONAL BROACH RED RING GEAR SHAVER

    Specifications:

  • Pitch Diameter (25 1/2" Max O.D.): 3" - 24"
  • Diametral Pitch: 2" - 16"
  • Length Between Centers (Plus 3" For Retraction): 33 1/2" Max.,
  • 15"L, 18 1/2" R
  • Table Stroke W/Crowning: 8"
  • Table Stroke W/Crowning: 10"
  • Table Travel For Loading: 20"
  • Cutter Size (14 1/2" Max. O.D. Of Cutter): 12"
  • Center Of cutter To Center Of Work: 5 1/16" - 19 1/2"
  • Dimensions: 10' x 6' x 10'
  • Weight: 15,800 lbs
  • F.O.B., TRUCK, WARREN, MI
