U.S. 50TX120VPD - Broache

Manufacturer

U.S.

Category

Broaches

Type

BROACHES, VERTICAL, PULL DOWN

Stock

24110

Model

50TX120VPD

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Retriever
  • Puller

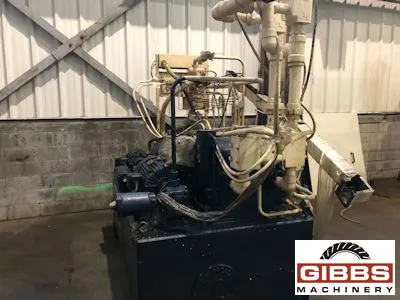

  • Hydraulic System
  • Coolant System
  • Chiller
  • Chip Conveyor
  • Manuals
,

Machine Specifications :

  • Year 1978
  • Manufacturer U.S.
  • Stroke 120.0"
  • Tonnage 50.0
,

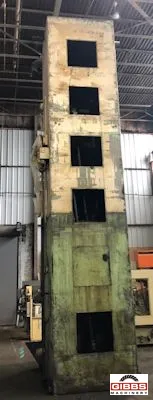

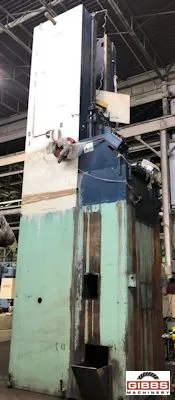

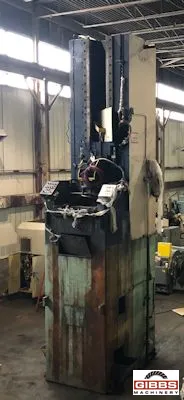

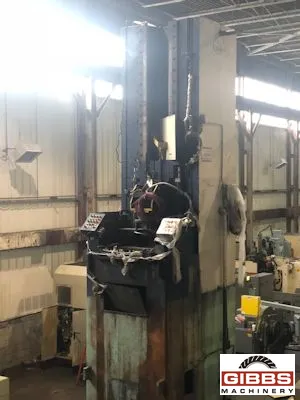

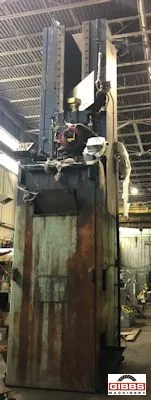

U.S. MODEL 50TX120 VERTICAL PULL DOWN BROACH

    Specifications:

  • Normal Broaching Capacity: 100,000 Lbs @ 922 PSI
  • Peak Force Capacity: 133,600 Lbs @ 1350 PSI
  • Main Slide Stroke (Bump Inches): 106
  • Maximum Cutting Speed: 20 Ft/Min.
  • Maximum Return Speed: 40 Ft/Min.
  • Main Pump Motor: 75 HP @ 900 RPM
  • Hydraulic Reservoir: 365 Gallons
  • Handling Pump Motor: 10 HP @ 1200 RPM
  • Coolant Pump Motor: 1.5 HP @ 1800 RPM
  • Coolant Pump Capacity: 100 Gallons / Min @ 23 Head Ft.
  • Coolant Reservoir Capacity: 600 Gallons Approx.
  • Floor Space ( Width x Depth x Height): 65" x 96" x 243"
  • Net Weight, Approximate: 79,000 #
