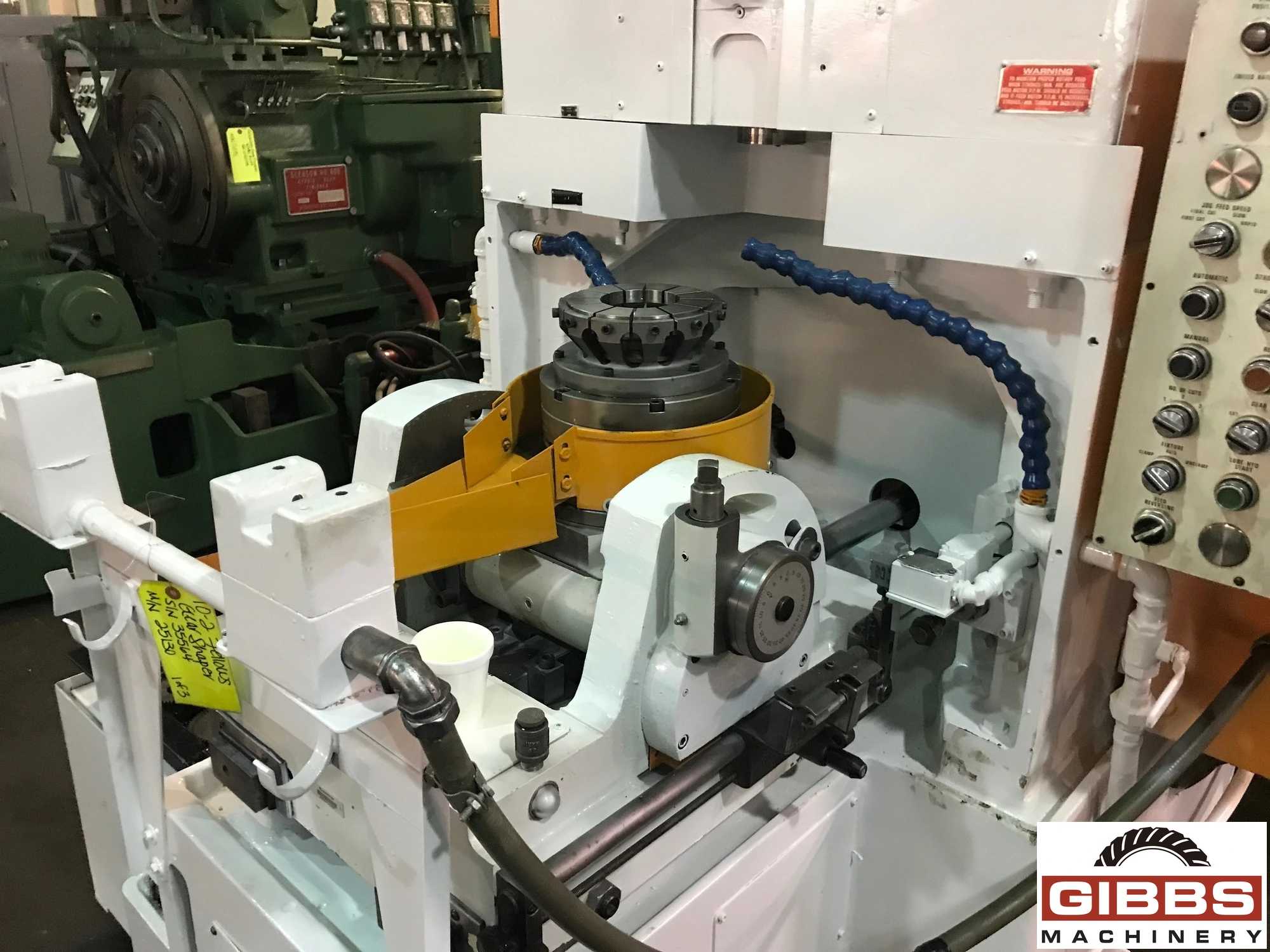

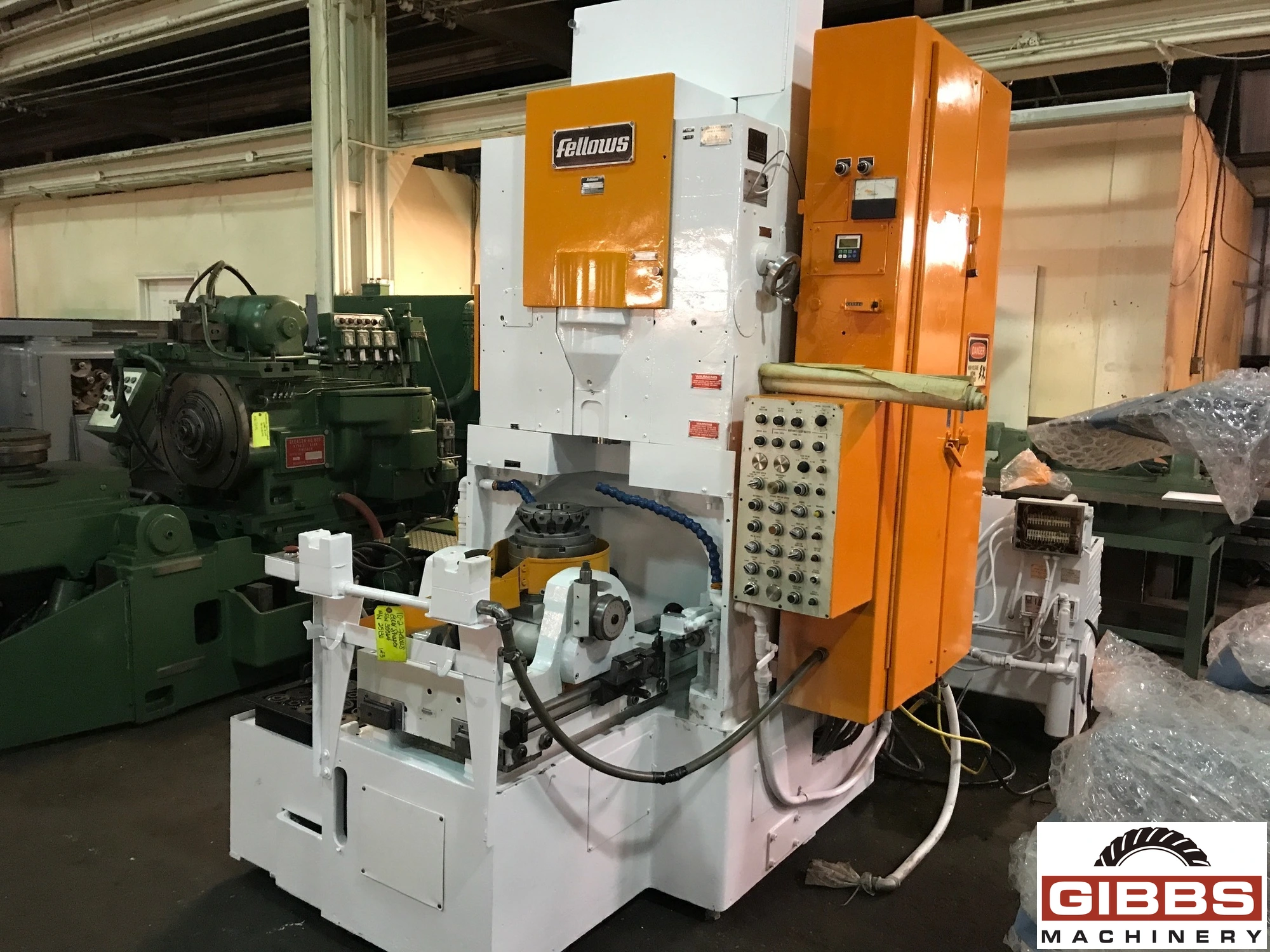

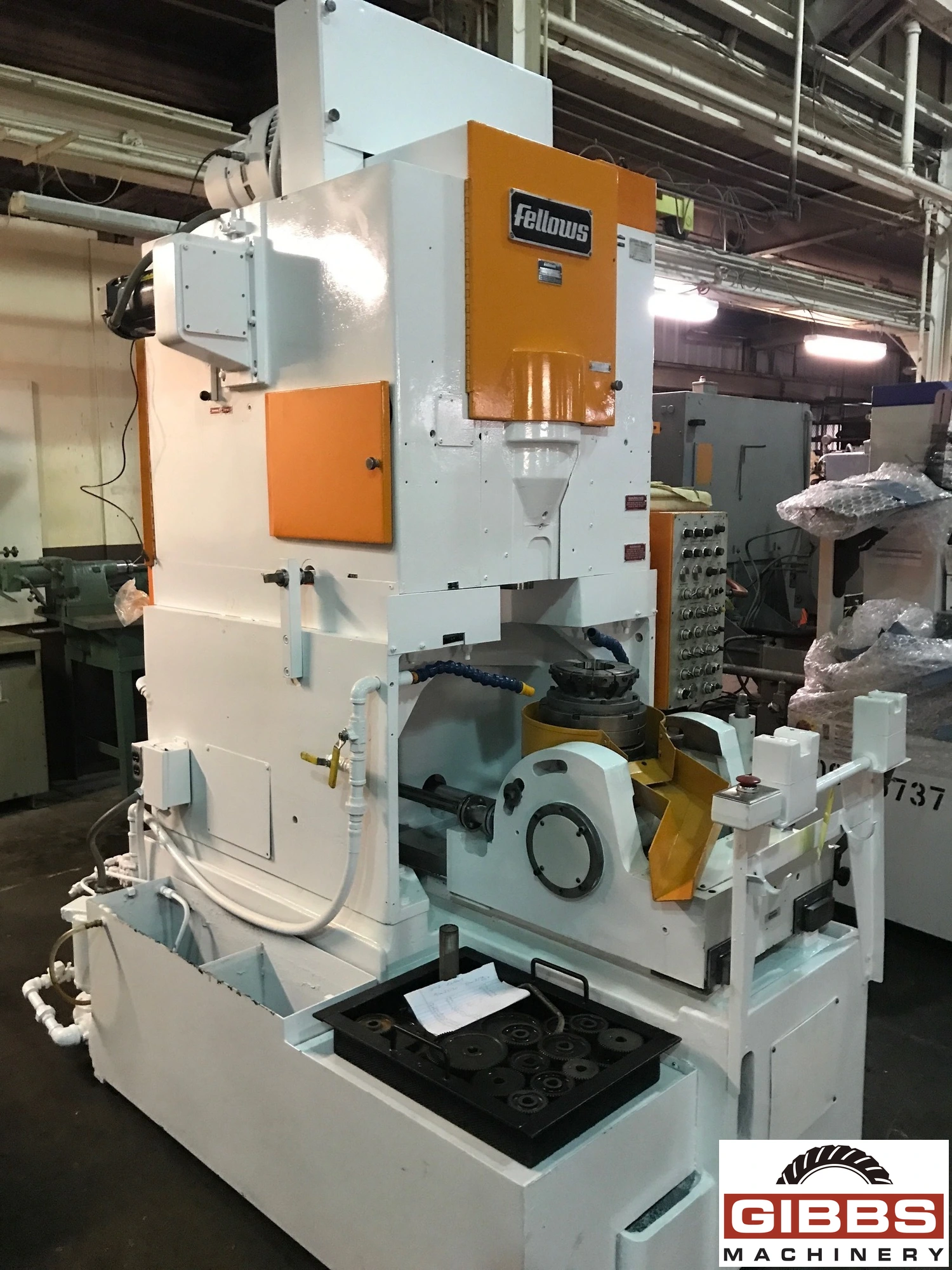

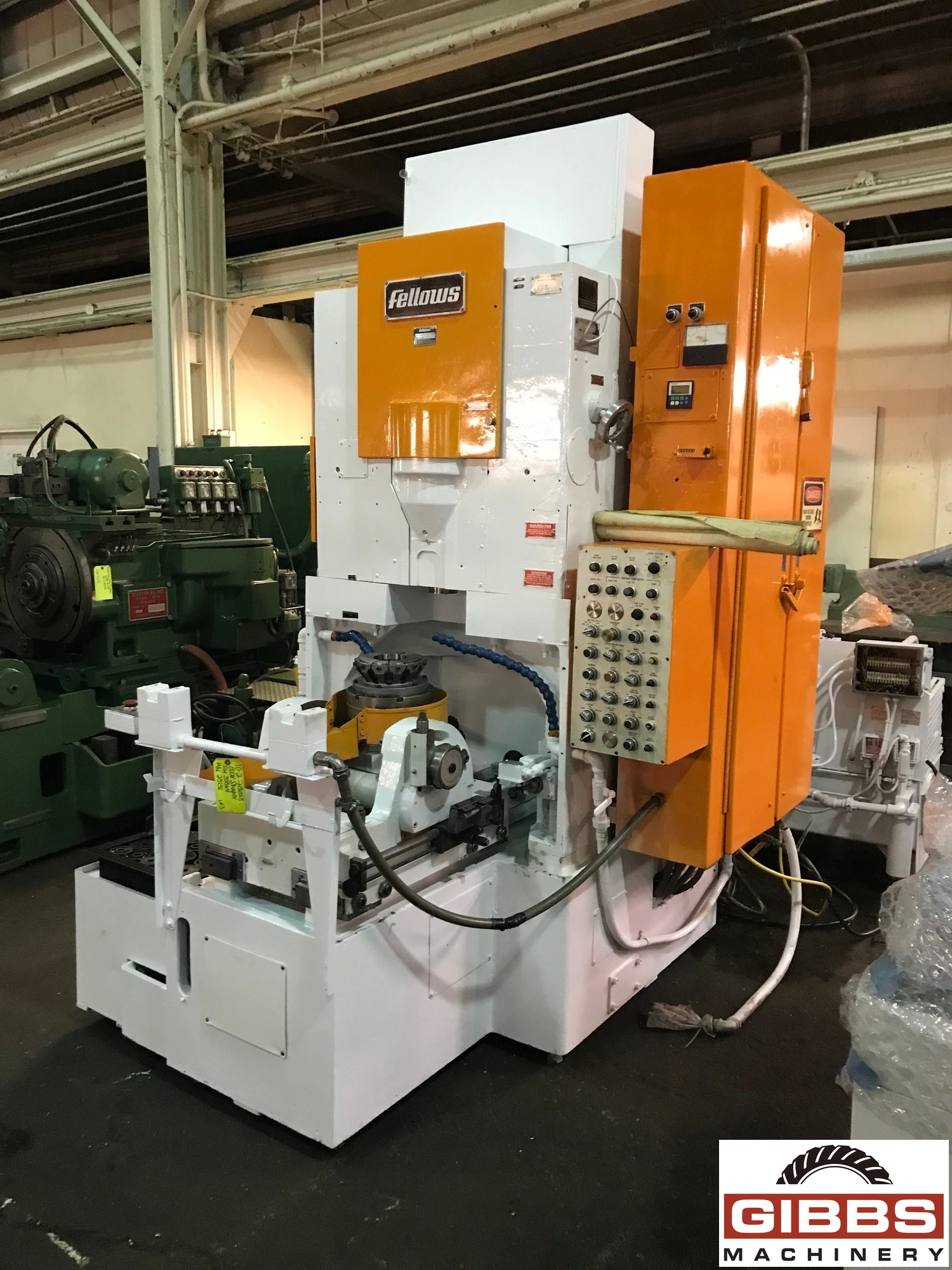

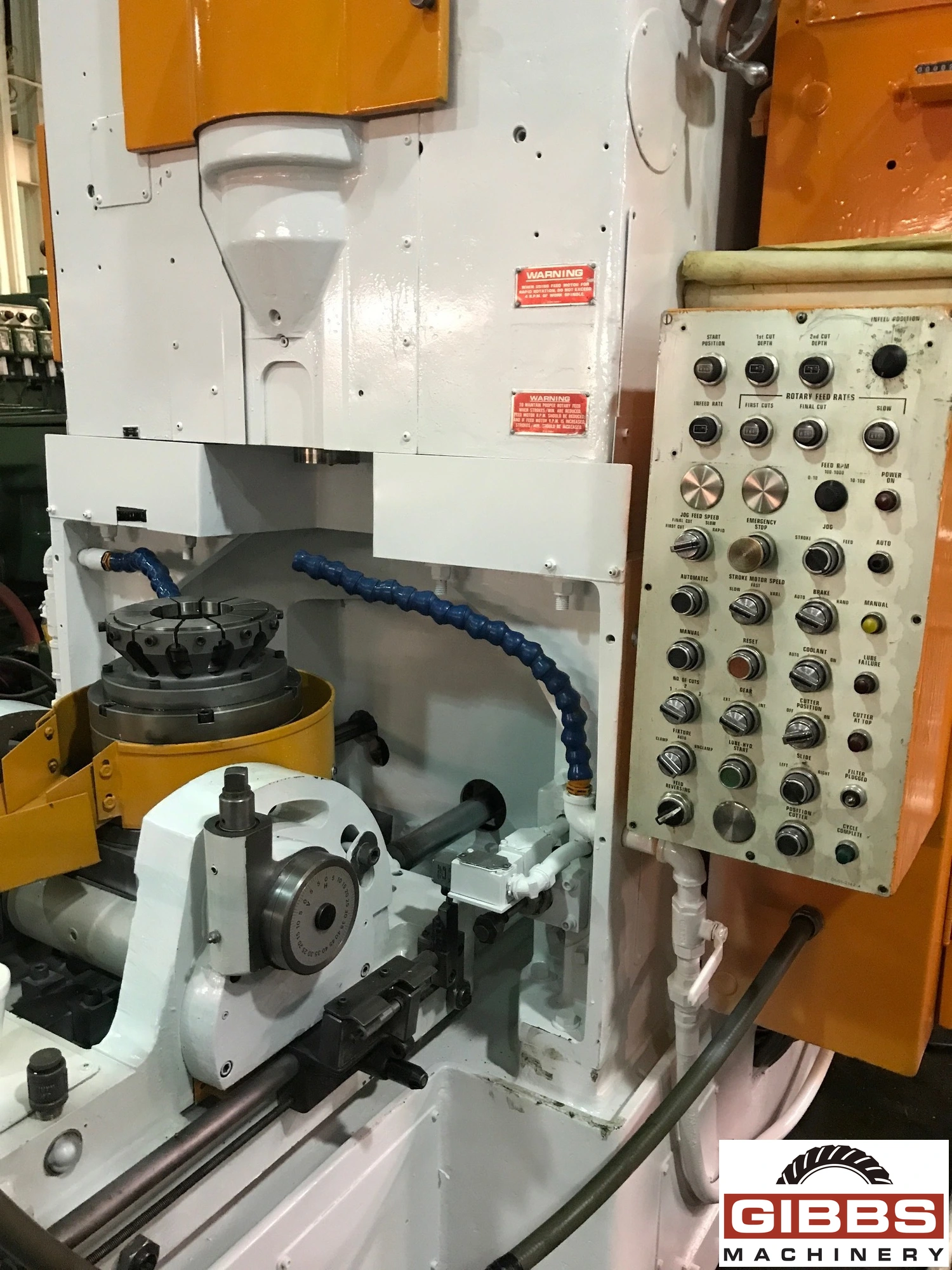

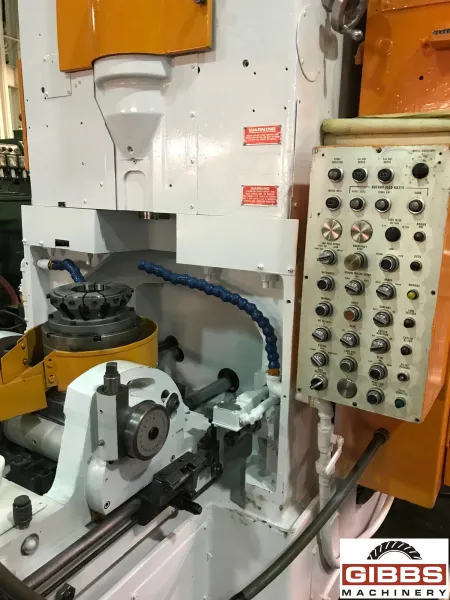

FELLOWS 10-2 - Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

GEAR SHAPERS

Stock

25130

Model

2-Oct

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Tilt Table
  • 3-Cut Cycle
  • Cutter Positioning
  • Coolant System
  • Fixture Clamping
  • Lube
  • Auto Cycle
  • Change Gears
  • Hydraulic System
  • Heat Exchanger
,

Machine Specifications :

  • Year 1978
  • Diametral Pitch 4.0
  • Maximum Internal Gear Diameter 10.0"
  • Manufacturer FELLOWS
  • Maximum External Gear Diameter 10.0"
  • Guide Spur
  • Stroke 2.0"
  • Control Manufacturer Conventional
,

    Specifications:

  • Strokes per Minute: 33 - 1300
  • Maximum Pitch Diameter (External): 10"
  • Maximum Pitch Diameter (Internal): 10"
  • Maximum Diametral Pitch (Spur): 4
  • Maximum Diametral Pitch (Helical): 5
  • Maximum Face Width 10-2: 2"
  • Maximum Helix Angle (Using 5" Cutter): 45 Deg
  • Maximum Overall Length: 118-7/8"
  • Maximum Overall Height (Zero Raise): 96-1/2
  • Maximum Overall Depth: 53"
  • Net Weight With Motors: 11,000 lbs
