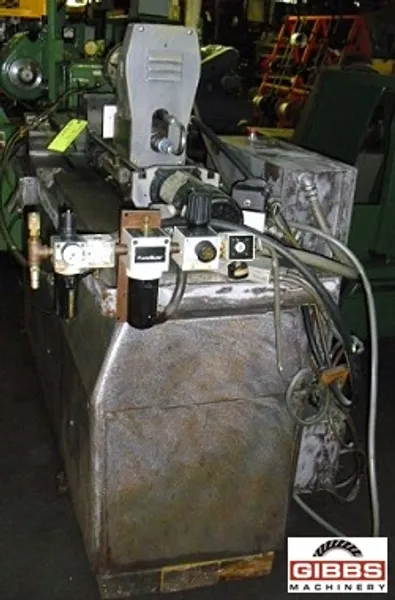

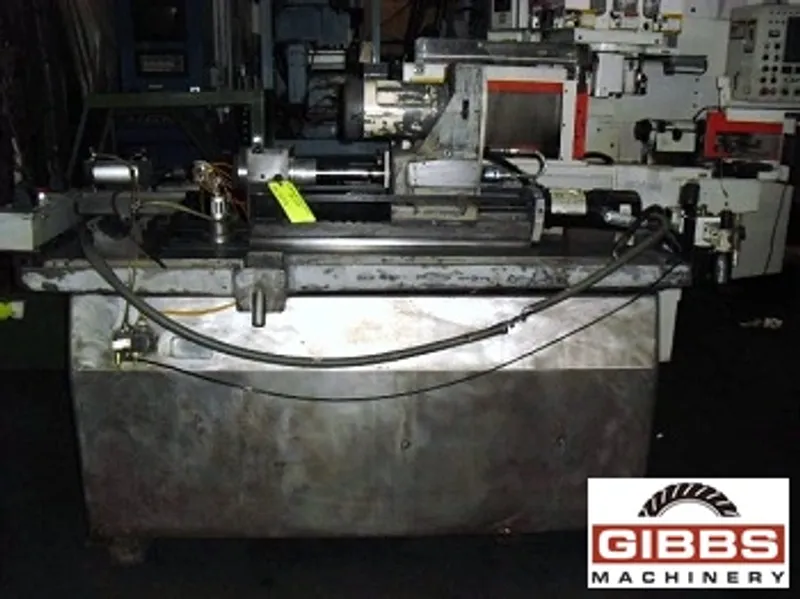

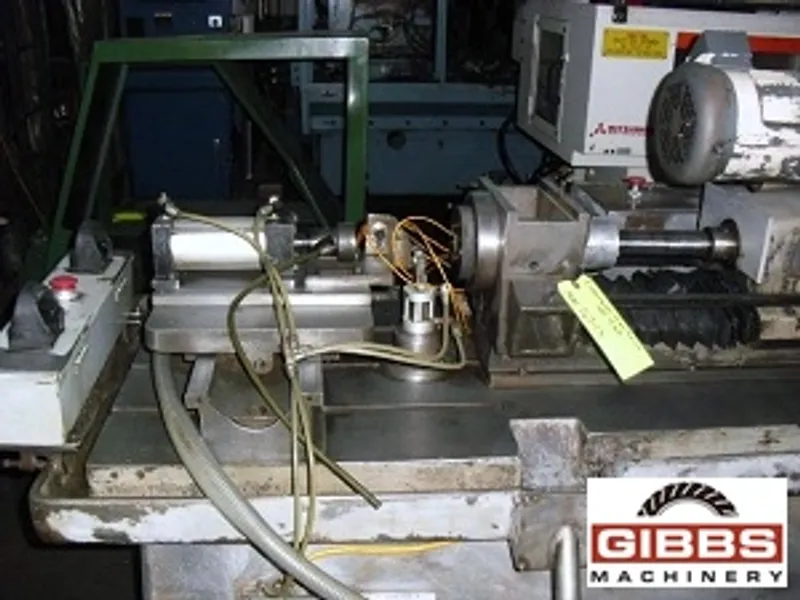

ELDORADO MEGA M50-1032 - Gun Drill

Manufacturer

ELDORADO

Category

Drilling Machines

Type

DRILLS, GUN

Stock

16743

Model

MEGA M50-1032

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • T-Slot Table 18" x 70"+
  • T-Slot Pallet 12" x 14"
  • Mega Flow High Pressure Coolant System
  • High Pressure Pump 10hp
  • 3 HP Drill Drive Motor
  • 1/2 HPD Feed (Ball Screw Drive) Motor
  • Coolant Pump
  • Fan Motor for Cooling
  • 2 Filters
  • Part Counter And Tool Counter
  • Cabinet Enclosure - 36" x 70"
  • 208/230 460 Electrics
,

Machine Specifications :

  • Year 1976
  • Manufacturer ELDORADO
  • # Spindles 1.0
  • Max Drilling Depth 15.0"
  • Max Dia. Hole Drilled 0.75"
  • Capacity 34.0"
,

ELDORADO MEGA M50-1032 GUN DRILL

    Specifications:

  • Drilling Capacity: .055"-3/4"
  • Maximum Swing: 16"
  • Maximum Depth Drilled: 15"
  • Maximum Drill Speed: 11
  • Center Line of Spindle to Top of Table: 8"
  • Spindle Travel, Ball Screw Feed: 18 1/2"
  • Maximum Diameter Drill: 3/4" Mild Steel
  • Maximum Drill: 1" Aluminum or Equal
  • Floor Space: 41" x 83"
  • Approximate Weight: 5,000 lbs
  • FOB: Loaded On Truck
