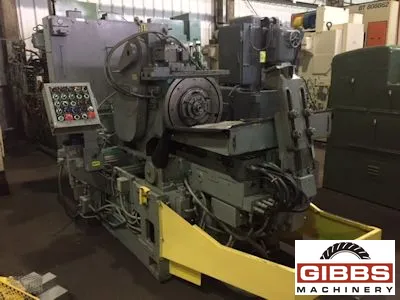

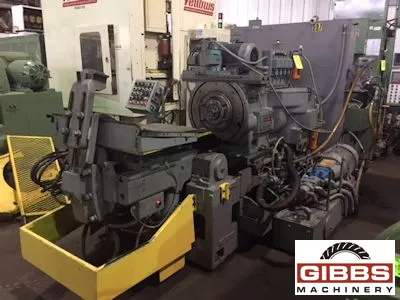

GLEASON 608 - Spiral Bevel Gear Generator

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

24128

Model

608

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Hydraulic Work Clamping
  • Chip Conveyor

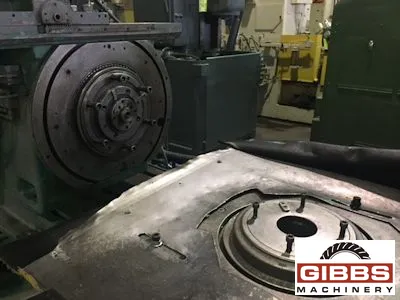

  • Cutter Clamping Bolt
  • Index Plate
  • Change Gears
  • Hydraulic System
  • Coolant System
,

Machine Specifications :

  • Year 1974
  • Manufacturer GLEASON
  • Maximum Cone Distance 10.0"
  • Maximum Face Width 3.0"
  • Maximum Diameter Gear 20.0"
  • Control Manufacturer Conventional
,

GLEASON 608 SPIRAL BEVEL GEAR ROUGHER

    Specifications:

  • Minimum Outside Cone Distance: 2.75"
  • Maximum Cone Distance: 10"
  • Maximum Gear Pitch Dia.: 20"
  • Cutter Diameters Utilized: 9 - 18"
  • Root Angle: 55 - 80 Deg.
  • Face Width: 3"
  • Number of Teeth: 20 -75
  • Diameter of Taper Hole at Large End: 3-27/64"
  • Taper Per Foot: .50"
  • Depth of Taper: .625"
  • Cutter Speeds: 15.6 to 87.7 RPM
  • Feeds (seconds/tooth): 5 to 34.3
  • Main Motor: 10hp, 1800 rpm
  • Hydraulic Motor: 7.5hp, 1800 rpm
  • Approximate Floor Space: 118" x 86.5" Needed
  • Overall Height: 70"
  • Approximate Net Weight: 18,820 lbs
  • Shipping Weight Boxed for Export: 20,500 lbs
