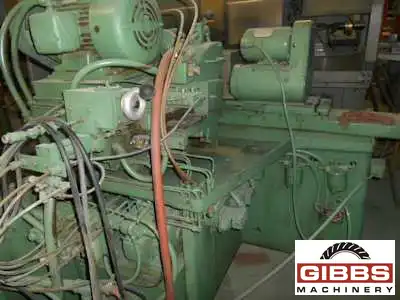

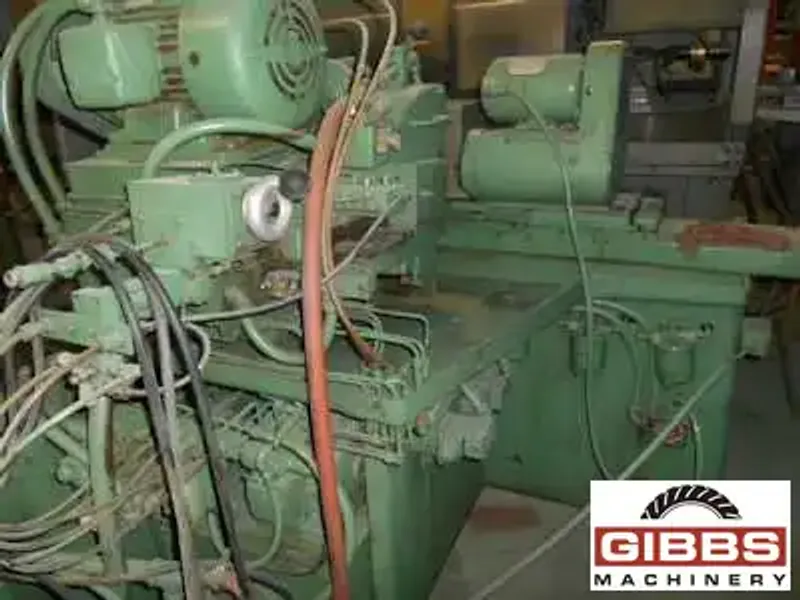

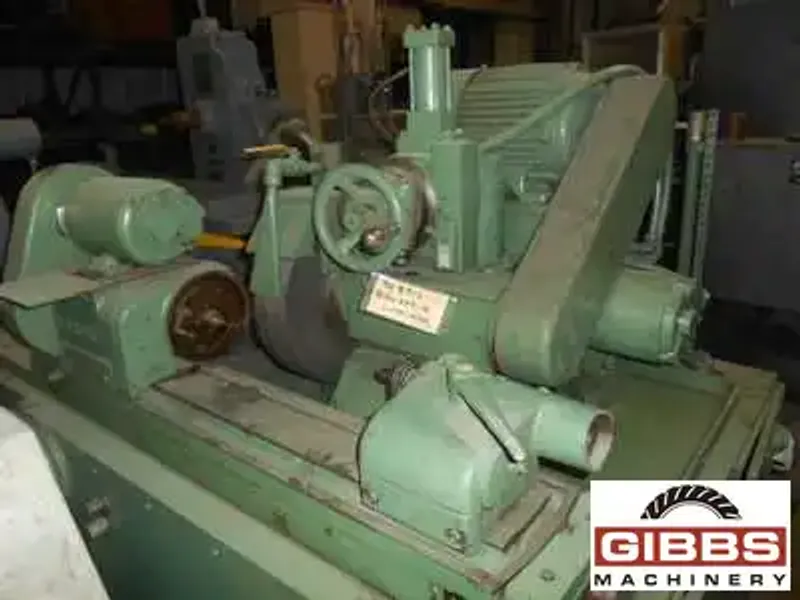

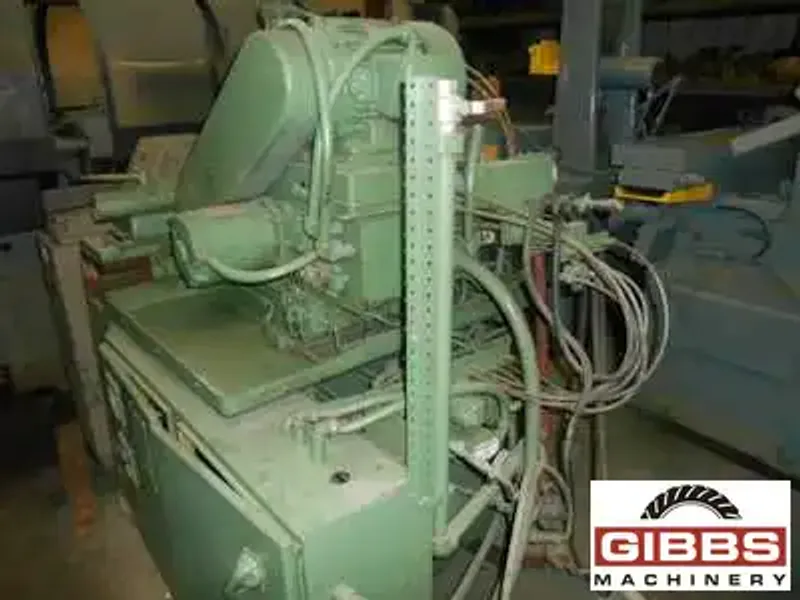

LANDIS 1R - Cylindrical Grinder

Manufacturer

LANDIS

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN

Stock

2912

Model

1R

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Plunge Feed
  • TruForm Semi-Automatic Wheel Dresser
  • Headstock & Tailstock W/Centers
  • Spark-Out Timer
  • Wheel Mount Centers
  • 5-1/4" Wide Wheel Guard
  • 7-1/2 HP Wheelhead Motor
  • Handwheel Traverse
  • Coolant System
,

Machine Specifications :

  • Year 1974
  • Manufacturer LANDIS
  • Dresser (Yes/No) Yes
  • Plunge (Yes/No) Yes
  • Grinding Wheel Dia. 1.0"
  • Plain or Angle Head Plain
  • Center Distance 18.0"
  • Swing 6.0"
,

MODEL #1R 6" X 18" LANDIS PLAIN O.D. GRINDER

    EQUIPPED WITH:

  • Plunge Feed
  • TruForm Semi-Automatic Wheel Dresser
  • Headstock & Tailstock W/Centers
  • Spark-Out Timer
  • Wheel Mount Centers
  • 5-1/4" Wide Wheel Guard
  • 7-1/2 HP Wheelhead Motor
  • Handwheel Traverse
  • Coolant System
  • SPECIFICATIONS:
  • Nominal Work Swing: 6"
  • Nominal Distance Between Work Centers: 18"
  • Max. Diameter Work Standard Machine Will
  • Grind With Full Size Standard Wheel: 6 7/8"
  • Floor Space Required: 106" x 50"
  • Traverse Speed: 2" - 240"/Min.
  • Grinding Wheel Size (Standard): 16" x 1" x 5"
  • Grinding Wheel (Max. Width): 3"
  • Headstock Work Center: #10 Jarno
  • Footstock Work Center: #6 Jarno
  • Approx. Weight (W/Hyd. Traverse & Hyd. Infeed): 4,150 lbs
  • F.O.B, TRUCK, WARREN, MI
