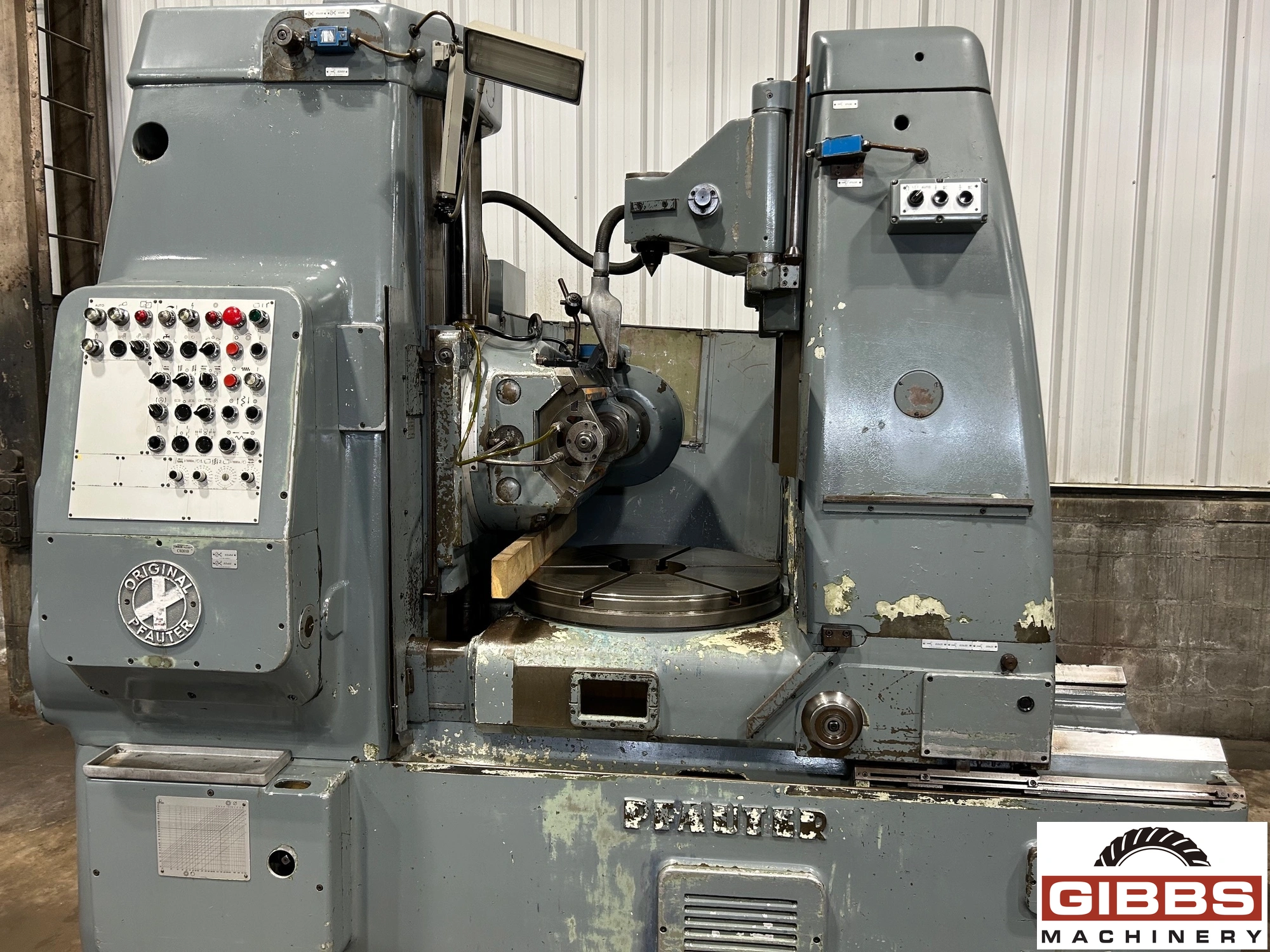

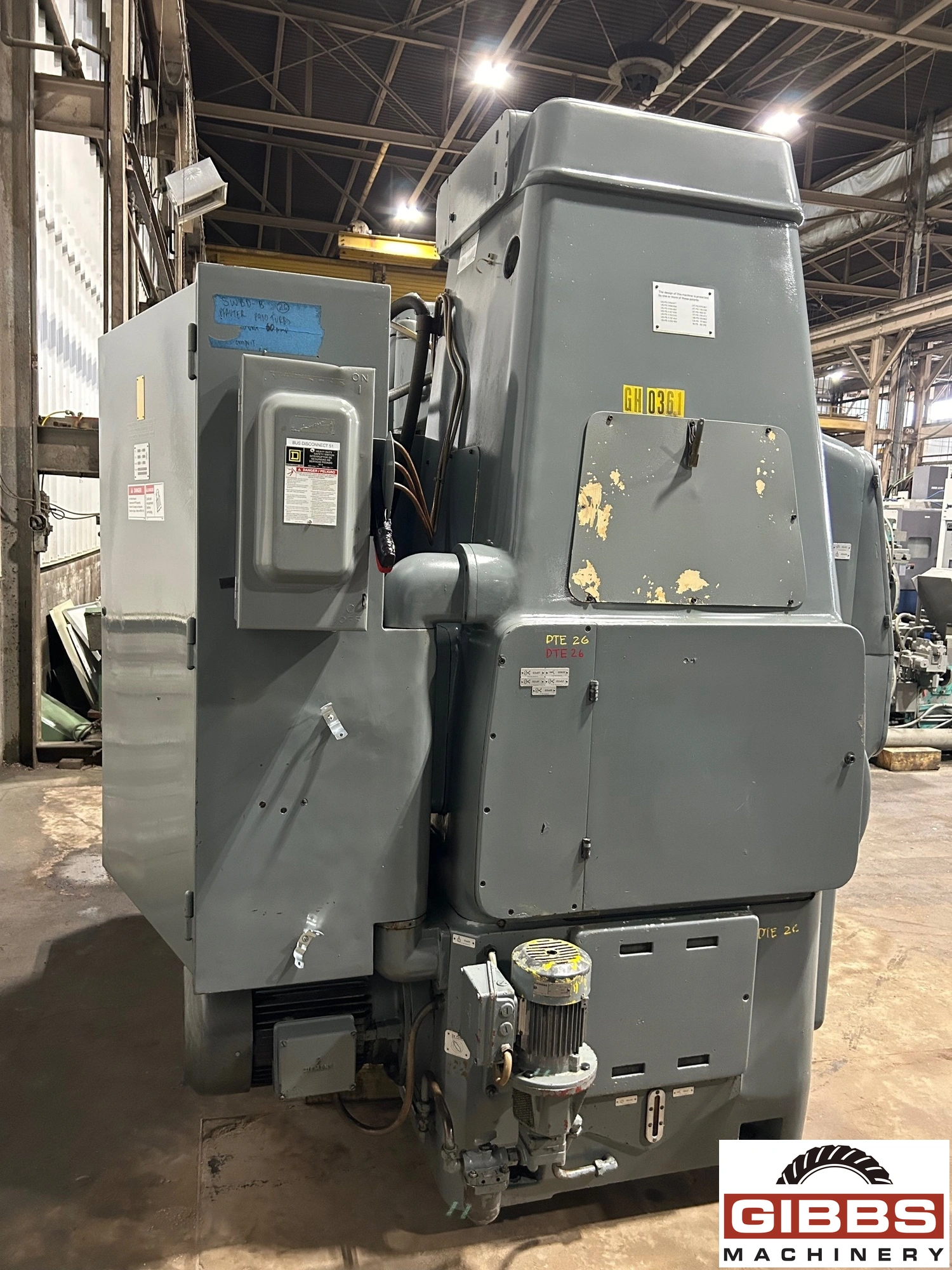

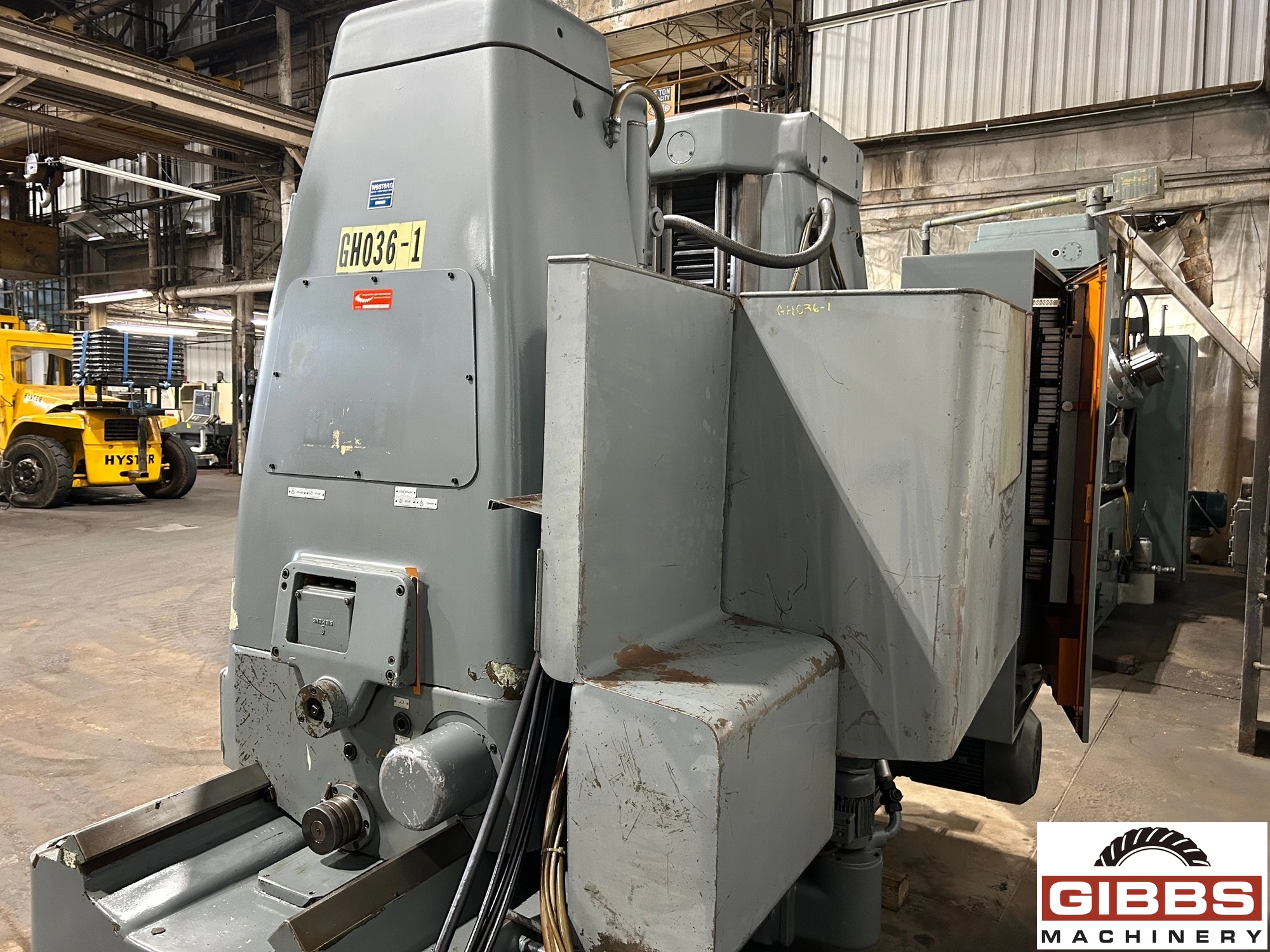

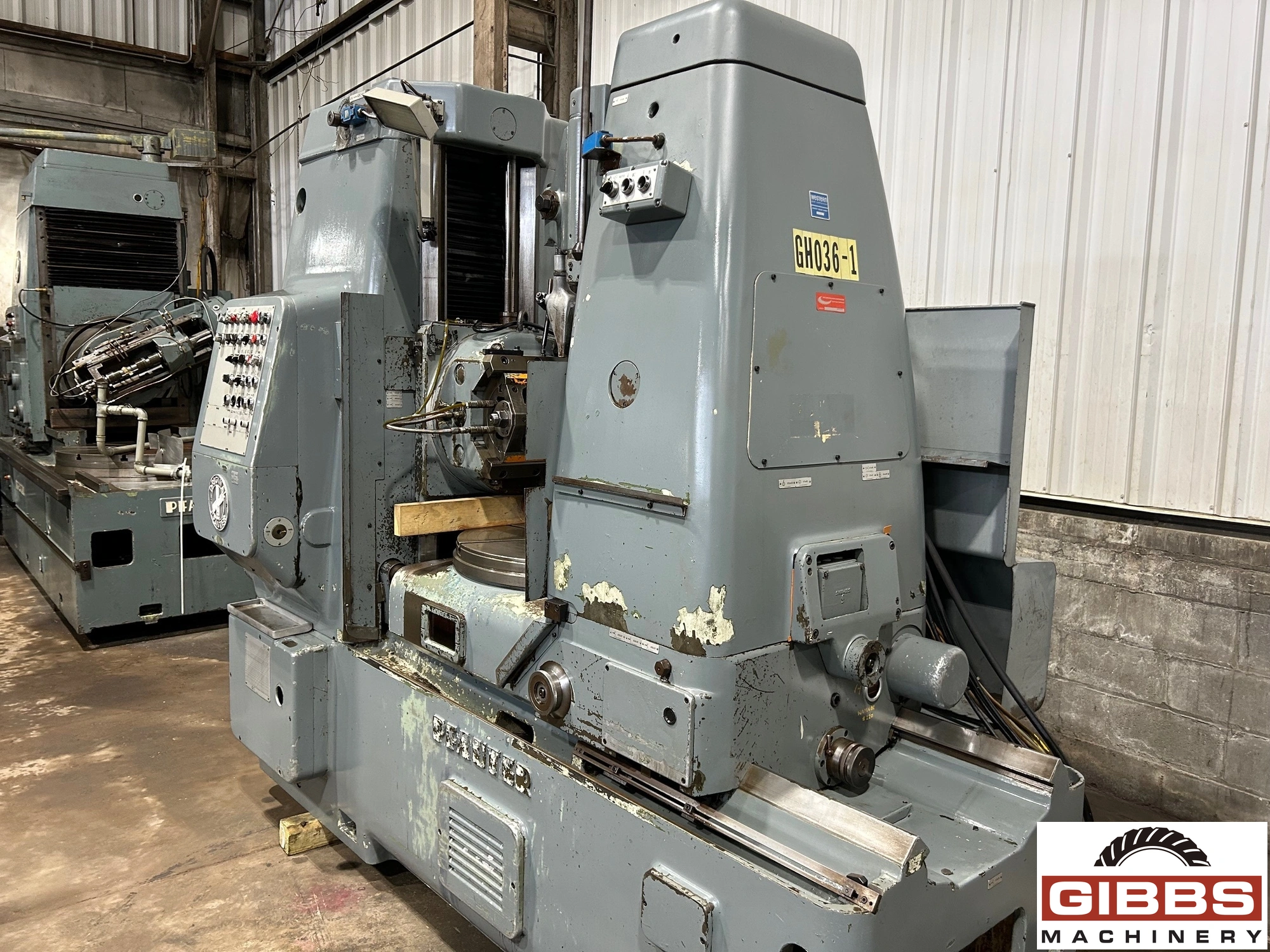

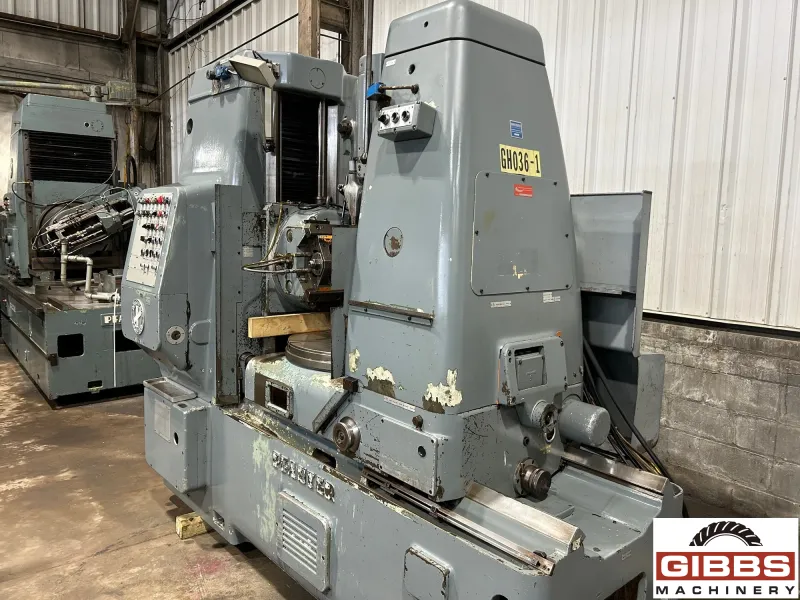

PFAUTER P-900 - Gear Hobber

Manufacturer

PFAUTER

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL

Stock

25505

Model

P-900

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Differential
  • Two-Cut Cycle
  • Tailstock W/Center

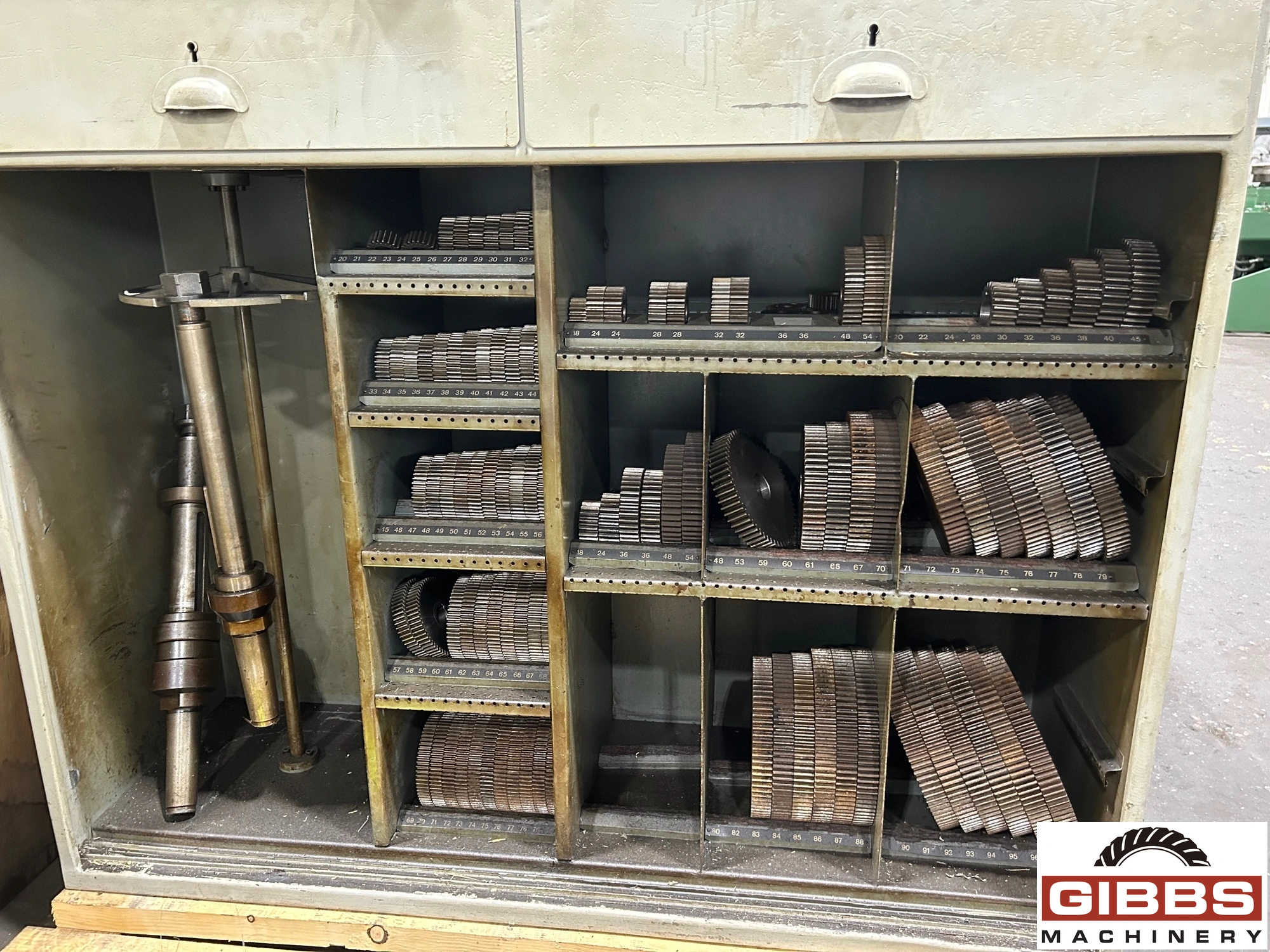

  • Change Gears
  • Arbors
  • Chip Conveyor

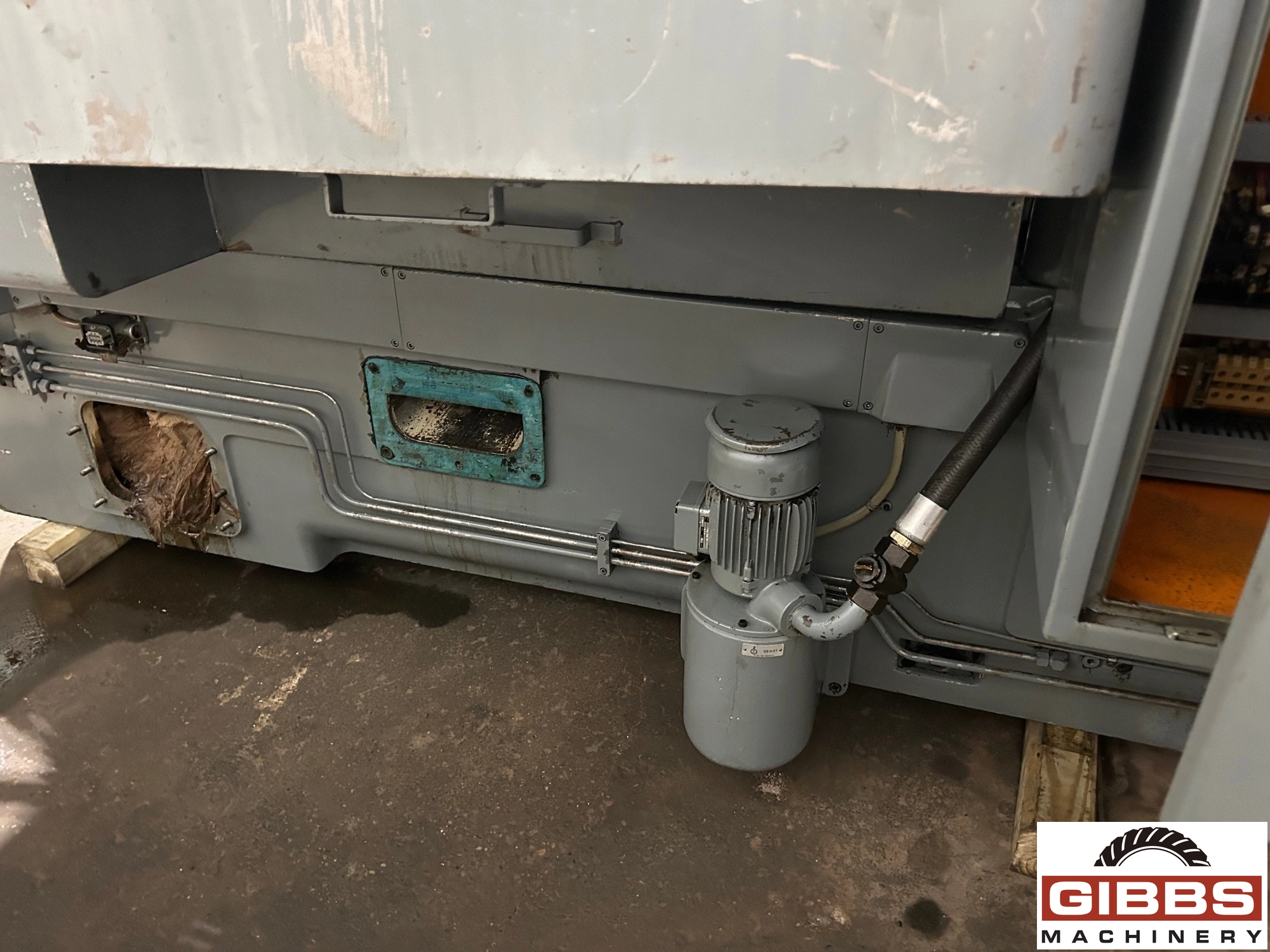

  • Coolant System
,

Machine Specifications :

  • Year 1975
  • Manufacturer PFAUTER
  • Maximum Workpiece Diameter 36.0"
  • Horz/Vert Vert
  • Maximum Diametral Pitch 2.5
  • Axial Travel 19.685"
  • Maximum Hob Diameter 7.5"
  • Hob Arbor Size 1.25"

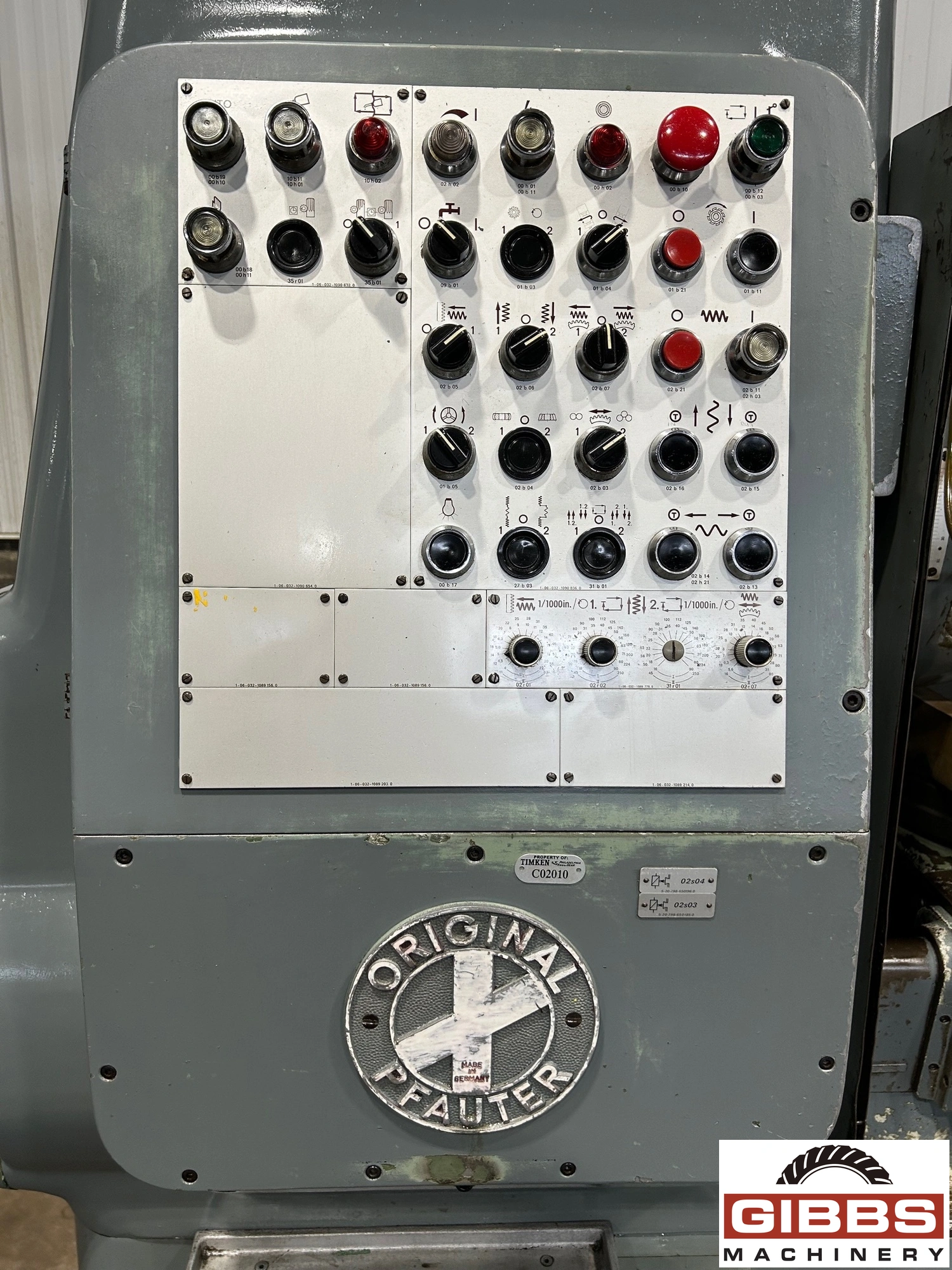

  • Control Manufacturer Conventional
  • Module 10.0
,

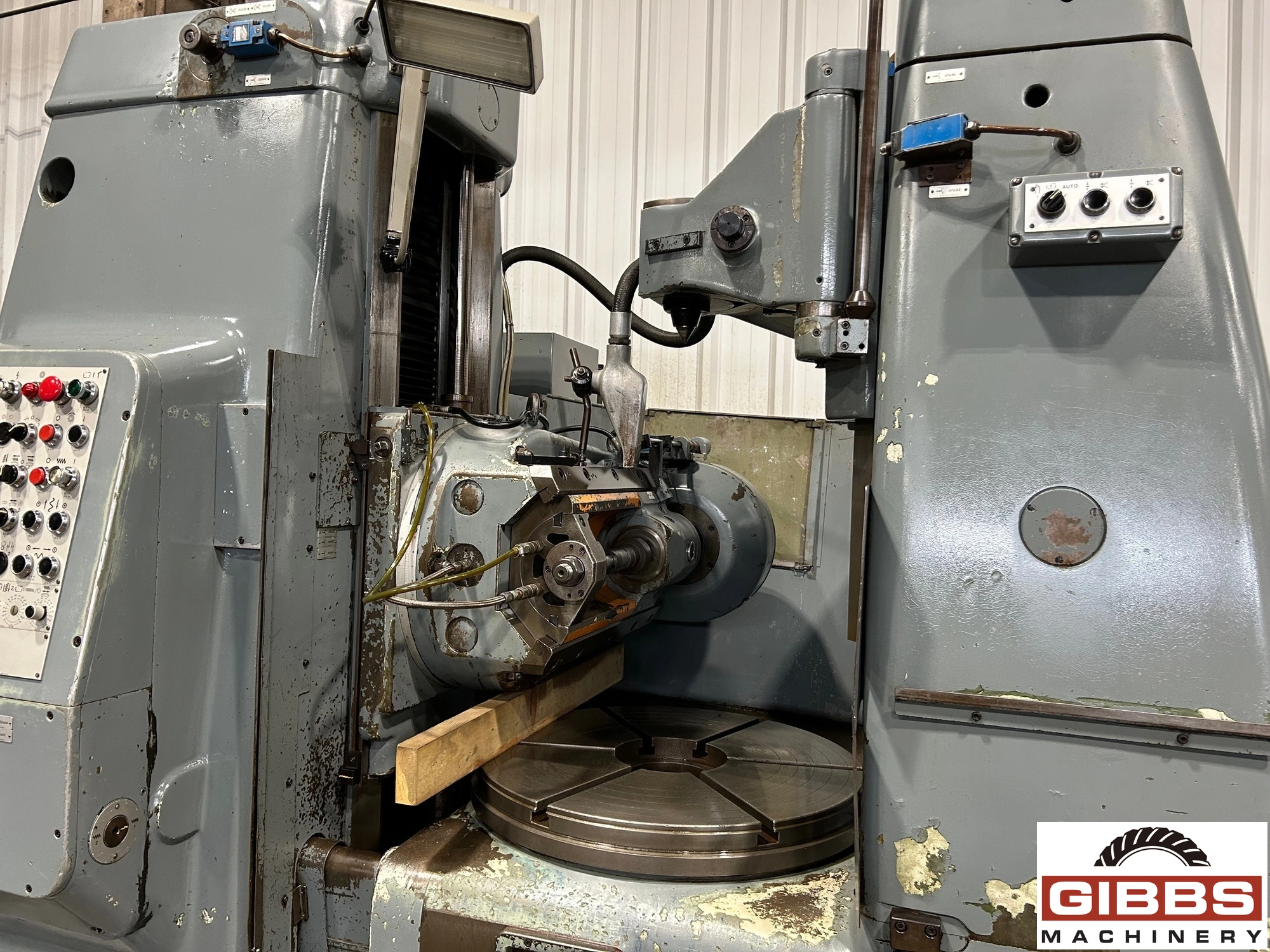

The Pfauter P900 vertical gear hobber is a high-production hydraulic machine designed for precise gear hobbing. It can handle gears with a maximum diameter of 900mm and a maximum module of 10. The machine features a double-cut cycle with independently adjustable hob rotation speeds and feed rates for both cuts.

    SPECIFICATIONS:

  • Maximum Workpiece Diameter: 35.433"
  • Maximum Axial Travel: 19.685"
  • Worktable Diameter: 27.559"
  • Workhead Spindle Bore: 7.087"
  • Maximum Radial Center Distance: 21.654"
  • Minimum Radial Center Distance: 1.969"
  • Maximum Hob Diameter: 7.559"
  • Maximum Hob Length: 8.465"
  • Maximum Hob Shift Travel: 7.874"
  • Hob Speed Range (Inf. Variable): 45 - 280 RPM
  • Rapid Traverse Radial: 0.069 in/min
  • Machine Weight: 18,739#
  • Plant Power: 460 VAC, 60 Hz
  • Machine Dimensions (lxwxh): 235.433" x 114.764" x 137.795"
